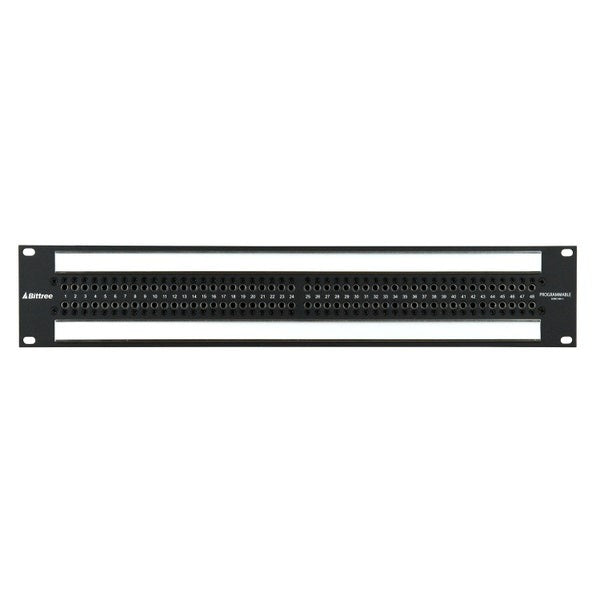

Bitree 969 Series Isolated 12" Patch Bay

The Bitree 969 Series Isolated 12" Patch Bay is a professional audio patching system designed for high-density signal routing in recording studios, broadcast facilities, live sound racks, and post-production suites. This 12-inch deep, rack-mountable unit provides a centralized and organized interface for connecting various pieces of audio equipment, such as microphones, preamps, outboard processors, and recording interfaces. The term "isolated" refers to its internal wiring configuration, where the front panel jacks are electrically isolated from the rear panel jacks. This allows for complete flexibility in signal flow; a technician can use patch cables on the front panel to manually reroute or "normaled" connections, which are the default electrical connections made internally between corresponding front and rear jacks when no patch cable is inserted.

Constructed with durability in mind, the patch bay features robust 1/4" TRS (Tip-Ring-Sleeve) jacks that accommodate both balanced and unbalanced connections. The isolation of the jacks is critical for preventing ground loops and crosstalk, ensuring clean signal integrity in complex audio systems. The 12-inch depth provides ample space for cable management behind the rack, allowing for neat dressing of the permanent wiring that connects to the rear of the unit. The front panel is clearly labeled for easy identification of channels, streamlining the workflow for engineers during sessions.

The patch bay supports various normaling schemes—half-normaled, full-normaled, or parallel—which can often be configured by the user via internal jumpers or switches. This configurability makes it a versatile backbone for any audio installation, enabling creative signal routing, easy troubleshooting, and efficient repurposing of gear. By centralizing all critical audio connections into a single, accessible panel, the Bitree 969 Series Isolated Patch Bay enhances system flexibility, reduces cable clutter, and is an indispensable organizational tool for professional audio environments.
