Blackmagic Design

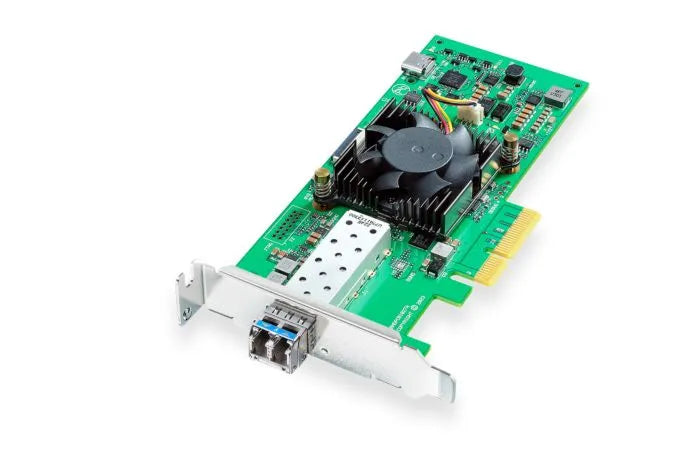

Blackmagic Design BMD-BDLKIPFIP/SDI/HD DeckLink IP/SDI HD

$475.00

Capture and play back HD video directly into 2110 IP-based broadcast systems with the DeckLink IP HD 3G-SDI from Blackmagic Design. This versatile PCIe card can capture and play back 10-bit uncompressed video at resolutions up to 1080p60 with two input and two output channels of video over a single RJ45 10G Ethernet connector and two input and two output channels over two bi-directional 3G-SDI ports with embedded audio. The Decklink IP supports all popular video software including DaVinci Resolve, Avid Media Composer, Final Cut Pro, Adobe Premiere, and more, with full compatibility with the latest Mac, Windows, and Linux operating systems.

This PCIe 4-lane, generation 2 card supports a very vast range of codecs, including AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, and Uncompressed 8-bit 4:2:2, 10-bit 4:2:2, and 10-bit 4:4:4.

Other supported applications include: Fusion, Adobe After Effects, Avid Pro Tools, Steinberg Cubase and Nuendo, Adobe Photoshop, Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro and Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio/Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard ,Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go, and Autodesk Flam.

View Product Features
  • 10-Bit 1080p60 Uncompressed Video
  • 10G Ethernet Port & 2 x 3G-SDI Ports
  • Ideal for 2110 IP Broadcast Systems
  • NMOS Protocol Support
  • Compatible with Mac, Windows, and Linux
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the Blackmagic Design BMD-BDLKIPFIP/SDI/HD DeckLink IP/SDI HD

The Blackmagic Design DeckLink IP/SDI HD is a professional PCI Express capture and playback card engineered to bridge the gap between traditional SDI-based video infrastructure and modern SMPTE ST 2110 IP-based production networks. This dual-interface card allows a standard workstation to function as a native node in an IP video workflow, capable of both receiving and transmitting uncompressed HD video, audio, and metadata as standardized IP packets over a 10 Gigabit Ethernet connection. Simultaneously, it maintains a conventional SDI interface for compatibility with existing equipment or for local monitoring. By adhering to the SMPTE ST 2110 standard, it ensures seamless interoperability within professional IP media environments, enabling the host computer to be a source, destination, or processing point for live video streams that are routed with the agility of data on an IT network.

Designed for high-performance applications in live production and post-production, the card supports high-definition video formats and handles the separate, synchronized streams for video, audio, and ancillary data as defined by the IP standard. For live production, this enables software-based vision mixing, multi-viewer monitoring, or graphics insertion where feeds are delivered over IP. In post-production, it allows for direct, frame-accurate access to media on IP-connected servers. The card’s integration of PTP (Precision Time Protocol) ensures all streams remain perfectly synchronized. The DeckLink IP/SDI HD effectively future-proofs a workstation, enabling it to participate in next-generation, software-defined broadcast facilities where video is managed with the scalability and flexibility of network data, offering unparalleled operational possibilities.

Key Features

  • 10-Bit 1080p60 Uncompressed Video
  • 10G Ethernet Port & 2 x 3G-SDI Ports
  • Ideal for 2110 IP Broadcast Systems
  • NMOS Protocol Support
  • Compatible with Mac, Windows, and Linux

Blackmagic Design BMD-BDLKIPFIP/SDI/HD DeckLink IP/SDI HD Specs

Interfaces & Standards
IP Interface
10 Gigabit Ethernet SFP+ cage (for optical or copper)
IP Standard
SMPTE ST 2110 Professional Media over IP
SDI Interface
1 x 3G-SDI input, 1 x 3G-SDI output
Video & Audio Support
Maximum Resolution
1080p HD via both IP and SDI
IP Stream Components
Separate video (2110-20), audio (2110-30), and data (2110-40) streams
Audio Channels
Up to 16 channels of embedded audio
Host System & Synchronization
Host Interface
PCI Express (PCIe) x4
Synchronization
PTP (Precision Time Protocol) for IP stream timing
OS Support
Windows, macOS, Linux
Physical
Form Factor
Full-height, half-length PCIe card
Connectors
SFP+ cage, BNC for SDI In/Out, BNC for reference input

Key Features

  • 10-Bit 1080p60 Uncompressed Video
  • 10G Ethernet Port & 2 x 3G-SDI Ports
  • Ideal for 2110 IP Broadcast Systems
  • NMOS Protocol Support
  • Compatible with Mac, Windows, and Linux
