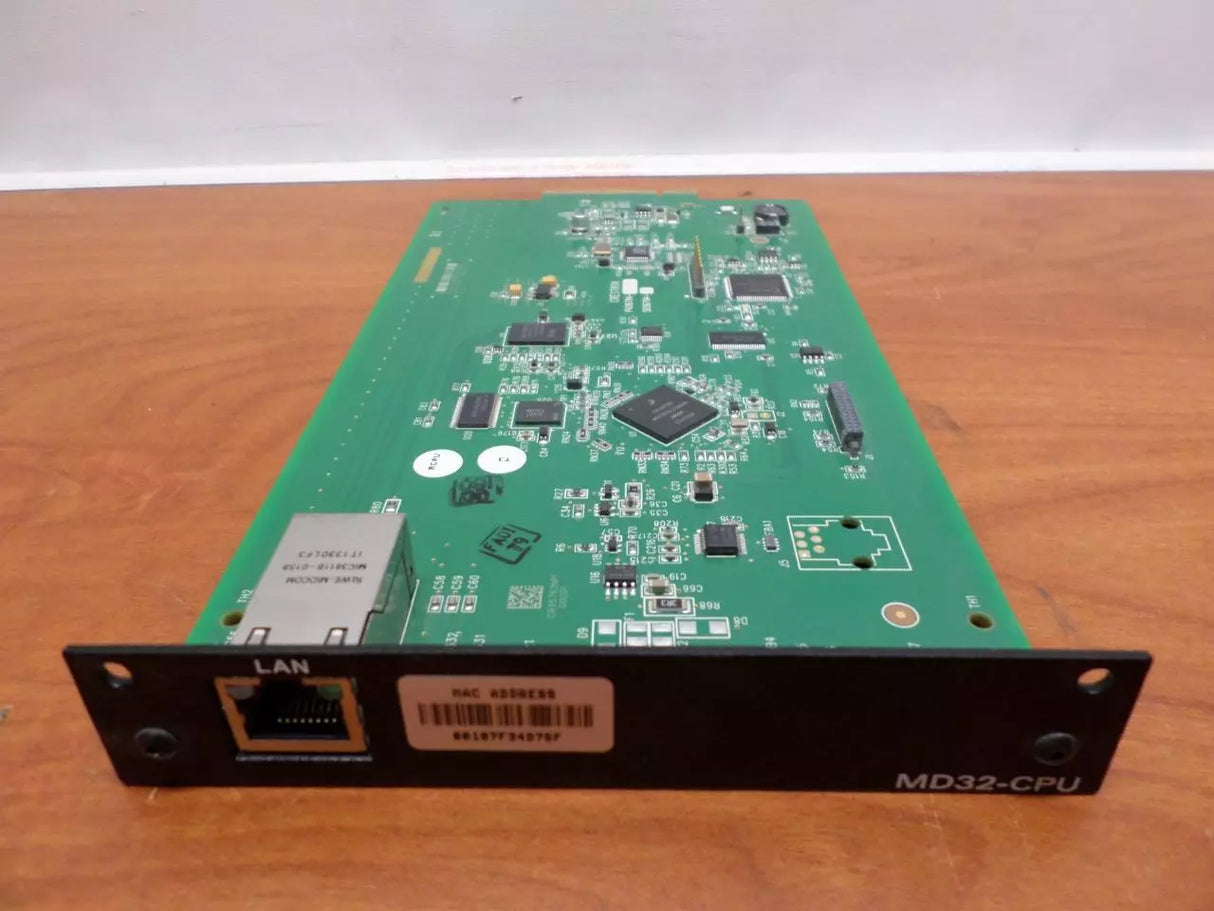

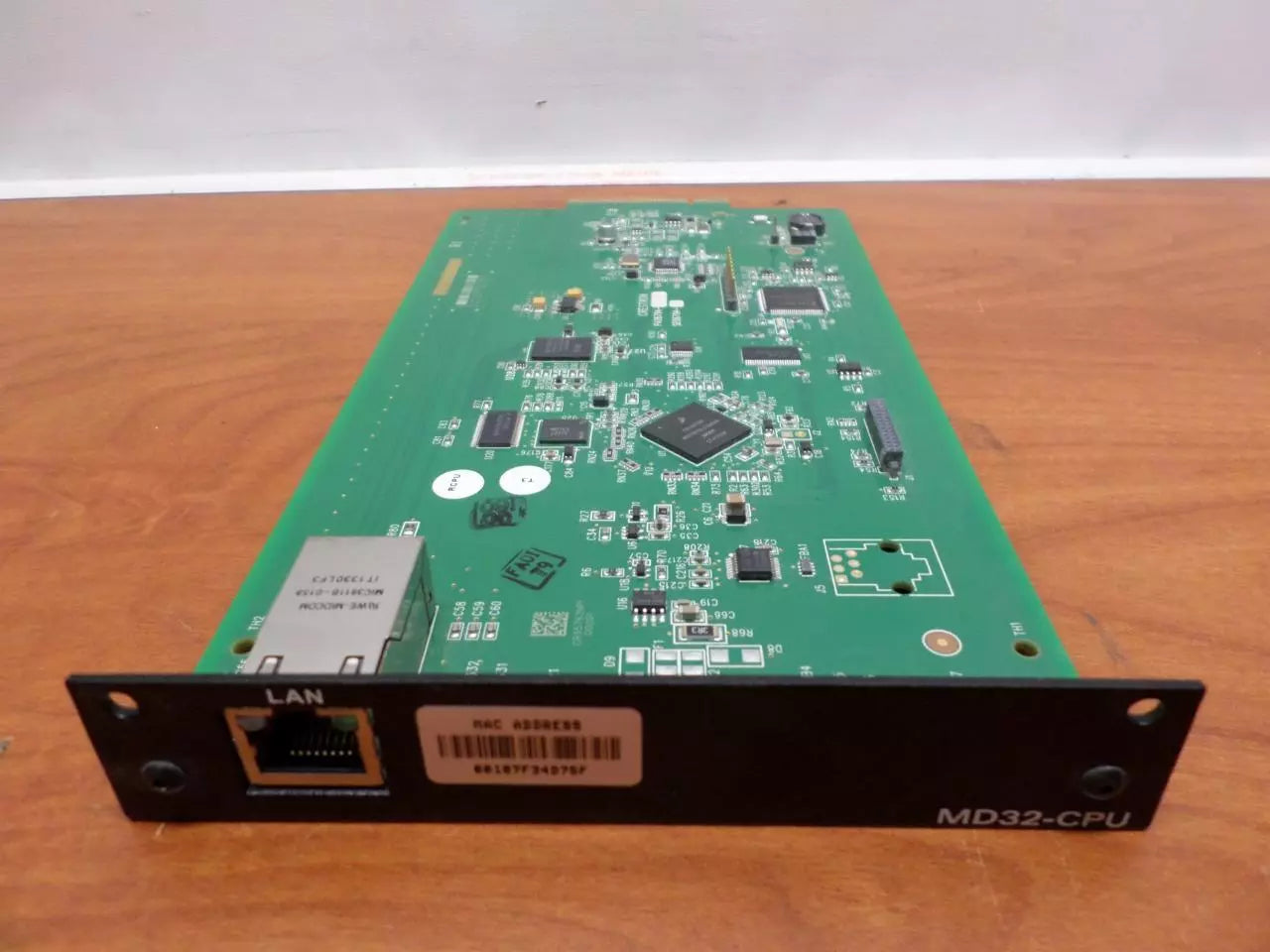

The Crestron MD32-CPU (and the later, enhanced MD32-CPU3 model) serves as the central brain and a powerful LAN control card for the modular DM-MD32x32 DigitalMedia matrix switcher chassis.This critical component is an advanced 3-Series platform processor designed to provide enterprise-grade security, robust network connectivity, and sophisticated AV signal management for large-scale commercial or residential installations.Its primary function involves handling the complex routing of up to 32 different audio and video sources to various displays, integrating HDMI, HDBaseT, and Crestron's proprietary DM 8G+ technologies over twisted pair or fiber optic cabling.Beyond mere switching, the card provides the processing power for essential features like QuickSwitch HD technology for fast, reliable HDCP key management and EDID format management to resolve compatibility issues between diverse connected devices.

A major advantage of the MD32-CPU is its seamless integration of high-performance H.264 streaming capabilities, allowing HD content distribution across an entire campus or even globally over an IP network, effectively removing physical distance limitations.This network functionality extends beyond simple streaming, as the card acts as a built-in Ethernet switch, delivering 10/100/1000 Mbps connectivity to compatible DM endpoints throughout the system.A highly practical feature for system administrators is the "Private Network Mode" (PNM), which allows the entire expansive DM network and all its connected devices to use just a single IP address on the enterprise LAN, simplifying network administration and enhancing security by isolating the AV infrastructure.

The card facilitates versatile control and communication options far beyond basic AV routing.It manages the routing of USB Human Interface Device (HID) signals, enabling a single keyboard and mouse to control multiple computers in different locations, a significant benefit for command centers or large server rooms.Furthermore, it supports embedded device control via the HDMI Consumer Electronics Control (CEC) channel, allowing the Crestron control system to manage displays and other gear without running separate control wires.Configuration and diagnostics are user-friendly, achievable via the front panel LCD display, web browser interface, or Crestron Toolbox software, allowing installers to easily test cable lengths and manage system configurations efficiently.
