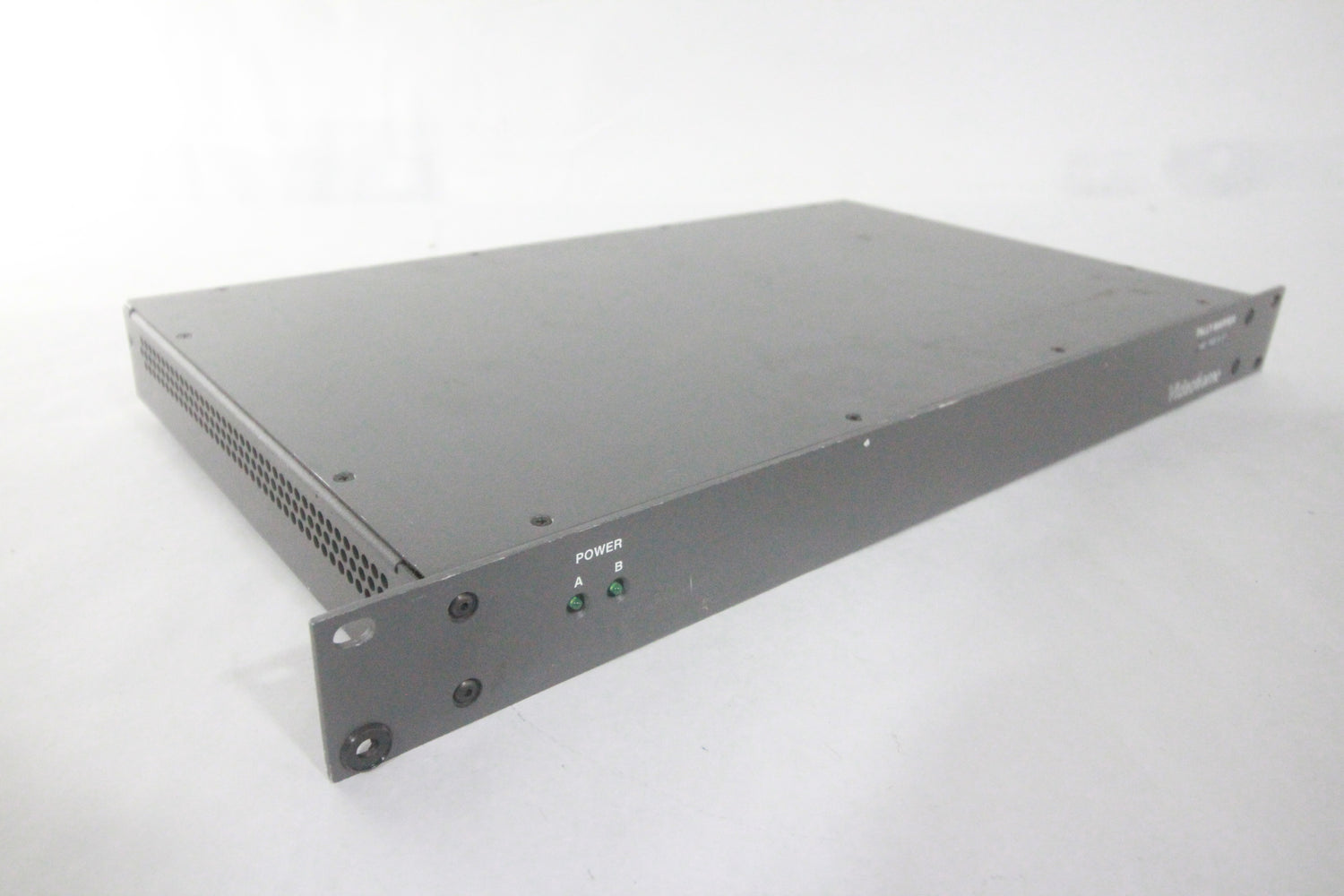

Grass Valley VF0010-00 Video Frame Tally Mapper System

The Grass Valley VF0010-00 Video Frame Tally Mapper is a specialized broadcast system component designed to manage and distribute tally information within a live production environment. In multi-camera television studios, mobile production trucks, and broadcast facilities, tally lights provide critical visual cues to camera operators, talent, and directors by indicating which camera is currently "on air" or in preview. This system serves as the central hub that receives switching commands from the production switcher or routing system and translates them into the appropriate control signals to illuminate the correct tally lights on specific cameras, monitors, and control panels. It ensures that every piece of equipment in the facility receives accurate and synchronized tally information, which is essential for smooth, error-free live production.

The system operates by mapping physical or logical inputs from the switcher (such as GPI triggers, serial data, or network protocols) to specific tally outputs across the facility. It is highly configurable, allowing engineers to define complex relationships—for example, assigning different tally colors (red for on-air, green for preview) or controlling tallies for remote camera sites over IP. The VF0010-00 typically interfaces with a variety of tally display devices, from simple LED lights on camera viewfinders to integrated indicators in control room monitors, via various output types including relay closures, low-voltage DC, or serial data. Its reliability is paramount, as incorrect tally information can lead to on-air mistakes, such as a camera operator thinking they are off-air when they are live.

Housed in a rack-mountable chassis, the tally mapper is designed for integration into professional broadcast infrastructure. It is managed through software or a front-panel interface, enabling easy setup and reconfiguration as production needs change. For broadcast engineers, the Grass Valley VF0010-00 provides a centralized, intelligent, and flexible solution for one of the most fundamental yet critical communication systems in live television. By ensuring clear and accurate tally signaling, it supports the complex choreography of live production, helping crews work together seamlessly under high-pressure conditions.
