JVC Professional

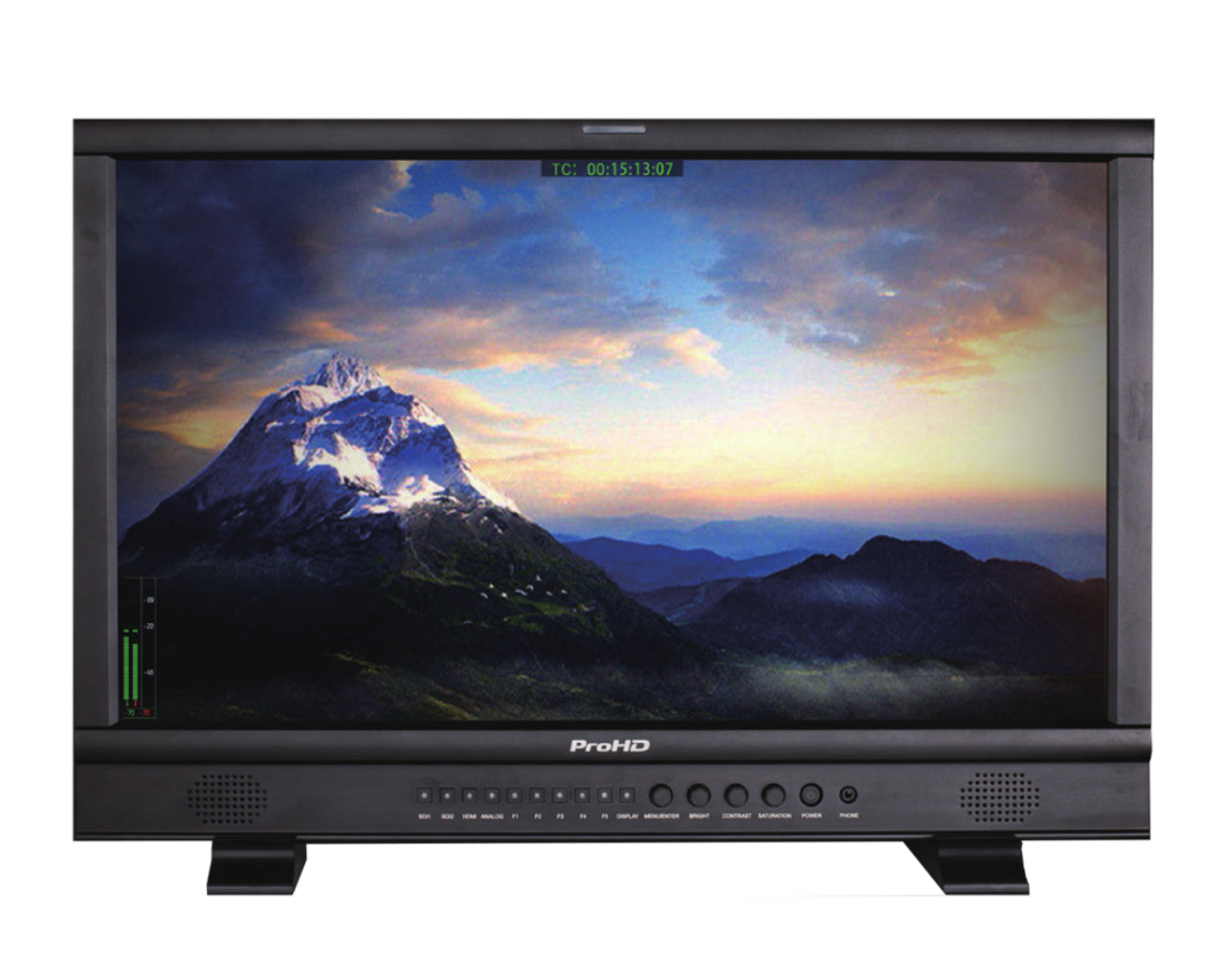

JVC Professional DT-N24H ProHD 23.8-Inch Studio LCD Monitor

$0.00

The ProHD DT-N24H is an affordable Studio Monitor and offers wide connectivity options and features. DT-N24H supports cine 2K 2048 x 1080P signal sources and 3D-LUT Tables

View Product Features

Supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display
1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 178° wide viewing angle (H & V), 1000:1 contrast, and 16.7M color depth.
Compatible with ITU-709 standard color space for HDTV broadcasting.
Gamma preset selection from: 2.2, 2.4 and 2.6.
SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display.
Supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.
USB firmware upgradable.
SDI Timecode (LTC, VITC1&2) and AFD info display.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the JVC Professional DT-N24H ProHD 23.8-Inch Studio LCD Monitor

Key Features

Supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display
1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 178° wide viewing angle (H & V), 1000:1 contrast, and 16.7M color depth.
Compatible with ITU-709 standard color space for HDTV broadcasting.
Gamma preset selection from: 2.2, 2.4 and 2.6.
SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display.
Supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.
USB firmware upgradable.
SDI Timecode (LTC, VITC1&2) and AFD info display.

JVC Professional DT-N24H ProHD 23.8-Inch Studio LCD Monitor Specs

Key Features

Supports 3G-SDI (SMPTE 425M) Level-A & B, 2K-SDI (SMPTE 2048-2) 60p Level-A & B display
1920×1080 pixel full HD resolution LCD panel with LED backlighting, with 178° wide viewing angle (H & V), 1000:1 contrast, and 16.7M color depth.
Compatible with ITU-709 standard color space for HDTV broadcasting.
Gamma preset selection from: 2.2, 2.4 and 2.6.
SDI/HDMI embedded audio 2-ch meters display, and analog audio 2-ch meters display.
Supports UMD controlling input via RS485 and RS232 port, compatible with TSL 3.1 and 4.0 UMD protocol.
USB firmware upgradable.
SDI Timecode (LTC, VITC1&2) and AFD info display.
