KanexPro

KanexPro EXT-HDBTKVM100 4K HDMI Extender Over HDBaseT 2.0 HDMI Transmitter

$127.47

The KanexPro EXT-HDBTKVM100 is an HDCP 2.2 compliant, 4K HDMI Extender set developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoH over a single CAT5e/6 cable. The PoH compliant extender comes with only one power supply, which means that, it can be powered from either Tx or Rx to save installers time and added cost to installing a power outlet.

The HDMI extender runs on shielded CATx up to 100 meters providing full 4K@60Hz or up to 150 meters providing full HD 1080p/60 or 1920x1200@60Hz. One USB type B port is added on the Transmitter for connecting to PC or USB peripherals and two USB 2.0 ports are provided on the receiver side to work like a KVM or USB based Touch Panel using USB HID to create remote USB data and video extension up to 492 feet (150 meters).

View Product Features

  • Extend USB 2.0, 4K UHD video and audio up to 100 meters over HDBaseT
  • Driverless USB 2.0 for webcam video emulation and AEC speakerphone audio
  • USB 2.0 also supports touch-screen functionality and keyboard-video-mouse (KVM)
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

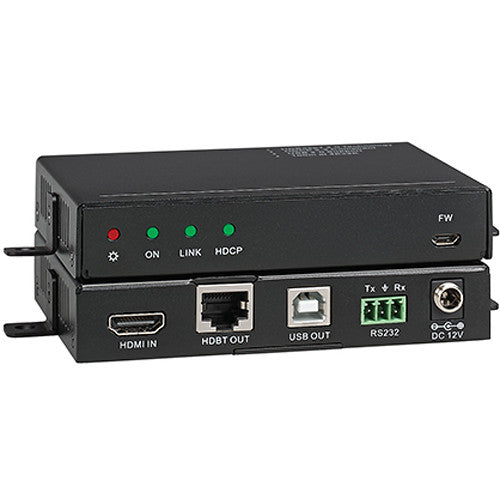

About the KanexPro EXT-HDBTKVM100 4K HDMI Extender Over HDBaseT 2.0 HDMI Transmitter

The KanexPro EXT-HDBTKVM100 4K HDMI Extender over HDBaseT 2.0 is a high-performance solution designed to extend 4K HDMI signals over long distances with exceptional clarity and reliability. Ideal for professional AV installations, this transmitter supports resolutions up to 4K UHD and ensures seamless video and audio delivery to compatible receivers. Its HDBaseT 2.0 technology allows for robust signal transmission up to 328 feet (100 meters) over a single Cat6a/7 cable, reducing cabling complexity while maintaining high-quality performance.

This HDMI extender supports KVM functionality, allowing users to control connected computers or devices remotely using a single keyboard, video, and mouse setup. The unit also supports HDCP 2.2, 3D video formats, and full 18Gbps bandwidth, ensuring compatibility with modern 4K UHD content and professional AV equipment. The intuitive design makes it easy to integrate into conference rooms, control rooms, classrooms, and digital signage applications.

Built for reliability and professional use, the EXT-HDBTKVM100 features a compact metal enclosure with efficient heat dissipation, offering durable operation in demanding environments. Its plug-and-play setup, coupled with advanced HDBaseT features, makes it a dependable tool for extending high-resolution HDMI signals with precision and ease.

Key Features

  • Extend USB 2.0, 4K UHD video and audio up to 100 meters over HDBaseT
  • Driverless USB 2.0 for webcam video emulation and AEC speakerphone audio
  • USB 2.0 also supports touch-screen functionality and keyboard-video-mouse (KVM)

KanexPro EXT-HDBTKVM100 4K HDMI Extender Over HDBaseT 2.0 HDMI Transmitter Specs

Video
Video Signal Type
HDMI
Maximum Video Resolution
Up to 4K 60 Hz
Color Format
Up to 4:4:4
HDCP Support
Yes
Transmission
Technology
HDBaseT 2.0
Transmission Distance
Up to 100 m over CAT6/6a
Cable Type
CAT5e, CAT6, CAT6a
Connectivity
HDMI Input
1 x HDMI
HDBaseT Output
1 x RJ45
USB Support
KVM USB Extension
Control and Features
KVM Support
Keyboard and Mouse Extension
IR Support
IR Pass-Through
EDID Management
Supported
Electrical
Power Input
External Power Supply
Input Voltage
12 V DC
Physical
Chassis Material
Metal
Form Factor
Compact Extender Unit
Environmental
Operating Temperature
0°C to +40°C
Storage Temperature
-20°C to +60°C

Key Features

  • Extend USB 2.0, 4K UHD video and audio up to 100 meters over HDBaseT
  • Driverless USB 2.0 for webcam video emulation and AEC speakerphone audio
  • USB 2.0 also supports touch-screen functionality and keyboard-video-mouse (KVM)
