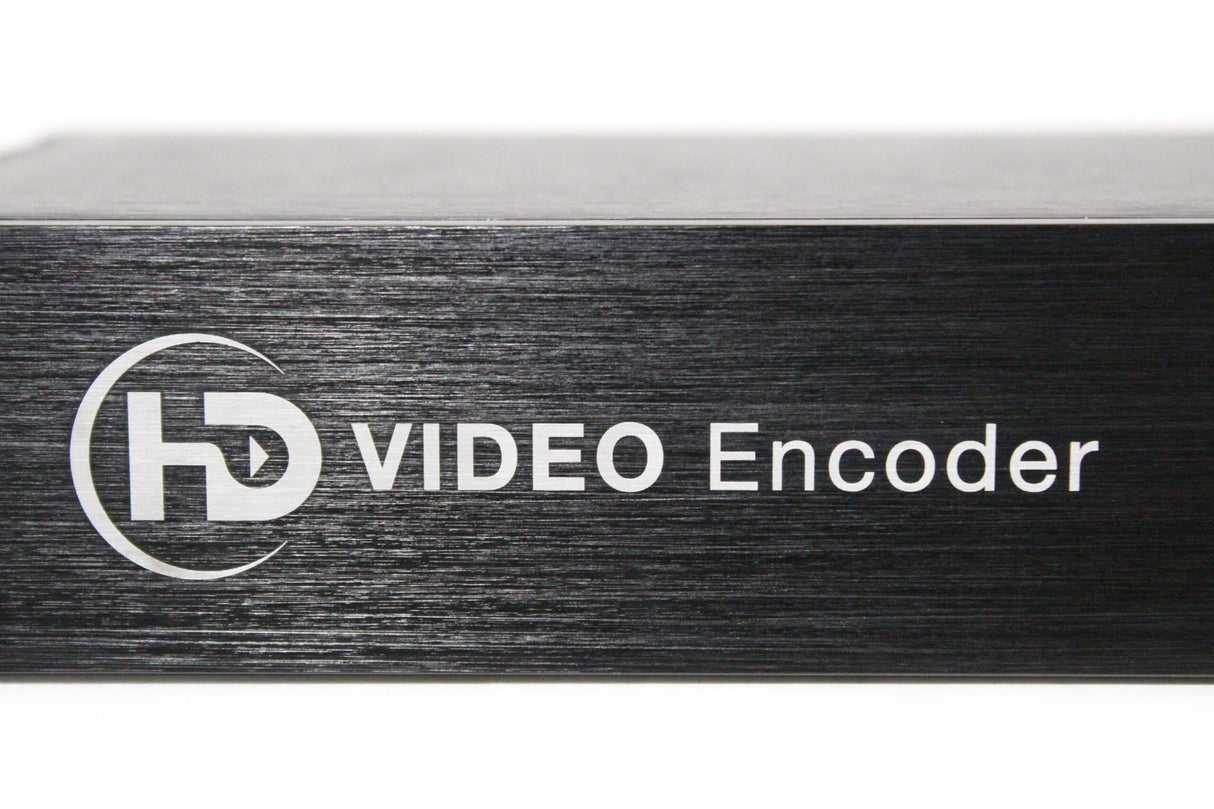

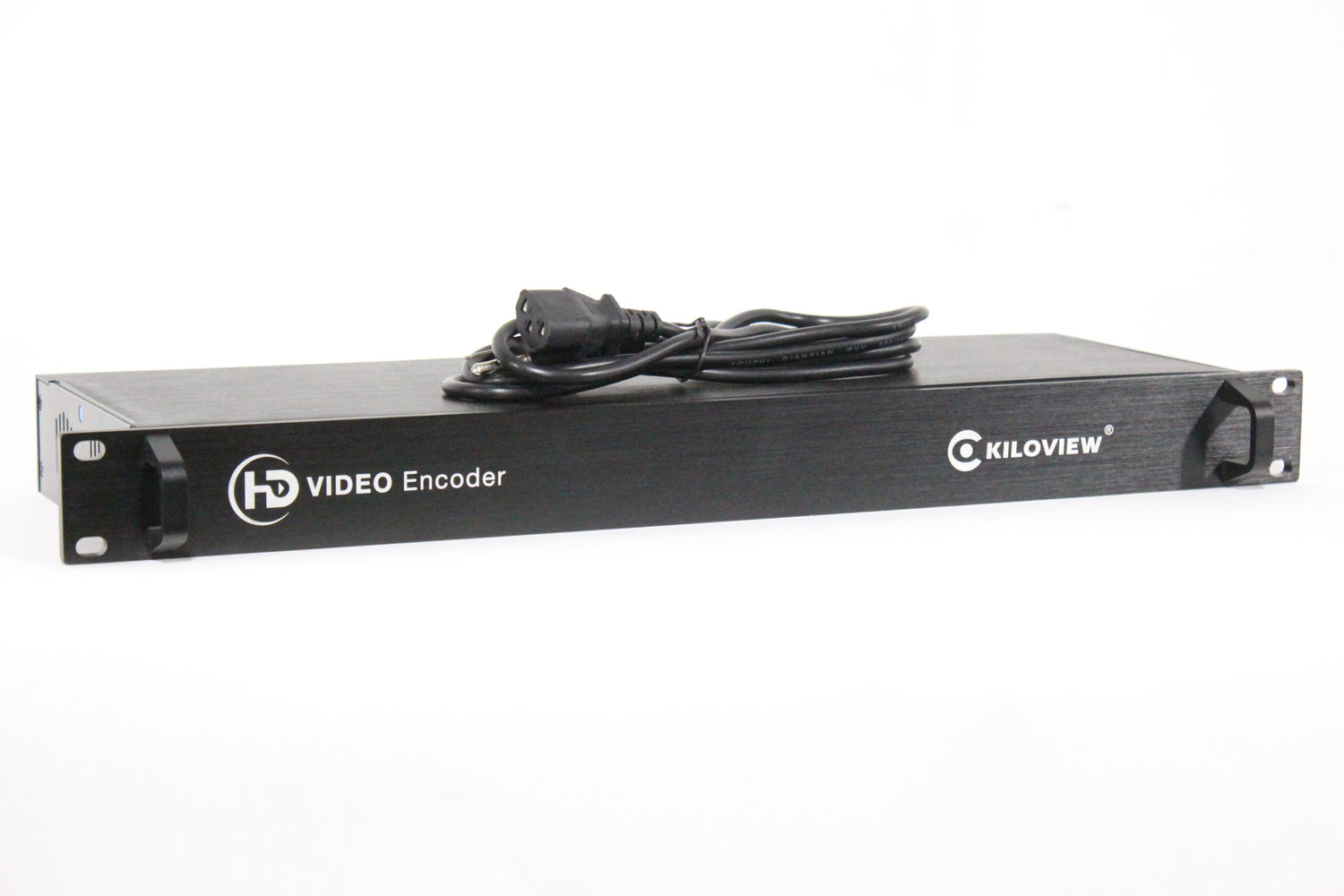

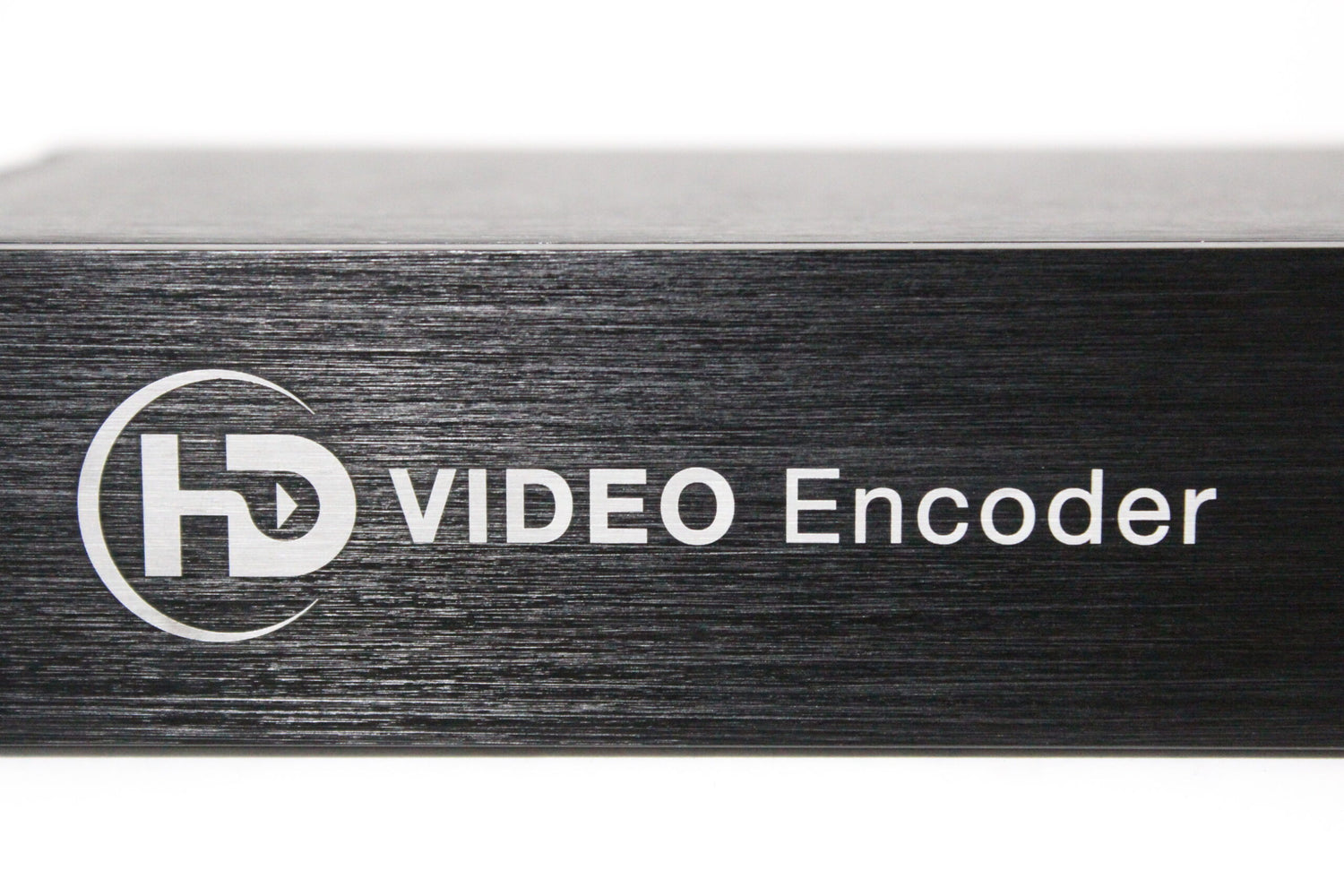

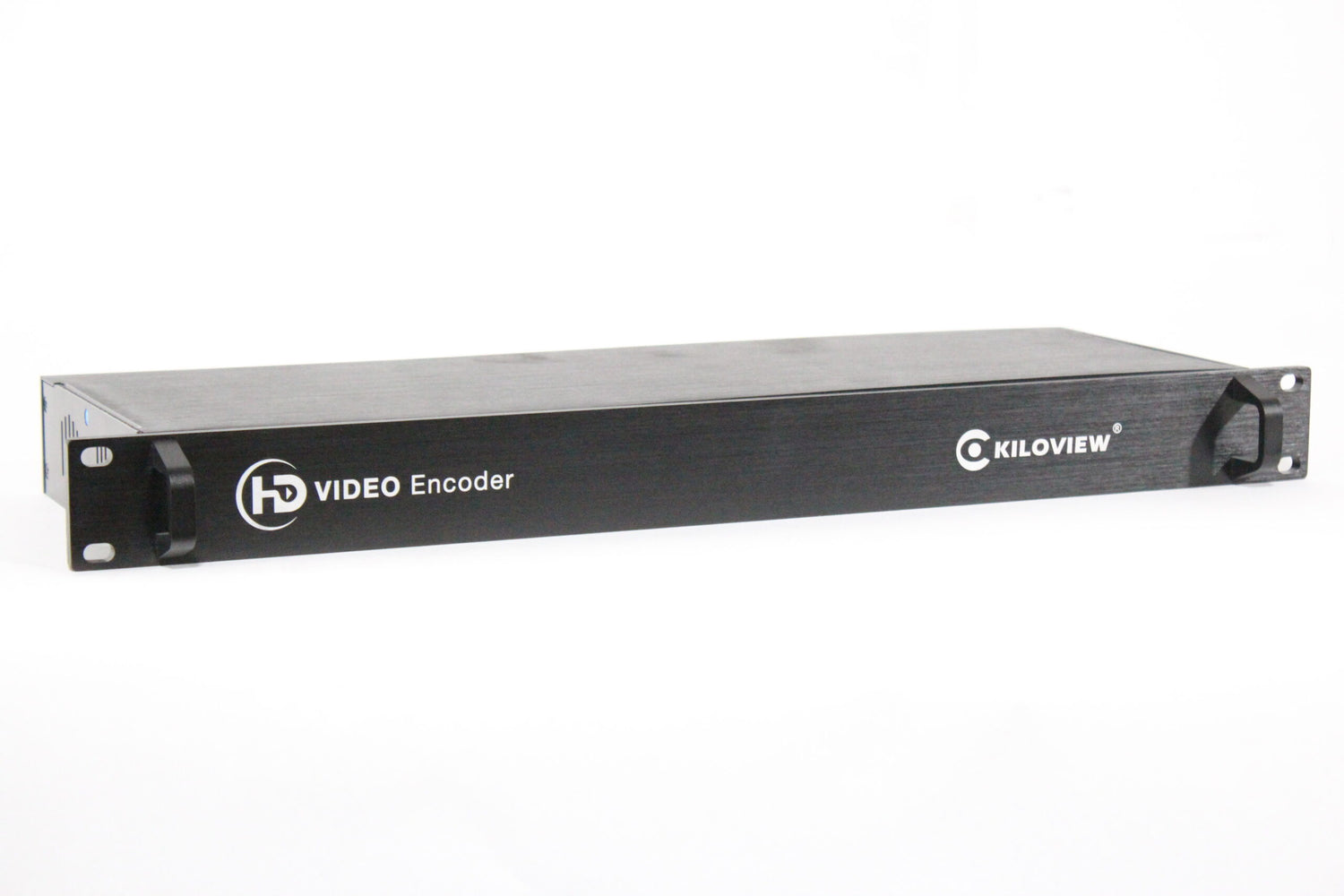

Kiloview U1-4-NDI HD Video Encoder

The Kiloview U1-4-NDI is a professional 1U rackmount video encoder engineered to seamlessly integrate traditional SDI-based broadcast equipment into modern IP production workflows utilizing the NDI protocol. This quad-channel unit accepts four independent SDI inputs, supporting signals up to 3G-SDI, and simultaneously encodes each feed into a high-quality, low-latency NDI stream. This capability allows broadcasters, live event producers, and AV integrators to make cameras, graphics playout systems, replay machines, and other SDI sources instantly available as network resources. These streams can be accessed by any NDI-compatible software or hardware on the local area network, such as vMix, OBS Studio, NewTek TriCasters, or other Kiloview decoders, enabling flexible IP-based switching, streaming, and multi-viewer monitoring without the need for dedicated capture cards or SDI routing infrastructure.

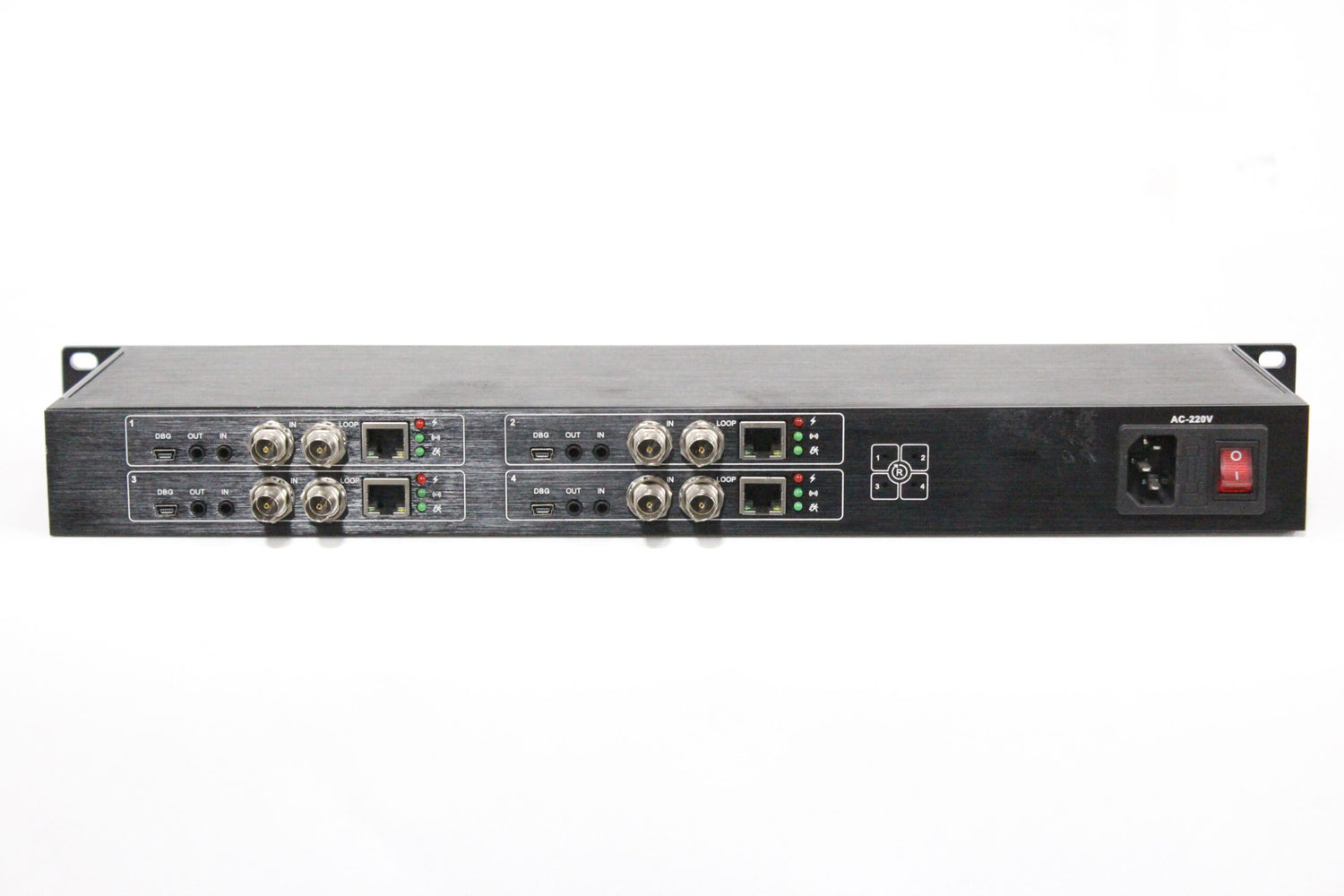

A key feature of the encoder is its focus on operational efficiency and reliability. Each of the four BNC inputs is auto-sensing, capable of handling SD, HD, and 3G-SDI signals with embedded audio, simplifying setup. The unit is configured and managed via an intuitive web-based graphical user interface, where users can assign stream names, select between NDI|HX (high efficiency) or full NDI modes, adjust encoding bitrates, and set network parameters per channel to balance quality and bandwidth. For installations requiring neat cabling and remote placement, the device supports Power over Ethernet (PoE+), receiving both data connectivity and operational power through a single Ethernet cable, which eliminates the need for a separate AC power adapter at the rack.

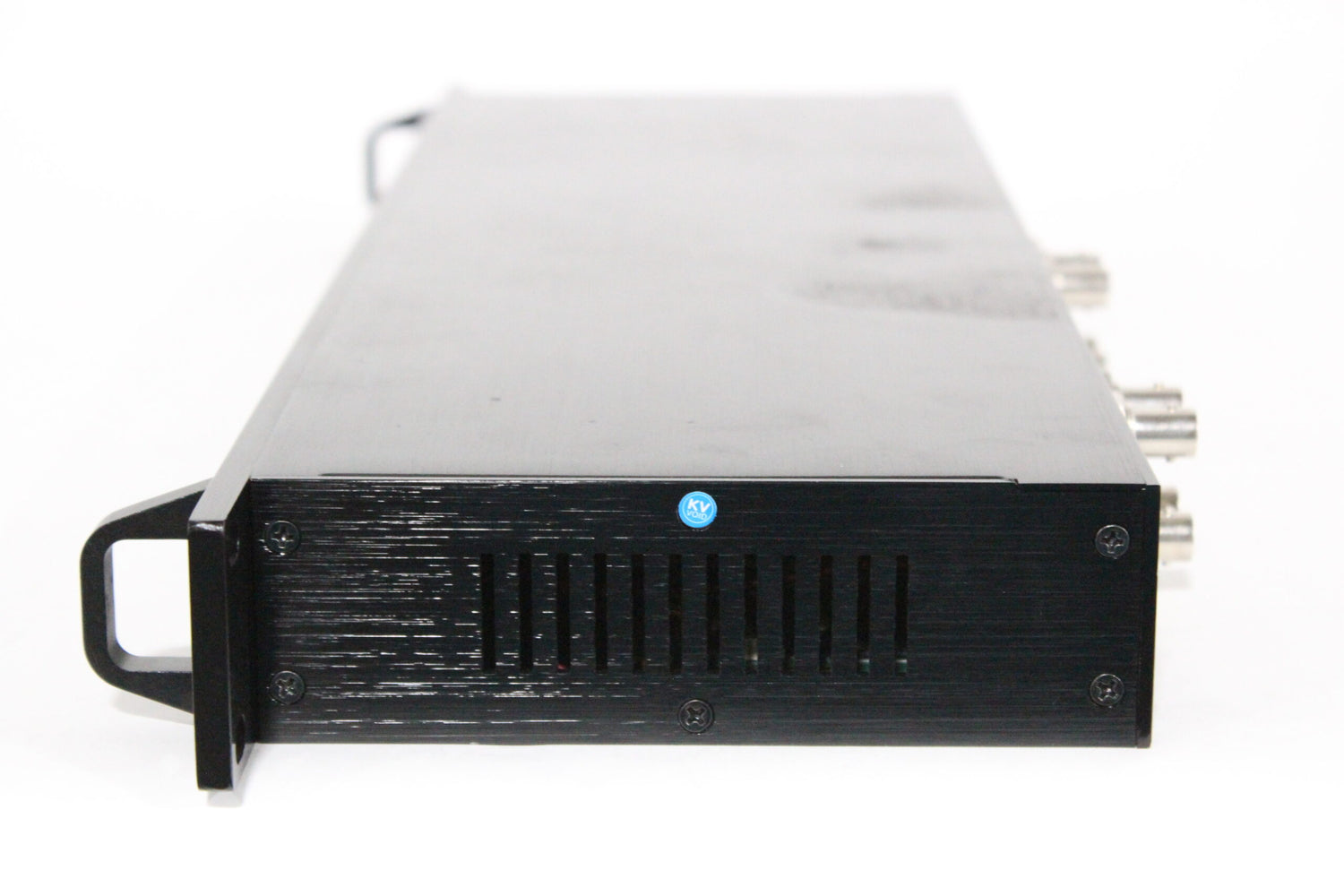

Built for continuous operation in demanding environments, the U1-4-NDI boasts a robust all-metal chassis and a fanless cooling design, ensuring silent and reliable performance in broadcast trucks, control rooms, and fixed installations. Its compact 1U form factor maximizes rack density. By consolidating four high-quality encoders into a single, manageable unit, it provides a cost-effective and space-saving solution for transitioning to or expanding an IP-based production ecosystem. The Kiloview U1-4-NDI acts as a critical bridge, future-proofing valuable SDI equipment and enabling the flexibility, scalability, and cost efficiencies inherent in software-defined video production over IP networks.
