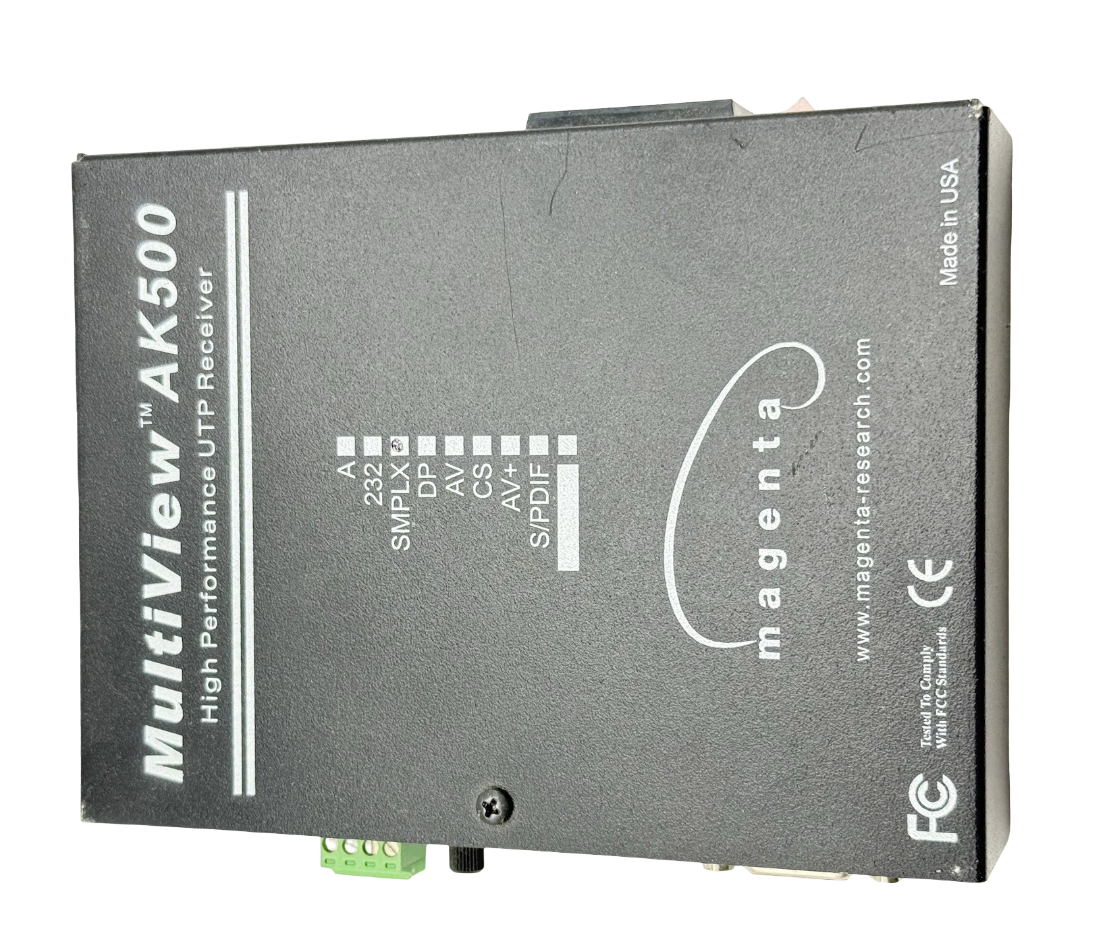

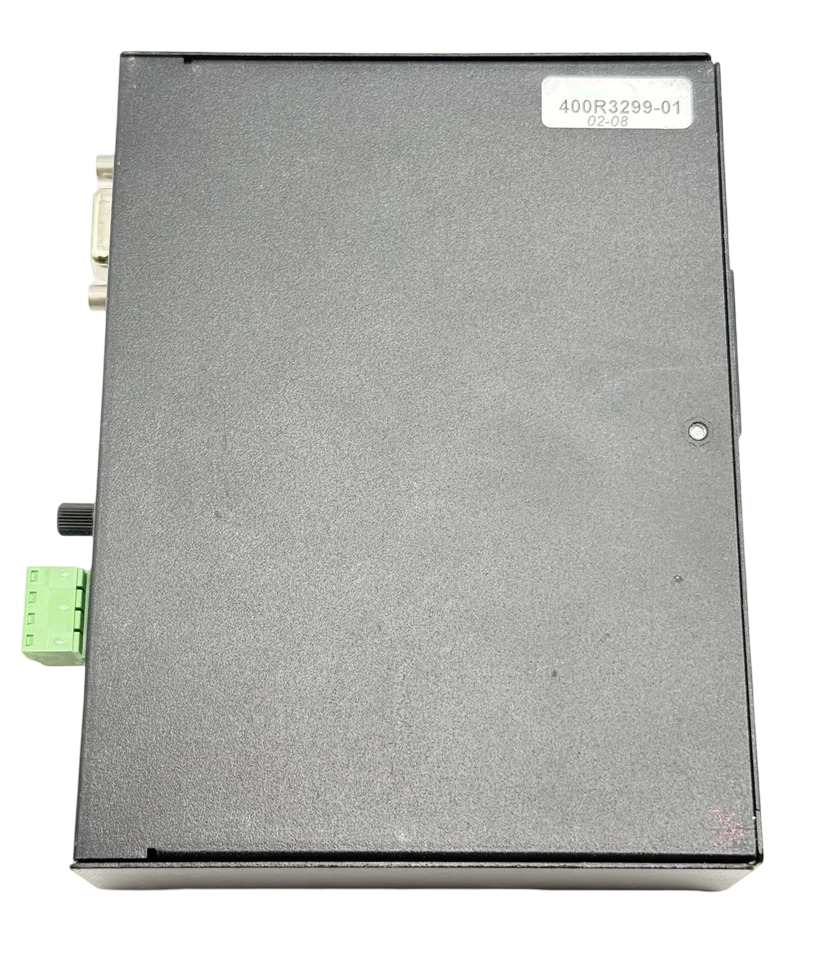

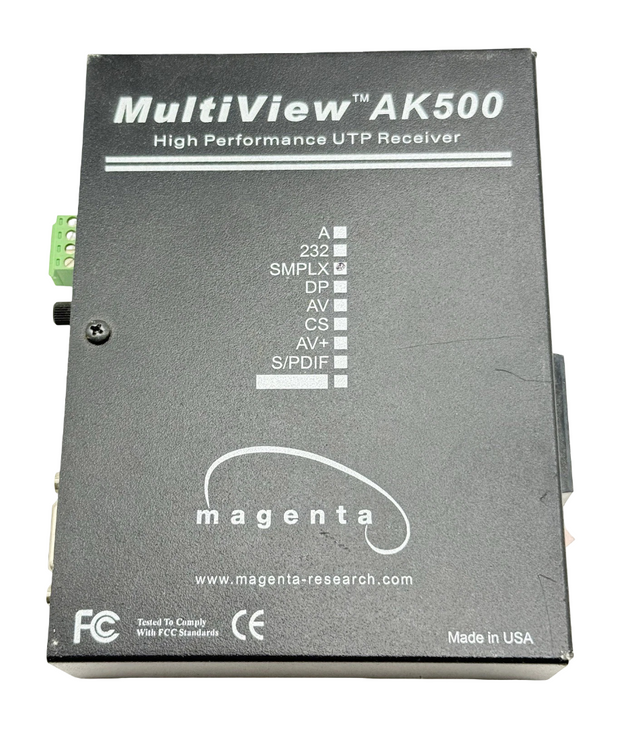

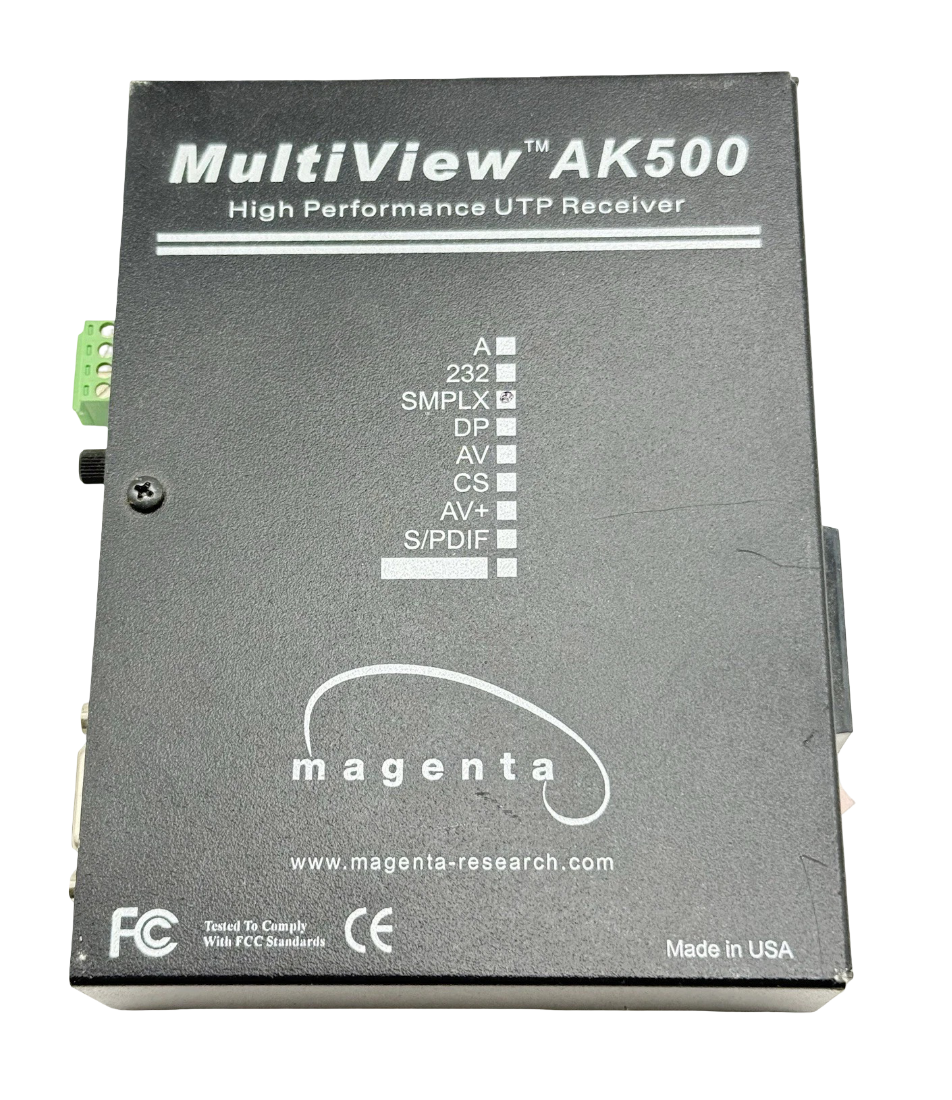

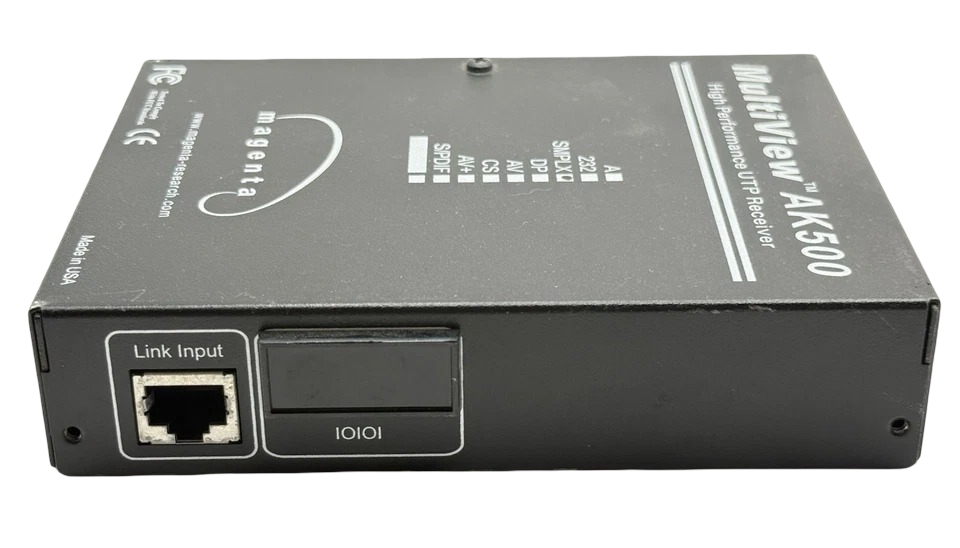

Magenta Research MultiView AK500 Series UTP Receiver

The Magenta Research MultiView AK500 Series UTP Receiver is a key component in a high-performance video distribution system designed to extend and manage computer-video signals over long distances using standard Category cable. This receiver works in tandem with a compatible transmitter to deliver pixel-perfect video, audio, and control signals from a source—such as a PC or media player—to a display, often hundreds of feet away. Its primary application is in digital signage networks, control rooms, and multi-display presentation environments where reliable, high-resolution video extension is required without the cost and limitations of traditional coaxial cabling. The system leverages advanced signal encoding and equalization to maintain signal integrity over the UTP (Unshielded Twisted Pair) medium.

A defining feature of the AK500 Series is its support for the MultiView capability, which allows a single receiver, when used with a specific transmitter model, to display multiple independent video windows from several sources on one screen. This picture-in-picture or multi-viewer functionality is managed directly by the hardware, eliminating the need for a separate external scaler or multi-view processor for basic layouts. The receiver supports high-resolution formats, ensuring compatibility with modern displays, and incorporates automatic cable equalization to compensate for signal degradation over extended runs, ensuring a stable image regardless of cable length up to its maximum rated distance.

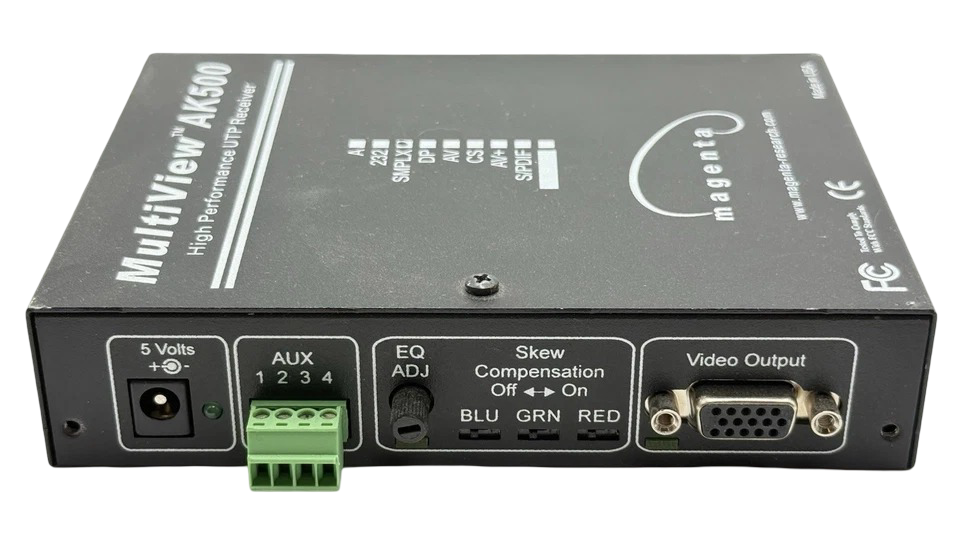

The receiver is designed for professional, permanent installation, typically featuring a compact metal enclosure suitable for mounting behind a display or within a rack. It is part of a broader, scalable ecosystem that includes various transmitter models for different source types (like DVI, VGA, or HDMI) and cable types. Operation is generally plug-and-play for basic extension, with more advanced features like multi-view layout selection and EDID management configurable via physical dip switches or software. By providing a robust, flexible, and cost-effective method for distributing high-quality video over structured cabling, the Magenta MultiView AK500 UTP Receiver facilitates clean, reliable installations in complex AV environments.
