Roland

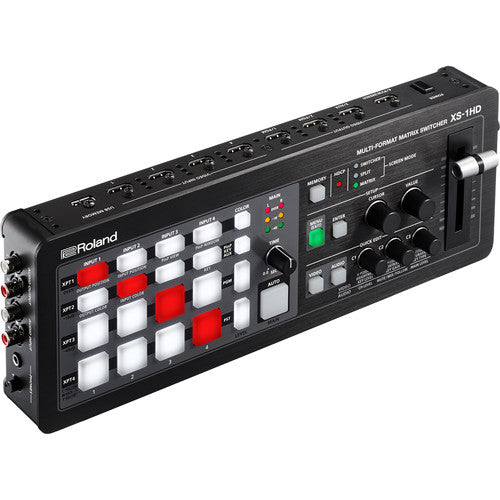

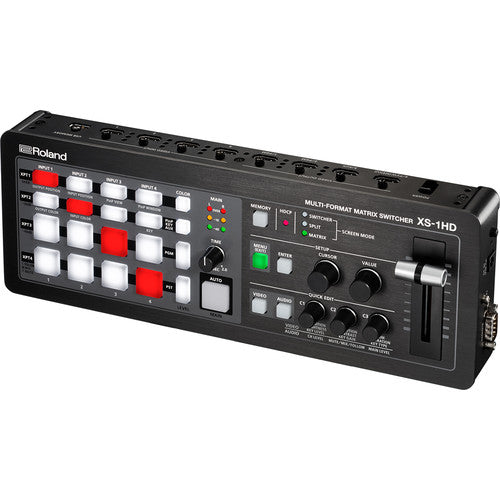

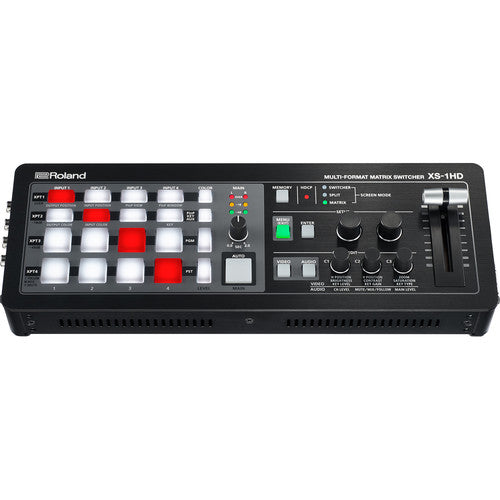

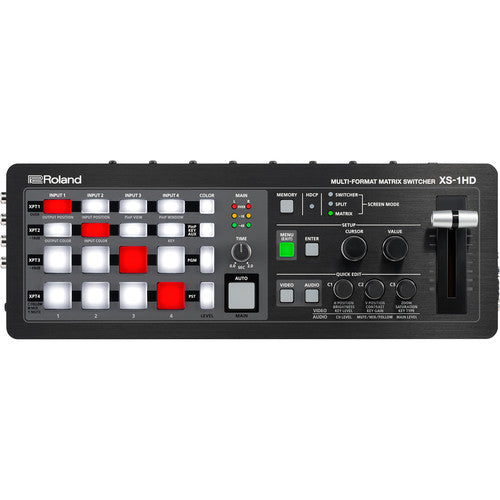

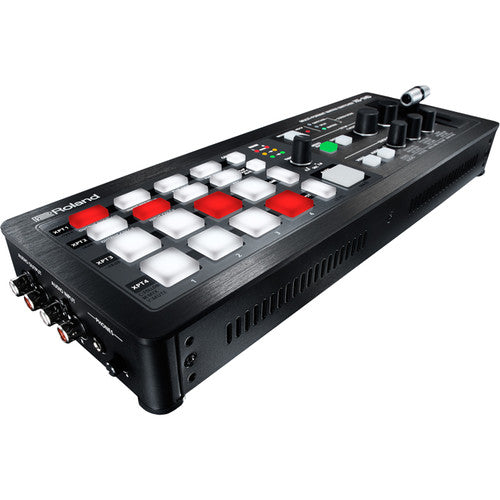

Roland XS-1HD Multi-Format Matrix Switcher - 4 x 4 HDMI

$2,364.99

The Roland XS-1HD Multi-Format Matrix Switcher is a versatile, compact 4x4 HDMI matrix switcher suitable for a wide range of professional A/V applications, including corporate presentations, live events, and e-learning. It is designed to switch and distribute up to four Full HD/WUXGA HDMI sources to any or all of its four HDMI outputs.

Featuring internal scalers and a frame synchronizer on all inputs, it can seamlessly handle a mix of video devices like cameras, PCs, and media players. Its small, tabletop footprint is combined with powerful production tools like picture-in-picture, key-compositing, and an 8-channel audio mixer.

View Product Features

  • Three operational modes: matrix, switcher, and split mode for versatility.
  • Internal scalers on all inputs handle various video formats effortlessly.
  • High-quality 4:4:4/10-bit processing ensures pristine video output.
  • Integrated eight-channel audio mixer handles embedded and analog audio.
  • Built-in EDID emulator and HDCP support prevent video signal issues.
  • USB memory port loads still images and saves console settings.
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Roland XS-1HD Multi-Format Matrix Switcher - 4 x 4 HDMI

The Roland XS-1HD is a professional 4x4 multi-format matrix switcher designed to manage and route high-definition video and audio signals in live production, broadcast, and installed AV environments. It supports a variety of input and output signal types, including HDMI, component video, composite video, and stereo audio, allowing for flexible integration of diverse source devices and displays. The switcher enables any of the four inputs to be routed to any combination of the four outputs independently, providing essential matrix routing capabilities for complex multi-display setups or signal distribution.

A key feature of the XS-1HD is its built-in scaling and format conversion, which allows it to output different resolutions and formats simultaneously from a single input. This means it can take a high-resolution HDMI source and output it as HDMI to one display, while simultaneously converting and outputting a lower-resolution component or composite signal to another monitor or recorder, all with synchronized audio. Control is highly flexible, offered via front-panel buttons, an included IR remote, RS-232 serial, and Ethernet for integration into larger control systems. The unit also includes features like picture-in-picture (PIP) and on-screen displays for source labeling.

Housed in a compact, rackmountable metal enclosure, the Roland XS-1HD is built for reliability in professional use. Its combination of matrix switching, format conversion, and scaling in a single unit makes it a powerful and efficient solution for video system integrators, mobile production crews, and broadcast engineers who need to manage multiple video sources and destinations with varying signal requirements.

Key Features

  • Three operational modes: matrix, switcher, and split mode for versatility.
  • Internal scalers on all inputs handle various video formats effortlessly.
  • High-quality 4:4:4/10-bit processing ensures pristine video output.
  • Integrated eight-channel audio mixer handles embedded and analog audio.
  • Built-in EDID emulator and HDCP support prevent video signal issues.
  • USB memory port loads still images and saves console settings.

Roland XS-1HD Multi-Format Matrix Switcher - 4 x 4 HDMI Specs

Switching & Matrix
Matrix Size
4 x 4 (4 inputs, 4 outputs)
Input Types
4 x HDMI, with associated analog audio (RCA) and optional analog video (Component/Composite via adapters)
Output Types
4 x HDMI, with associated analog audio (RCA) and optional analog video (Component/Composite via adapters)
Routing
Any input to any output, independently
Video Processing & Conversion
Supported Input Resolutions
Up to 1080p60, 1080i, 720p, 480i/p, 576i/p
Scaling
Independent scaling per output; output resolutions can differ from input
Format Conversion
Yes, can convert between HDMI, Component, and Composite outputs (with appropriate adapter cables)
Picture-in-Picture (PIP)
Yes, supports PIP with adjustable position and size
Audio Handling
Audio Inputs
4 x Stereo analog audio (RCA), embedded in HDMI
Audio Outputs
4 x Stereo analog audio (RCA), embedded in HDMI
Audio Follow Video
Yes
Control & Connectivity
Control Interfaces
Front-panel buttons
EDID Management
User-configurable EDID settings per port
Physical & Power
Power Supply
External power adapter
Enclosure
Metal, rackmountable (1RU with optional rack ears)
Dimensions
Compact desktop/rackmount size (approx. 215 mm W x 200 mm D x 44 mm H)
Weight
Approx. 1.5 kg
General
Intended Use
Professional video routing, scaling, and format conversion in live production, broadcast, and AV installation
Applications
Mobile production trucks, control rooms, multi-display presentations, digital signage distribution

Key Features

  • Three operational modes: matrix, switcher, and split mode for versatility.
  • Internal scalers on all inputs handle various video formats effortlessly.
  • High-quality 4:4:4/10-bit processing ensures pristine video output.
  • Integrated eight-channel audio mixer handles embedded and analog audio.
  • Built-in EDID emulator and HDCP support prevent video signal issues.
  • USB memory port loads still images and saves console settings.
