Roland

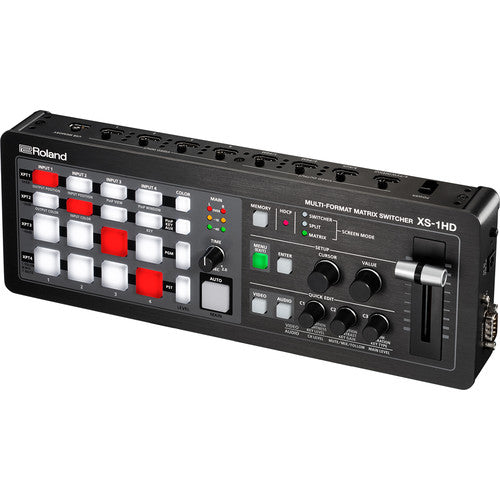

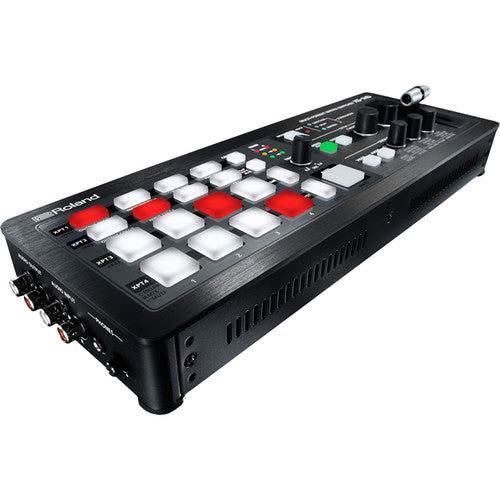

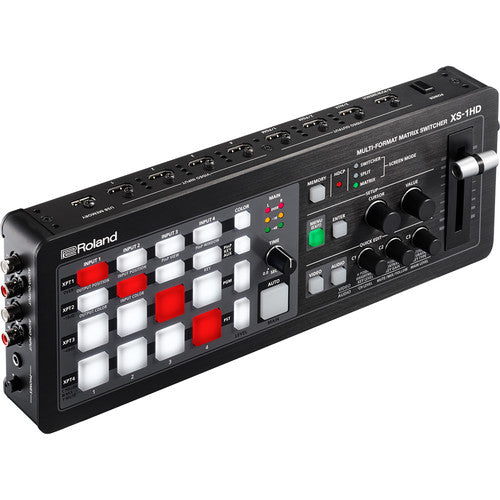

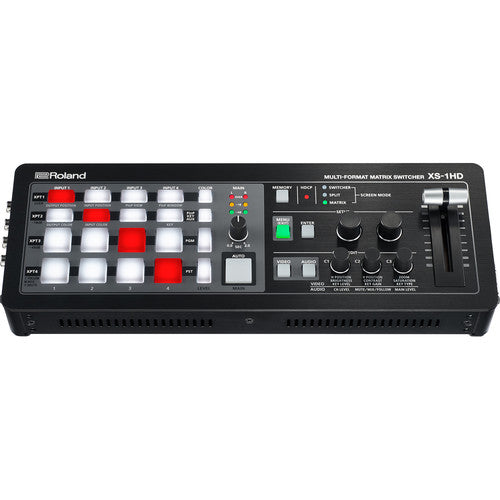

Roland XS-1HD Multi-Format Matrix Switcher - 4 x 4 HDMI, 3 modes (Switcher/Matrix/Split)

$2,364.99

The XS-1HD is equipped with high-quality 4:4:4/10-bit processing, ensuring that video signals remain crisp and clear, even when output to large LED walls or projectors. A built-in scaler on every input and output ensures that various sources with differing formats (like cameras, PCs, and Blu-ray players) can be mixed without issue. The switcher also incorporates an 8-channel digital audio mixer, which can handle embedded audio from the HDMI streams and a separate analog stereo input.
In addition to its versatile connectivity, the XS-1HD includes powerful video effects like picture-in-picture (PinP) and key-compositing. A USB port allows for still images to be loaded and used as overlays. The unit is HDCP-compliant, meaning it can handle protected content without problems, and it features an EDID emulator to prevent connection issues between devices. With 16 memory presets, complex setups can be saved and instantly recalled for different scenarios.

View Product Features

  • Three Operational Modes: Switch between Matrix mode (4x4 matrix routing), Switcher mode (cross-dissolve transitions, PinP, and keying), and Split mode (up to three PinP windows).
  • Built-in Scalers: Each of the four HDMI inputs and outputs includes a scaler and frame synchronizer, allowing for seamless mixing of different formats and resolutions up to WUXGA/1080p.
  • High-Quality Video Processing: Provides pristine video quality with 4:4:4/10-bit processing, which is crucial for high-resolution displays and computer graphics.
  • Integrated Digital Audio Mixer: An 8-channel audio mixer allows for embedding, de-embedding, and mixing HDMI audio with analog stereo inputs.
  • USB Still Image and Preset Memory: Load bitmap still images via a USB port for use in compositions and save up to 16 scene presets for instant recall.
  • Advanced Video Effects: Create professional-looking content with integrated Picture-in-Picture (PinP), key-compositing, and dissolve transitions
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Roland XS-1HD Multi-Format Matrix Switcher - 4 x 4 HDMI, 3 modes (Switcher/Matrix/Split)

The Roland XS-1HD is a professional-grade multi-format matrix switcher designed as a centralized hub for managing audiovisual signals in dynamic environments. It provides robust connectivity with four HDMI inputs and four HDMI outputs, capable of handling a wide spectrum of video resolutions from legacy 480i to full high-definition 1080p and computer formats up to WUXGA. This compact unit is engineered to replace complex and cumbersome cable setups, offering a reliable, all-in-one solution for routing digital video and embedded audio between multiple source devices and displays with exceptional signal integrity and stability.

Its operational intelligence is defined by three distinct and user-selectable modes, which allow the device to adapt its core functionality to the specific needs of any presentation, production, or installation scenario. In Switcher mode, it operates as a straightforward selector, choosing one of four inputs to send to a single primary output. Matrix mode unlocks its full potential, enabling any input to be independently routed to any or all of the four outputs simultaneously, which is critical for control rooms, broadcast setups, or multi-zone entertainment systems. The Split mode efficiently broadcasts a single selected input to all connected outputs at once, making it ideal for digital signage networks, conference rooms, or educational settings where consistent content duplication is required.

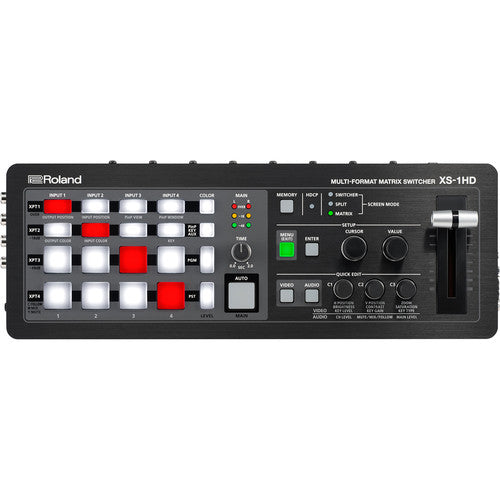

Built for seamless integration and continuous operation, the XS-1HD combines practical hardware design with comprehensive control options. It features a durable metal chassis, intuitive front-panel controls with clear status indicators, and includes both an infrared remote and RS-232 serial connectivity for integration into larger automated systems. The device also includes advanced EDID management for reliable source compatibility and a dedicated analog stereo audio output to de-embed audio for external sound systems. This combination of flexible routing, broad format support, and professional control features makes it an indispensable tool for AV technicians, integrators, and content creators working in corporate, educational, and live event spaces.

Key Features

  • Three Operational Modes: Switch between Matrix mode (4x4 matrix routing), Switcher mode (cross-dissolve transitions, PinP, and keying), and Split mode (up to three PinP windows).
  • Built-in Scalers: Each of the four HDMI inputs and outputs includes a scaler and frame synchronizer, allowing for seamless mixing of different formats and resolutions up to WUXGA/1080p.
  • High-Quality Video Processing: Provides pristine video quality with 4:4:4/10-bit processing, which is crucial for high-resolution displays and computer graphics.
  • Integrated Digital Audio Mixer: An 8-channel audio mixer allows for embedding, de-embedding, and mixing HDMI audio with analog stereo inputs.
  • USB Still Image and Preset Memory: Load bitmap still images via a USB port for use in compositions and save up to 16 scene presets for instant recall.
  • Advanced Video Effects: Create professional-looking content with integrated Picture-in-Picture (PinP), key-compositing, and dissolve transitions

Roland XS-1HD Multi-Format Matrix Switcher - 4 x 4 HDMI, 3 modes (Switcher/Matrix/Split) Specs

Video
Input Ports

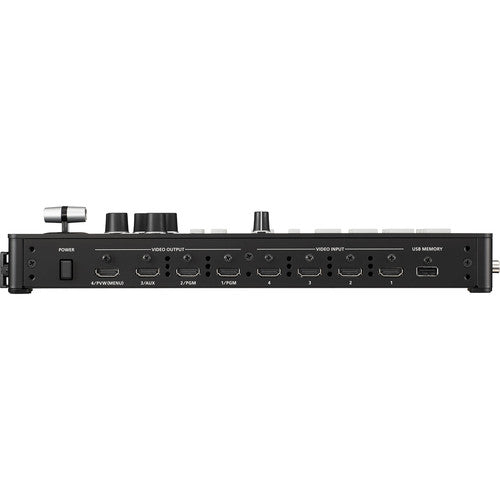

4 x HDMI Type A
Output Ports
4 x HDMI Type A
Maximum Resolution
1920 x 1200 (WUXGA)
Supported Video Formats
480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Supported PC Resolutions
VGA (640x480), SVGA (800x600), XGA (1024x768), WXGA (1280x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200)
HDCP Support
HDCP 1.3
Audio
Audio Input
Embedded digital audio via HDMI
Audio Output
Embedded digital audio via HDMI, 1 x 3.5 mm Stereo Mini Jack (Analog de-embedded)
Operation & Control
Operational Modes
Switcher Mode, 4x4 Matrix Mode, 1x4 Splitter Mode
User Control
Front-panel push buttons, Infrared remote control
External Control

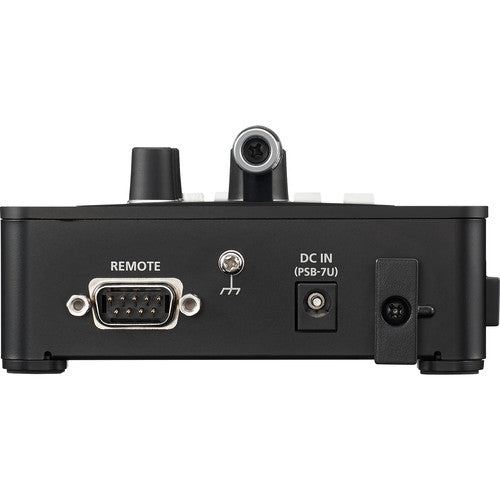

RS-232 serial interface (9-pin D-sub)
EDID Management
Yes, manual selector
Physical & General
Power Requirement
5V DC, 2A
Power Consumption
10 Watts
Dimensions (W x D x H)
210 mm x 145 mm x 44 mm
Unit Weight
0.8 kg
Operating Temperature Range
5°C to 40°C
Chassis Material
Metal

Key Features

  • Three Operational Modes: Switch between Matrix mode (4x4 matrix routing), Switcher mode (cross-dissolve transitions, PinP, and keying), and Split mode (up to three PinP windows).
  • Built-in Scalers: Each of the four HDMI inputs and outputs includes a scaler and frame synchronizer, allowing for seamless mixing of different formats and resolutions up to WUXGA/1080p.
  • High-Quality Video Processing: Provides pristine video quality with 4:4:4/10-bit processing, which is crucial for high-resolution displays and computer graphics.
  • Integrated Digital Audio Mixer: An 8-channel audio mixer allows for embedding, de-embedding, and mixing HDMI audio with analog stereo inputs.
  • USB Still Image and Preset Memory: Load bitmap still images via a USB port for use in compositions and save up to 16 scene presets for instant recall.
  • Advanced Video Effects: Create professional-looking content with integrated Picture-in-Picture (PinP), key-compositing, and dissolve transitions
