SKU: Theatrixx-XVVSDI2FIBER

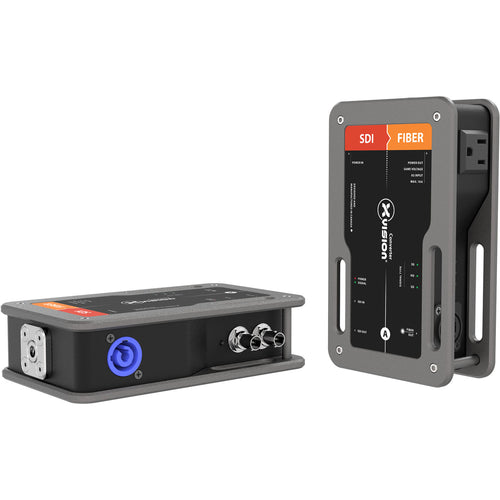

Theatrixx Technologies SDI to Optical Fiber Transmitter xVision Video Converter

$699.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The SDI to Optical Fiber Transmitter xVision Video Converter from Theatrixx Technologies is a plug-and-play SDI video to optical fiber converter designed to easily be used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in AC outlet to power a nearby projector, TV, or laptop. There is an SDI input, an SDI loop thru output, and an optical SDI output on ST, OpticalCON DUO, or OpticalCON QUAD, for multimode or single-mode. Your choice should be specified at the time of order. This converter can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately). Read more

Features

  • Plug-and-Play Operation
  • SDI on ST/OpticalCON DUO/OpticalCON QUAD
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet

Business Financing Options Avaiable

The SDI to Optical Fiber Transmitter xVision Video Converter from Theatrixx Technologies is a plug-and-play SDI video to optical fiber converter designed to easily be used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in AC outlet to power a nearby projector, TV, or laptop. There is an SDI input, an SDI loop thru output, and an optical SDI output on ST, OpticalCON DUO, or OpticalCON QUAD, for multimode or single-mode. Your choice should be specified at the time of order. This converter can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately). Read more

Features

  • Plug-and-Play Operation
  • SDI on ST/OpticalCON DUO/OpticalCON QUAD
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet

About the Theatrixx Technologies SDI to Optical Fiber Transmitter xVision Video Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road.

Video converters nowadays are used everywhere on profesional A/V events, presentations, live shows and tours and often have a critical role, yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVSDI2FIBER xVision Video Converter.

Key Features

  • Plug-and-Play Operation
  • SDI on ST/OpticalCON DUO/OpticalCON QUAD
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet

Theatrixx Technologies SDI to Optical Fiber Transmitter xVision Video Converter Specs

Audio & Video Support
Video Format Support
3G-SDI (SMPTE 424M Level A/B), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
Maximum Resolution
1080p60 (3G-SDI)
Embedded Audio
Up to 8 channels, 24-bit, 48 kHz
SDI Video Sampling
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
Inputs & Outputs
SDI Input
1 x BNC (3G/HD/SD-SDI) Female
SDI Output
1 x BNC Female (Reclocked Loop-Through)
Fiber Output
Optical SDI (SFP-based)
Fiber Options
Fiber Type Options
Singlemode or Multimode (user-selectable at order)
Fiber Connector Options
ST, Neutrik OpticalCON DUO, or OpticalCON QUAD
Protocol
SMPTE 425M Level A & B, 424M, 292M, 259M
Power Specifications
Power Supply Type
Integrated internal power supply
Input Connector
Locking Neutrik powerCON TRUE1
Courtesy Outlet
NEMA 5-15 AC (10 A maximum, same voltage as input)
Power Consumption
15 W to 25 W (varies by model)
Operational Voltage (Standard)
100–120 V AC, 50–60 Hz
Operational Voltage (True1)
100–240 V AC, 50–60 Hz

Key Features

  • Plug-and-Play Operation
  • SDI on ST/OpticalCON DUO/OpticalCON QUAD
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet
