Barco  |  SKU: C1790-106

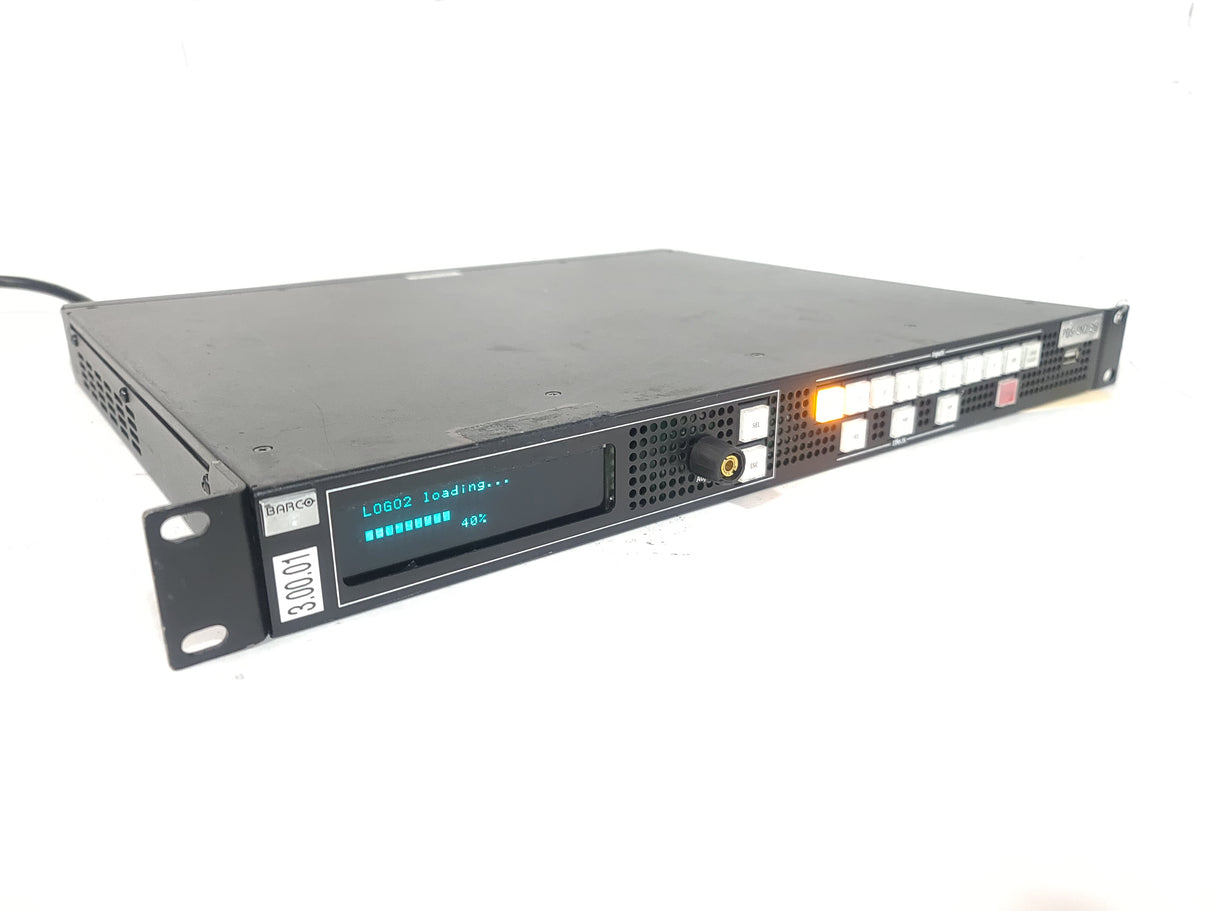

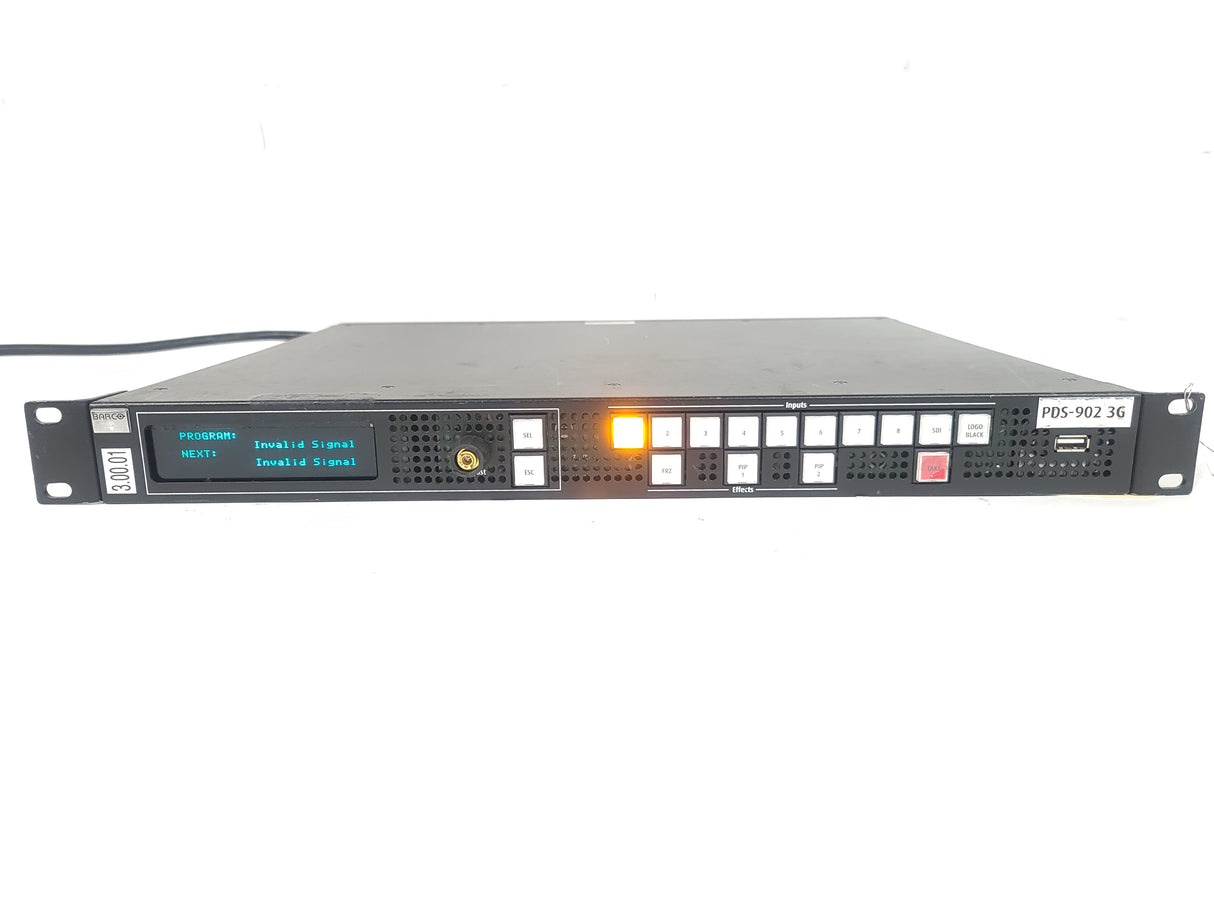

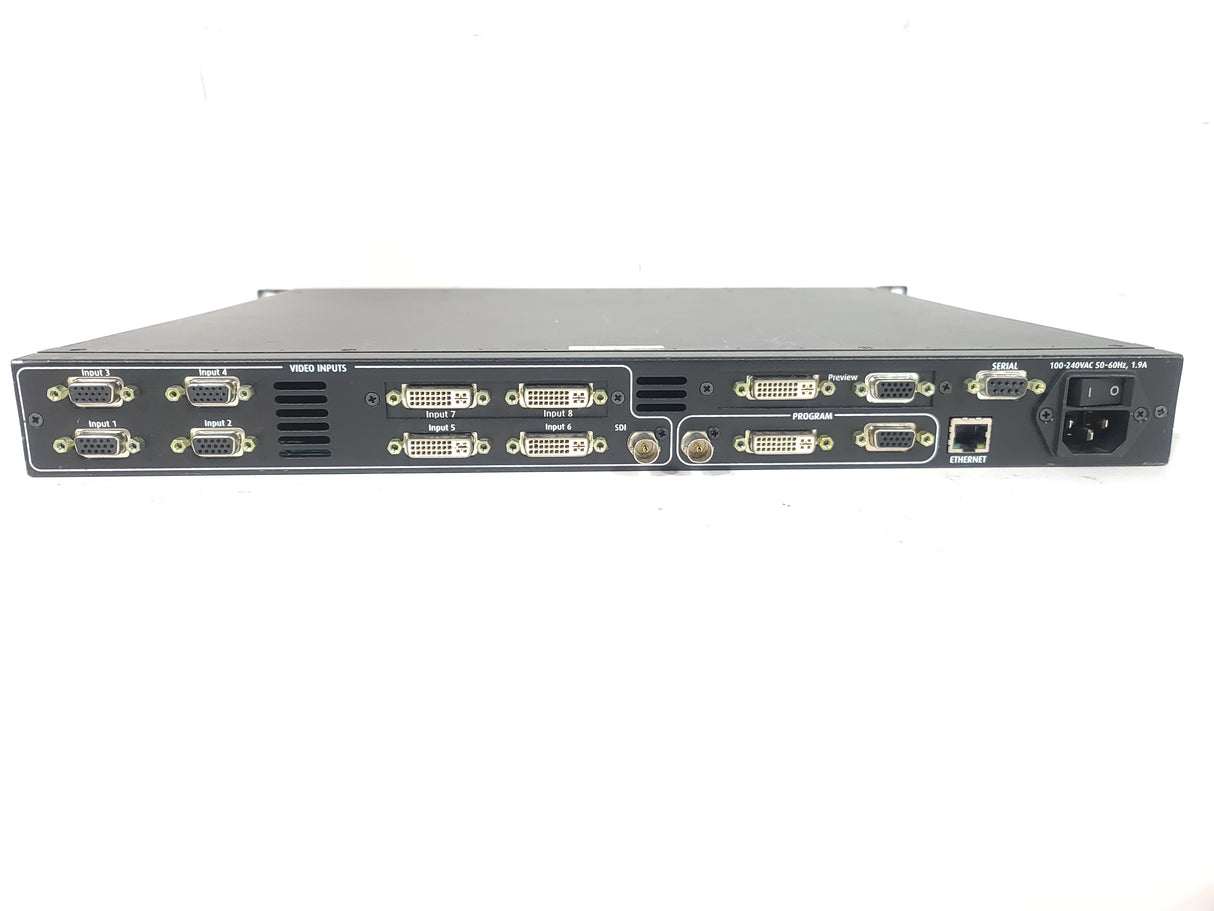

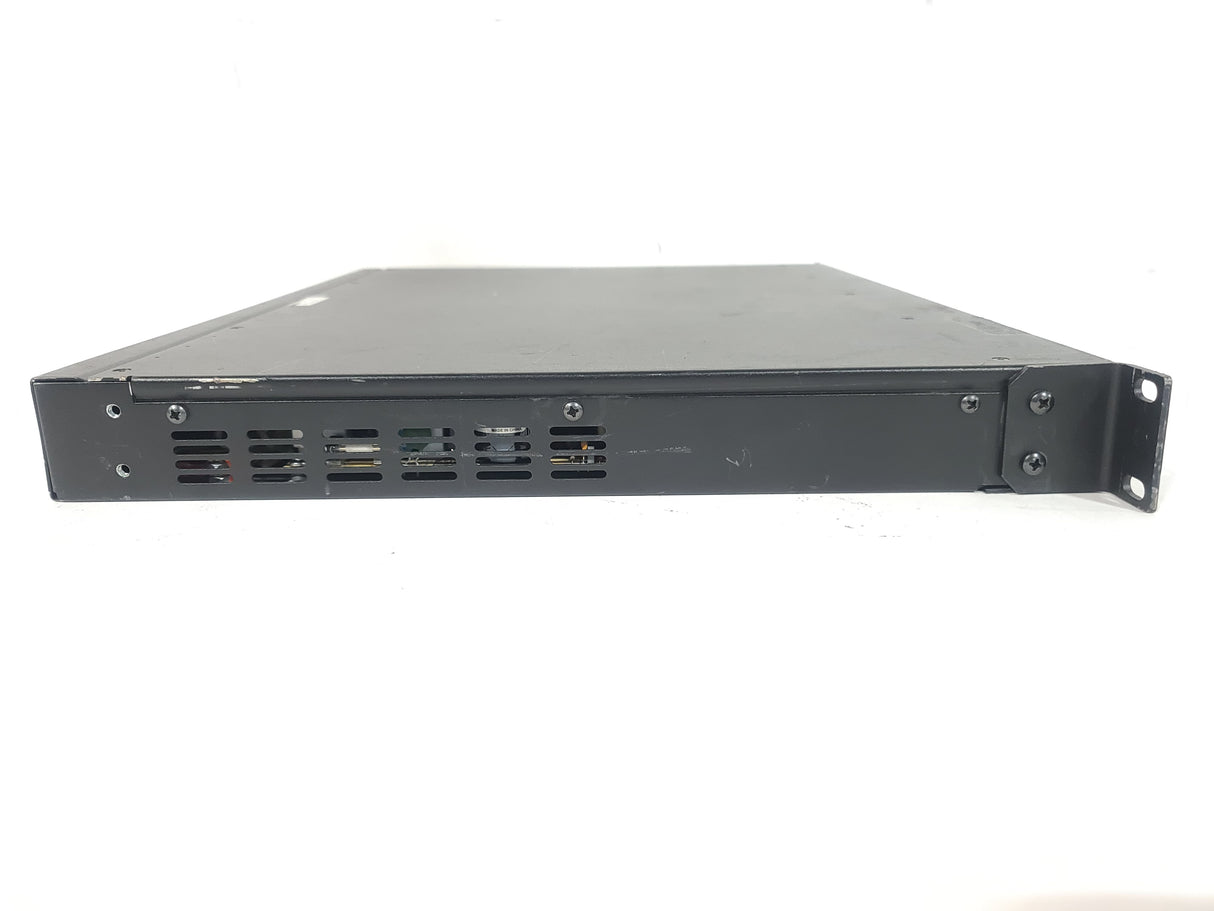

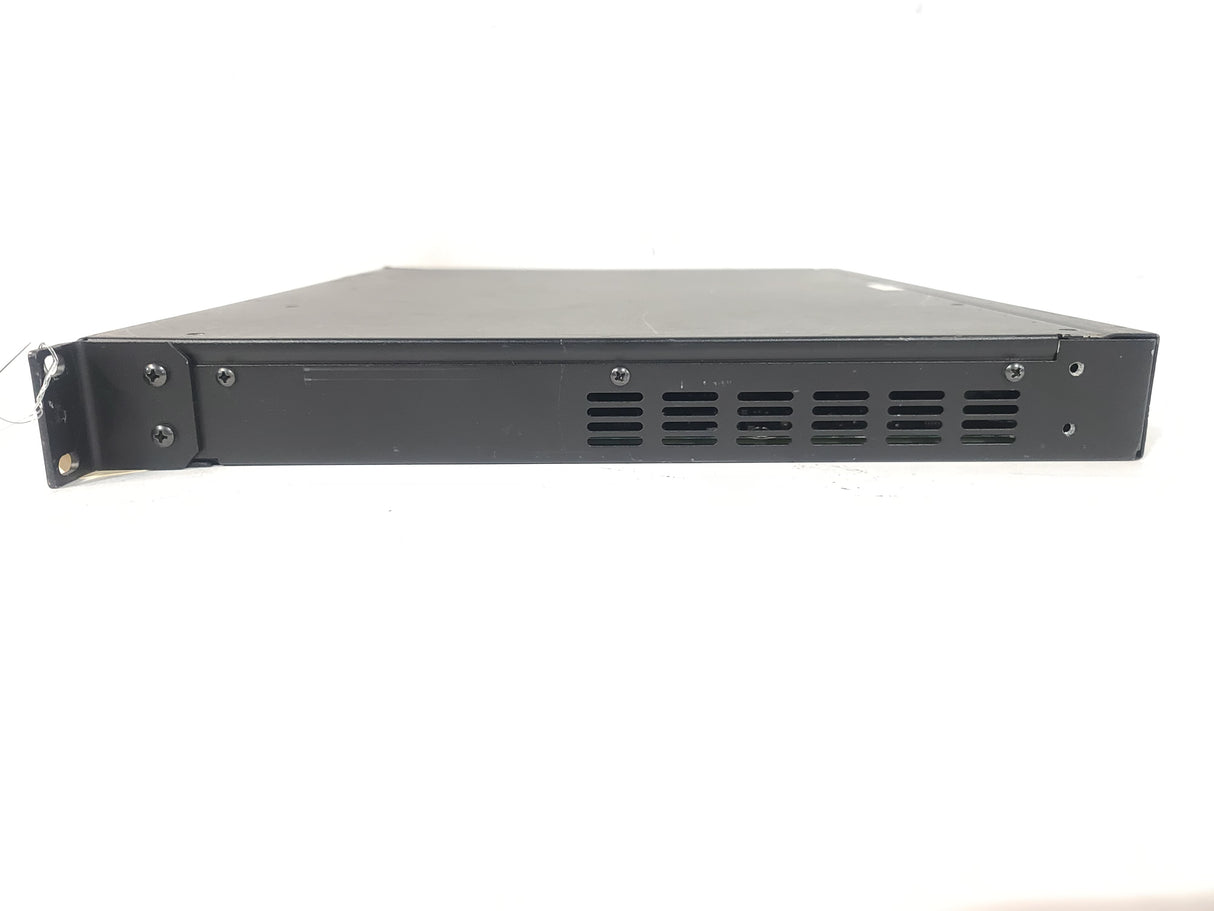

Barco R9004694 PDS-902 3G-SDI Digital Video Switcher (LOOSE SCREEN)

$29.98 $74.95
Shipping calculated at checkout.

Functional Rating

Functional

"Functional" items have been thoroughly tested to ensure all hardware is working. These products may include minor repairs with OEM parts and are loaded with licensed software, providing dependable performance for all intended purposes.

Cosmetic Rating

Poor

Our "Poor Condition" items show heavy wear and age, with significant cosmetic damage such as dents, cracks, or rust. Some parts may require repair or replacement. These products are best suited for buyers needing parts or with the ability to handle minor repairs.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

The Barco PDS-902 3G-SDI Digital Switcher features four DVI-I inputs with full HDCP support, one 3G/HD/SD-SDI input, and four analog VGA inputs. All analog and DVI inputs support the EDID 1.3 specification. Users can capture and store up to 3 images that can be used as a logo source during a presentation. Additionally, built-in test patterns are also provided.

The PDS-902 switcher provides simultaneous program output via the DVI and analog VGA connectors. It includes a 3G/HD/SD-SDI output supporting BarcoLink for easy connection to Barco projectors (sold separately). In addition to the program output, the switcher offers a preview output that can be set at different resolutions than the program output. Users have the option of displaying 1 of 3 signals on the preview output, program, preview, or test pattern. Thanks to its straightforward setup and operation, the PDS-902 3G Switcher is well suited for live events, boardrooms, hotel ballrooms, houses of worship, education and training facilities, and fixed installations.

Features

  • 1x 3G/HD/SD-SDI Input
  • 4 x DVI-I Input
  • 4x VGA Input
  • HDCP Compliant
  • Up to WUXGA 1920x1200 Compatible
  • Program and Preview Output
  • Up to Three Logo Stores/Recall
  • Dual PIP mode
  • Built-in Test Patterns
  • 1 RU Height

Testing Notes

LOOSE SCREEN

In The Box

Barco R9004694 PDS-902 3G SDI Digital Video Switcher (LOOSE SCREEN)
