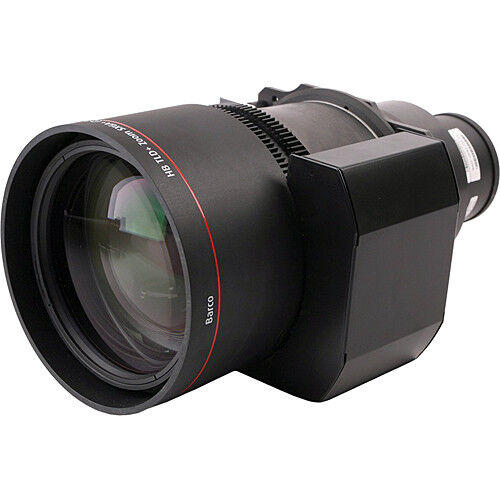

The Barco R9862030 is a high-performance, ultra-short-throw zoom lens assembly specifically engineered for select Barco HD and SXGA+ resolution projectors used in demanding simulation and visualization applications. This lens belongs to Barco's specialized HB (High Brightness) TLD+ (Telecentric Light Director) series, a design that is critical for maintaining image fidelity and uniformity in contexts where geometric precision and edge-to-edge sharpness are paramount, such as in flight simulators, immersive dome environments, and advanced scientific visualization suites. The TLD+ telecentric design ensures that light rays exit the lens in a parallel path, which minimizes color shift and brightness fall-off at the corners of the projected image—a common challenge with standard lenses—and provides a more consistent visual experience across the entire screen, even from extremely short projection distances. This makes it an essential component for creating seamless, blended multi-projector displays where color and luminance matching across adjacent screens is absolutely critical.

The lens features a complex optical formula with multiple glass elements coated with high-efficiency anti-reflective coatings to maximize light throughput and contrast. Its dual zoom ratio specifications—(2.6-4.1):1 for HD (1920x1080) projectors and (2.8-4.5):1 for SXGA+ (1400x1050) projectors—indicate a versatile range of throw distances, allowing system integrators to fine-tune the installation to fit precise spatial constraints without changing the lens. This adjustability is key in custom simulation cabins or control rooms where the projector's physical placement is heavily dictated by the structure of the simulator itself. The "ultra-short-throw" capability means the projector can be mounted very close to the screen, saving valuable space within the simulator enclosure and reducing shadows or obstruction from users, which is vital for immersive training scenarios.

Integration of this lens is a precise operation, as it is designed to mechanically and electronically interface with specific Barco projector chassis that support the TLD+ lens system. The lens assembly includes connectors for communicating with the projector's internal systems to manage focus, zoom, and potentially lens shift functions, ensuring all adjustments are digitally calibrated and repeatable. As a replacement or upgrade component, the R9862030 lens is a significant investment aimed at preserving the optical performance of a high-value simulation system. Its role transcends simple magnification; it is a precision optical instrument that directly defines the visual quality, geometric accuracy, and overall effectiveness of the simulation experience, ensuring that projected imagery meets the rigorous standards required for professional training and visualization.
