Panasonic

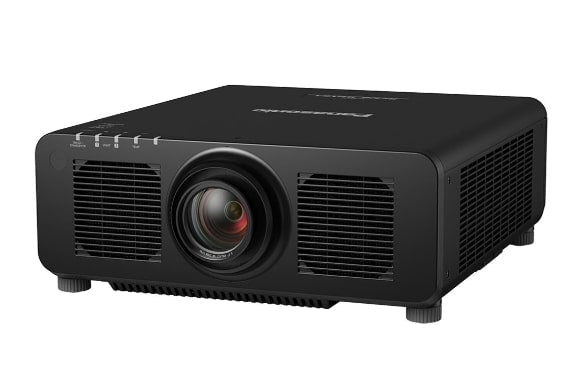

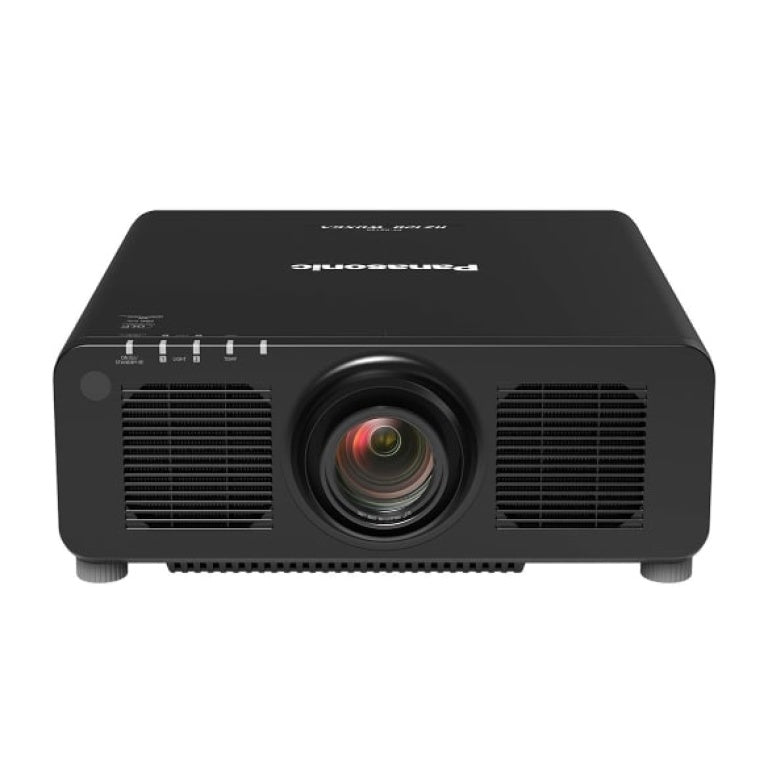

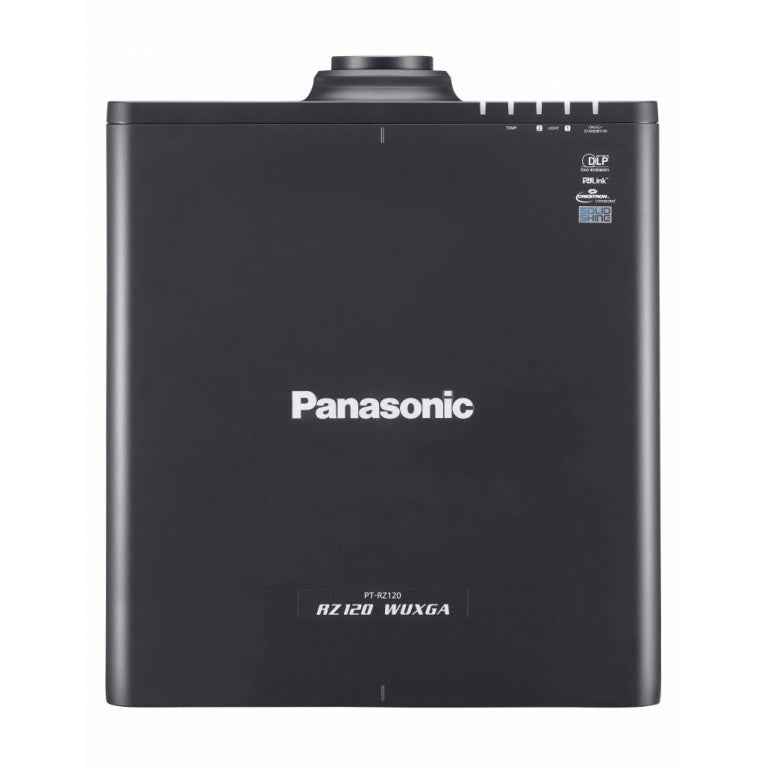

Panasonic PT-RZ120BUY 1-Chip 12000 Lumens WUXGA DLP Fixed Installation Laser Projector

$0.00

The Panasonic PT-RZ120BUY is a high-performance 1-chip DLP laser projector designed for fixed installations in auditoriums, museums, and large conference spaces. Delivering an impressive 12,000 lumens of brightness and WUXGA resolution, it ensures crisp, vivid visuals even in well-lit environments. With a maintenance-free laser light source and dynamic contrast optimization, this projector provides excellent reliability, flexible installation, and immersive image quality for professional AV setups.

View Product Features

  • 12,000 lumens brightness ensures sharp, vibrant projection in bright spaces.
  • WUXGA (1920x1200) resolution delivers detailed, widescreen images.
  • Laser light source offers up to 20,000 hours of maintenance-free operation.
  • Dynamic contrast of 10,000:1 enhances depth and clarity in dark or bright scenes.
  • Flexible 360° installation and wide lens shift support diverse mounting options.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Panasonic PT-RZ120BUY 1-Chip 12000 Lumens WUXGA DLP Fixed Installation Laser Projector

The Panasonic PT-RZ120BUY is a high-brightness, single-chip DLP laser projector designed for demanding professional fixed installations in environments such as large auditoriums, command and control centers, and staging applications. It delivers a formidable 12,000 lumens of brightness, making it highly effective in venues with significant ambient light. Utilizing a solid-state laser light source (SSI), this projector eliminates the need for traditional lamps, offering an exceptional life of approximately 20,000 hours of maintenance-free operation in normal mode. This significantly reduces total cost of ownership and logistical burdens.

A key differentiator of the PT-RZ120BUY is Panasonic’s implementation of SOLID SHINE laser technology combined with the Quartet Color Harmonizer. Unlike typical 1-chip DLP systems that can struggle with color accuracy at high brightness, this unique optical filter system optimizes white balance and color output. It separates yellow light into multiple streams to achieve deep blacks, pure whites, and vibrant, lifelike colors that rival those of 3-chip DLP systems, ensuring excellent picture quality without compromising brightness levels.

The projector body does not include a lens, allowing installers to select from a comprehensive range of optional motorized lenses (from ultra-short throw to long throw) to match specific installation requirements. The unit also features robust integration capabilities, including compatibility with Geo Pro software for geometric adjustment on curved or irregularly shaped screens, and a sealed, filterless optical block designed to withstand dust intrusion. These features ensure reliable, consistent performance and image quality over an extended operational lifespan.

Key Features

  • 12,000 lumens brightness ensures sharp, vibrant projection in bright spaces.
  • WUXGA (1920x1200) resolution delivers detailed, widescreen images.
  • Laser light source offers up to 20,000 hours of maintenance-free operation.
  • Dynamic contrast of 10,000:1 enhances depth and clarity in dark or bright scenes.
  • Flexible 360° installation and wide lens shift support diverse mounting options.

Panasonic PT-RZ120BUY 1-Chip 12000 Lumens WUXGA DLP Fixed Installation Laser Projector Specs

Projection System
Display Technology
1-Chip DLP™
DLP Chip Size
0.67" (17.0 mm) diagonal
Native Resolution
WUXGA (1920 x 1200)
Pixels
2,304,000 pixels (1920 × 1200)
Light Source and Brightness
Light Source
SOLID SHINE Laser Diode
Brightness
12,000 Lumens (Center), 11,500 Lumens (ANSI)
Light Source Life (Normal Mode)
Approx. 20,000 hours
Contrast Ratio
10,000:1 (Dynamic Contrast: ON)
Optical and Image Quality
Color Technology
Quartet Color Harmonizer
Lens Mount
Motorized zoom/focus/shift lens (optional lenses sold separately)
Scanning Frequency (HDMI/DVI-D)
RGB: fH 15–100 kHz, fV 24–120 Hz; Dot clock 25–162 MHz
Filter
Filterless, sealed optical engine

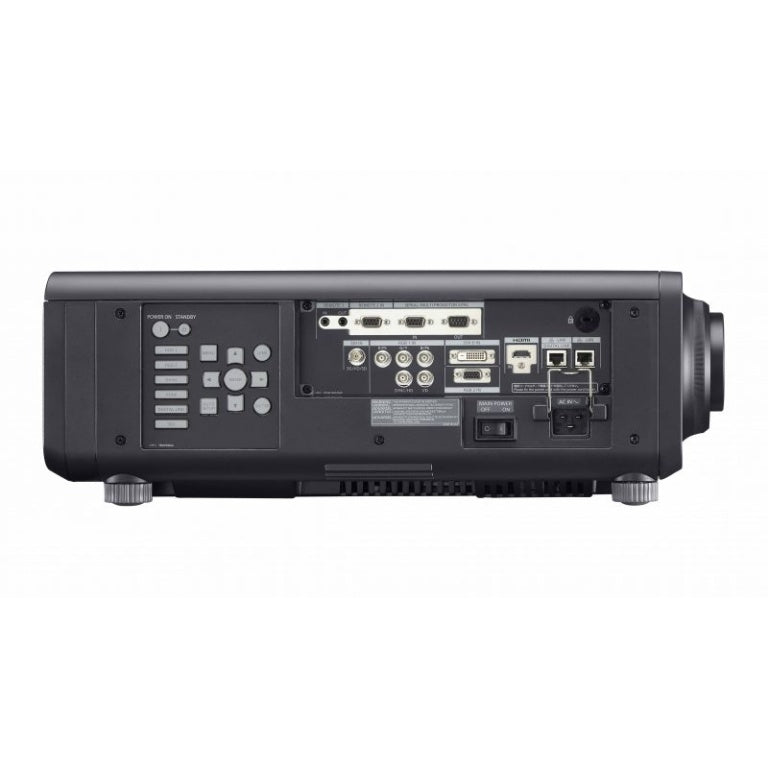

Connectivity
HDMI In
1x HDMI (HDCP 2.2 support, Deep Color)
DVI-D In
1x DVI-D (HDCP 1.4 support)
SDI In
2x BNC (3G/HD/SD-SDI)
Serial In
1x D-sub 9-pin (RS-232C)
LAN
1x RJ-45 Ethernet (Art-Net, PJLink™ compatible)
USB Port
1x USB Type-A (for optional wireless module AJ-WM50/WM50P)
Physical & Electrical
Power Requirements
AC 100–240 V, 50/60 Hz
Power Consumption
1,050 W (Operating)
Body Dimensions (W x H x D)
19 19/32" x 7 59/64" x 21 21/32" (498 x 200* x 551 mm) *with legs at shortest position
Weight
Approx. 50.7 lbs (23 kg)
Operation Noise
42 dB (Normal Mode), 35 dB (Quiet Mode)

Key Features

  • 12,000 lumens brightness ensures sharp, vibrant projection in bright spaces.
  • WUXGA (1920x1200) resolution delivers detailed, widescreen images.
  • Laser light source offers up to 20,000 hours of maintenance-free operation.
  • Dynamic contrast of 10,000:1 enhances depth and clarity in dark or bright scenes.
  • Flexible 360° installation and wide lens shift support diverse mounting options.
