Minrray

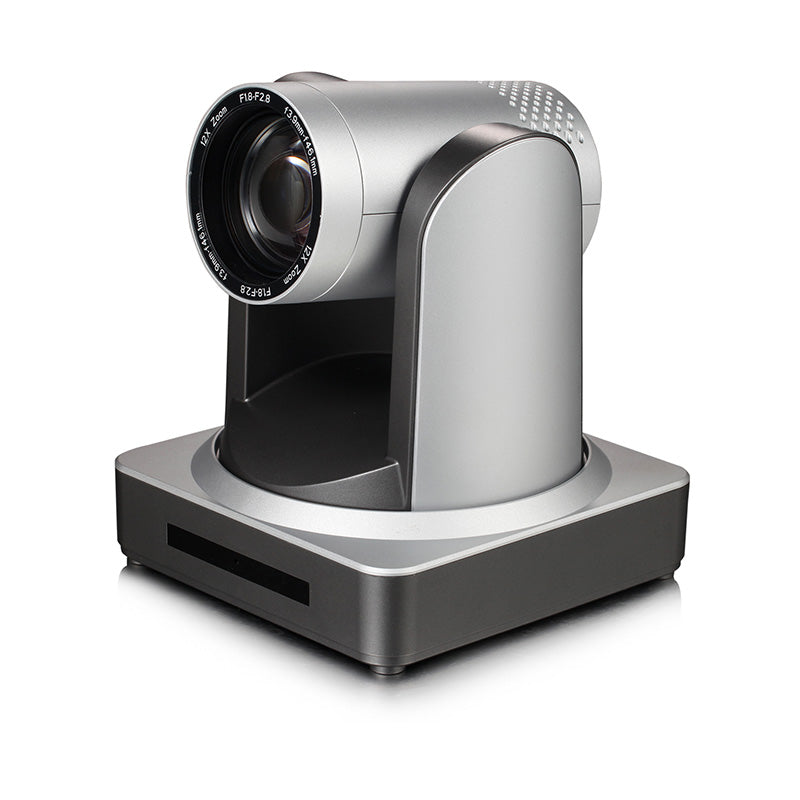

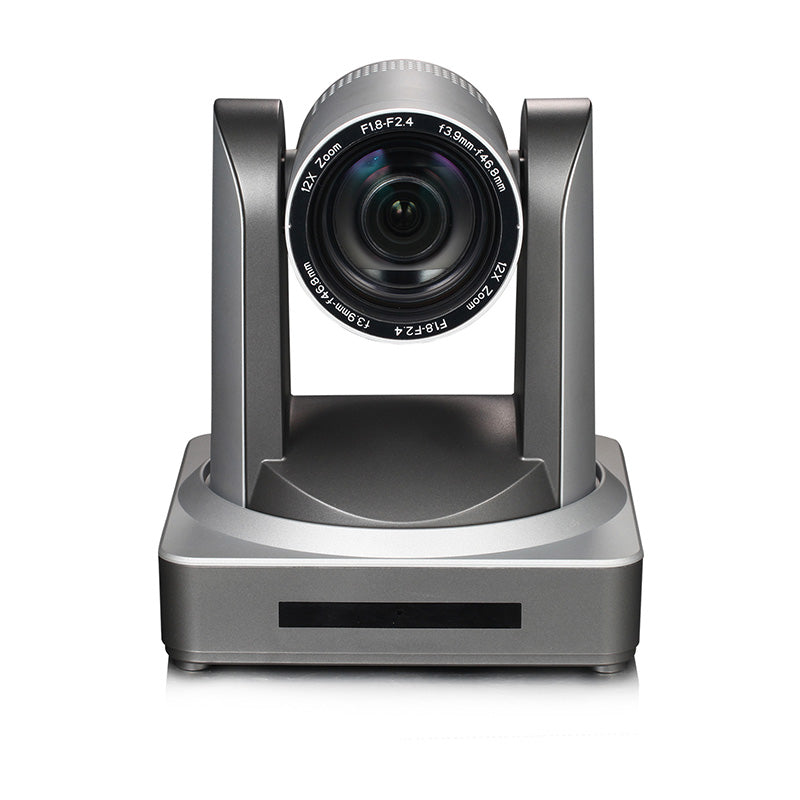

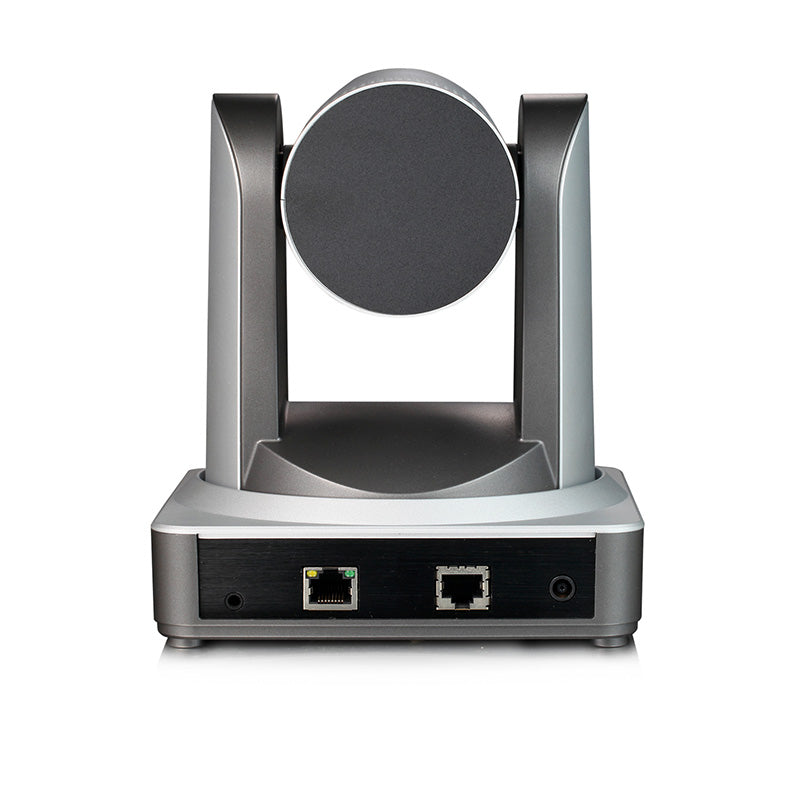

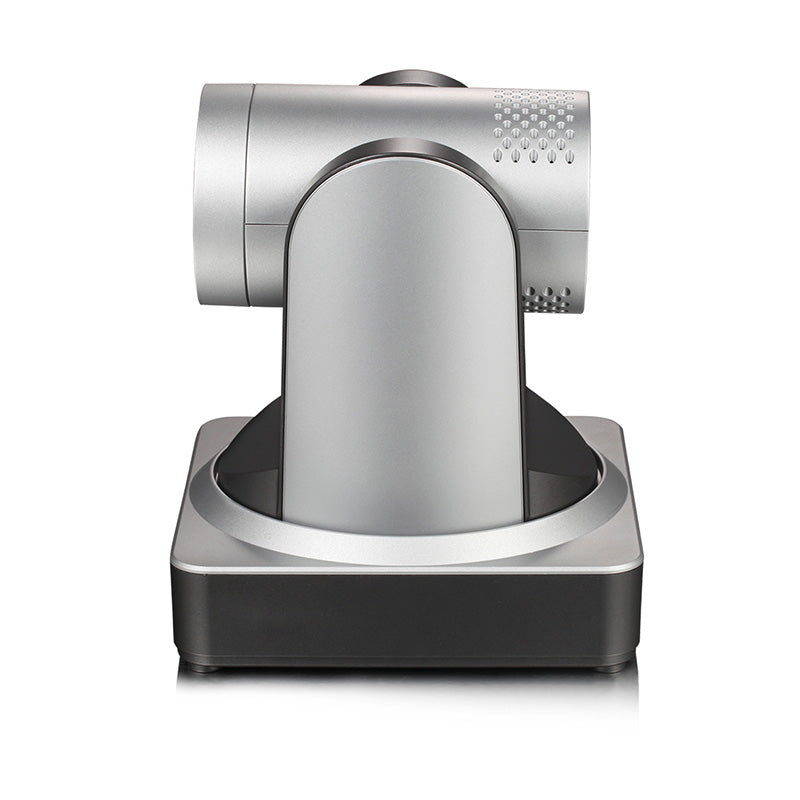

Minrray UV510A-20-ST-IR Full HD PTZ Camera

$399.95

The UV510A Series 2MP 20x Video Conference Camera from Minrray features a 1/2.8" CMOS sensor and 5.5-110mm varifocal lens with 20x zoom to capture videos at a maximum resolution of 1920 x 1080. It comes with HDMI, SDI, Ethernet, RS-232, RS-485, and audio-in connectivity. The camera uses a step drive motor mechanism and motor drive controller for smooth and noiseless PTZ operation. In addition, it supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats.

View Product Features

  • 1/2.8" CMOS sensor offers a maximum resolution of 1920 x 1080
  • 5.5-110mm varifocal lens offers 20x optical zoom and viewing angle range from 3.3 to 54.7°
  • Auto focus for quick and accurate focusing
  • 2D/3D noise reduction
  • SDI supports transmission distances up to 328'
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Minrray UV510A-20-ST-IR Full HD PTZ Camera

The Minrray UV510A-20-ST-IR Full HD PTZ Camera is a professional pan-tilt-zoom camera designed for video conferencing, lecture capture, live streaming, and broadcast-style production environments. It delivers clear Full HD video performance and precise mechanical control, making it suitable for medium to large meeting rooms, classrooms, houses of worship, and presentation spaces.

Equipped with a high-quality CMOS image sensor and a powerful optical zoom lens, the UV510A-20 captures fine detail even when subjects are positioned at a distance. Smooth and accurate pan, tilt, and zoom movements allow flexible framing, while preset positions enable quick transitions between viewpoints during live sessions or automated workflows.

The camera supports multiple video output interfaces, allowing it to integrate easily with both USB-based conferencing platforms and traditional AV infrastructures. Its compatibility with common control protocols enables centralized control via hardware controllers, software platforms, or the included infrared remote.

Designed for professional installations, the UV510A-20 features quiet operation, reliable performance, and a compact form factor. Its combination of image quality, connectivity options, and control flexibility makes it a dependable solution for organizations seeking a versatile Full HD PTZ camera.

Key Features

  • 1/2.8" CMOS sensor offers a maximum resolution of 1920 x 1080
  • 5.5-110mm varifocal lens offers 20x optical zoom and viewing angle range from 3.3 to 54.7°
  • Auto focus for quick and accurate focusing
  • 2D/3D noise reduction
  • SDI supports transmission distances up to 328'

Minrray UV510A-20-ST-IR Full HD PTZ Camera Specs

Imaging
Image Sensor
1/2.8 inch CMOS
Effective Pixels
2 MP
Maximum Resolution
1920 × 1080
Video Output Resolution
1080p
Lens & Zoom
Optical Zoom
20x
Digital Zoom
16x
Field of View
Approx. 60° (wide)
Focus Mode
Auto, Manual
PTZ Performance
Pan Range
±170°
Tilt Range
-30° to +90°
Preset Positions
255
PTZ Speed
Variable speed control
Video & Compression
Video Formats
YUY2, MJPEG, H.264
Frame Rate
Up to 60 fps
Connectivity
Video Outputs
USB, HDMI, 3G-SDI
Control Interfaces
RS-232, RS-485
Control Protocols
VISCA, PELCO-D, PELCO-P
Electrical
Power Input
12V DC
Power Consumption
Approx. 12 W
Physical
Mounting Options
Wall mount, ceiling mount, tripod
Color
Dark Gray
Environmental
Operating Temperature
0 °C to 40 °C
Humidity
Less than 80% non-condensing

Key Features

  • 1/2.8" CMOS sensor offers a maximum resolution of 1920 x 1080
  • 5.5-110mm varifocal lens offers 20x optical zoom and viewing angle range from 3.3 to 54.7°
  • Auto focus for quick and accurate focusing
  • 2D/3D noise reduction
  • SDI supports transmission distances up to 328'
