The GrandMA3 Full Size stands as MA Lighting's premier lighting control console, engineered for professionals demanding uncompromising hands-on command. With 20,480 control parameters, 120 physical playbacks, and 16 assignable x-keys, this powerhouse delivers instant access to every control you need. The assignable level wheel and dedicated master playback group put sophisticated functionality at your fingertips, while three context-sensitive letterbox screens and an expansive multi-touch display provide real-time feedback and intuitive programming access.
Loading...
MA Lighting

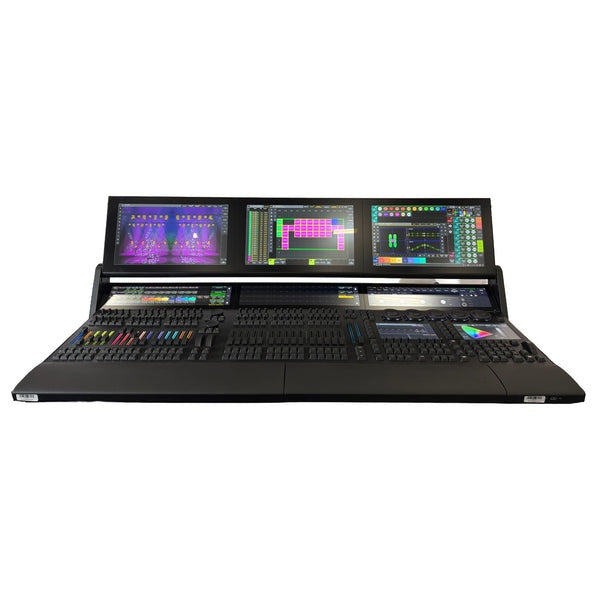

MA Lighting GrandMA3 Full size
$78,000.00
Unit price
/
View Product Features
View Product Features
Out of Stock
0 in stock
Once stock replenishes, inventory will display below.
In-Stock Inventory
-
Used
-
About the MA Lighting GrandMA3 Full size
Key Features
MA Lighting GrandMA3 Full size Specs
System Parameters
20,480 (HTP/LTP), Mode2
Playbacks
120 physical playbacks
Assignable Keys
16 x-keys
Displays
3 internal foldable multi-touch screens + 3 letterbox screens + 2 command screens
Encoders
Dual encoders with customizable feature mapping
Faders
Motorized long-life faders with RGB light pipes
Ethernet
3 × etherCON / RJ45
DMX I/O
6 × DMX512-A Out (5-pin XLR), 1 × DMX512-A In (5-pin XLR)
MIDI / SMPTE / Audio
MIDI In/Out, Linear Timecode In, Audio In
GPI
General Purpose Interface (D-SUB DE9) for remote control
Video Output
2 × DisplayPort 1.2 for external screens
Audio In
1 × 3-pin XLR
S/PDIF
In & Out
USB
3 × USB 2.0 (Type A), 3 × USB 3.0 (Type A)
Desk Lights
2 × LED desk lights (4-pin XLR)
Power
AC 100–240 V, 50/60 Hz; max 300 VA
Operating Temp
0 °C to 40 °C (32 °F to 104 °F)
Dimensions (folded)
1,256 × 539 × 181 mm (50" × 22" × 8")
Dimensions (unfolded)
up to 1,256 × 871 × 255 mm (50" × 35" × 10")
Net Weight
44 kg / 98 lbs
