MA Lighting

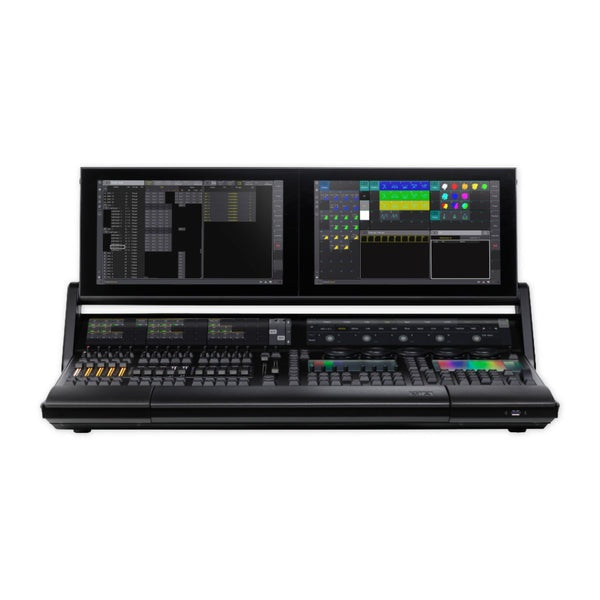

MA Lighting grandMA3 Light

$66,000.00

The grandMA3 Light Console is the versatile centerpiece of MA Lighting's professional lineup, engineered for demanding lighting design across corporate events, houses of worship, touring productions, and theatre. Its expansive multi-touch display, extensive playback capabilities, and adaptable control hardware provide intuitive operation for programmers at any skill level. Fully compatible with both grandMA2 and grandMA3 software, this console delivers exceptional system capacity and streamlined workflow without compromising on power or portability.

View Product Features
  • Powerful control platform with 16,384 parameters standard (expandable to 250,000 with processing units)
  • Two built in foldable multi touch screens plus two context sensitive letterbox multi touch screens
  • Supports up to two external multi touch displays
  • 60 physical playbacks and 16 assignable x keys for flexible cue access
  • Fifteen motorized 60 mm faders and two motorized A/B faders (100 mm) with RGB light pipes
  • 41 rotary RGB backlit encoders and 5 dual backlit encoders for parameter control
  • Integrated keyboard drawer and built in uninterruptible power supply (UPS)
  • Ergonomic, silent running design with intuitive layout
  • Supports GDTF (General Device Type Format) for consistent fixture behaviour
  • Compatible with grandMA2 and grandMA3 operating software
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

  •
    Used

    CL-US-CONM3-D1-CS

    MA Lighting grandMA3 Light

    $66,000.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the MA Lighting grandMA3 Light

The grandMA3 Light Console is the work horse of the MA Lighting range, offering an ideal balance of power and physical size for a wide variety of professional lighting applications. With a large multi touch display area, extensive playbacks, and flexible control hardware, it suits everything from corporate events and houses of worship to touring and theatre productions. Compatible with both grandMA2 and grandMA3 software, the Light Console delivers intuitive control, deep system capacity, and smooth workflow for designers and programmers of all levels.

Key Features

  • Powerful control platform with 16,384 parameters standard (expandable to 250,000 with processing units)
  • Two built in foldable multi touch screens plus two context sensitive letterbox multi touch screens
  • Supports up to two external multi touch displays
  • 60 physical playbacks and 16 assignable x keys for flexible cue access
  • Fifteen motorized 60 mm faders and two motorized A/B faders (100 mm) with RGB light pipes
  • 41 rotary RGB backlit encoders and 5 dual backlit encoders for parameter control
  • Integrated keyboard drawer and built in uninterruptible power supply (UPS)
  • Ergonomic, silent running design with intuitive layout
  • Supports GDTF (General Device Type Format) for consistent fixture behaviour
  • Compatible with grandMA2 and grandMA3 operating software

MA Lighting grandMA3 Light Specs

System Parameters
16,384 (HTP/LTP); Mode2
Playbacks
60 physical playbacks
Assignable Keys
16 x keys
Encoders
41 rotary RGB backlit and 5 dual backlit encoders
Faders
Fifteen motorized 60 mm and two motorized A/B 100 mm faders
Displays
Two foldable multi touch screens; two letterbox multi touch screens; external display support
Ethernet
3 × etherCON / RJ45
DMX I/O
6 × DMX512 A Out (5 pin XLR), 1 × DMX512 A In (5 pin XLR)
MIDI / SMPTE / Audio
MIDI In/Out, Linear Timecode In, Audio In
GPI
General Purpose Interface (D SUB DE9) for remote control
Video Output
DisplayPort 1.2 for external screens (2 ports)
S/PDIF
In & Out
USB
3 × USB 2.0 (Type A), 3 × USB 3.0 (Type A)
Desk Lights
2 × LED desk lights (4 pin XLR)
Power
AC 100–240 V, 50/60 Hz; max 300 VA
Operating Temp
0 °C to 40 °C (32 °F to 104 °F)
Dimensions (folded)
854 × 539 × 181 mm (34" × 22" × 8")
Dimensions (unfolded)
up to 854 × 871 × 255 mm (34" × 35" × 10")
Net Weight
33 kg / 73 lbs

Key Features

  • Powerful control platform with 16,384 parameters standard (expandable to 250,000 with processing units)
  • Two built in foldable multi touch screens plus two context sensitive letterbox multi touch screens
  • Supports up to two external multi touch displays
  • 60 physical playbacks and 16 assignable x keys for flexible cue access
  • Fifteen motorized 60 mm faders and two motorized A/B faders (100 mm) with RGB light pipes
  • 41 rotary RGB backlit encoders and 5 dual backlit encoders for parameter control
  • Integrated keyboard drawer and built in uninterruptible power supply (UPS)
  • Ergonomic, silent running design with intuitive layout
  • Supports GDTF (General Device Type Format) for consistent fixture behaviour
  • Compatible with grandMA2 and grandMA3 operating software
