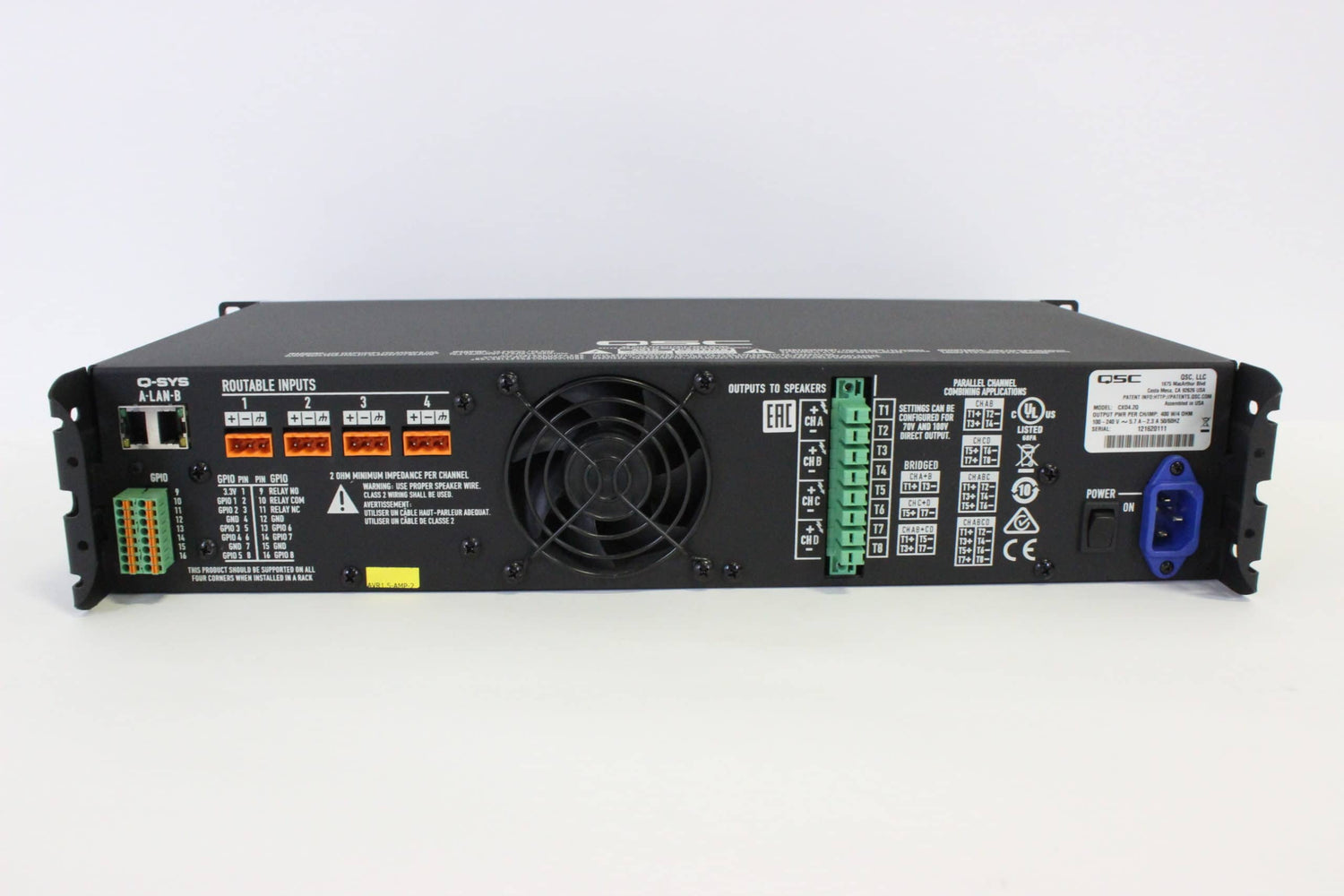

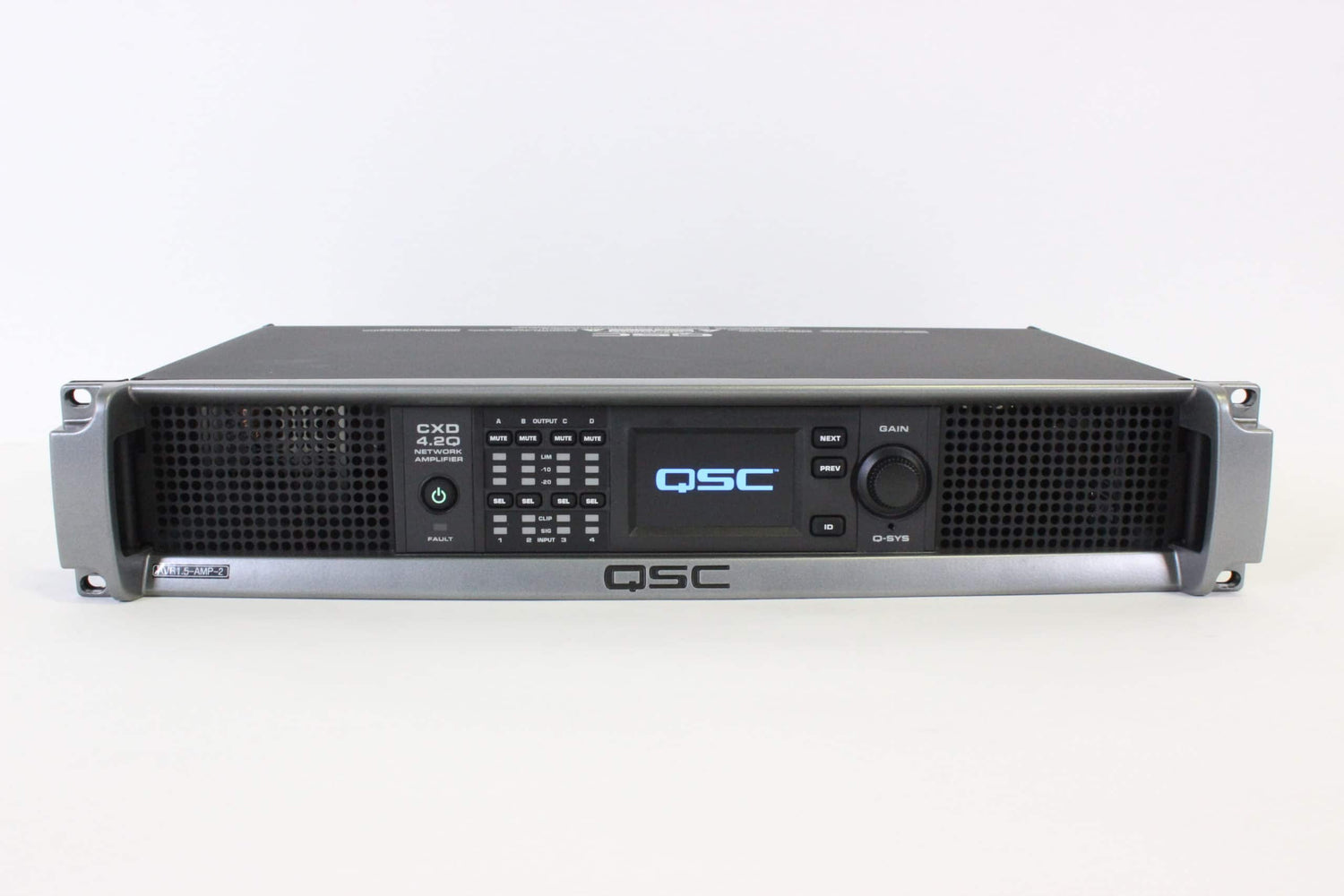

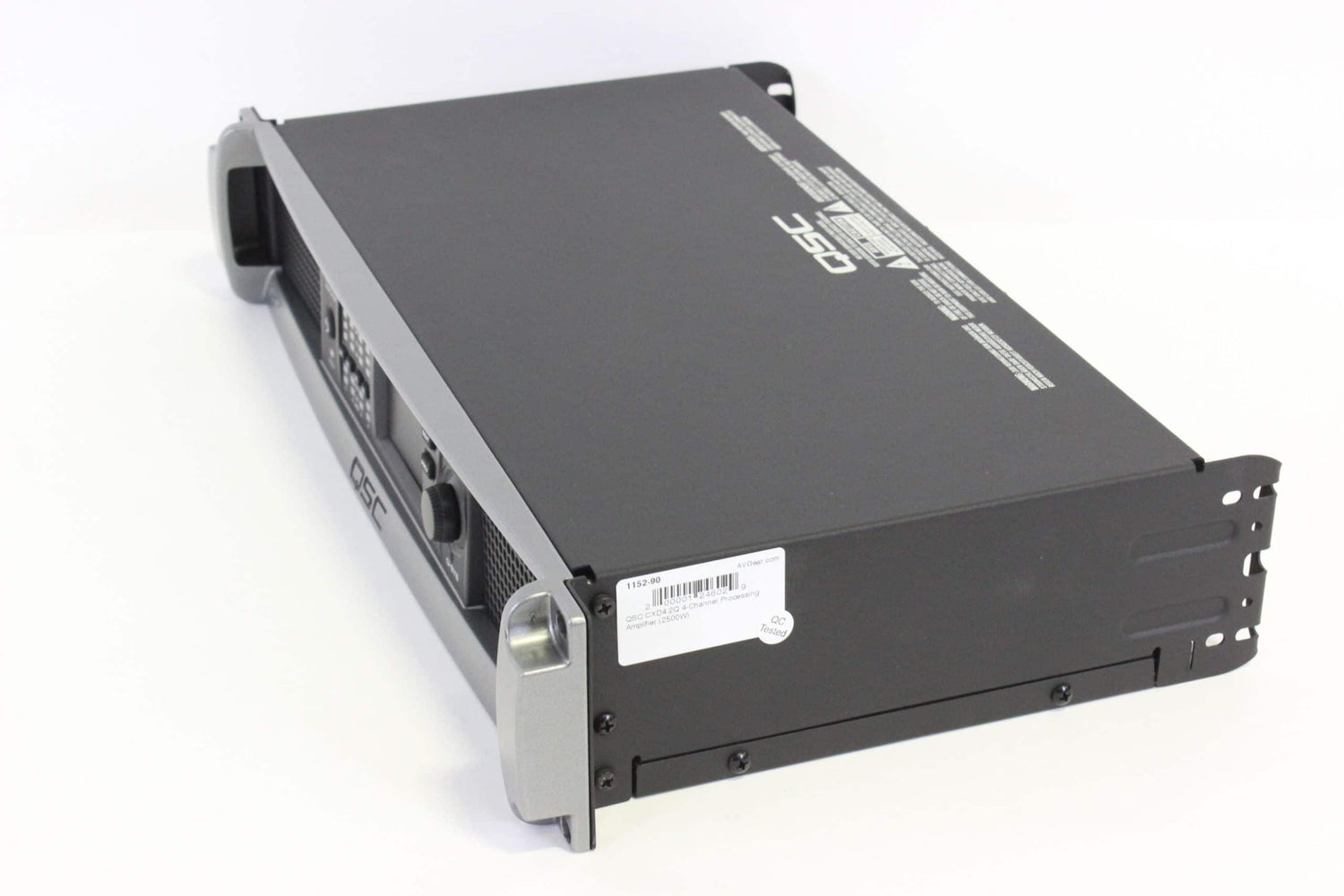

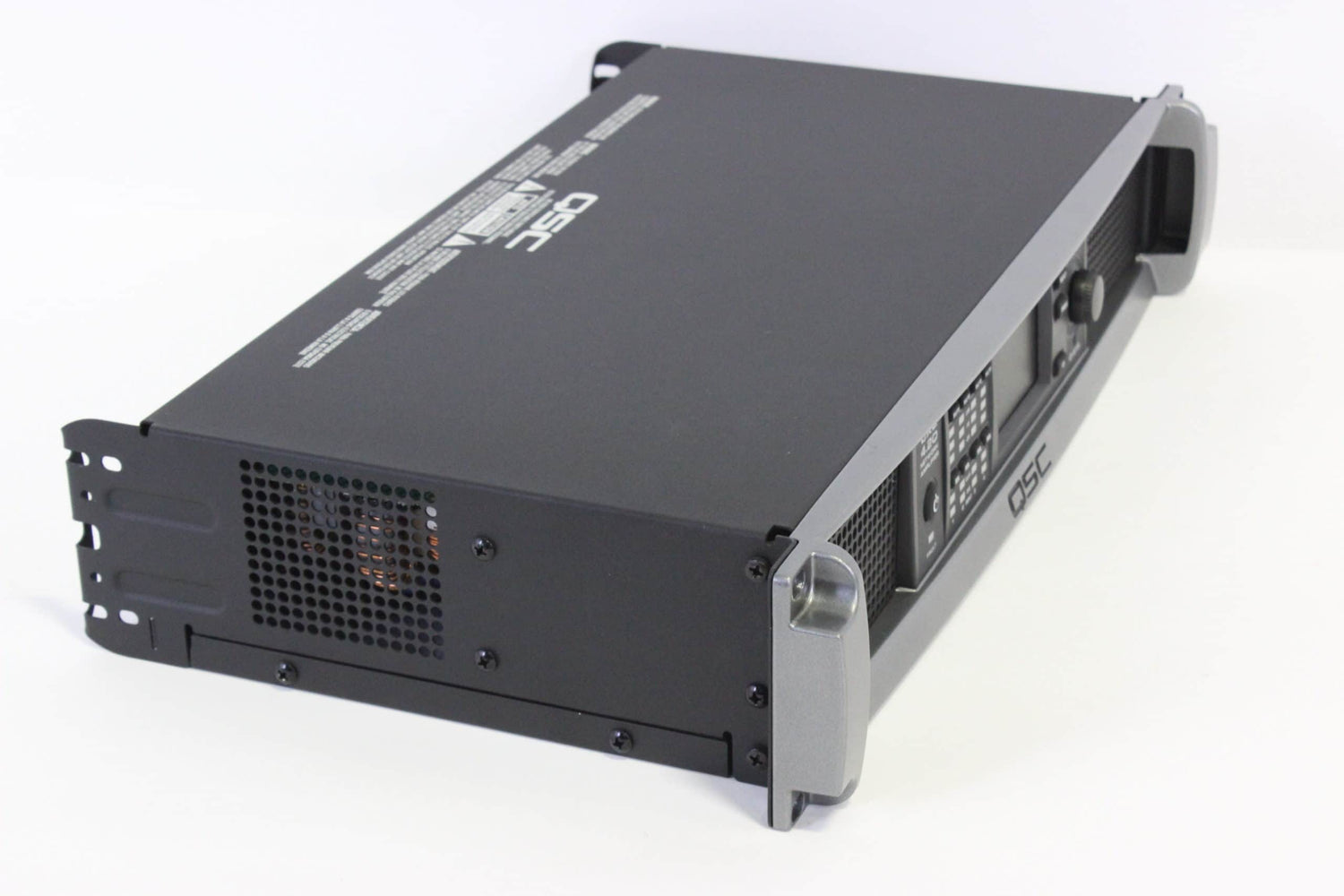

The QSC CXD4.2Q-NA is a networked four-channel processing amplifier that combines high-efficiency Class D power amplification with comprehensive DSP and Dante audio networking in a single 2U rack-mount unit. This amplifier is engineered for fixed installation applications such as corporate AV, hospitality, transportation hubs, and retail environments where reliable, scalable, and remotely manageable audio is essential. Each of its four channels delivers substantial power and is independently configurable, supporting both low-impedance (4-8 ohm) and high-impedance (70V/100V) speaker loads. This flexibility allows a single amplifier to drive a diverse mix of loudspeakers within a system, from 8-ohm ceiling speakers to long runs of 70V distributed audio lines, simplifying design and reducing the total number of required amplifier racks.

The core intelligence of the CXD4.2Q lies in its integrated Q-SYS DSP ecosystem. When connected to a Q-SYS Core processor via a standard Ethernet network, the amplifier becomes a fully managed endpoint within the larger audio, video, and control system. All amplifier parameters—including gain, EQ, crossover filters, dynamics processing, and limiter settings—are configured and monitored remotely from the Q-SYS Designer software. This centralization allows for seamless system-wide adjustments, automatic failover configurations, and detailed real-time monitoring of amplifier temperature, output levels, and fault conditions. The inclusion of Dante audio networking as a primary input provides a streamlined, low-latency digital audio path from the Core processor or other Dante-enabled sources directly to the amplifier channels.

For system integrators and consultants designing with the Q-SYS platform, the CXD4.2Q-NA represents a powerful and efficient building block. It reduces system complexity by eliminating the need for separate amplifiers and external DSP units, while its networked nature future-proofs installations by enabling easy reconfiguration and expansion. The amplifier's robust construction, efficient thermal management, and proactive protection circuits ensure reliable 24/7 operation. By merging amplification, processing, and networking into an intelligent, software-defined component, this amplifier delivers a new level of control, efficiency, and scalability for modern professional audio systems.
