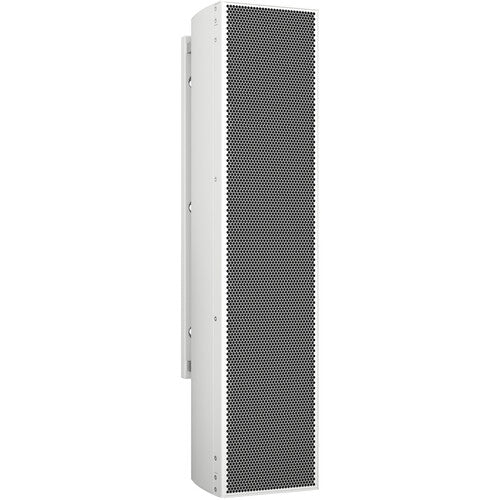

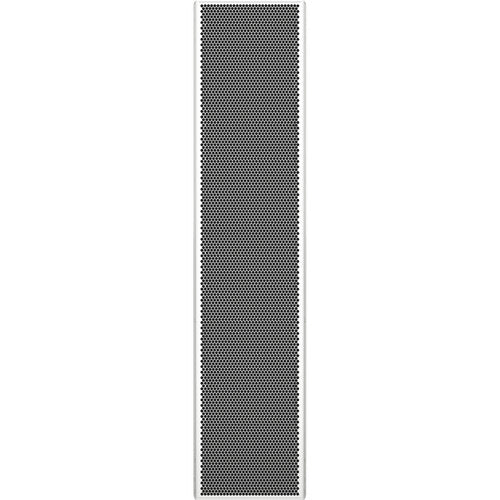

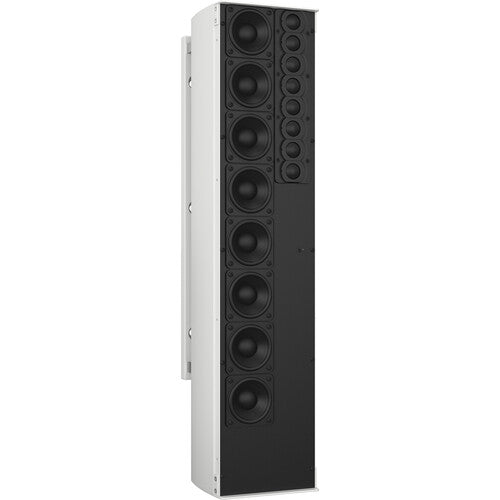

The Tannoy QFLEX 16 is a technologically advanced, digitally steerable column array loudspeaker designed to solve complex acoustic challenges in professional installation environments. Incorporating 16 individually powered and processed 3.5-inch neodymium drivers, this active system utilizes sophisticated DSP (Digital Signal Processing) to precisely control the vertical dispersion of sound. Unlike conventional column speakers with a fixed coverage pattern, the QFLEX 16 allows system designers to digitally shape and steer multiple independent sound beams—each with its own frequency content, timing, and level—toward specific audience zones while minimizing sound spill onto walls, ceilings, or reflective surfaces. This capability is transformative for challenging spaces such as museums, airports, houses of worship, and auditoriums with severe architectural constraints, enabling clear, consistent audio coverage that adapts to the room's geometry rather than forcing the room to adapt to the speaker.

The system's intelligence is housed in its integrated amplifier and DSP platform, which is managed via Tannoy's proprietary BeamEngine GUI software. This intuitive software runs on a standard computer and provides a visual representation of the room, allowing the installer to draw coverage zones directly on a floor plan. The software then automatically calculates the complex drive signals for each of the 16 drivers to create the optimal beam patterns, including options for foreground music, background fill, or even multiple simultaneous programs in different languages. Each driver is powered by its own dedicated Class-D amplifier channel, and the DSP handles all crossover, equalization, delay, and beamforming tasks in the digital domain, ensuring maximum fidelity and control. This results in a system that can deliver exceptional speech intelligibility and musical fidelity with minimal acoustic treatment of the space.

Constructed with a sleek, low-profile enclosure, the QFLEX 16 is designed for visual discretion and can be surface-mounted or flown. Its integrated design eliminates the need for external signal processors or complex amplifier racks, streamlining installation and reducing points of failure. For audio consultants and system integrators, the Tannoy QFLEX 16 represents a leap forward in installed sound technology. It moves beyond simple volume and tone control into the realm of true spatial audio management, offering an unprecedented level of precision to deliver the right sound to the right place, thereby enhancing audience experience and maximizing the effectiveness of the audio system in any architectural environment.
