Tannoy

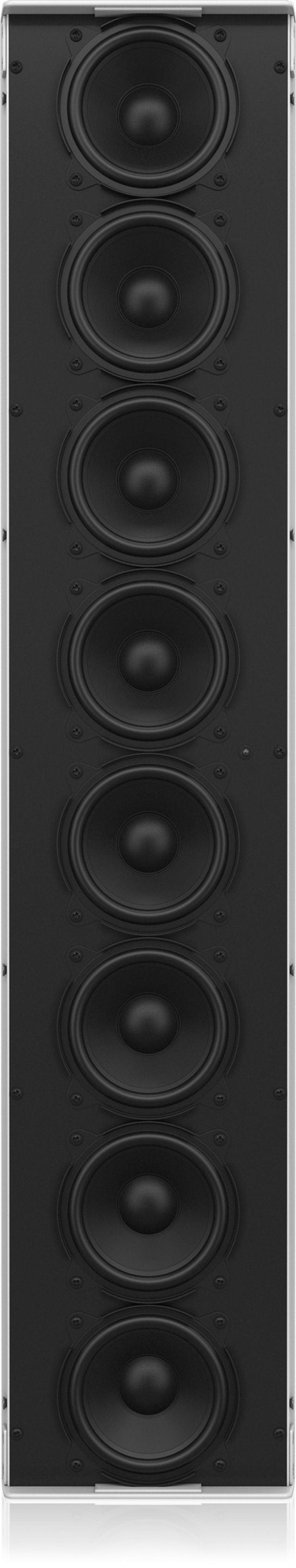

Tannoy QFLEX 8 Digitally Steerable Powered Column Array Loudspeaker with 8 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications

$0.00

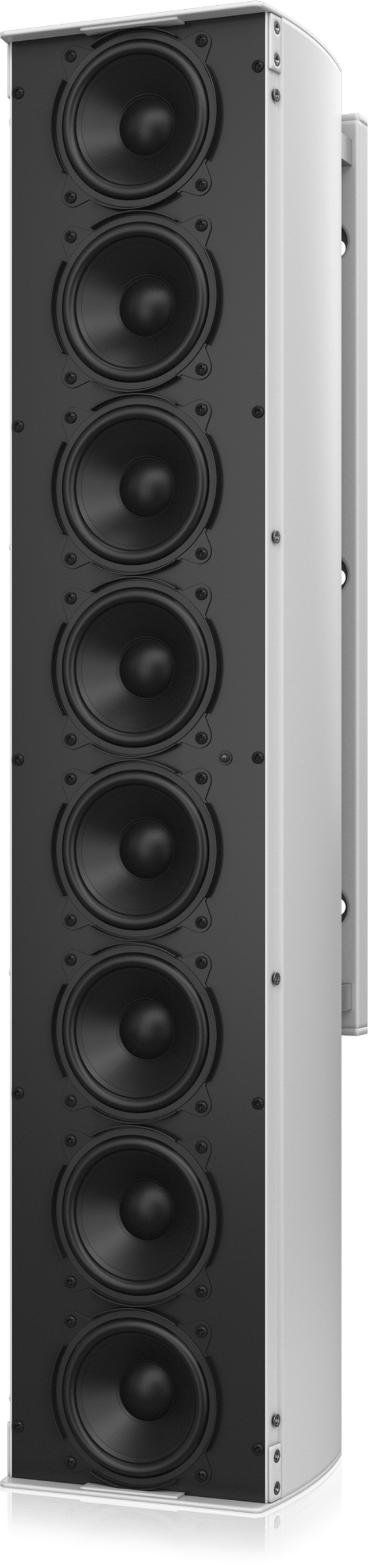

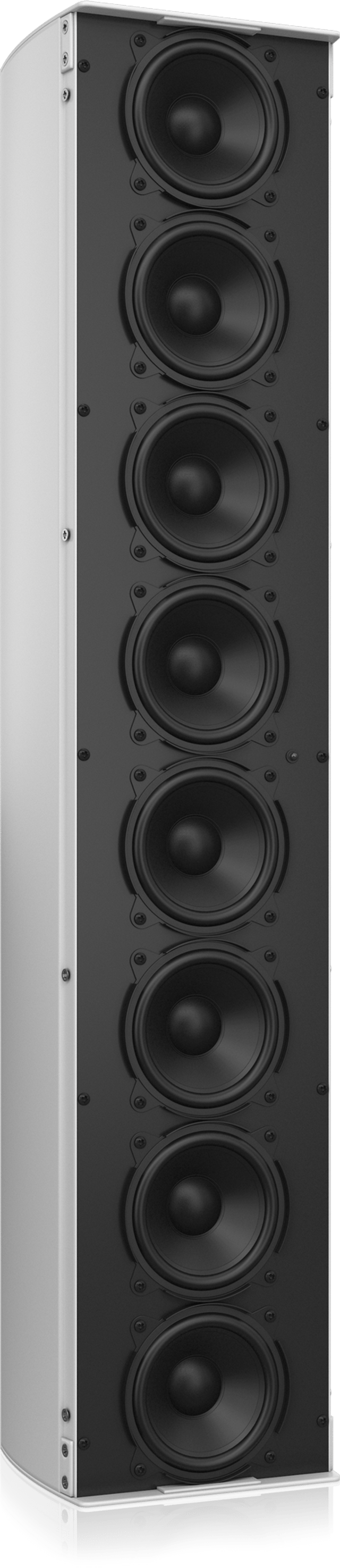

The Tannoy QFLEX 8 is a powerful, digitally steerable column array loudspeaker system designed for installed applications with challenging acoustics, such as houses of worship, transportation hubs, museums, and conference centers. It is equipped with eight 4-inch full-range drivers, each with its own dedicated 100-watt Class D amplifier and integrated DSP. The speaker features revolutionary BeamEngine technology that allows sound to be precisely steered away from reflective surfaces like walls and ceilings.

The intuitive BeamEngine graphical user interface (GUI) lets sound designers define specific target areas for coverage, creating a tailored algorithm to deliver even sound pressure levels across both near and far fields. This approach ensures exceptional speech intelligibility and high-quality music reproduction.

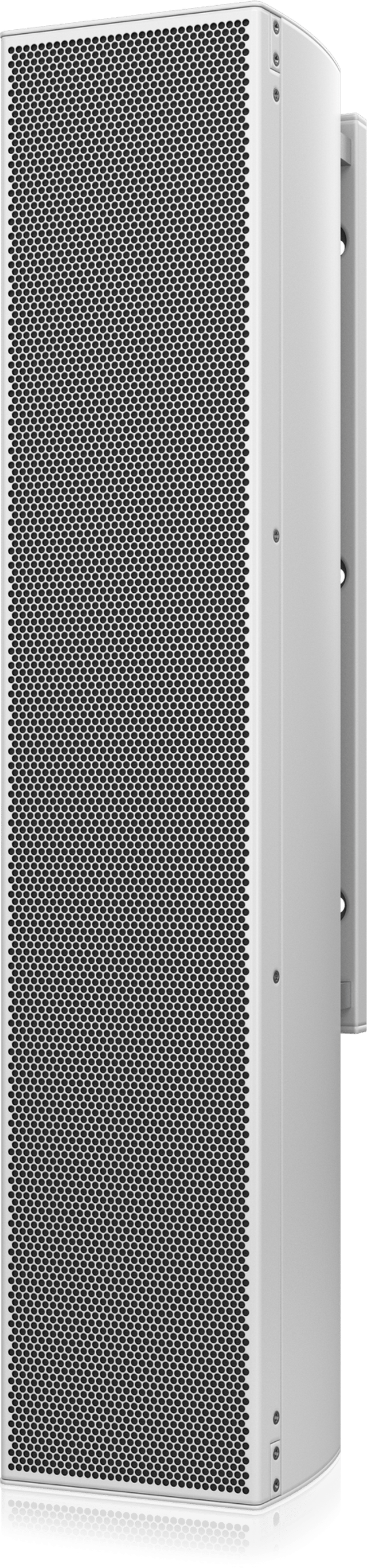

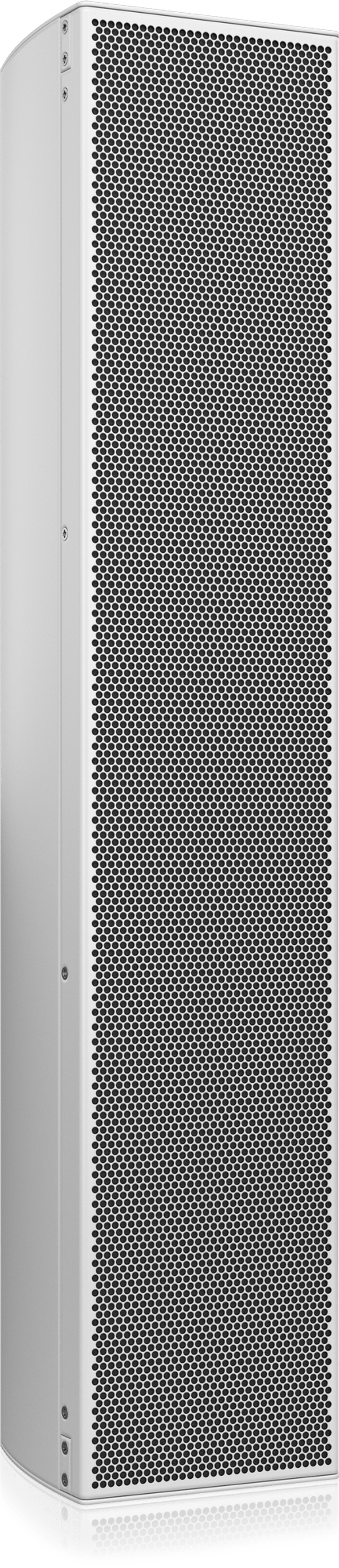

The QFLEX 8 is built for scalability and can connect with other Tannoy VNET-enabled products for comprehensive system diagnostics and monitoring. It is housed in an architecturally styled aluminum enclosure with a semi-matte white finish and a corrosion-resistant grille.

View Product Features

  • Digitally steerable audio: Shapes sound beams to avoid reflective surfaces.
  • Intuitive BeamEngine GUI: Allows precise tailoring of sound coverage areas.
  • Eight independent drivers: Each has dedicated DSP and 100-watt amplification.
  • VNET network support: Enables system diagnostics and seamless expansion.
  • High intelligibility: Delivers exceptionally clear speech reinforcement.
  • Designed for acoustics: Ideal for challenging venues and environments.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Tannoy QFLEX 8 Digitally Steerable Powered Column Array Loudspeaker with 8 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications

The Tannoy QFLEX 8 is an entry-point model in the digitally steerable column array range, offering intelligent beamforming technology in a compact and affordable format for smaller-scale installations. This active system incorporates eight independently amplified 3.5-inch coaxial drivers, each managed by its own DSP channel within an integrated processing engine. While offering a lower channel count than its larger siblings, it retains access to the powerful BeamEngine control software, enabling basic beam steering and shaping capabilities. This allows installers to tilt the vertical coverage pattern and focus sound more precisely than a standard column speaker, improving speech intelligibility and reducing reverberation in challenging spaces like classrooms, small conference rooms, courtrooms, and retail boutiques.

The system is designed for simplicity and effective performance in applications where extreme output or multiple independent beams are not required. The eight-driver array provides a coherent line source effect, delivering a more controlled vertical dispersion than a point-source speaker, which helps direct sound towards the audience and away from ceilings. The integrated Class-D amplification and DSP ensure optimal performance and protection for the drivers. While its maximum output and low-frequency extension are naturally more limited than larger QFLEX models, it provides a significant intelligibility improvement over conventional speakers in reverberant environments, making it a smart choice for voice-centric applications.

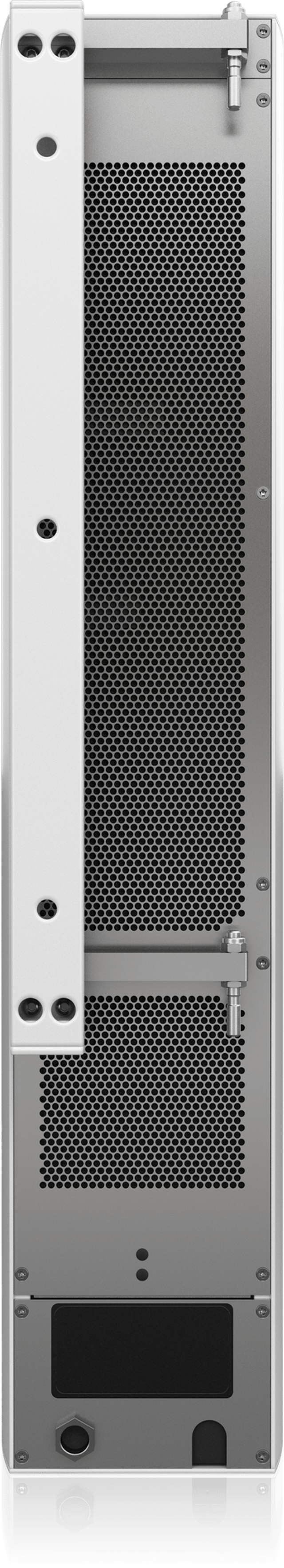

As a networked audio device, it supports easy integration, featuring Dante for primary audio input and Ethernet for control via the BeamEngine software. Its slender, low-profile enclosure is designed for discreet wall mounting, and its self-powered nature eliminates the need for external amplifier racks. The Tannoy QFLEX 8 brings the core benefits of steerable column technology—improved clarity and controlled coverage—to a wider range of projects and budgets, demonstrating that advanced audio control is accessible for smaller, speech-oriented installations.

Key Features

  • Digitally steerable audio: Shapes sound beams to avoid reflective surfaces.
  • Intuitive BeamEngine GUI: Allows precise tailoring of sound coverage areas.
  • Eight independent drivers: Each has dedicated DSP and 100-watt amplification.
  • VNET network support: Enables system diagnostics and seamless expansion.
  • High intelligibility: Delivers exceptionally clear speech reinforcement.
  • Designed for acoustics: Ideal for challenging venues and environments.

Tannoy QFLEX 8 Digitally Steerable Powered Column Array Loudspeaker with 8 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications Specs

Array Configuration
Active Drivers
8
Driver Size
3.5 Inch Coaxial
Amplifier Channels
8
Processing
Integrated DSP
Beam Control
Control Software
BeamEngine GUI
Beam Steering
Vertical Tilt
Simultaneous Beams
1 Primary
Presets
User Definable
Acoustic Performance
Maximum SPL
108 dB
Frequency Response
100 Hz - 20 kHz
Total System Power
800W
Coverage
Controlled Vertical
Enclosure & Integration
Finish
White
Cabinet Material
Aluminum Composite
Mounting
Wall Bracket
Cooling
Convection
Connectivity
Network Audio
Dante
Analog Input
1 x XLR/TRS
Control Port
Ethernet RJ45
AC Power
100-240V

Key Features

  • Digitally steerable audio: Shapes sound beams to avoid reflective surfaces.
  • Intuitive BeamEngine GUI: Allows precise tailoring of sound coverage areas.
  • Eight independent drivers: Each has dedicated DSP and 100-watt amplification.
  • VNET network support: Enables system diagnostics and seamless expansion.
  • High intelligibility: Delivers exceptionally clear speech reinforcement.
  • Designed for acoustics: Ideal for challenging venues and environments.
