Tascam

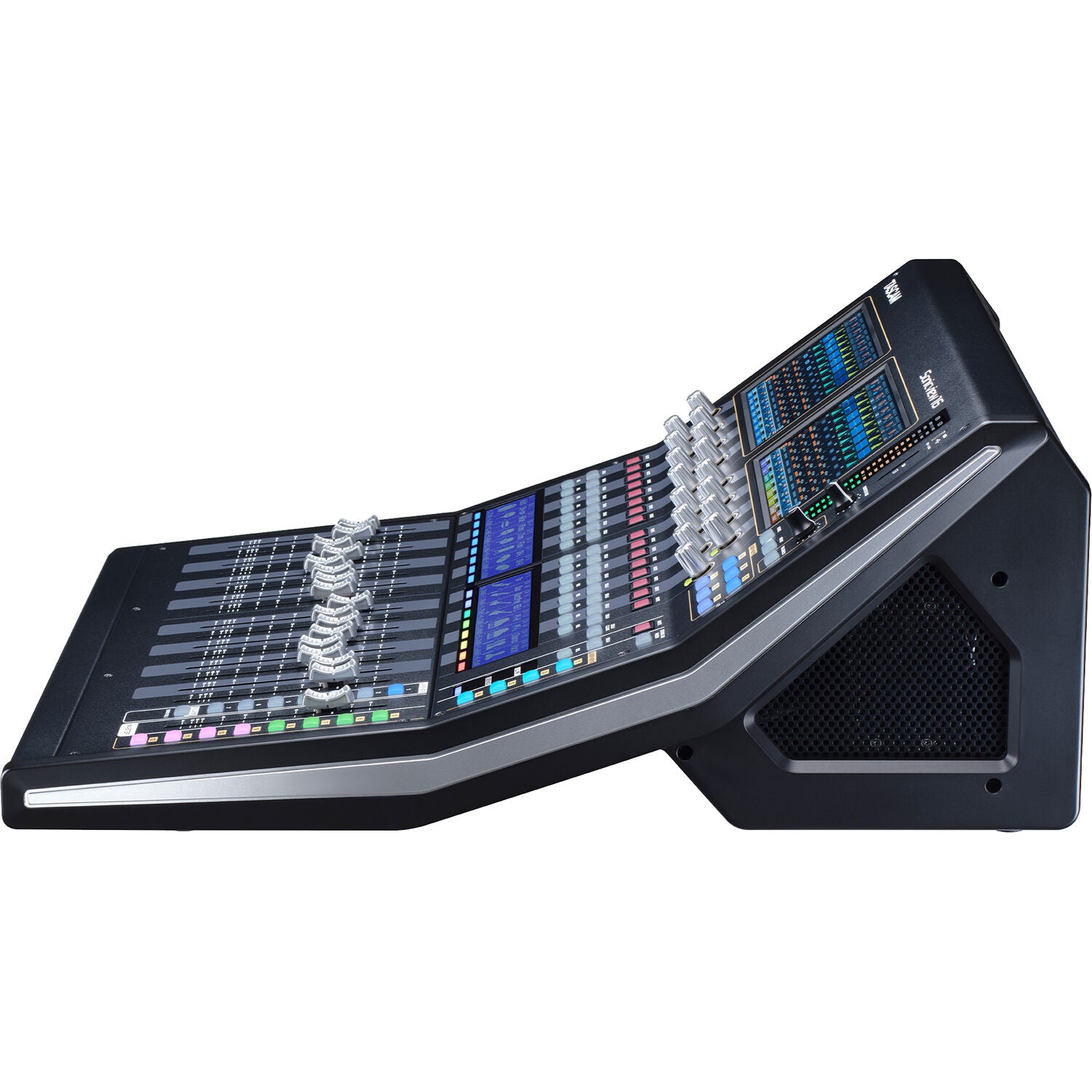

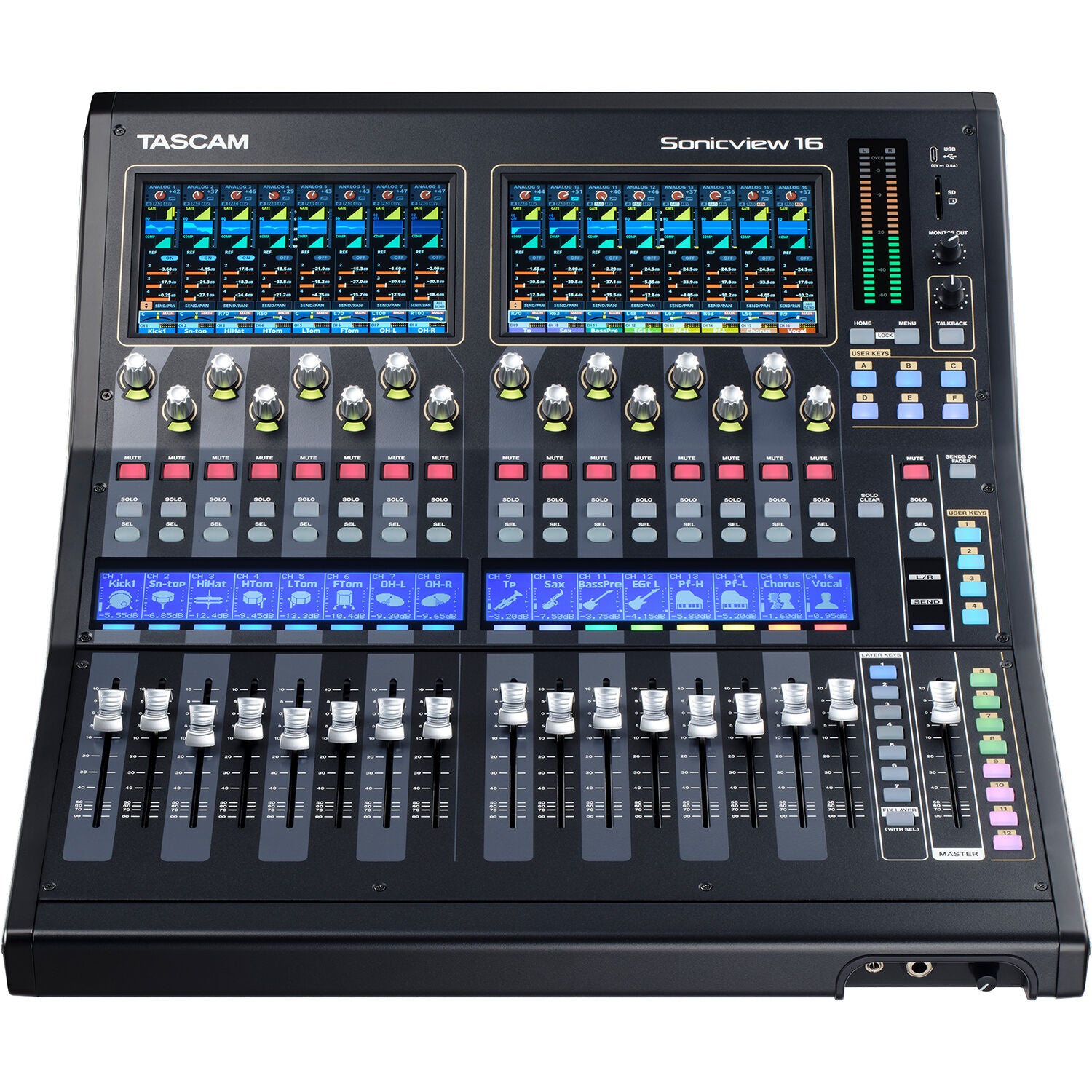

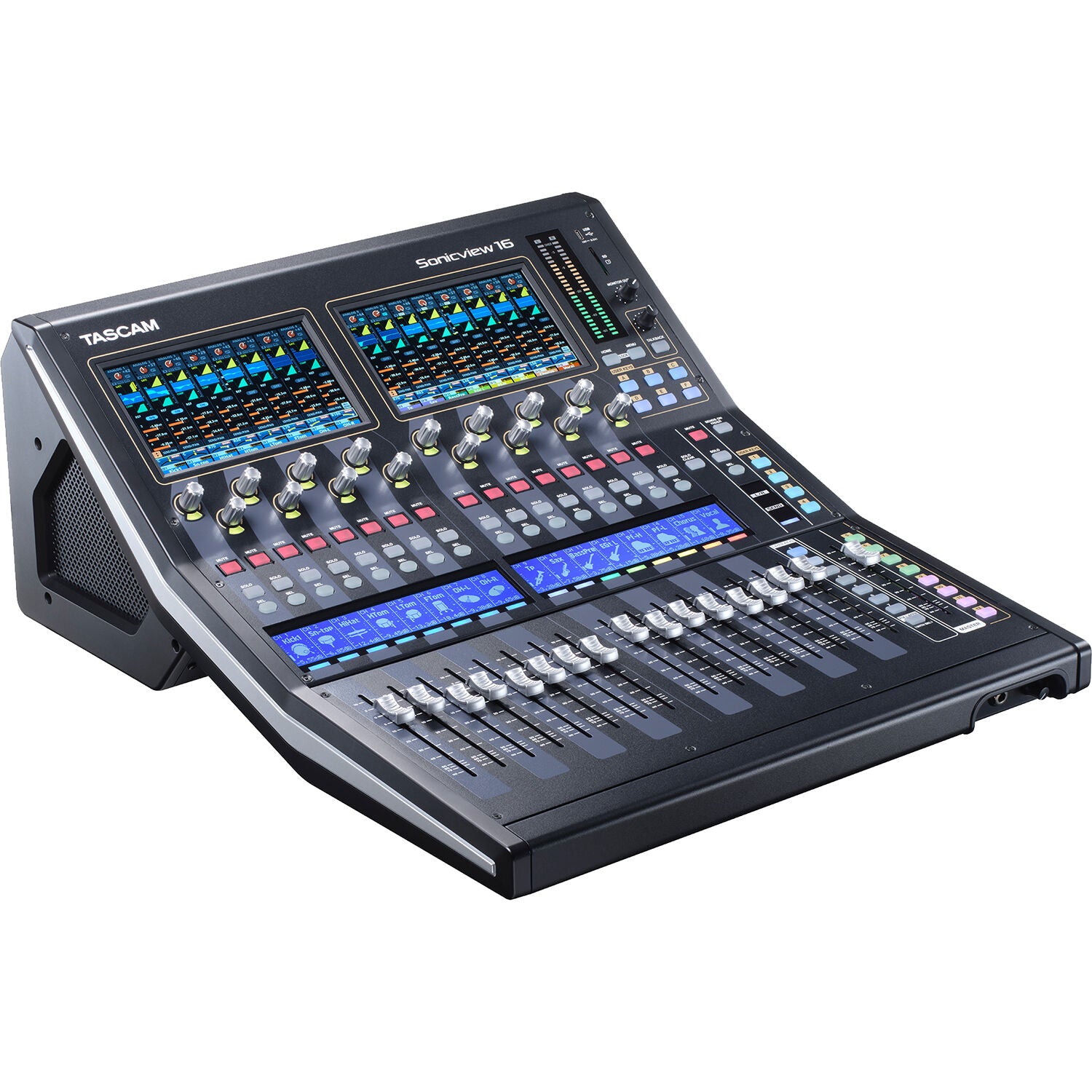

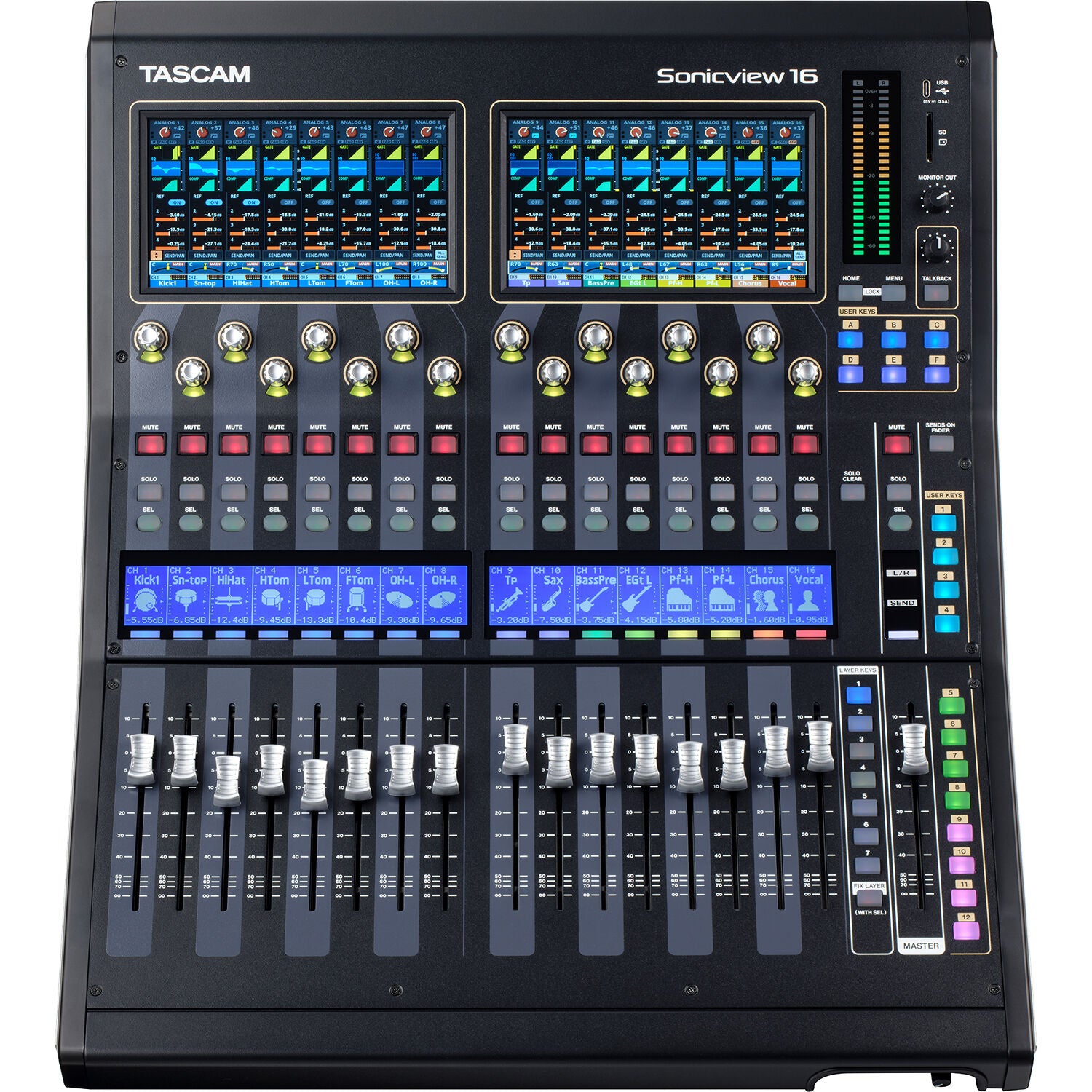

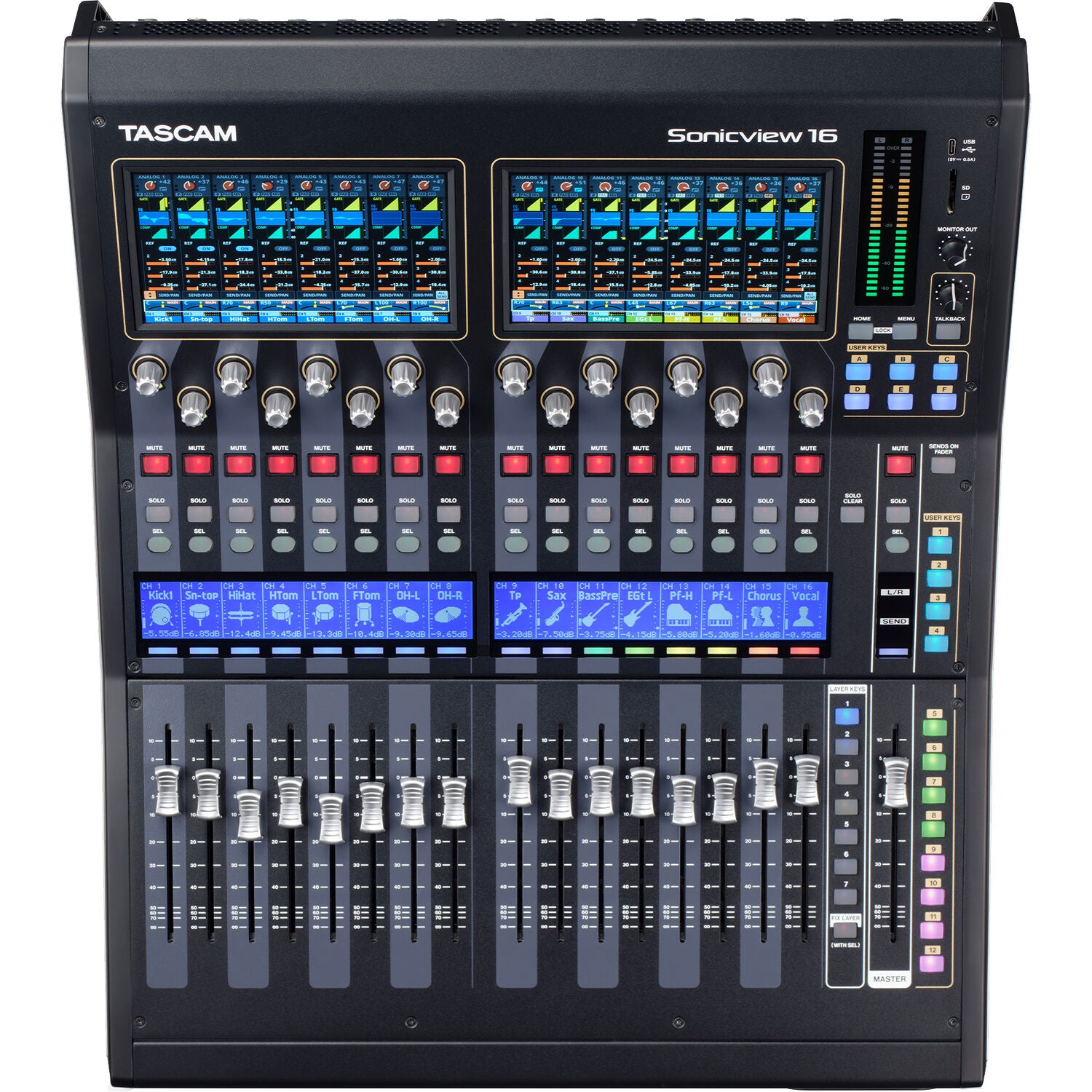

TASCAM Sonicview 16XP 16-Channel Digital Mixing Console and Multitrack Recorder

$5,999.00

Audio professionals in search of a cutting edge digital mixer will be impressed with the TASCAM Sonicview 16XP, a next-generation multitrack recording and digital mixing console with multi-environment touchscreens, well suited for touring bands, concert halls, clubs, bars, special events, corporate meetings, and rental houses. Powered by a 96 kHz, 54-bit floating-point FPGA mixing engine that utilizes 96 kHz / 32-bit AD/DA converters, the Sonicview 16XP provides 1st-class sonics with ultralow latency performance. Best of all, the hardware mixing surface and mix engine operate independently of each other for a highly stable and continuous audio workflow.

The Sonicview 16XP features 17 motorized faders and two 7" touchscreen displays, as well as 16 XLR inputs, each with TASCAM's HDIA preamps for high-definition recording and playback. Channels 9 to 16 also feature balanced 1/4" inputs, while inputs 7 and 8 include 1/4" inserts. For outputs, the mixer includes 16 XLR outputs, plus XLR monitor outputs, as well as 1/4" and 3.5mm headphone outputs. Each input channel includes 11 processing functions including trim, HPF, 4-band EQ, dynamics, and more. There are four stereo multi-effects processors available to add that special sauce to your mix. The mixer is equipped with Dante I/O, Ethernet, and a GPIO connection for events and relay applications. The Sonicview ships with IF-MTR32 multitrack SD recording card preinstalled.

View Product Features

  • FPGA Mix Engine + 32-Bit / 96 kHz AD/DA
  • Dual 7" Touchscreens + Motorized Faders
  • 16 HDIA Microphone Preamps
  • 16 XLR Mic/Line Input Channels
  • 8 x 1/4" Line Inputs + 2 x 1/4" Inserts
  • 16 XLR Bus / Outputs
  • 11 Processing Functions per Input
  • Including EQ, Dynamics, Filter, and More
  • 32-In x 32-Out USB and SD-Card Recording
  • Four Stereo Effects Engines
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the TASCAM Sonicview 16XP 16-Channel Digital Mixing Console and Multitrack Recorder

Audio professionals in search of a cutting edge digital mixer will be impressed with the TASCAM Sonicview 16XP, a next-generation multitrack recording and digital mixing console with multi-environment touchscreens, well suited for touring bands, concert halls, clubs, bars, special events, corporate meetings, and rental houses. Powered by a 96 kHz, 54-bit floating-point FPGA mixing engine that utilizes 96 kHz / 32-bit AD/DA converters, the Sonicview 16XP provides 1st-class sonics with ultralow latency performance. Best of all, the hardware mixing surface and mix engine operate independently of each other for a highly stable and continuous audio workflow.

The Sonicview 16XP features 17 motorized faders and two 7" touchscreen displays, as well as 16 XLR inputs, each with TASCAM's HDIA preamps for high-definition recording and playback. Channels 9 to 16 also feature balanced 1/4" inputs, while inputs 7 and 8 include 1/4" inserts. For outputs, the mixer includes 16 XLR outputs, plus XLR monitor outputs, as well as 1/4" and 3.5mm headphone outputs. Each input channel includes 11 processing functions including trim, HPF, 4-band EQ, dynamics, and more. There are four stereo multi-effects processors available to add that special sauce to your mix. The mixer is equipped with Dante I/O, Ethernet, and a GPIO connection for events and relay applications. The Sonicview ships with IF-MTR32 multitrack SD recording card preinstalled.

Key Features

  • FPGA Mix Engine + 32-Bit / 96 kHz AD/DA
  • Dual 7" Touchscreens + Motorized Faders
  • 16 HDIA Microphone Preamps
  • 16 XLR Mic/Line Input Channels
  • 8 x 1/4" Line Inputs + 2 x 1/4" Inserts
  • 16 XLR Bus / Outputs
  • 11 Processing Functions per Input
  • Including EQ, Dynamics, Filter, and More
  • 32-In x 32-Out USB and SD-Card Recording
  • Four Stereo Effects Engines

TASCAM Sonicview 16XP 16-Channel Digital Mixing Console and Multitrack Recorder Specs

Mixer
Max I/O Capacity
44x Input / 55x Output (with Optional Hardware)
Number of Analog Input Channels
16 (16 Mono)
Number of Mic Preamps
16
Number of Analog Output Channels
16
Mix Routing
1x Main LRC 4x Mono Subgroup 4x Mono Aux Send
Groups
8x DCA Group
Presets
No
Display
7" LCD Touchscreen
Faders & Level Adjustment
17x 3.9" / 100 mm Motorized Fader(Touch Sensitive)
Meters
Main Meter: 2x 24-Segment LED
Signal Processing
Input Pad
-20 dB
Input Polarity
Normal/Reverse
Dynamic Processing
Input Channels: Compressor, Gate
Buses, Master: Compressor
EQ
Input Channels: 4-Band Parametric Output Buses: 31-Band Graphic 4-Band Parametric
Filters
Input Channels: High-Pass
Solo/Mute
Solo, Mute per Input Channel, Bus, FX Bus, Master
Built-In Effects
4x Stereo Effect (Type Unspecified)
Automatic Mic Mixing
No
Digital Audio
Sample Rates
Up to 96 kHz
Bit Depth
24-Bit
Word Clock Input
48 to 96 kHz
Performance
Frequency Response
Mic/Line InputLine: 20 Hz to 40 kHz +0/-1 dB (at 96 kHz) 20 Hz to 20 kHz 0/-0.5 dB (at 48 kHz)
Max Input Level
Mic/Line Input: +32 dBu at Max Gain (PAD=Off, TRIM Min) Mic/Line Input: -62 dBV at Min Gain (PAD=Off, TRIM Max)
Analog Dynamic Range
108 dB at Min Gain
Headphone Output Power
1/4": 100 mW per Channel into 32 Ohms (Max)
I/O Impedance
XLR Line/Mic Input: ≥ 5 Kilohms Stereo RCA Input: 10 Kilohms XLR Output: 100 Ohms
THD
< 0.002% at Min Gain (+4 dBu)
Signal Generator
No
Connectivity

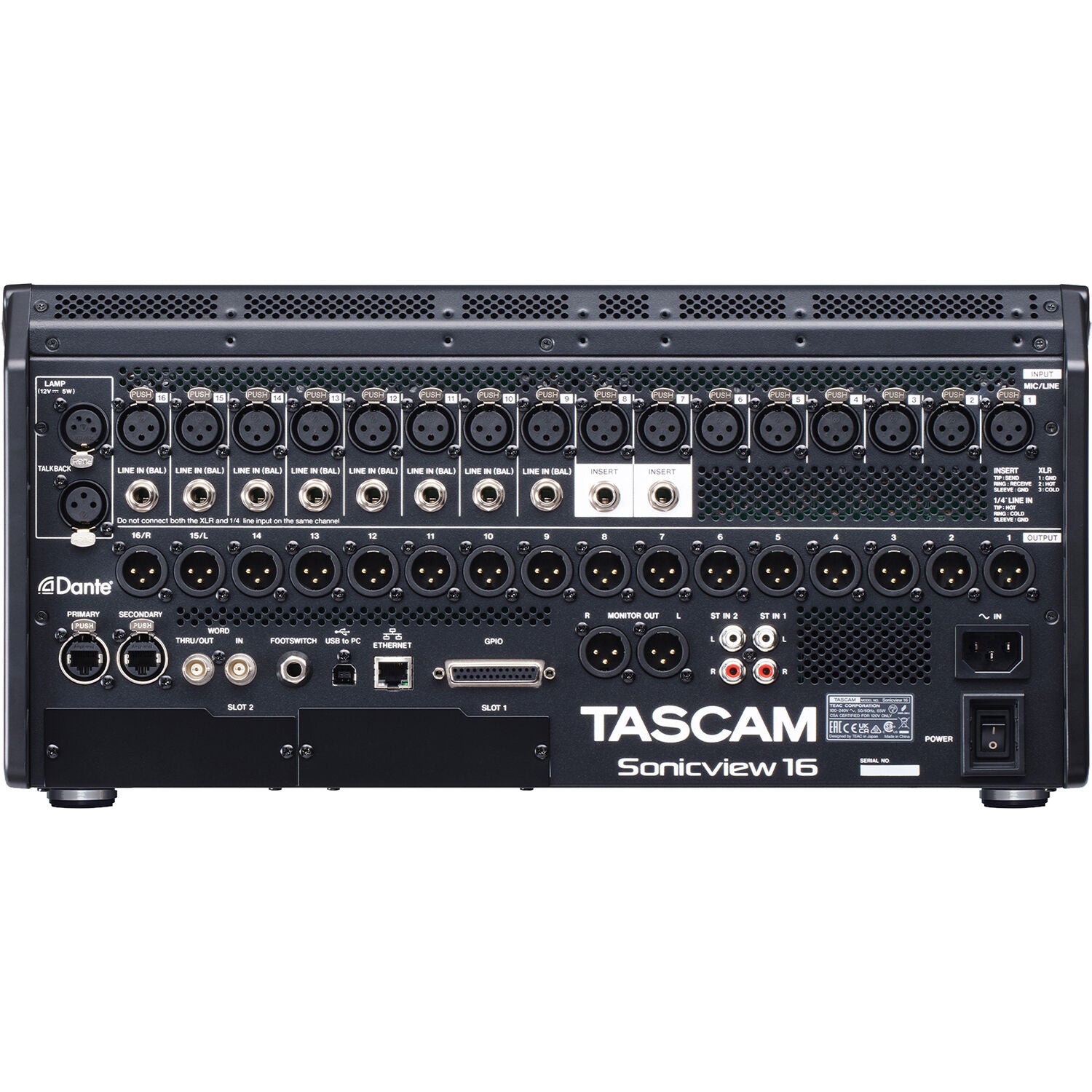

Analog Inputs
16x XLR 3-Pin Balanced Mic/Line Input 8x 1/4" TRS Balanced/Unbalanced Line Input 2x 1/4" Unbalanced Insert Insert 1x XLR 3-Pin Balanced Talkback Input 1x DB-25 25-Pin Alt Input 2x Stereo RCA TS Stereo 2-Track Input
Analog Outputs
16x XLR 3-Pin Balanced Main/Bus Output 2x XLR 3-Pin Balanced Monitor Output 1x 1/4" TRS Headphone Output
Phantom Power
+48 V
Digital I/O
1x RJ45 Ethernet Input/Output (Network) 2x RJ45 Dante Input/Output (I/O, Network) 2x BNC Input/Output/Thru (Word Clock)
MIDI I/O
No
USB I/O
1x USB-B (Host Connection) 1x USB-A (2-Track Record, Audio Playback, External Memory)
Expansion Ports
1x I/O Card
Wireless
No
Recording
Max Multitrack Recording
32 Tracks
Media Support
SD, SDHC, USB Drive
Max Media Storage Capacity
SD: 32 GB SDHC: 128 GB USB: 128 GB
File Format Support
Playback: AAC, MP3, WAV Record: WAV
Compatibility
OS Compatibility
Computer: Windows 10 or Later / macOS 10.15 to 12 Mobile: iPadOS Only
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Dimensions
18.6 x 9 x 21.8" / 47.2 x 22.8 x 55.4 cm
Weight
28.7 lb / 13 kg

Key Features

  • FPGA Mix Engine + 32-Bit / 96 kHz AD/DA
  • Dual 7" Touchscreens + Motorized Faders
  • 16 HDIA Microphone Preamps
  • 16 XLR Mic/Line Input Channels
  • 8 x 1/4" Line Inputs + 2 x 1/4" Inserts
  • 16 XLR Bus / Outputs
  • 11 Processing Functions per Input
  • Including EQ, Dynamics, Filter, and More
  • 32-In x 32-Out USB and SD-Card Recording
  • Four Stereo Effects Engines
