SKU: 2238-1771

Tesira EX-IN 4-Channel Mic/Line Input Expander PoE+

$185.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The Tesira EX-IN is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-IN is a 4-channel mic or line level audio input expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.The Tesira EX-IN complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government. Read more

Features

  • Four channels of balanced microphone or line level input
  • 0 – 66 dB gain, adjustable in 6 dB increments
  • +48 volts Phantom Power
  • -100 to +12 dB fader range for level
  • Audio and control networking over AVB/TSN
  • Powered by PoE+

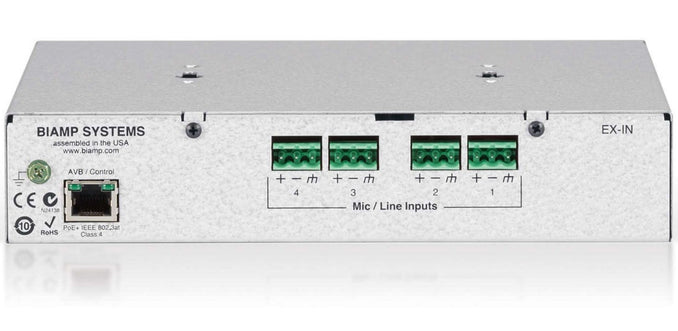

  • Plug-in barrier strip connectors

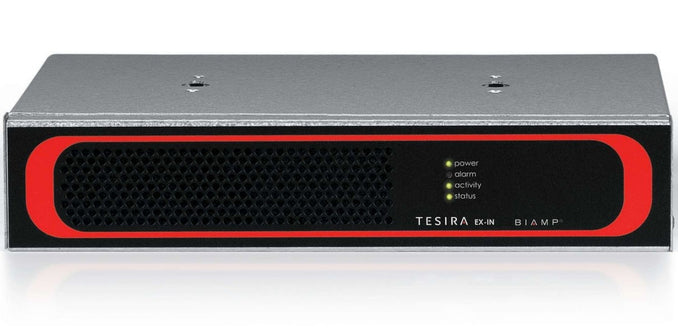

  • Front panel LEDs for device status indications
  • Half-rack chassis
  • RoHS compliant and AES grounded

Business Financing Options Avaiable

The Tesira EX-IN is a half-rack expander box for use with AVB-enabled Tesira server-class devices. The EX-IN is a 4-channel mic or line level audio input expander. The expander communicates with the Tesira AVB network for audio networking, configuration, and control, and is powered by PoE+.The Tesira EX-IN complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government. Read more

Features

  • Four channels of balanced microphone or line level input
  • 0 – 66 dB gain, adjustable in 6 dB increments
  • +48 volts Phantom Power
  • -100 to +12 dB fader range for level
  • Audio and control networking over AVB/TSN
  • Powered by PoE+
  • Plug-in barrier strip connectors
  • Front panel LEDs for device status indications
  • Half-rack chassis
  • RoHS compliant and AES grounded

About the Tesira EX-IN 4-Channel Mic/Line Input Expander PoE+

The Biamp Tesira EX-IN is a half-rack, 4-channel microphone and line-level audio input expander designed for AVB-enabled Tesira systems.

Key Features

  • Four channels of balanced microphone or line level input
  • 0 – 66 dB gain, adjustable in 6 dB increments
  • +48 volts Phantom Power
  • -100 to +12 dB fader range for level
  • Audio and control networking over AVB/TSN
  • Powered by PoE+
  • Plug-in barrier strip connectors
  • Front panel LEDs for device status indications
  • Half-rack chassis
  • RoHS compliant and AES grounded

Tesira EX-IN 4-Channel Mic/Line Input Expander PoE+ Specs

4 Audio Channels
Balanced microphone or line-level inputs.
Gain & Power
Adjustable 0–66 dB gain (in 6 dB increments) and +48V phantom power per channel.
Network & Power
Uses AVB/TSN for audio and control networking, powered via PoE+ (Power over Ethernet).
Compliance
Compliant with the United States Trade Agreement Act (TAA).
Compatibility
Works with AVB-enabled Tesira server-class devices and TesiraFORTÉ.

Key Features

  • Four channels of balanced microphone or line level input
  • 0 – 66 dB gain, adjustable in 6 dB increments
  • +48 volts Phantom Power
  • -100 to +12 dB fader range for level
  • Audio and control networking over AVB/TSN
  • Powered by PoE+
  • Plug-in barrier strip connectors
  • Front panel LEDs for device status indications
  • Half-rack chassis
  • RoHS compliant and AES grounded
