Turbosound

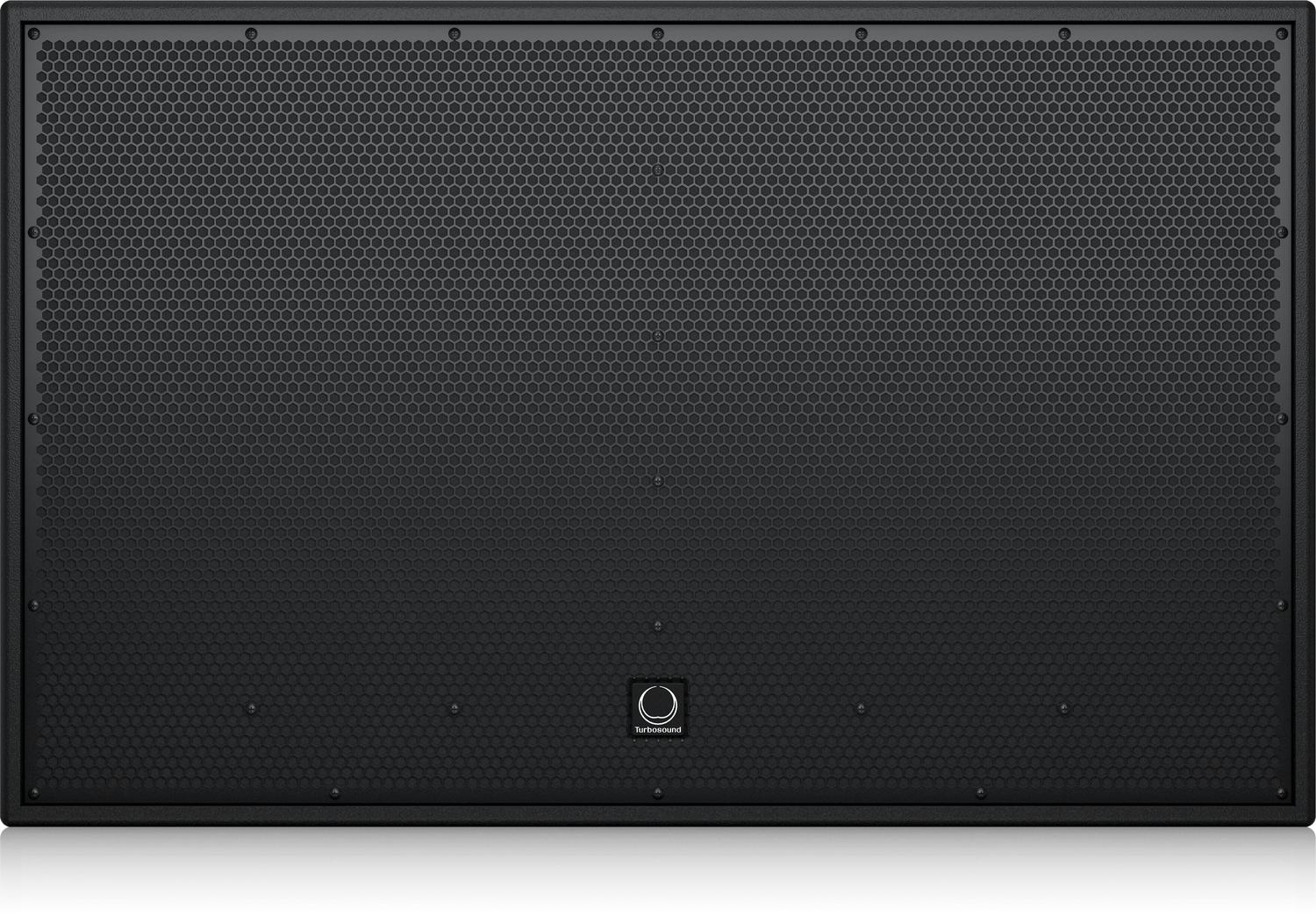

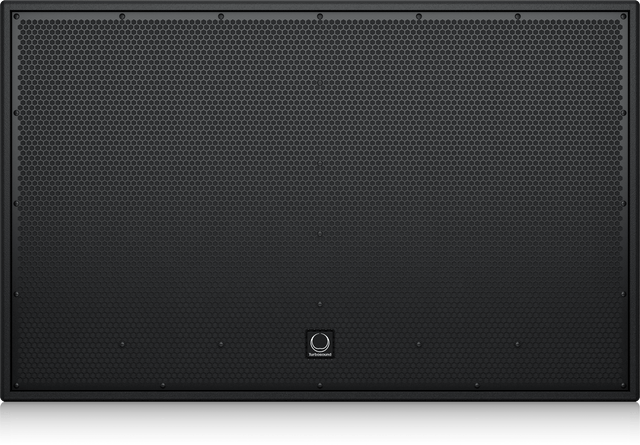

Turbosound TCS218B Dual 18" Front Loaded Subwoofer for Installation Applications

$0.00

The Turbosound TCS218B is a high-performance, passive dual 18-inch front-loaded subwoofer designed for fixed installation sound reinforcement. It is part of the Athens Series and is engineered to provide extended low-frequency performance when used with Turbosound's TCS Series loudspeakers. The bass reflex port design, combined with two high-power 18" drivers, delivers fast, accurate, and virtually distortion-free bass for a wide range of speech and music applications. Its durable birch plywood enclosure and architecturally styled grille allow for aesthetically pleasing, yet powerful installations in venues like theaters and houses of worship.

View Product Features

  • High-performance dual 18" drivers deliver powerful and accurate low frequencies.
  • Dual-mode operation (parallel/discrete) offers versatile wiring options.
  • Double suspension voice coils increase power handling and efficiency.
  • Birch plywood construction with a semi-matt black finish is both durable and stylish.
  • Low-distortion bass reflex port provides powerful and clean bass response.
  • Multiple M10 rigging points allow for secure suspension mounting.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Turbosound TCS218B Dual 18" Front Loaded Subwoofer for Installation Applications

The Turbosound TCS218B is a high-output, front-loaded subwoofer engineered to deliver profound low-frequency energy for large-scale permanent installations. Utilizing two high-power 18-inch long-excursion drivers housed within a substantial, precisely tuned bass reflex enclosure, this design is built to provide the foundational low-end impact required for major sound reinforcement applications. The cabinet's large internal volume and carefully calculated port tuning are optimized to maximize efficiency and extend low-frequency response, producing deep, resonant bass with exceptional output capabilities. This makes it an ideal solution for anchoring the low-end in performing arts centers, large houses of worship, nightclubs, live music venues, and any installation where high sound pressure levels and physical impact are non-negotiable.

Constructed for durability and professional integration, the enclosure is built from multi-ply birch plywood with a rugged textured black finish. It features heavy-duty integrated rigging points, enabling secure flying or stacking to form powerful subwoofer arrays. A robust, acoustically transparent steel grille protects the twin drivers. As a passive design, the TCS218B offers system integrators complete control, requiring connection to high-current external amplifiers and system processors. Its electrical characteristics are optimized for professional power amplifiers, allowing it to handle substantial input power and translate it into immense acoustic output, capable of pressurizing large volumes with controlled, articulate bass.

The dual-driver configuration not only increases maximum output but also provides mechanical advantages, distributing the acoustic load across two voice coils for improved thermal handling and reliability. Designed to integrate seamlessly with large-format full-range systems, this subwoofer provides the extreme low-frequency extension and power necessary for modern music, cinematic effects, and large-scale event production. For system designers, the TCS218B represents a premium, high-capacity component for building the low-frequency foundation of the most demanding professional audio installations.

Key Features

  • High-performance dual 18" drivers deliver powerful and accurate low frequencies.
  • Dual-mode operation (parallel/discrete) offers versatile wiring options.
  • Double suspension voice coils increase power handling and efficiency.
  • Birch plywood construction with a semi-matt black finish is both durable and stylish.
  • Low-distortion bass reflex port provides powerful and clean bass response.
  • Multiple M10 rigging points allow for secure suspension mounting.

Turbosound TCS218B Dual 18" Front Loaded Subwoofer for Installation Applications Specs

Driver & Enclosure
Driver Quantity
2
Driver Size
18 inch
Enclosure Type
Bass Reflex (Vented)
Power Handling
1600 Watt RMS, 6400 Watt peak
Performance Specifications
Frequency Response
30 Hz - 150 Hz
Sensitivity
101 dB (1W/1m)
Maximum SPL
138 dB peak
Nominal Impedance
4 Ohm
Physical Construction
Enclosure Material
18 mm Birch Plywood
Finish
Black Textured Polyurethane
Grille
Powder-Coated Steel
Rigging Points
M10 x 4
Dimensions & Weight
Height
1060 mm (41.73 in)
Width
700 mm (27.56 in)
Depth
700 mm (27.56 in)
Weight
92 kg (202.8 lbs)
Connections & Wiring
Input Connectors
Dual NL4 Speakon
Wiring Configuration
Parallel (1+/1-)
Recommended Amplifier
1600+ Watt @ 4 Ohm

Key Features

  • High-performance dual 18" drivers deliver powerful and accurate low frequencies.
  • Dual-mode operation (parallel/discrete) offers versatile wiring options.
  • Double suspension voice coils increase power handling and efficiency.
  • Birch plywood construction with a semi-matt black finish is both durable and stylish.
  • Low-distortion bass reflex port provides powerful and clean bass response.
  • Multiple M10 rigging points allow for secure suspension mounting.
