Electro-Voice

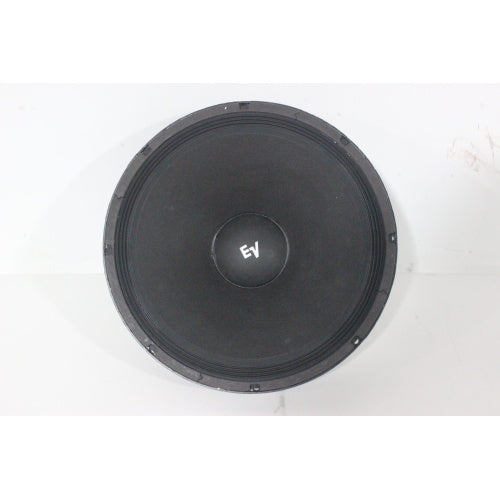

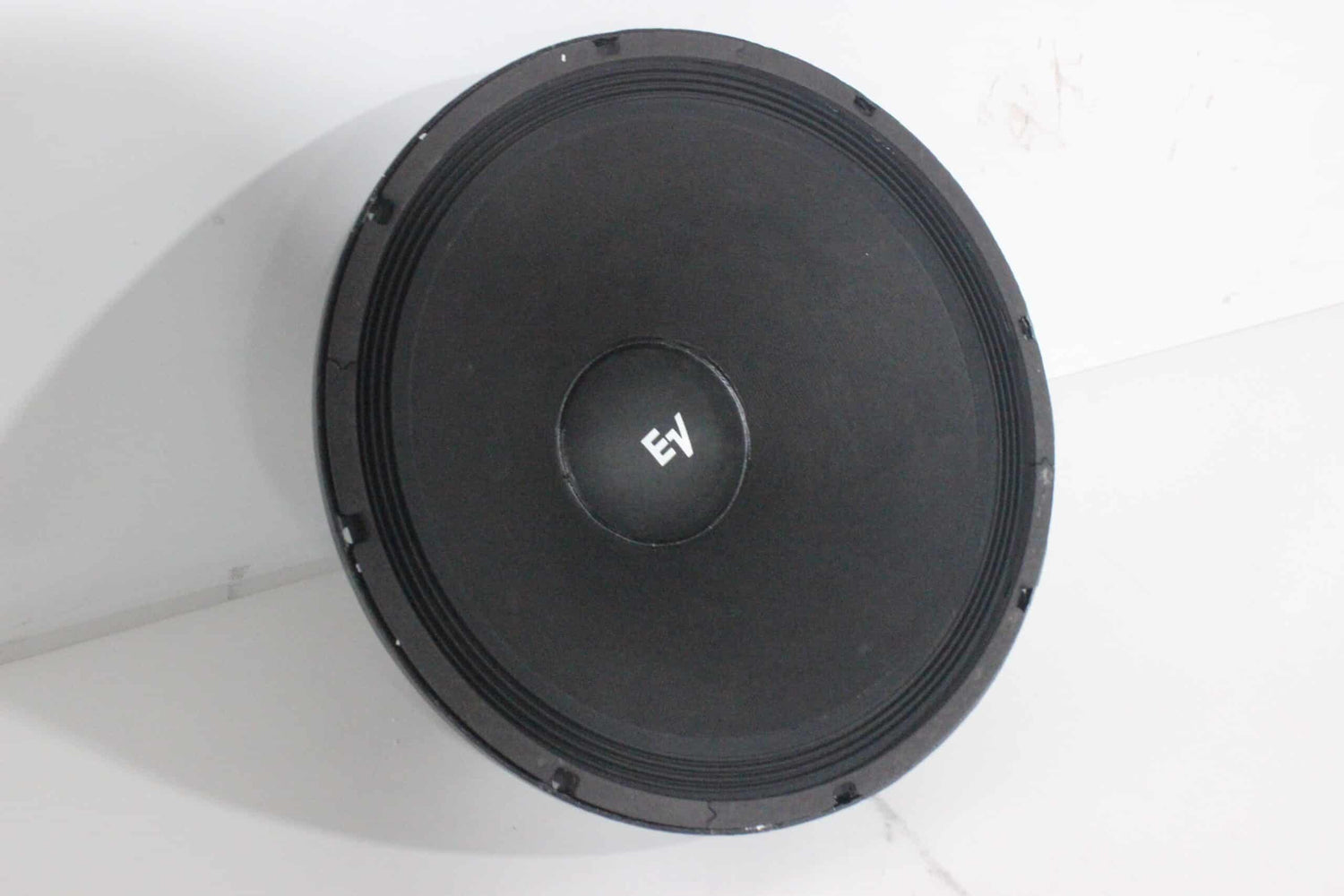

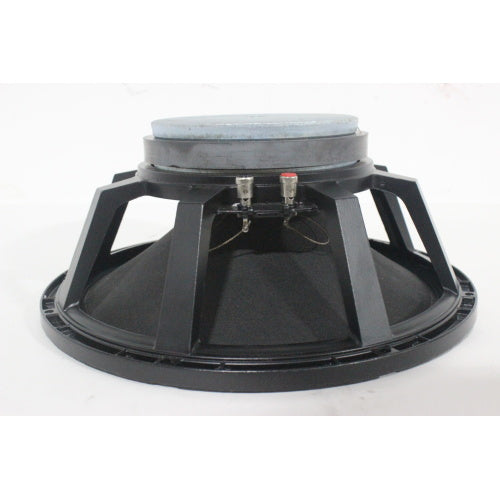

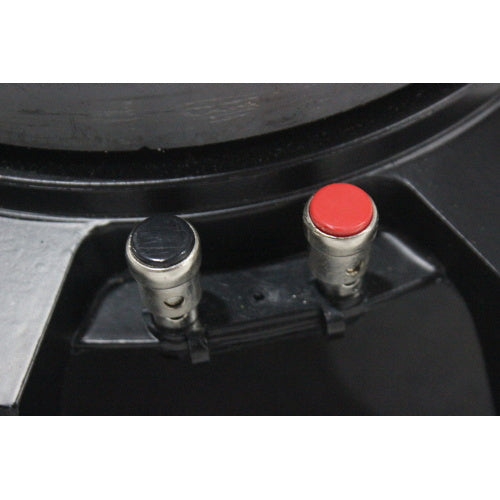

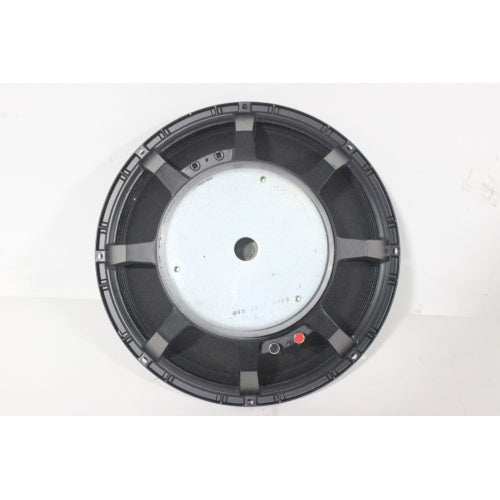

Electro-Voice DL15ST 400-Watt 15" Low Frequency Speaker

$74.95

The DL15ST low/mid-frequency reproducer is a 15-inch, 8-ohm driver designed for professional high-level, high-fidelity monitoring and sound reinforcement. At the heart of this speaker is a carefully engineered drive system. Its design assures linear, low-distortion output, high power capability, and efficient heat transfer.


Incorporated into the design are three exclusive Electro-Voice® innovations. PROTEF™ coating (U.S. patent #4,547,632), a Teflon®-based coating, is applied to the inside diameter of the top plate. Occasional violent power peaks of several seconds may expand a transducer’s voice coil into contact with the top plate, causing failure. PROTEF™ provides protection against such failure. The coating lubricates any rubbing contact and provides electrical insulation between the coil and the steel top plate. The Thermo Inductive Ring (TIR™) and Flux Demodulation Device (FDD™), also included in the DL15ST design, are aluminum castings fastened to the pole of the magnet. They provide a shorted turn to control inductance and provide a major heat transfer path from the voice coil, which improves power handling and reduces thermal dynamic-range compression.
The voice coil itself is constructed of edge-wound rectangular aluminum wire, mounted on a rugged, laminated polyimide former. The complete assembly is low in mass and is fabricated using the most advanced epoxies, insulations, and materials available.
Great care was taken in the selection of diaphragm materials and construction to ensure smooth, musical upper-bass reproduction and accurate low-frequency shock capability (punch). The cone has a moisture-repellent treatment, allowing it to be used in harsh and humid conditions. (Do not expose the cone to direct water or sunlight.)
The DL15ST is a true high-fidelity woofer in every sense, being capable of high output, low distortion, and solid bass response.

View Product Features

  • 15-inch, 8-ohm driver for high-fidelity monitoring and sound reinforcement
  • PROTEF™ coating for protection against voice coil contact and failure
  • Thermo Inductive Ring (TIR™) and Flux Demodulation Device (FDD™) for improved heat transfer and power handling
  • Edge-wound rectangular aluminum voice coil for low mass and high performance
  • Moisture-repellent treated cone for durability in harsh and humid conditions
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Electro-Voice DL15ST 400-Watt 15" Low Frequency Speaker

The Electro-Voice DL15ST is engineered as a high-performance 15-inch low-frequency driver for demanding professional audio applications where power handling, output, and reliability are critical. It features a sophisticated motor system with a large 3-inch voice coil and a high-strength magnetic structure, designed to convert substantial amplifier power into clean, articulate bass with minimal distortion. This driver is specifically optimized for use in vented (bass-reflex) subwoofer enclosures, where its parameters allow it to deliver deep, extended low-frequency response essential for live sound reinforcement, DJ systems, and installed audio in venues like clubs and houses of worship. Its robust mechanical construction ensures it can withstand the high air pressure and rigorous mechanical stress encountered in high-output subwoofer designs.

Durability and thermal management are central to the DL15ST's design, featuring a rigid die-cast aluminum frame, a treated paper cone for optimal performance, and a high-temperature voice coil winding capable of dissipating heat efficiently. These elements allow it to handle its rated continuous power of 400 watts reliably, even during prolonged, high-volume operation. The driver's high sensitivity rating ensures efficient conversion of amplifier power into acoustic output, making it a powerful yet practical choice for system builders. Whether deployed as a direct replacement in an existing cabinet or as the core component in a custom-built subwoofer, it provides a foundation of dependable, high-impact low-frequency energy.

By combining advanced engineering with proven materials, the Electro-Voice DL15ST serves as a versatile and trustworthy component for audio professionals. It enables the construction of subwoofer systems that deliver the powerful, clean bass required for modern music reproduction and live event production, forming the low-end backbone of professional portable and installed sound systems where performance cannot be compromised.

Key Features

  • 15-inch, 8-ohm driver for high-fidelity monitoring and sound reinforcement
  • PROTEF™ coating for protection against voice coil contact and failure
  • Thermo Inductive Ring (TIR™) and Flux Demodulation Device (FDD™) for improved heat transfer and power handling
  • Edge-wound rectangular aluminum voice coil for low mass and high performance
  • Moisture-repellent treated cone for durability in harsh and humid conditions

Electro-Voice DL15ST 400-Watt 15" Low Frequency Speaker Specs

General
Power Handling (Continuous/Program)
400W / 800W
Impedance
8 ohms
Sensitivity (1W/1m)
96 dB
Voice Coil Diameter
3-inch (75mm)
Frequency Range
Optimal for sub-bass applications (e.g., 40 Hz - 1.5 kHz)
Physical Construction
Cone Material
Treated paper cone with weather-resistant treatment
Surround
High-roll foam surround
Frame
Die-cast aluminum
Magnet Weight
Substantial ferrite magnet assembly
Net Weight
Approx. 9.1 kg (20 lbs)

Key Features

  • 15-inch, 8-ohm driver for high-fidelity monitoring and sound reinforcement
  • PROTEF™ coating for protection against voice coil contact and failure
  • Thermo Inductive Ring (TIR™) and Flux Demodulation Device (FDD™) for improved heat transfer and power handling
  • Edge-wound rectangular aluminum voice coil for low mass and high performance
  • Moisture-repellent treated cone for durability in harsh and humid conditions
