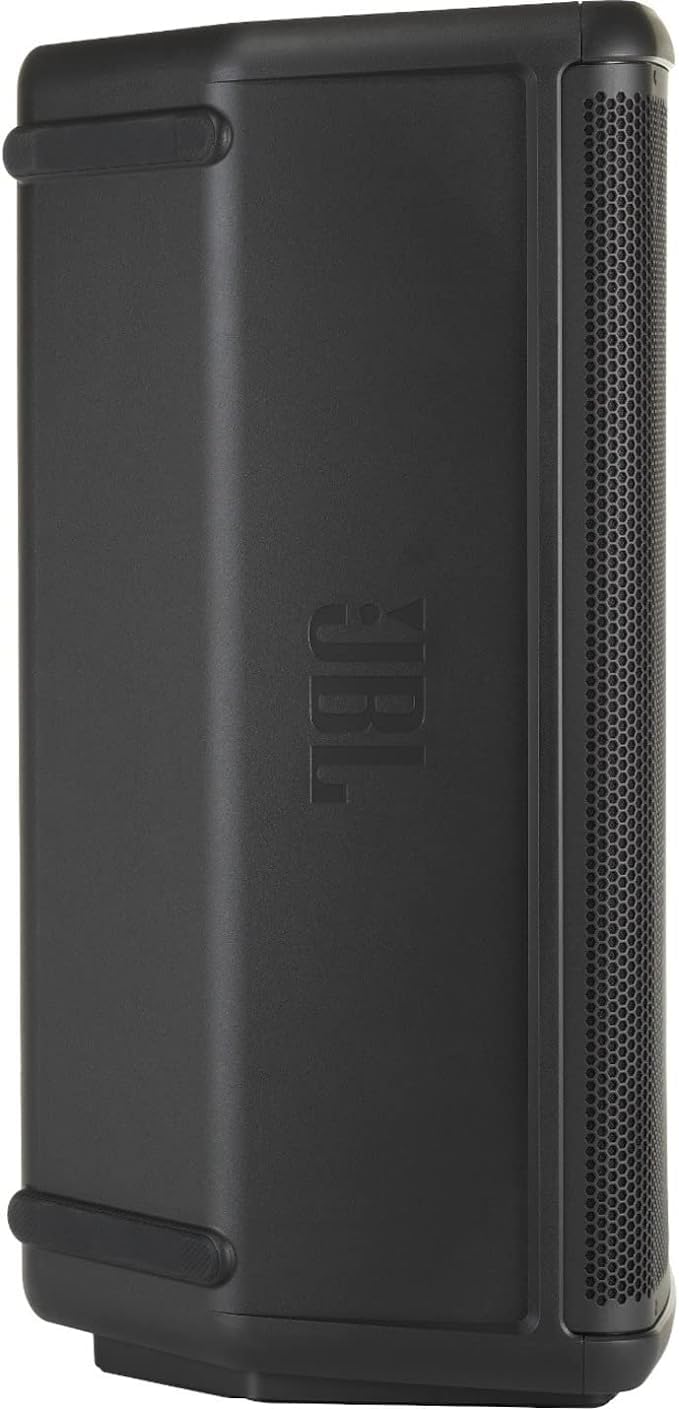

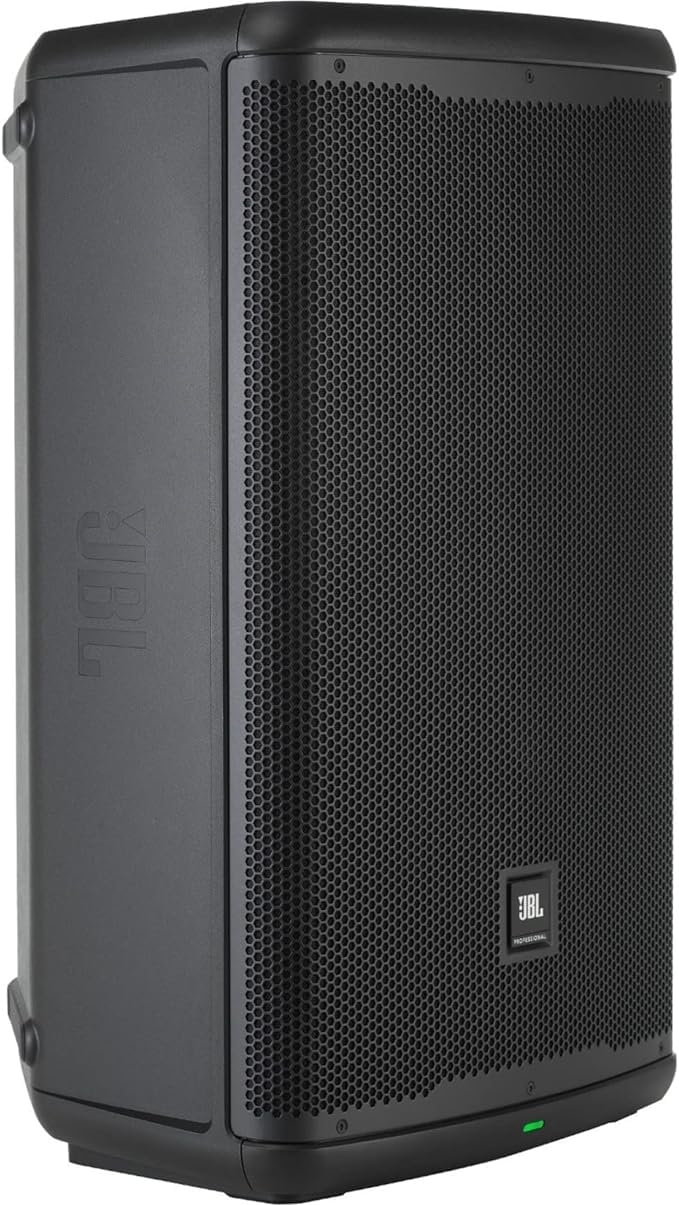

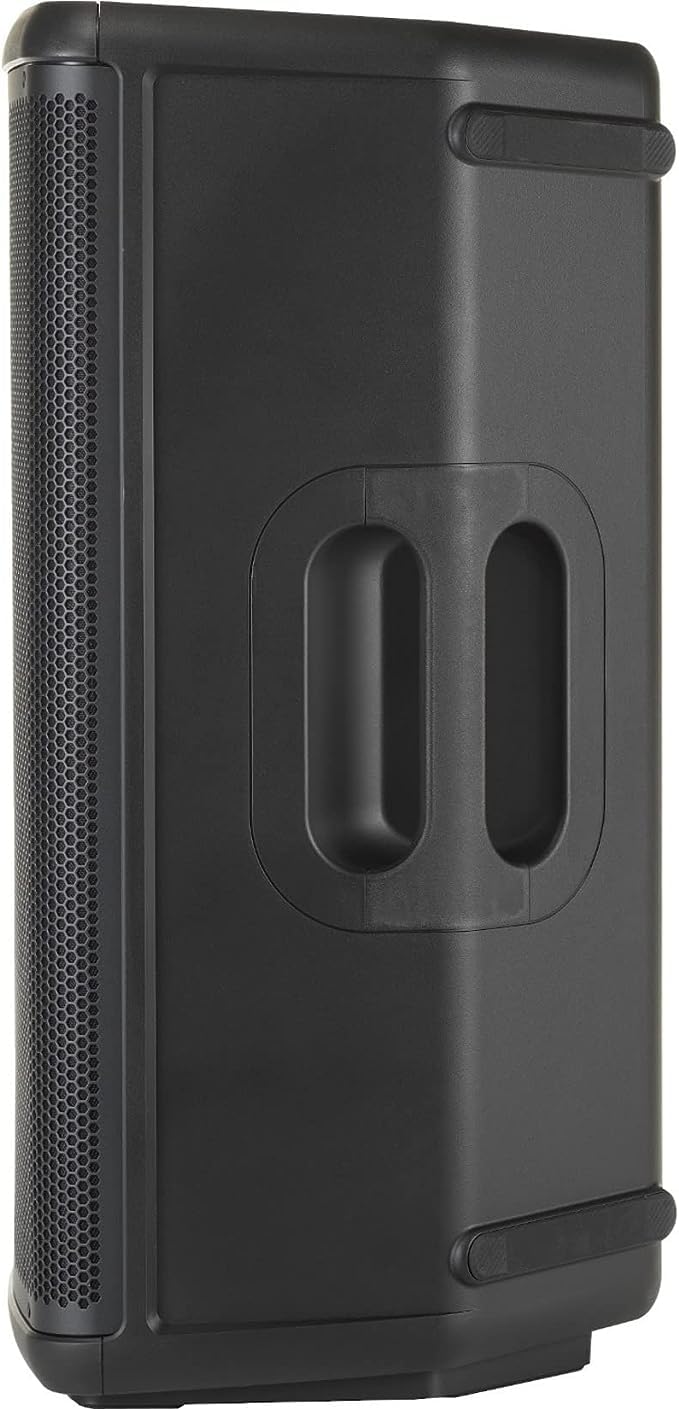

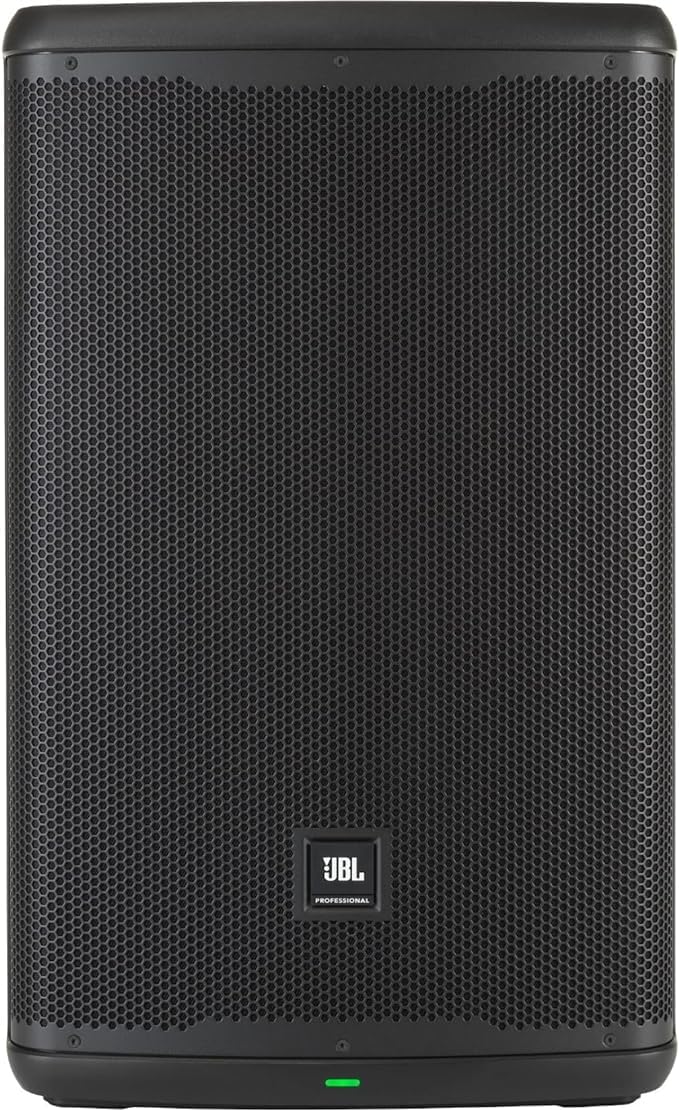

The EON Power15 is a powerful, full-range speaker system incorporating a discrete 130 watt power amplifier for the low frequency section and a monolithic 50 watt power amplifier for the high frequency driver. The system is a lightweight, rugged, roadworthy speaker enclosure that incorporates an aluminum die-cast baffle and a structural polypropylene enclosure designed for portable applications. Careful attention has been paid to ensure that the overall system frequency response remains smooth and consistent both on and off axis, which is essential for good articulation and accurate reproduction of speech.

Unique to all of the EON series low frequency cone transducers is a proprietary Differential Drive® voice coil scheme which reduces the weight of the magnetic assembly, while improving the heat dissipation of the transducer. For the first time in the industry, it is now possible to achieve high power handling, low distortion and light weight in the same package.

A newly designed high frequency driver with a 1-3/4 inch diameter diaphragm of responsive 1 mil thick titanium provides extended high frequency response and low distortion. Uniform on- and off-axis response is ensured by coupling the driver to a new low distortion Bi-radial high frequency horn. Active high frequency driver protection is incorporated into the unit to ensure HF driver reliability. The use of advanced CAD magnetic modeling resulted in a lower weight magnetic assembly which further reduces the system weight.

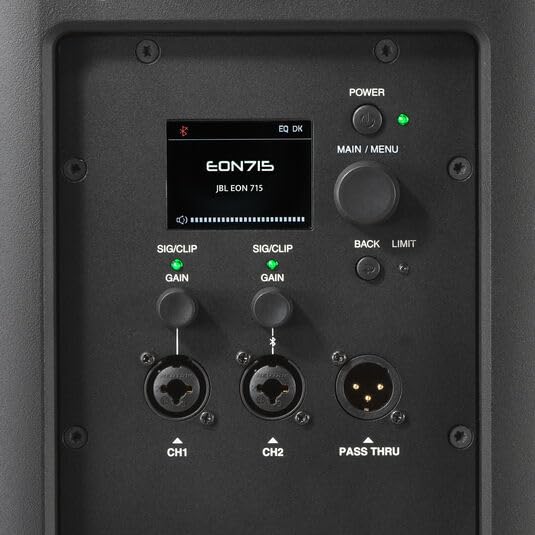

Designed for multipurpose usage, the EON Power15 may be driven from a mixer or directly from a microphone. Connectors allow daisy-chaining of two or more speaker systems. Both signal present and peak overload LED indicators are supplied. The system is protected from excessive input signals, RFI and severe overdrive.

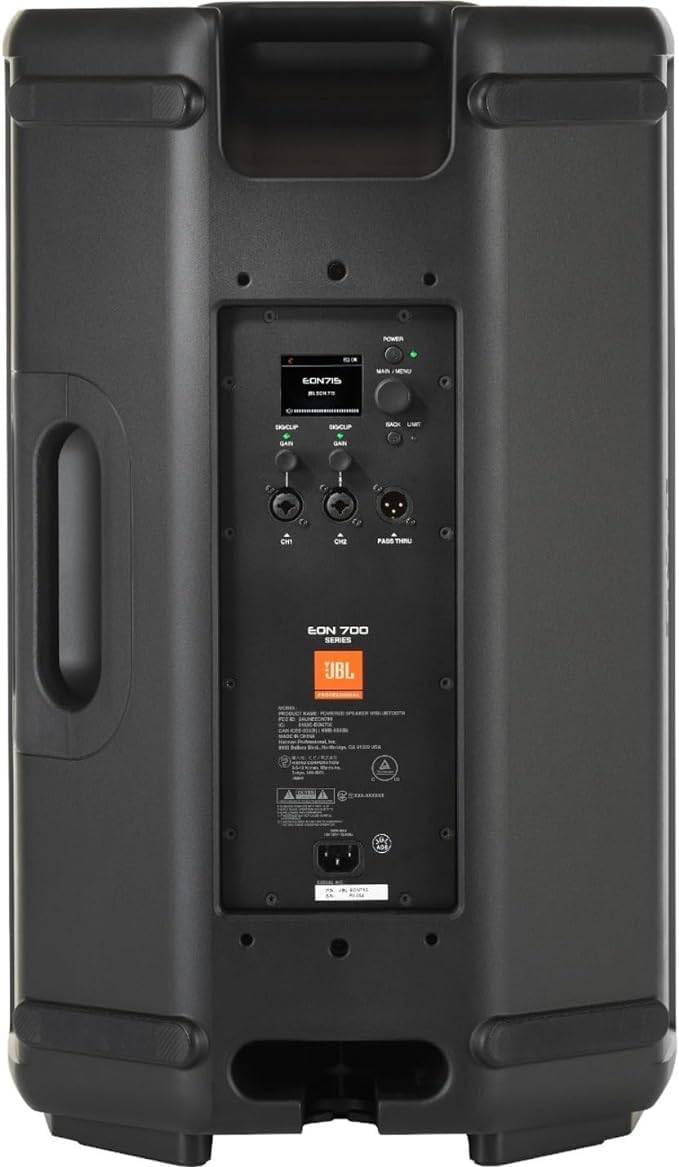

The back of the cabinet is designed so that the system can be leaned back for use as a stage monitor. A 35mm pole mount socket is provided. Optional fixed and adjustable angle wall-mount brackets allow for safe installation of EON loudspeakers.
