ADJ

ADJ HEX155 15 Hex Bar IP LED Linear Wash Fixture (RGBWA+UV, IP65)

$671.01 - $979.99

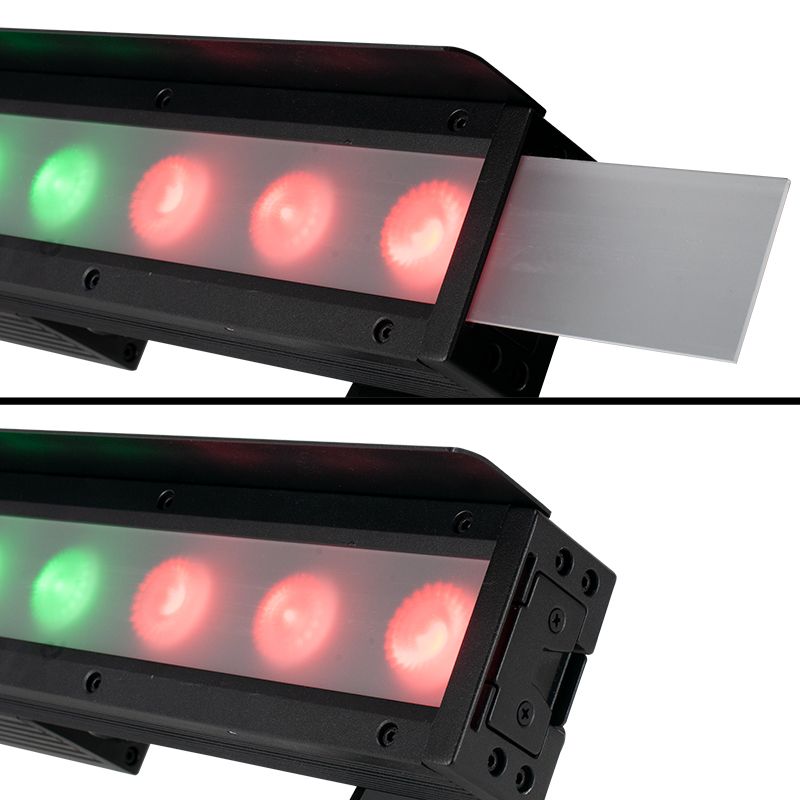

The ADJ 15 HEX BAR IP is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a removable diffusion filter to change the beam angle.

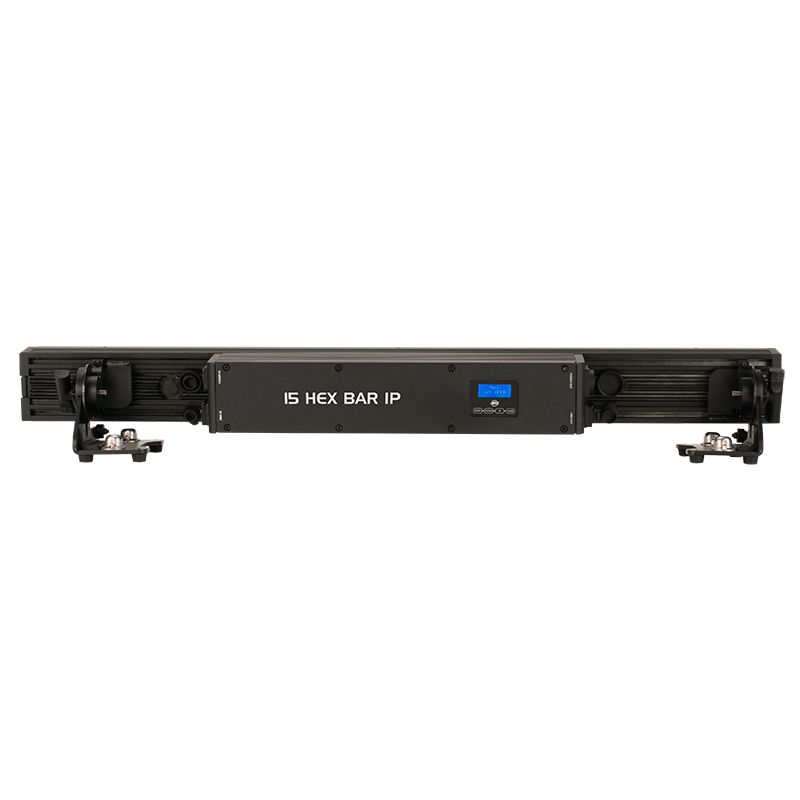

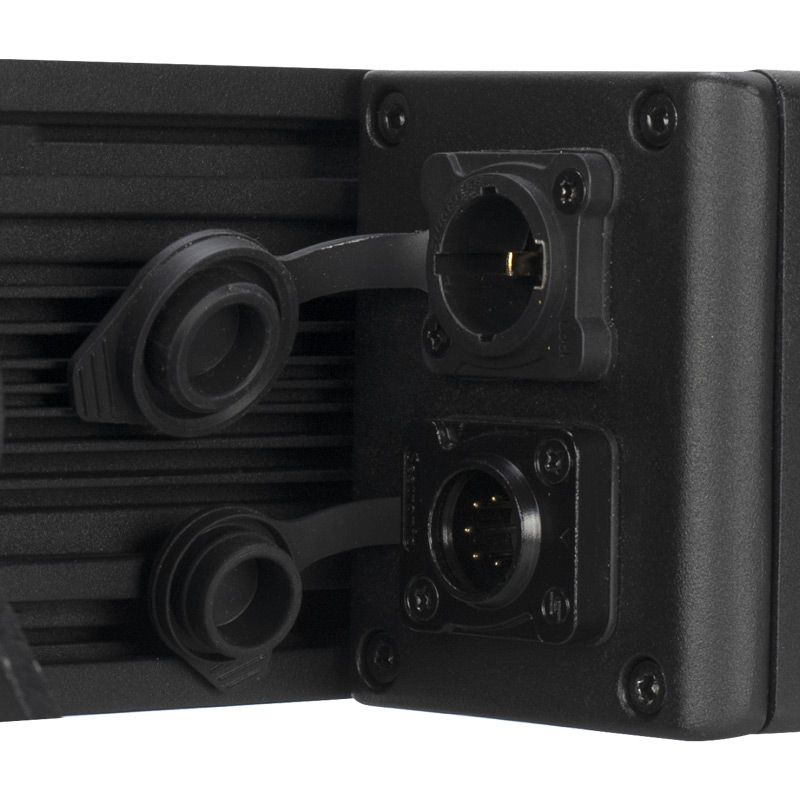

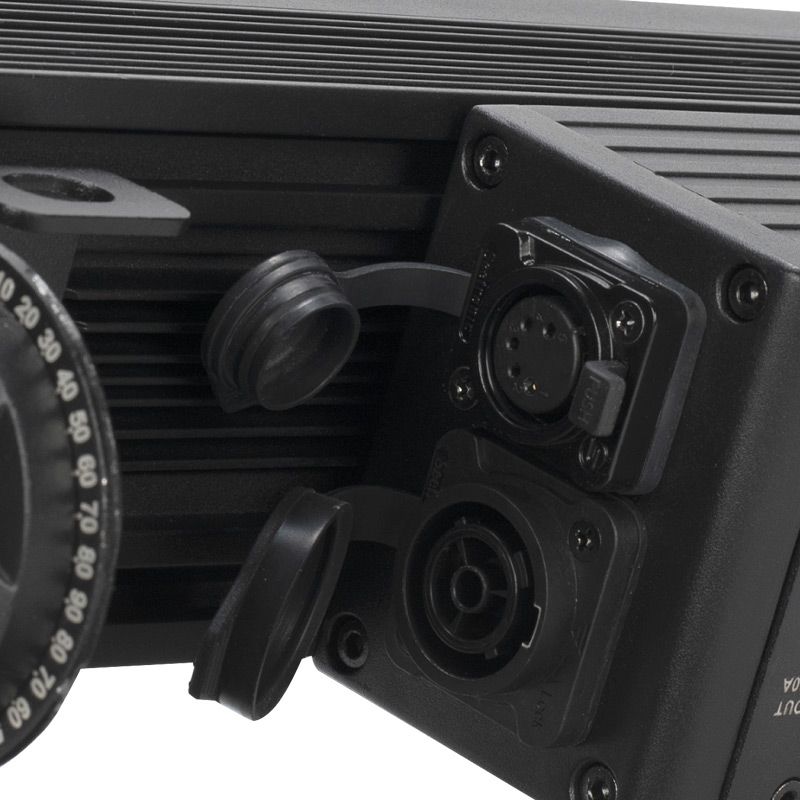

On the rear panel it features Seetronic, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

The 15 HEX BAR IP is flicker free for film and broadcast, and has multiple DMX control modes and dimming modes.

View Product Features

  • IP65 rated – protects from dust, sand, moisture and liquid
  • All metal construction with black housing
  • Includes heavy duty bracket
  • Sure-lock locking bracket system (securely locks every 10-degrees)
  • Flicker free for film and broadcast
  • 63 Built-in Color Macros
  • Linear variable white temperature control
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the ADJ HEX155 15 Hex Bar IP LED Linear Wash Fixture (RGBWA+UV, IP65)

The ADJ HEX155 15 Hex Bar IP is a professional-grade, weatherproof linear wash fixture that merges advanced color technology with rugged outdoor durability. Engineered with an IP65 rating, its housing is fully sealed against dust ingress and protected from low-pressure water jets, making it suitable for permanent outdoor installation in architectural lighting, theme parks, building facades, and all-weather stage productions. The fixture features a linear array of 15 potent LED nodes, each equipped with a sophisticated six-color light engine comprising Red, Green, Blue, White, Amber, and Ultraviolet (RGBWA+UV) LEDs.

This advanced hex-color system provides an exceptionally wide and nuanced color gamut. The dedicated white LED ensures high-quality, adjustable white light, while the amber LED significantly enhances the rendering of warm tones and skin tones. The inclusion of a true UV (ultraviolet) LED allows for genuine blacklight effects, causing fluorescent materials to glow vividly. Each node can be individually controlled, enabling pixel-level effects, smooth color gradients, dynamic chases, and complex patterns across the length of the fixture, offering immense creative flexibility for dynamic lighting displays.

Constructed from robust materials like extruded aluminum with polycarbonate diffusers, the HEX155 is built for long-term endurance. It offers versatile control via DMX-512, master/slave operation, and standalone programs, and includes digital network ports for simplified daisy-chaining in large installations. By combining high-density pixel control, a rich six-color LED system, and true weatherproofing, this fixture delivers vibrant, high-impact linear lighting capable of transforming any indoor or outdoor space with color and motion.

Key Features

  • IP65 rated – protects from dust, sand, moisture and liquid
  • All metal construction with black housing
  • Includes heavy duty bracket
  • Sure-lock locking bracket system (securely locks every 10-degrees)
  • Flicker free for film and broadcast
  • 63 Built-in Color Macros
  • Linear variable white temperature control

ADJ HEX155 15 Hex Bar IP LED Linear Wash Fixture (RGBWA+UV, IP65) Specs

General
Product Model
HEX155 15 Hex Bar IP
Type
IP65 Linear Pixel Wash Fixture
IP Rating
IP65 (Dust-tight and protected against water jets)
LED Nodes
15 Individually controllable nodes
Light Source
LED Type per Node
RGBWA+UV (Red, Green, Blue, White, Amber, Ultraviolet)
UV Wavelength
Approximately 395-405 nm
White LED Temperature
Adjustable via mixing
Color & Control
Color Mixing
Independent RGBWA+UV control per node
Pixel Control
Full individual pixel addressing
Control Protocol
DMX-512, Master/Slave, Standalone
DMX Channels
Extended channel set for pixel control (e.g., 90+ channels)
Digital Network
RJ45 port for data linking/power (e.g., APOLLO)
Effects
Effects
Pixel mapping, color gradients, chases, built-in programs
Physical
Housing
Extruded aluminum with polycarbonate diffuser
Mounting
Multiple integrated mounting points
Connector Protection
Weatherproof covered ports
Power & Connectivity
Power Supply
External power supply or via digital network
Input Voltage
Typically 24V DC
Power Consumption
Approximately 150W
Data Connectors
3-pin XLR In/Out, RJ45 Network In/Out

Key Features

  • IP65 rated – protects from dust, sand, moisture and liquid
  • All metal construction with black housing
  • Includes heavy duty bracket
  • Sure-lock locking bracket system (securely locks every 10-degrees)
  • Flicker free for film and broadcast
  • 63 Built-in Color Macros
  • Linear variable white temperature control
