ADJ Mega Flash DMX 800W Strobe (120VAC)

$0.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

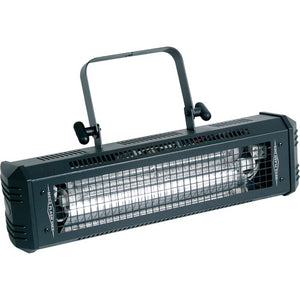

The American DJ Mega Flash DMX 800W Strobe (120VAC) is a lightweight, powerful 800W strobe with DMX control of the flash rate (1-15 flashes/second) and dimming (0-100%). Up to 16 units can be linked together and controlled by one controller. Flash rate and dimming can also be manually controlled by knobs on the rear of the unit. And there's a built-in sound-active mode if you want the flash to strobe to the beat of the music. The Mega Flash has a built-in adjustable hanging yoke. Supplied for use with 120VAC. Read more

Features

  • Bright 800 Watt Lamp ZB-800
  • Adjustable Flash Rate and Intensity Rate
  • 1 to 15 Flashes/Second
  • 2 DMX Channels for Speed and Dimming
  • Built-In Adjustable Hanging Yoke

Business Financing Options Avaiable

The American DJ Mega Flash DMX 800W Strobe (120VAC) is a lightweight, powerful 800W strobe with DMX control of the flash rate (1-15 flashes/second) and dimming (0-100%). Up to 16 units can be linked together and controlled by one controller. Flash rate and dimming can also be manually controlled by knobs on the rear of the unit. And there's a built-in sound-active mode if you want the flash to strobe to the beat of the music. The Mega Flash has a built-in adjustable hanging yoke. Supplied for use with 120VAC. Read more

Features

  • Bright 800 Watt Lamp ZB-800
  • Adjustable Flash Rate and Intensity Rate
  • 1 to 15 Flashes/Second
  • 2 DMX Channels for Speed and Dimming
  • Built-In Adjustable Hanging Yoke

About the ADJ Mega Flash DMX 800W Strobe (120VAC)

The ADJ Mega Flash is a high-power DMX-controllable strobe light designed to produce intense, blinding flashes for dramatic effect in clubs, concerts, and large events. It utilizes a powerful 800-watt xenon flash tube capable of generating extremely bright, lightning-fast pulses of white light that can momentarily freeze motion and energize a crowd. Unlike basic strobes, this unit offers precise control via DMX512, allowing an operator to trigger single flashes or program complex patterns of bursts synchronized to music or lighting cues with exact timing.

Built into a sturdy, rack-mountable metal housing, the Mega Flash is designed for professional touring and installation use. It provides a wide range of adjustable parameters via DMX, including flash speed, duration, and intensity, enabling the creation of everything from slow, ominous pulses to rapid, chaotic bursts. The fixture includes a built-in dimmer (douser) to allow the flash intensity to be reduced for subtler effects, adding to its versatility in different production scenarios.

This strobe serves as a specialized effects powerhouse within a larger lighting rig. Its high output and professional control make it suitable for large-scale productions where a standard strobe lacks sufficient power. The ADJ Mega Flash provides lighting designers with a reliable and powerful tool to create high-impact visual punctuation and rhythm, capable of cutting through even the brightest stage wash.

Key Features

  • Bright 800 Watt Lamp ZB-800
  • Adjustable Flash Rate and Intensity Rate
  • 1 to 15 Flashes/Second
  • 2 DMX Channels for Speed and Dimming
  • Built-In Adjustable Hanging Yoke

ADJ Mega Flash DMX 800W Strobe (120VAC) Specs

Strobe Specifications
Flash Tube
Xenon
Power
800W
Control
DMX512, Standalone, Sound Active
DMX Control Parameters
Flash Speed
Variable via DMX
Flash Duration
Variable via DMX
Intensity/Douser
0-100% via DMX
Electrical & Physical
Input Voltage
AC 120V
Power Consumption
1000W
Housing Material
Steel Rack Mount
Dimensions
483 x 132 x 260 mm (2U Rack)
Weight
9 kg
Connectivity & Operation
DMX Connectors
3-Pin XLR In/Out
Cooling
Fan Assisted

Key Features

  • Bright 800 Watt Lamp ZB-800
  • Adjustable Flash Rate and Intensity Rate
  • 1 to 15 Flashes/Second
  • 2 DMX Channels for Speed and Dimming
  • Built-In Adjustable Hanging Yoke

FAQs about ADJ Mega Flash DMX 800W Strobe (120VAC)

What type of lamp light source powers the ADJ Mega Flash DMX?

It is powered by a high-output 800W ZB-800 xenon strobe lamp. It delivers high-impact, intense bursts of white light designed to cover large dance floors and venue stages.

What is the flash rate speed and output adjustment range?

The fixture features an adjustable flash rate ranging from 1 to 15 flashes per second, as well as full 0–100% electronic dimming intensity control.

What control modes are supported on the unit?

It supports 2-channel DMX-512 control (Channel 1 for flash speed, Channel 2 for dimming intensity), manual knob control, and Sound Active mode via an onboard microphone.

Can you operate the strobe without a DMX lighting controller?

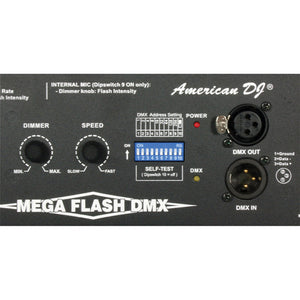

Yes, you can run it in standalone mode using the manual speed and dimming knobs located on the rear panel. You can also switch to Sound Active mode to trigger flashes to the beat of the music.

What DMX data connections does the Mega Flash use?

The unit features standard 3-pin XLR DMX input and output connectors for linking data across multiple fixtures or connecting to a DMX console.

How do you mount or position the strobe light?

It comes equipped with a built-in adjustable steel hanging yoke bracket. This allows you to attach standard clamps for truss mounting or tilt the bracket to use it as a floor stand.

What are the physical dimensions, weight, and power requirements?

The fixture measures 15.5” x 4” x 8.5” (394mm x 102mm x 216mm) and weighs only 5 lbs (2.2 kg). This 120VAC version operates on standard 120V/60Hz AC power.

Are there any duty cycle restrictions for thermal management?

The unit features internal thermostat protection to prevent overheating. To ensure long lamp life, it is recommended to operate on a duty cycle of 15 minutes on and 15 minutes off during extended high-intensity runs.
