Global Truss

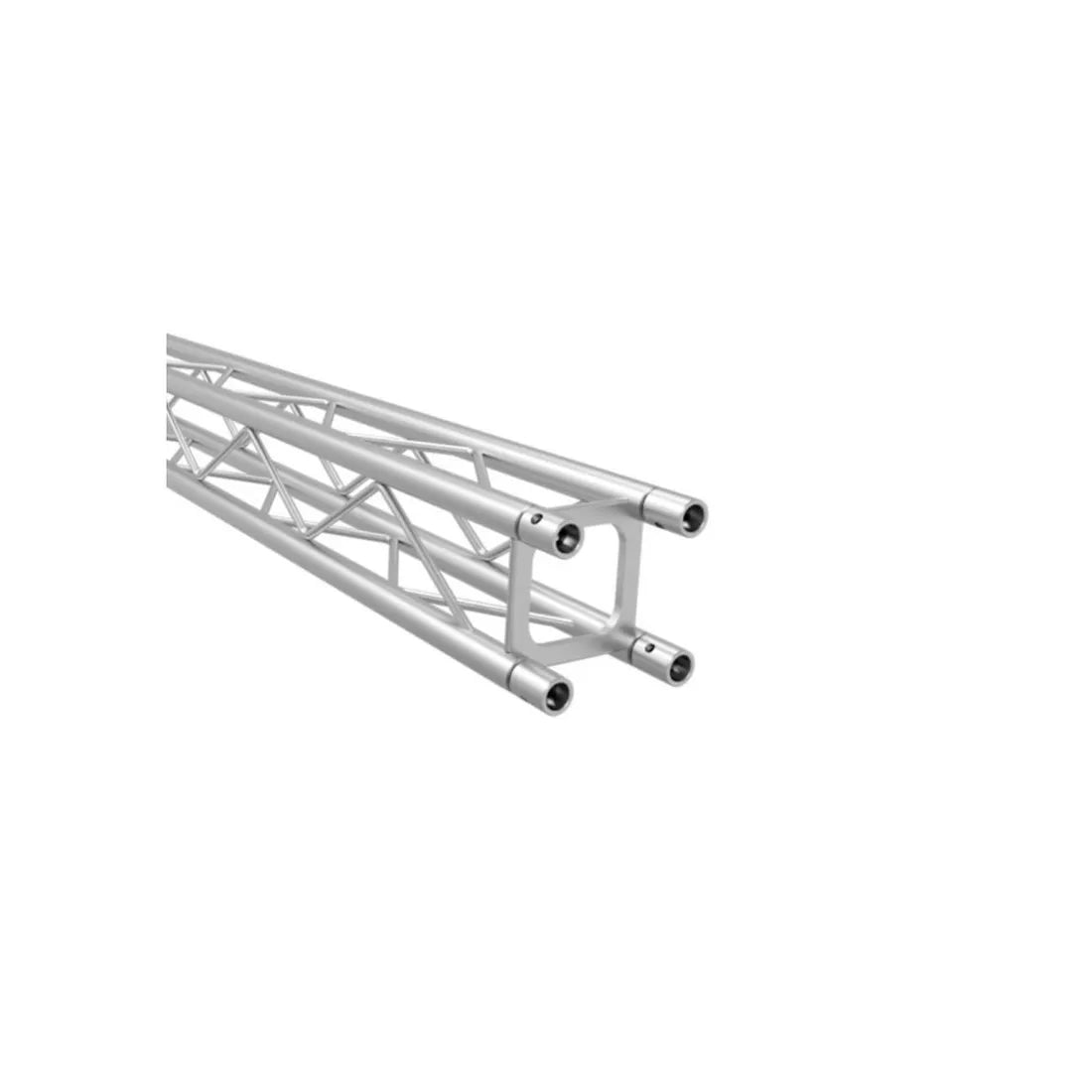

Global Truss F14 Mini Square Segment - 9.84'

$370.00
The Global Truss SQ-F14-3.0 is a 9.84FT (3-meter) straight segment of square truss from the F14 Series, offering a compact, lightweight, and reliable solution for light-duty applications. Perfect for retail displays, low ceiling installations, and other decorative setups, this 4-inch x 4-inch truss is designed for ease of use and versatility. The SQ-F14-3.0 features 0.78-inch diameter tubing and 0.23-inch diagonal bracing, providing a sturdy and visually appealing structure suitable for various installations, including DJ events, exhibitions, and small-scale stage setups.

Crafted from EN-AW 6082 T6 aluminum alloy, the SQ-F14-3.0 ensures both strength and lightweight performance, making it an ideal choice for applications where portability and durability are required. The silver finish gives the truss a sleek and professional appearance, complementing its functional design. With a wall thickness of 0.078 inches (2mm), this truss section offers the robustness necessary to support light-duty loads, ensuring your installations are both secure and aesthetically pleasing.

View Product Features

  • 9.84 ft (3.0 m) truss segment for wide-span configurations
  • Compact 3.93 in width designed for tight setups
  • 0.78 in outer tubing provides solid structural support
  • 0.23 in internal bracing reinforces the frame without excess bulk
  • 0.078 in wall thickness improves durability and load capacity
  • Lightweight aluminum construction weighs only 13 lbs (5.9 kg)
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Global Truss F14 Mini Square Segment - 9.84'

This 9.84' F14 Mini Square Segment from Global Truss has a 3.87" overall width, 0.75" outer diameter tubing and 0.25" diagonal bracing. It is used to support A/V gear.

Key Features

  • 9.84 ft (3.0 m) truss segment for wide-span configurations
  • Compact 3.93 in width designed for tight setups
  • 0.78 in outer tubing provides solid structural support
  • 0.23 in internal bracing reinforces the frame without excess bulk
  • 0.078 in wall thickness improves durability and load capacity
  • Lightweight aluminum construction weighs only 13 lbs (5.9 kg)

Global Truss F14 Mini Square Segment - 9.84' Specs

Material
Aluminum alloy
Approvals
Fabricated by TUV-certified welders
Dimensions
Overall width: 3.87" (100 mm) Tubing outer diameter: 0.75" (20 mm) Diagonal bracing outer diameter: 0.25" (6.3 mm) Wall thickness: 0.08" (2.0 mm) Length: 9.84' (3.0 m)
Weight
13 lb (6.0 kg)

Key Features

  • 9.84 ft (3.0 m) truss segment for wide-span configurations
  • Compact 3.93 in width designed for tight setups
  • 0.78 in outer tubing provides solid structural support
  • 0.23 in internal bracing reinforces the frame without excess bulk
  • 0.078 in wall thickness improves durability and load capacity
  • Lightweight aluminum construction weighs only 13 lbs (5.9 kg)
