Global Truss

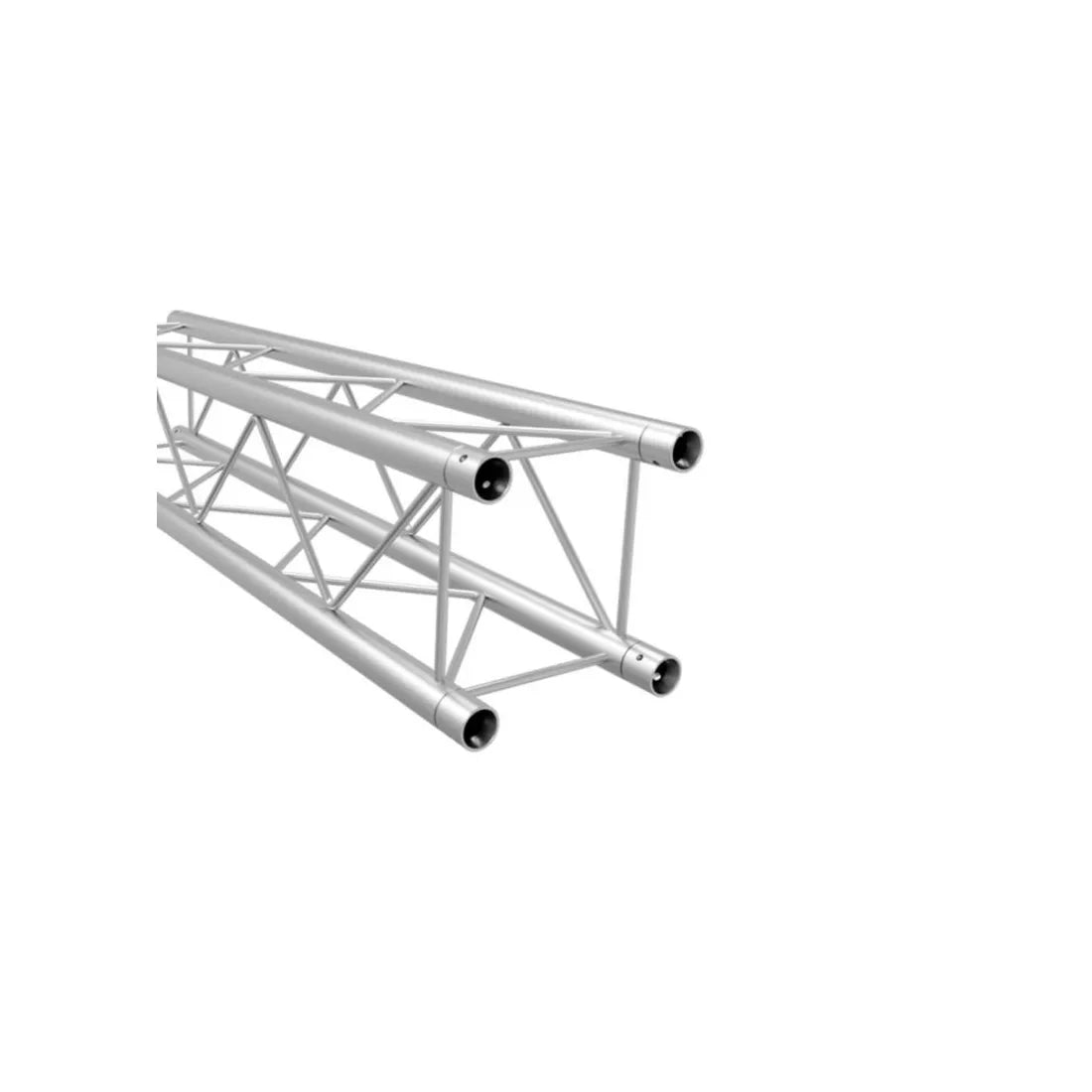

Global Truss F24 Light Duty Square Segment - 7'

$399.00

The Global Truss SQ-F24-215 is a 7.05FT (2.15-meter) straight segment from the F24 Series, offering an 8-inch x 8-inch square truss designed to provide a compact and lightweight solution for light-duty applications. This truss is ideal for retail displays, small-scale installations, DJ setups, exhibitions, and other scenarios that require a visually pleasing and reliable truss system. The 1.37-inch diameter tubing and 0.31-inch diagonal bracing ensure strength and durability, while the silver finish gives it a sleek, professional appearance suitable for any event or display.

The SQ-F24-215 is built from high-quality EN-AW 6082 T6 aluminum alloy, providing the right balance of strength and lightweight performance for its intended applications. This truss is designed to be easy to assemble, utilizing Global Truss's European-style conical connection system, which features a male-to-male conical coupler, tapered coupler pin, and safety R-clip. This system allows for quick and secure connections, ensuring your truss structure remains stable while being simple to assemble and disassemble. The male-to-male conical coupler fits easily into the female conical connector, and securing it with the tapered coupler pins and safety R-clips ensures a firm connection.

View Product Features

  • 7.05ft (2.15m) straight truss segment
  • 220mm x 220mm square profile
  • 35mm main tubing with 2mm thick walls
  • 8mm internal bracing for added stability
  • Constructed from EN-AW 6082 T6 aluminum
  • Weighs 7.26kg (16lb)
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Global Truss F24 Light Duty Square Segment - 7'

Used for sound and lighting systems, this 7' F24 Light Duty Square Segment from Global Truss is 8.6" in overall width. It is fabricated by TUV-certified welders.

Key Features

  • 7.05ft (2.15m) straight truss segment
  • 220mm x 220mm square profile
  • 35mm main tubing with 2mm thick walls
  • 8mm internal bracing for added stability
  • Constructed from EN-AW 6082 T6 aluminum
  • Weighs 7.26kg (16lb)

Global Truss F24 Light Duty Square Segment - 7' Specs

Material
Aluminum alloy
Dimensions
Length: 7.0' (2.15 m) Overall truss width: 8.6" (220 mm) Tubing outer diameter: 1.3" (35 mm) Diagonal bracing: 0.32" (8.3 mm) Wall thickness: 0.04" (1.0 mm)
Certification
TUV Certified

Key Features

  • 7.05ft (2.15m) straight truss segment
  • 220mm x 220mm square profile
  • 35mm main tubing with 2mm thick walls
  • 8mm internal bracing for added stability
  • Constructed from EN-AW 6082 T6 aluminum
  • Weighs 7.26kg (16lb)
