Global Truss

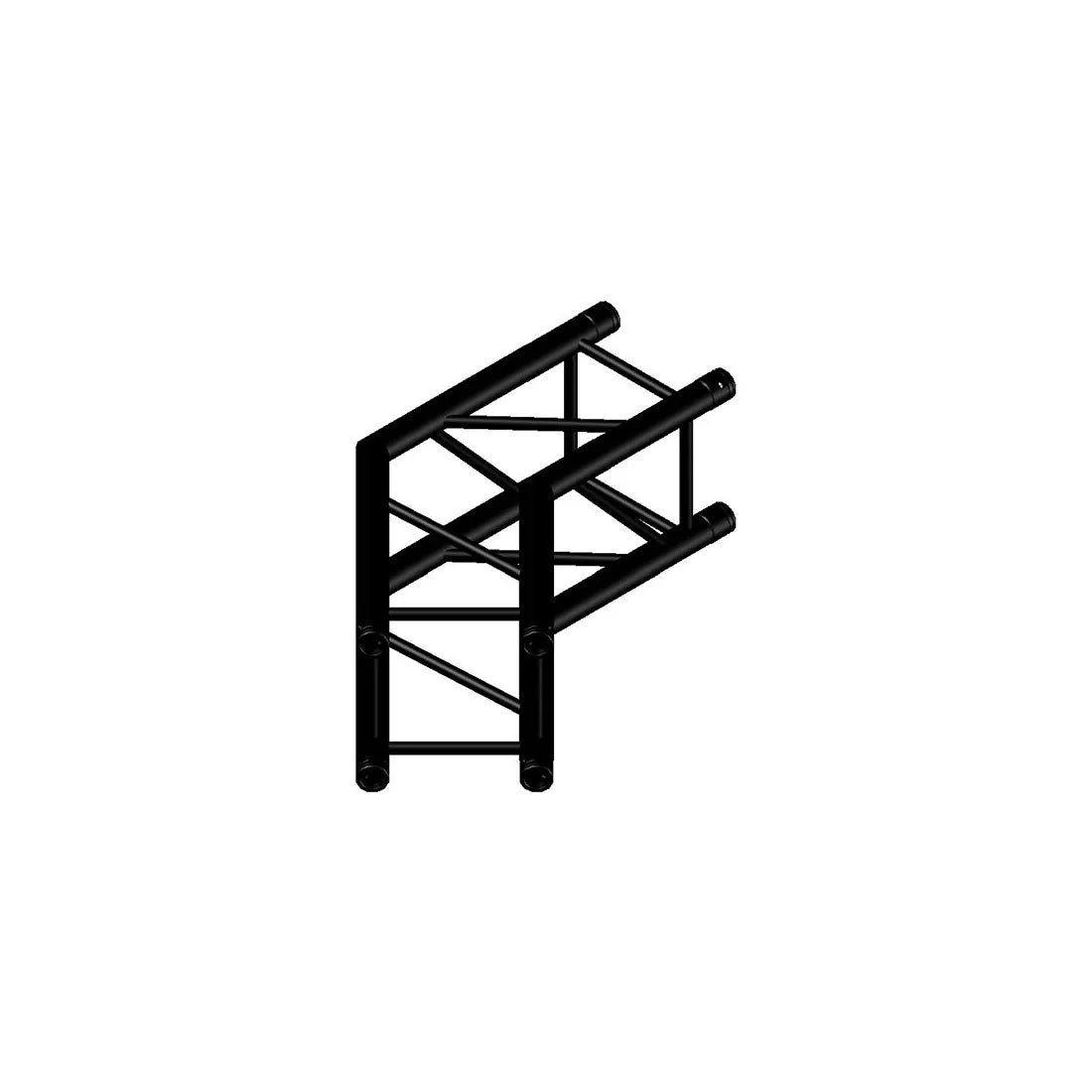

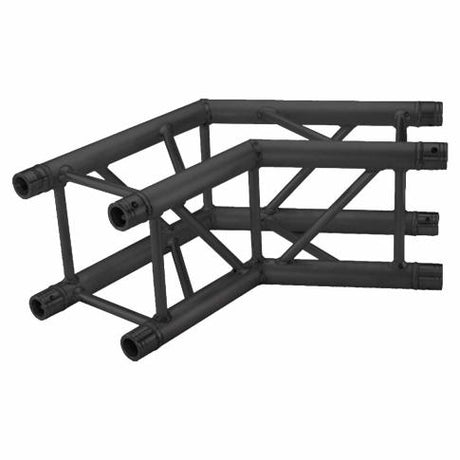

Global Truss SQ-4123 2-Way 135° F34 Square Truss Corner (Black Matte)

$479.00

The Global Truss SQ-4123 BLK/MTE is a 135-degree 2-way corner designed specifically for use with the F34 Series 12-inch width square trusses. This versatile component allows professionals to create more complex and dynamic rigging systems by enabling a 135-degree angle connection between truss segments. Ideal for stage setups, exhibitions, and large event installations, the SQ-4123 BLK/MTE helps facilitate creative and efficient truss configurations with the added benefit of a sleek matte black finish that complements any professional rigging setup.

Constructed from high-quality EN-AW 6082 T6 aluminum alloy, the SQ-4123 BLK/MTE offers exceptional strength while maintaining a lightweight design for ease of transport and handling. The 1.97-inch outer diameter tubing and 0.78-inch diagonal bracing ensure the truss is capable of supporting high loads and providing structural stability. The 0.08-inch (2mm) wall thickness provides added reinforcement, ensuring durability and reliability even in demanding applications. Whether used in a temporary setup or permanent installation, this corner junction guarantees solid performance and long-lasting durability.

View Product Features

  • Compatible with F34 square truss systems
  • Forms a 135-degree corner for wider angled transitions
  • Measures 1.64 feet in overall length
  • 11.42-inch external diameter
  • 1.97-inch outside tube thickness
  • Braced with 0.75-inch tubing for added rigidity
  • Constructed with 0.08-inch thick walls
  • Crafted from high-strength 6082-T6 aluminum
  • Finished in matte black for reduced glare and polished appearance
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Global Truss SQ-4123 2-Way 135° F34 Square Truss Corner (Black Matte)

Create a stable, secure truss setup for setting up your equipment with this black-matte-finished SQ-4123 2-Way 135° Corner from Global Truss, which is designed to work with F34 Square systems. This angle creates a 135° corner or turn in your system and has a length of 1.64'. It also features a durable 6082-T6 aluminum alloy construction to match the rest of the system as well as similar measurements. This includes an outside diameter of 11.42", outside tubing measuring 1.97", 0.75" bracing, and a wall thickness of 0.08".

Key Features

  • Compatible with F34 square truss systems
  • Forms a 135-degree corner for wider angled transitions
  • Measures 1.64 feet in overall length
  • 11.42-inch external diameter
  • 1.97-inch outside tube thickness
  • Braced with 0.75-inch tubing for added rigidity
  • Constructed with 0.08-inch thick walls
  • Crafted from high-strength 6082-T6 aluminum
  • Finished in matte black for reduced glare and polished appearance

Global Truss SQ-4123 2-Way 135° F34 Square Truss Corner (Black Matte) Specs

Outside Diameter
11.42" / 290 mm
Tubing Diameter
1.97" / 50 mm
Tube Wall Thickness
0.08" / 2 mm
Center Brace
0.75" / 19 mm
Angle
135°
Length
1.64' / 0.5 m
Construction
6082-T6 aluminum alloy
Weight
16 lb / 7.26 kg

Key Features

  • Compatible with F34 square truss systems
  • Forms a 135-degree corner for wider angled transitions
  • Measures 1.64 feet in overall length
  • 11.42-inch external diameter
  • 1.97-inch outside tube thickness
  • Braced with 0.75-inch tubing for added rigidity
  • Constructed with 0.08-inch thick walls
  • Crafted from high-strength 6082-T6 aluminum
  • Finished in matte black for reduced glare and polished appearance
