Marshall Electronics

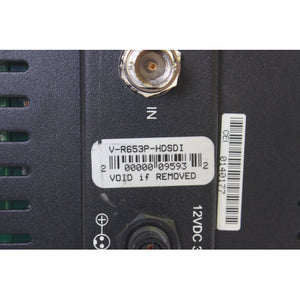

Marshall Electronics V-R653P-HDSDI Triple HD-SDI/SD-SDI Monitor Set

$289.99 - $300.00

The Rack mounted and tiltable V-R653P-HD represents a technological revolution in LCD imaging for broadcast and professional video applications. The V-R653P-HD features three state of the art, High Resolution, 1.2 TFT-megapixel™ screens with
completely digital signal processing. All SMPTE/ITU serial digital video standards and signal types are accepted and displayed
on each screen of this model. All video formats are scaled to fi t on screen in the highest resolution using a state of the art LSI
that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen
is calibrated to SMPTE standards for Gamma and color temperature.

View Product Features
  • 3 High Resolution 6.5-inch 1.2 MegaPixel wide screens
  • 100% digital processing
  • High resolution scaling of all images
  • Wide viewing radius - 130° horizontal and 120° vertical provides
    superior visibility when the viewer is not directly in front of the screen
  • 500 candelas per square meter (cd/m2) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 500:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results
    in excellent quality for moving images
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Marshall Electronics V-R653P-HDSDI Triple HD-SDI/SD-SDI Monitor Set

The Marshall Electronics V-R653P-HDSDI Triple HD-SDI/SD-SDI Monitor Set is a professional broadcast monitoring solution designed for high-density signal monitoring in studios, control rooms, OB vans, and fly-pack systems. By integrating three independent LCD monitors into a single rackmount chassis, it allows operators to monitor multiple video sources simultaneously while conserving valuable rack space.

Each display is optimized for HD-SDI and SD-SDI signal monitoring, delivering clear image detail, stable color reproduction, and consistent performance required for confidence monitoring and signal verification. This multi-screen configuration is ideal for applications such as camera shading, routing verification, and multi-source production workflows.

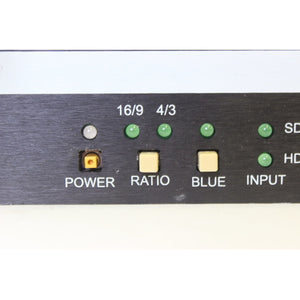

The unit features intuitive front-panel controls that allow users to adjust image parameters such as brightness, contrast, and color for each screen independently. This flexibility ensures accurate monitoring across varying signal conditions and production requirements.

Built with a rugged metal chassis and designed for continuous professional use, the Marshall V-R653P-HDSDI offers dependable operation in demanding broadcast environments. Its compact design, multi-monitor capability, and SDI-focused performance make it a practical choice for professional video monitoring applications.

Key Features

  • 3 High Resolution 6.5-inch 1.2 MegaPixel wide screens
  • 100% digital processing
  • High resolution scaling of all images
  • Wide viewing radius - 130° horizontal and 120° vertical provides
    superior visibility when the viewer is not directly in front of the screen
  • 500 candelas per square meter (cd/m2) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 500:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results
    in excellent quality for moving images

Marshall Electronics V-R653P-HDSDI Triple HD-SDI/SD-SDI Monitor Set Specs

Display
Screen Size
6.5 inches per screen
Display Type
LCD
Number of Screens
3
Aspect Ratio
4:3
Native Resolution
800 × 480
Video
Video Inputs
HD-SDI and SD-SDI
Signal Standards
SMPTE HD-SDI and SD-SDI
Controls
Front Panel Controls
Brightness, contrast, color, sharpness
Adjustment Method
Independent per screen
Mounting
Rack Height
3 RU
Mount Type
Rackmount
Electrical
Power Input
100–240 V AC
Power Consumption
Low power operation
Physical
Chassis Material
Metal
Finish
Black
Form Factor
Triple-screen rackmount unit
Application
Use Case
Broadcast, production, signal monitoring
Environmental
Operating Temperature
0 °C to 40 °C
Humidity
10% to 90% non-condensing

Key Features

  • 3 High Resolution 6.5-inch 1.2 MegaPixel wide screens
  • 100% digital processing
  • High resolution scaling of all images
  • Wide viewing radius - 130° horizontal and 120° vertical provides
    superior visibility when the viewer is not directly in front of the screen
  • 500 candelas per square meter (cd/m2) luminance produces
    enhanced image quality in varying light and viewing conditions
  • 500:1 ratio of contrast between black and white luminance
    values with response rates less than 30 ms results
    in excellent quality for moving images
