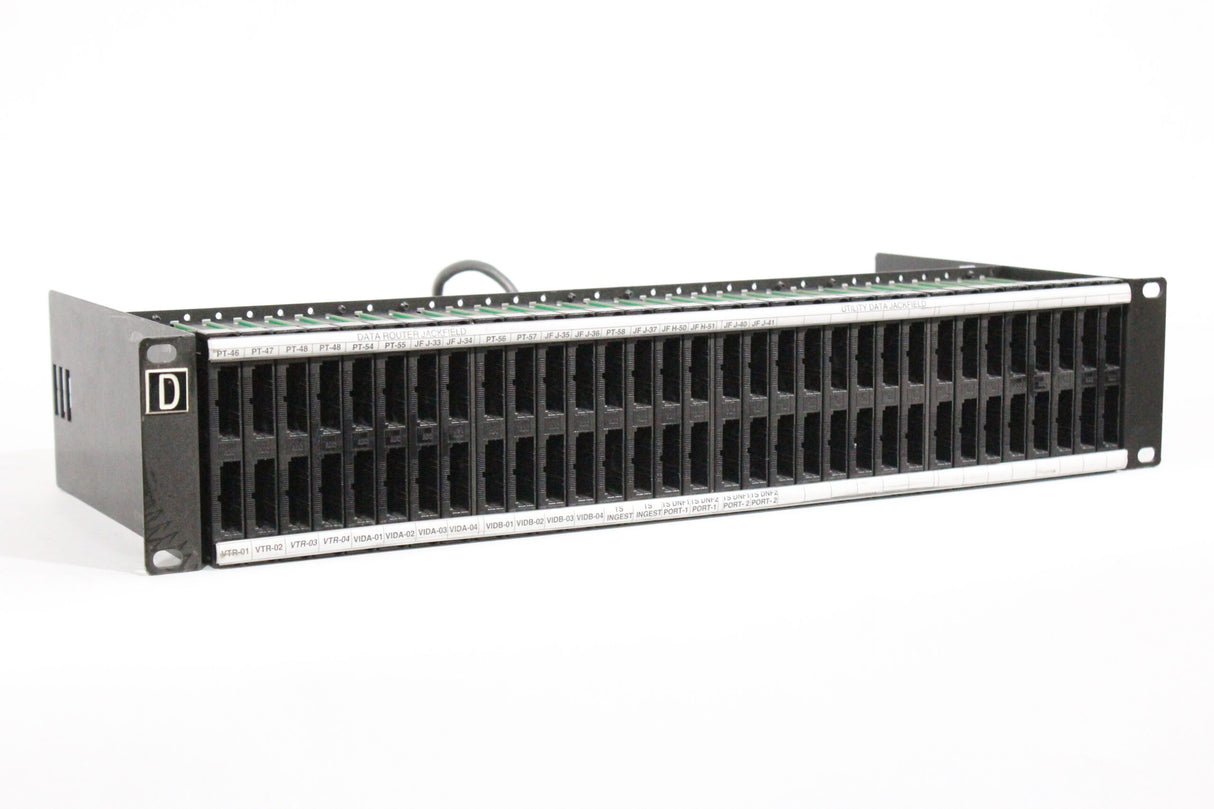

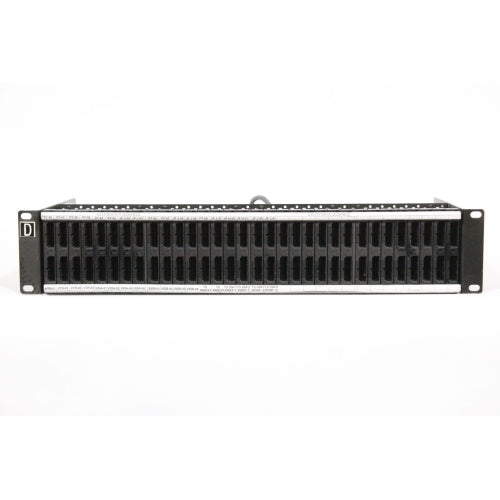

The ADC VP2232-D9-BK is a professional-grade modular patch panel designed for organizing, managing, and distributing RS-422 serial control data signals in broadcast, post-production, and system integration environments. This unit belongs to the Uni-Patch series, known for its high-density, field-configurable design that allows technicians to customize the interface types and signal routing to precisely match the requirements of a specific installation. The "D9-BK" designation indicates this particular model is factory-configured with standard 9-pin D-subminiature (D-Sub) female connectors, which are commonly used for RS-422 interfaces on broadcast video equipment, routers, and machine control systems.

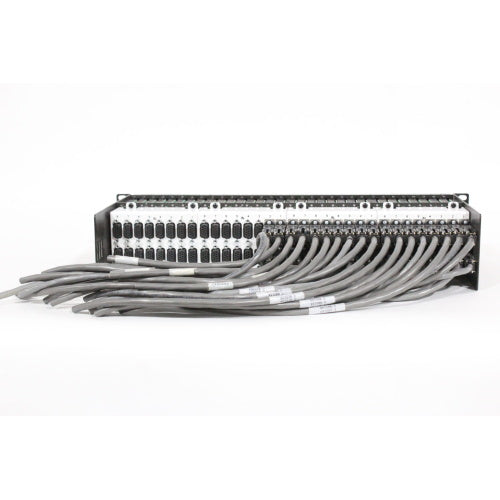

Constructed with a robust black steel chassis, this patchbay provides a clean and centralized termination point for serial control cables, replacing messy cable runs and simplifying signal re-routing for system reconfiguration or troubleshooting. Its modular design features individual port modules that can be easily snapped in and out from the front of the unit without specialized tools, allowing for future upgrades or changes from D-Sub to other connector types like 8P8C (RJ-45) or BNC as needed. The rear of the panel features a permanent punch-down block or terminal connection system for neat, reliable wire termination from the permanently installed system cabling.

Engineered for signal integrity, the panel maintains the characteristic impedance and shielding requirements of RS-422 differential data lines to prevent signal degradation, crosstalk, and electromagnetic interference. By consolidating all serial control connections into a single, labeled, and accessible rack unit, it dramatically improves the organization, reliability, and maintainability of complex equipment networks, facilitating efficient patching for routing control signals to different devices like servers, switchers, and recorders.
