AJA

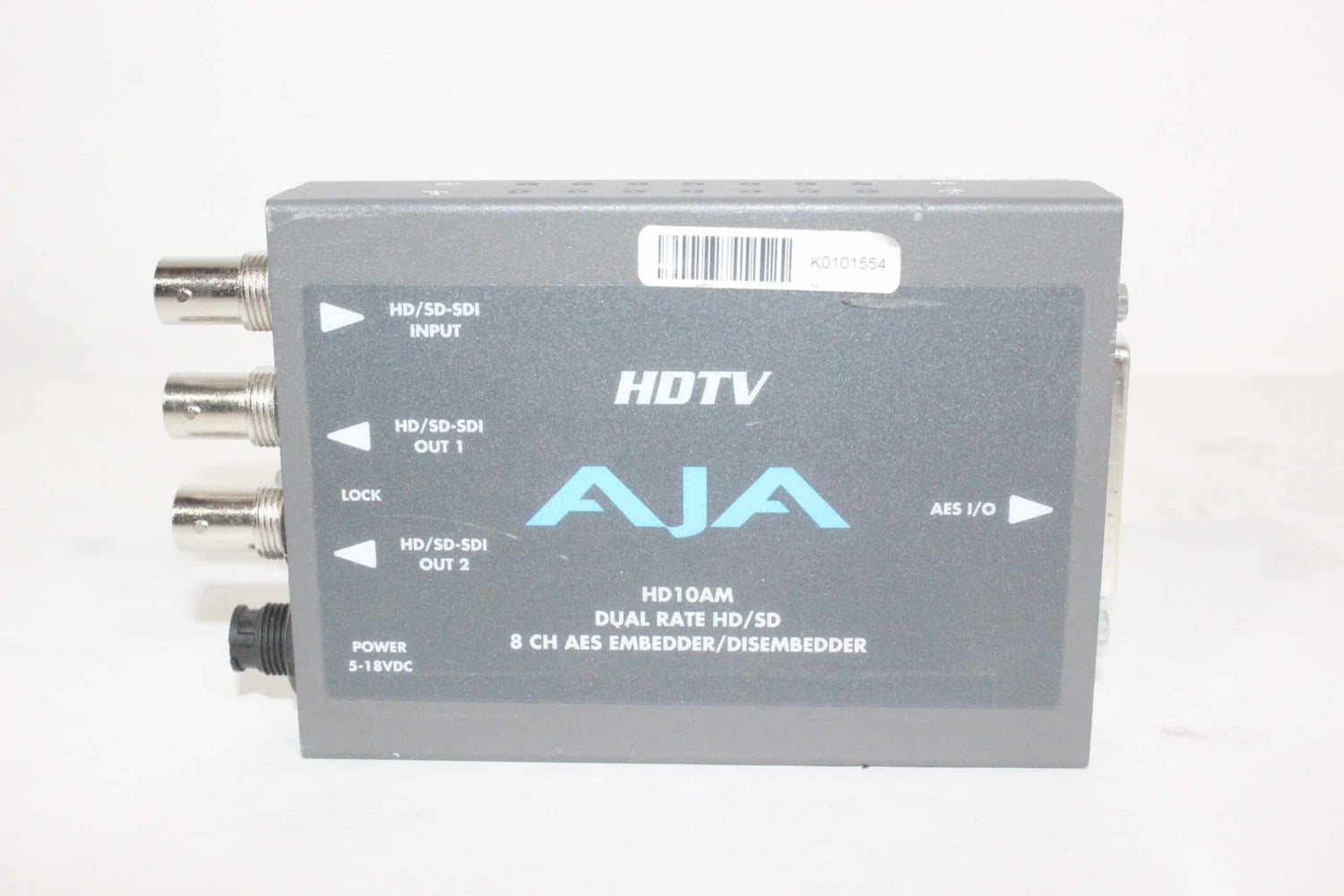

AJA HD10AM Dual Rate HD/SD 8-Channel AES Embedder/Disembedder

$75.00

The AJA HD10AM is a dual rate 8-channel AES audio Embedder/Disembedder. The Disembedder is always functional providing 4 AES outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" SDI input audio or to embed input AES audio from the breakout cable.

AES inputs are sample rate converted to a 48KHz rate synchronous to the video input. The HD10AM automatically detects and configures to the input video standard.

View Product Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 8-Channel AES I/O

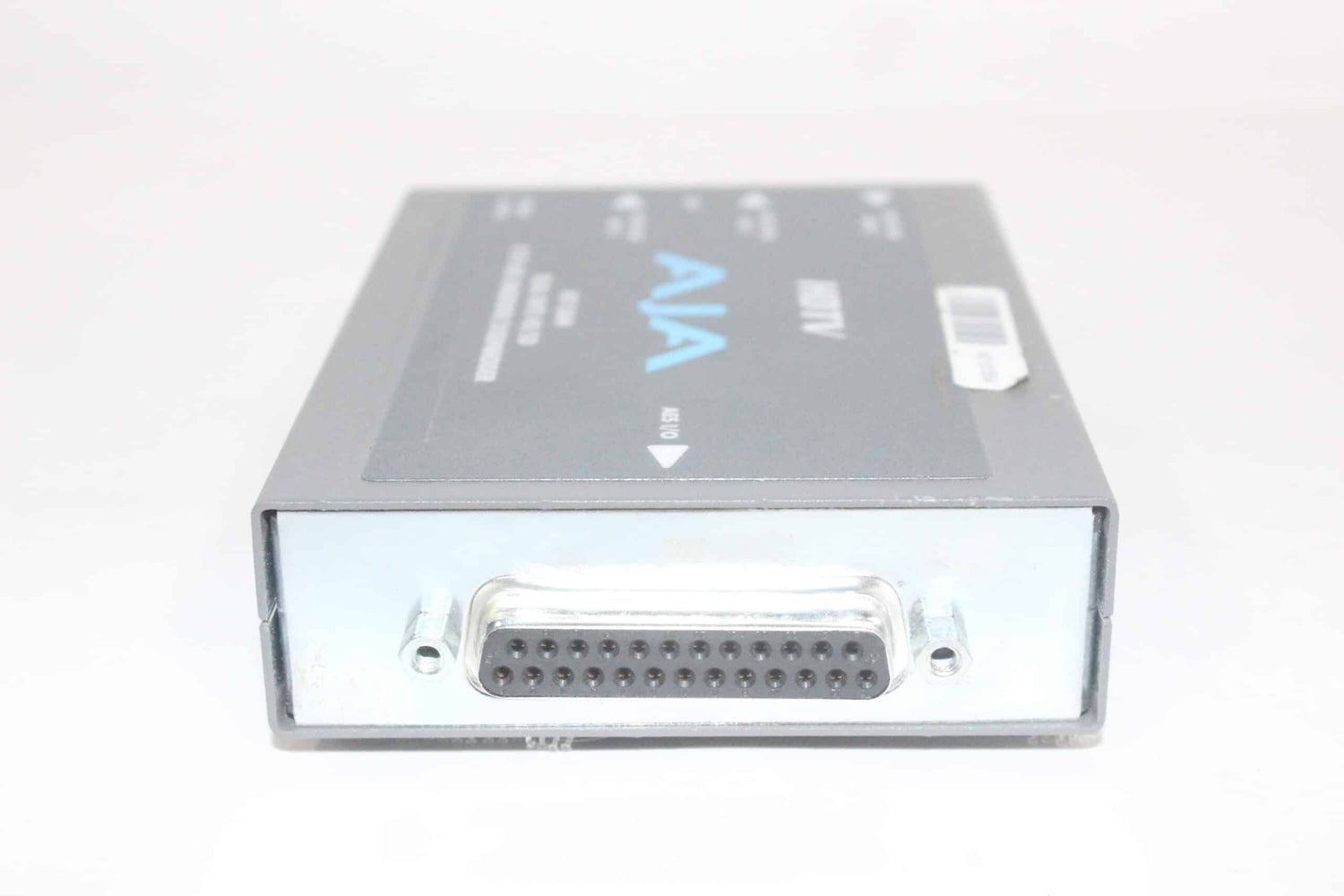

  • Supplied breakout cables for balanced AES - XLR connectors

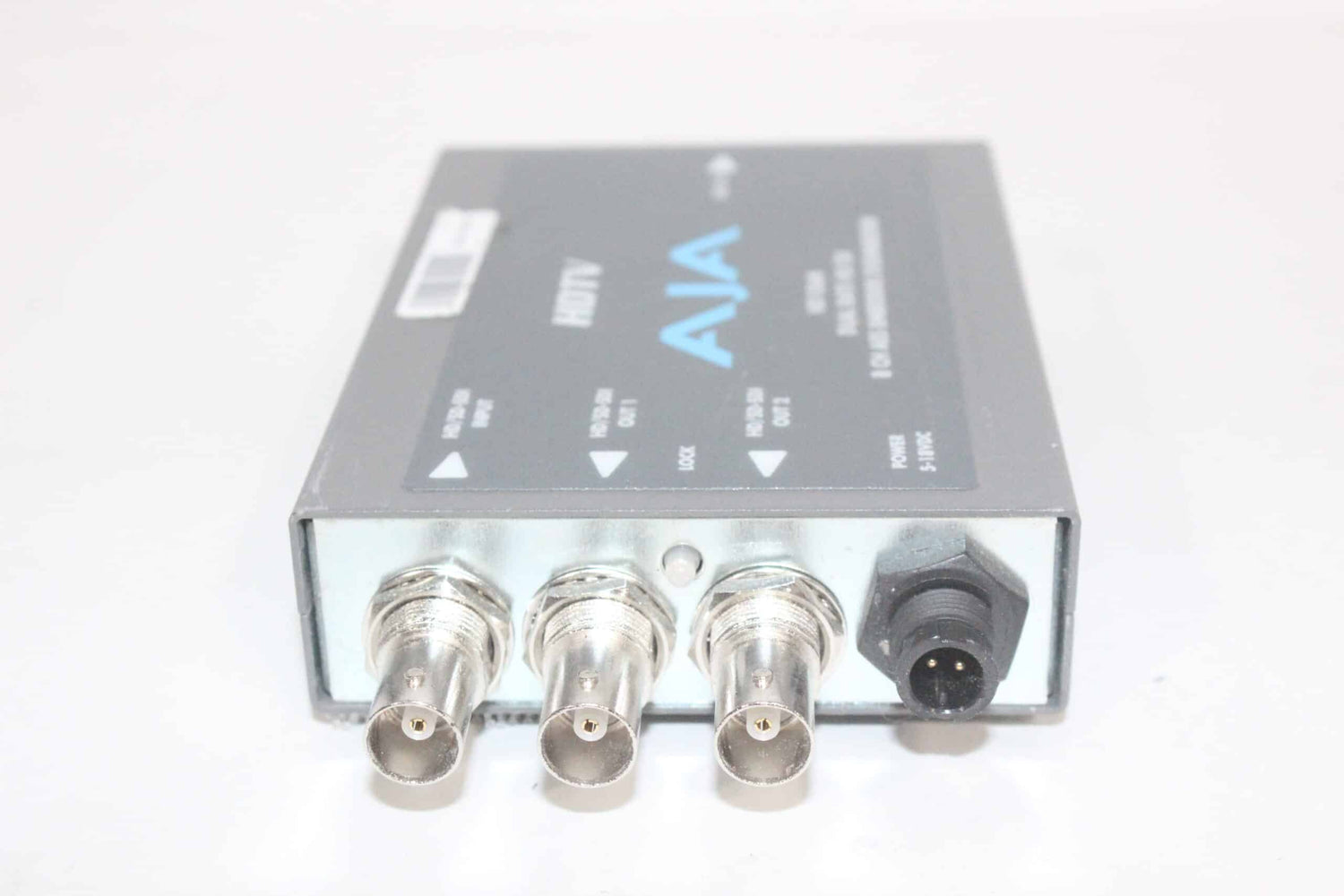

  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the AJA HD10AM Dual Rate HD/SD 8-Channel AES Embedder/Disembedder

The AJA HD10AM is a professional audio processing unit designed to handle the embedding and de-embedding of multi-channel AES digital audio within HD and SD SDI video signals. Its primary function is to either insert up to eight channels of external AES audio into an incoming SDI stream or extract up to eight channels of embedded audio from an SDI signal and output them as discrete AES signals. This capability is fundamental in broadcast and post-production facilities where audio from external consoles, servers, or recording devices needs to be perfectly synchronized and combined with video for recording, distribution, or transmission. The "Dual Rate" designation indicates its ability to automatically handle both standard-definition and high-definition SDI signals, providing versatile operation across different production formats.

Housed in a compact half-rack metal enclosure, the HD10AM is engineered for reliable 24/7 operation in equipment racks. It offers flexible routing and processing options, allowing users to map specific AES inputs to chosen embedded audio channel pairs (groups) within the SDI output. The unit provides clear front-panel metering and status indicators for both video and audio signals, enabling quick verification of proper operation. For facilities managing complex audio-for-video workflows, the AJA HD10AM serves as a critical interoperability tool, ensuring flawless synchronization and integration of high-quality digital audio with video throughout the production chain.

Key Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 8-Channel AES I/O
  • Supplied breakout cables for balanced AES - XLR connectors
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration

AJA HD10AM Dual Rate HD/SD 8-Channel AES Embedder/Disembedder Specs

General
Function
8-Channel AES/EBU Audio Embedder & De-embedder
Signal Compatibility
HD/SD-SDI (Automatic Detection)
Audio Processing
Audio Channels
8 channels of AES/EBU audio (4 stereo pairs)
Operation Modes
Embed AES into SDI, De-embed from SDI to AES, or pass-through
Audio Mapping
Configurable input/output mapping
Connectivity
SDI Input
1 x BNC
SDI Output
1 x BNC (with processed/embedded audio)
AES I/O
Multiple XLR connectors for 8 channels of AES audio
Operation & Control
Control Interface
Front-panel buttons and LCD display
Metering
Front-panel LED meters for audio levels
Operation
Standalone, no external software required
Physical & Power
Form Factor
Half-rack width (1/2 RU), rack-mountable
Power Supply
Internal, universal AC (100-240V)

Key Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 8-Channel AES I/O
  • Supplied breakout cables for balanced AES - XLR connectors
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
