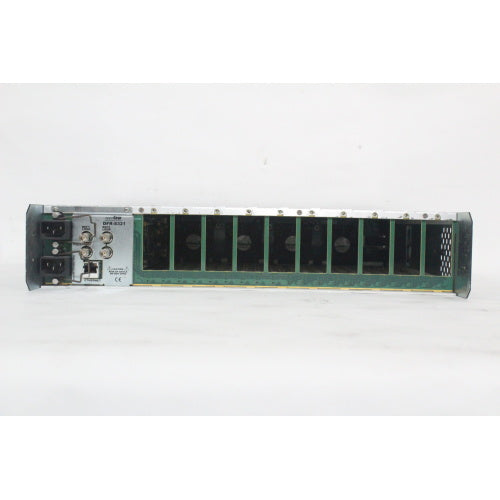

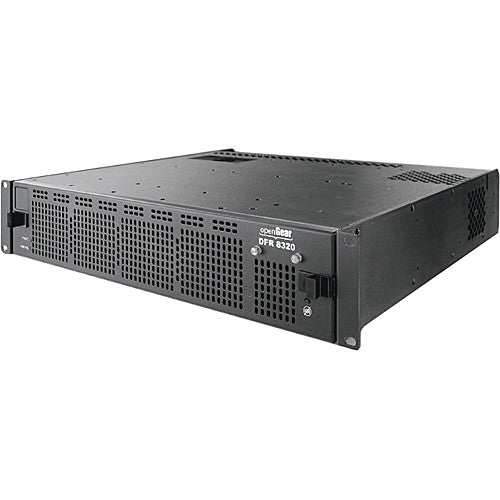

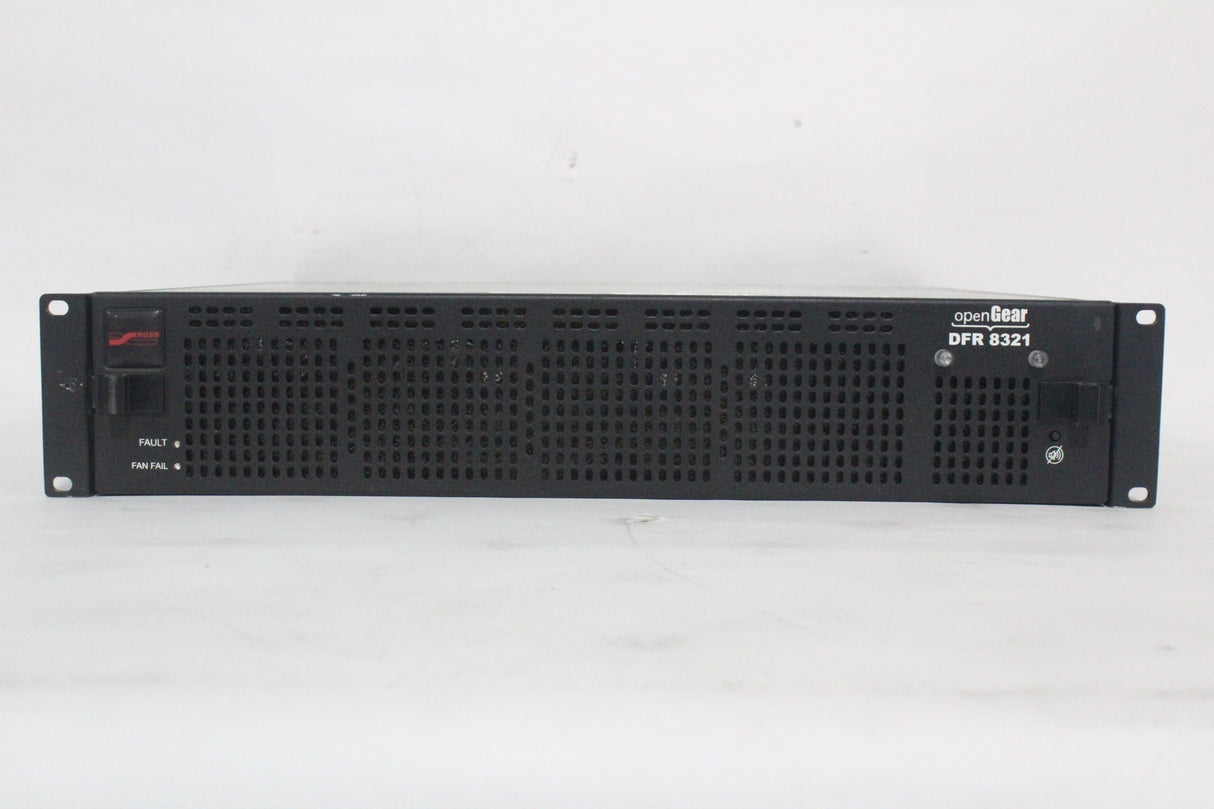

The Blackmagic Design OpenGear Frame is a modular chassis system designed to house and power a variety of professional video and audio processing cards that adhere to the openGear standard. This frame serves as the foundational infrastructure for broadcast facilities, post-production houses, and live production trucks, allowing engineers to build a customized signal processing hub by mixing and matching cards from Blackmagic Design and other manufacturers. The openGear ecosystem is built on interoperability and density, enabling multiple functions—such as video conversion, distribution, sync generation, and audio embedding—to be consolidated into a single, organized rack unit. The frame provides centralized, regulated power and cooling to all installed cards, ensuring reliable 24/7 operation which is critical for broadcast environments.

Constructed with a sturdy steel chassis, the frame is engineered for rack mounting and features secure card guides and retention mechanisms to ensure modules are properly seated and protected from vibration. The integrated cooling system, typically consisting of multiple fans, draws air across the installed cards to dissipate heat effectively, preventing thermal throttling and prolonging the life of the components. The frame eliminates the need for individual power supplies for each card, drastically reducing cable clutter and potential points of failure. Many frames include a system controller that monitors internal health parameters like temperature and fan speed, providing status feedback through front-panel indicators or network management software.

The OpenGear Frame exemplifies a scalable and serviceable approach to broadcast system design. By allowing facilities to start with a core set of cards and expand as needed, it offers a cost-effective path to growth. The tool-less or minimal-tool design facilitates quick installation and replacement of cards, minimizing downtime. Whether used in a master control room for signal routing and conversion, in an outside broadcast truck for flexible signal processing, or in a post-production facility for format bridging, the OpenGear Frame provides the robust, modular platform necessary to build a clean, efficient, and professional video and audio infrastructure.
