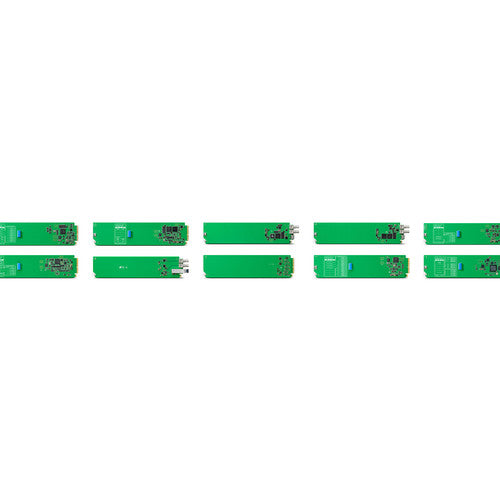

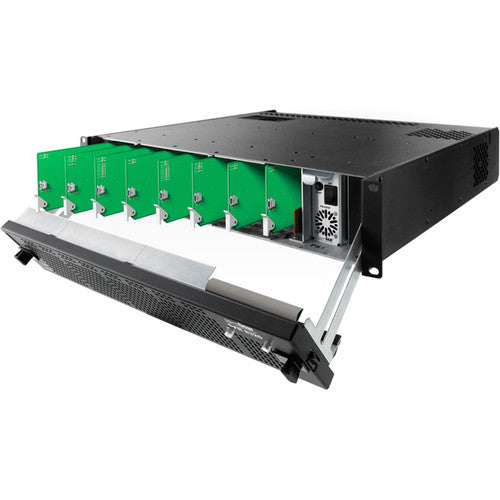

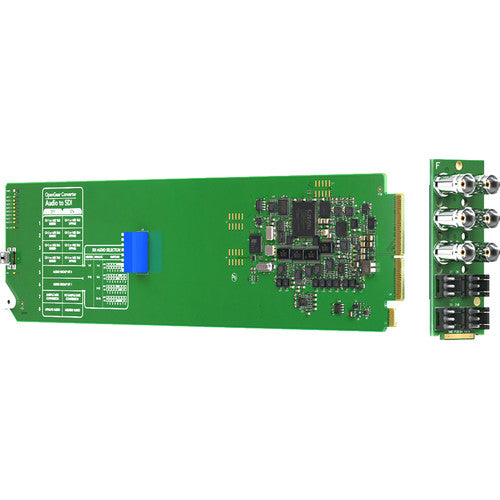

The Blackmagic Design openGear Frame with Cooling and Advanced Networking is a comprehensive, intelligent chassis system that forms the backbone of a modern, IP-managed broadcast signal processing infrastructure. This frame combines the high-density, modular card housing of the standard openGear system with integrated cooling for thermal stability and a built-in advanced networking controller for centralized management. It is designed to house a mix of openGear-compatible video and audio processing cards—such as converters, distribution amplifiers, synchronizers, and embedders—while providing the tools to monitor and control the entire assembly as a single network entity. The integrated cooling system, featuring multiple fans, ensures reliable operation of the installed cards by maintaining optimal operating temperatures, which is critical for the 24/7 demands of broadcast environments.

The integrated advanced networking controller is the defining feature of this frame, transforming it from a passive card cage into an intelligent network node. This controller provides a web-based graphical user interface (GUI) and supports standard protocols like SNMP (Simple Network Management Protocol) and PTP (Precision Time Protocol). This allows broadcast engineers to remotely configure individual cards, monitor real-time status (including temperature, fan speed, power supply health, and card-specific parameters), and receive automated alerts for any faults from anywhere on the network. The dual Ethernet ports offer redundancy and network segmentation options, ensuring robust and flexible integration into a facility's IT infrastructure.

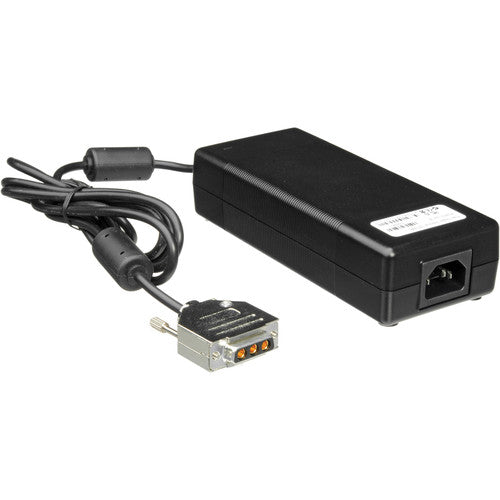

Constructed with a robust steel chassis, the frame is designed for rack mounting and features secure, tool-less card retention for easy maintenance and upgrades. The centralized power supply eliminates the clutter and failure points of individual power adapters. By consolidating signal processing, power, cooling, and network management into a single, scalable unit, this openGear frame dramatically simplifies broadcast system design, reduces rack space, and enhances overall system reliability and serviceability. It is an ideal solution for master control rooms, outside broadcast trucks, and any facility seeking to build a future-proof, software-defined signal processing platform that aligns with IP-based broadcast workflows.
