Blackmagic Design

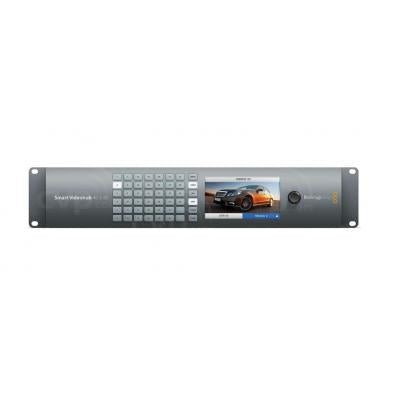

Blackmagic Smart Video Hub 12G 40x40

$2,499.95

The Blackmagic Smart Video Hub 12G 40x40 is a professional-grade routing solution engineered for broadcast and production environments. This advanced 40x40 matrix router seamlessly handles SD, HD, and Ultra HD video formats with 12G-SDI connectivity, delivering reliable signal distribution across complex video workflows. Ideal for live production, post-production facilities, and broadcast operations requiring flexible, high-performance video routing with extensive I/O capabilities.

View Product Features

  • Routing Switcher
  • 40 x 12G-SDI Inputs / 40 x 12G-SDI Outputs
  • 4:2:2 and 4:4:4 Sampling
  • Supports SD, HD, Ultra HD 4K, DCI 4K
  • Push Buttons on Front Panel
  • Ethernet for Remote Control
  • Videohub Control Software Included
  • 10-Bit Processing
  • SDI Reclocking
  • Built-In LCD with Spin Knob Control
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Blackmagic Smart Video Hub 12G 40x40

Introducing the incredible Blackmagic Design BMD-VHUBSMARTE12G4040, also called as Smart Videohub 12G 40x40, it is the world's most advanced technology router for all SD, HD and Ultra HD video formats, all the way up to 2160p60! It is professionally designed that the Ultra HD is being adopted quickly, that means you never know when you're going to need to connect 12G-SDI devices into your systems. Smart Videohub 12G is designed for ensuring it will always be ready to route signals from the latest switchers, cameras, decks, monitors, and a lot more. That's because Smart Videohub12G 40x40 comes featuring a multi-rate 12G-SDI on BNC SDI connectors, it is capable to work with all of your existing SD and HD gear and is fully compatible with the latest high frame rate Ultra HD gear. Meaning, you are capable to drop it in for replacing your existing router today without having to rewire your entire facility! Smart Videohub 12G is giving you the confidence of routing to any SD, HD or Ultra HD signal from any device today and in the future!

This advanced 12G-SDI video router is designed capable to support any SD, HD or Ultra HD SDI format on the same router at the same time. Smart Videohub 12G 40x40 comes featuring 40 inputs and 40 outputs and includes video reference, redundant power connections and an elegant machined metal front panel along with large full HD LCD for monitoring and routing label display. Routing is possible to be performed by direct button selection and the spin knob controller. 12G-SDI technology is designed supporting all SDI video standards up to 2160p60. Includes spin knob or push button control, LCD monitoring and Ethernet router control.

Key Features

  • Routing Switcher
  • 40 x 12G-SDI Inputs / 40 x 12G-SDI Outputs
  • 4:2:2 and 4:4:4 Sampling
  • Supports SD, HD, Ultra HD 4K, DCI 4K
  • Push Buttons on Front Panel
  • Ethernet for Remote Control
  • Videohub Control Software Included
  • 10-Bit Processing
  • SDI Reclocking
  • Built-In LCD with Spin Knob Control

Blackmagic Smart Video Hub 12G 40x40 Specs

SDI Video Input 40 x 10-bit SD-SDI, HD-SDI and 12G?SDI.
SDI Video Output 40 x 10-bit SD-SDI, HD-SDI and 12G?SDI.
Reference Input Black burst and Tri-level sync for SD, HD and 4K.
Reference Output Reference terminating loop output.
Multi Rate Support Auto detection of SD, HD or 12G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates USB or Ethernet.
Front Panel Router Control 40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. RS-422.
Router Configuration Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control 1 x input for controlling router crosspoint switching.
Reclocking On all SDI outputs, auto switching between standard definition, high definition or 12G-SDI video.

Key Features

  • Routing Switcher
  • 40 x 12G-SDI Inputs / 40 x 12G-SDI Outputs
  • 4:2:2 and 4:4:4 Sampling
  • Supports SD, HD, Ultra HD 4K, DCI 4K
  • Push Buttons on Front Panel
  • Ethernet for Remote Control
  • Videohub Control Software Included
  • 10-Bit Processing
  • SDI Reclocking
  • Built-In LCD with Spin Knob Control
