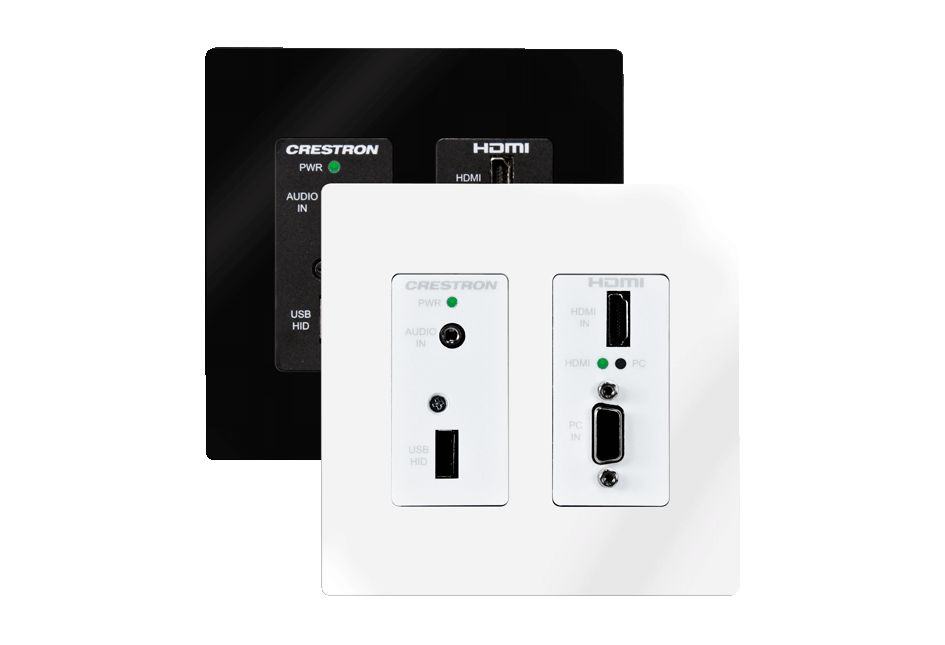

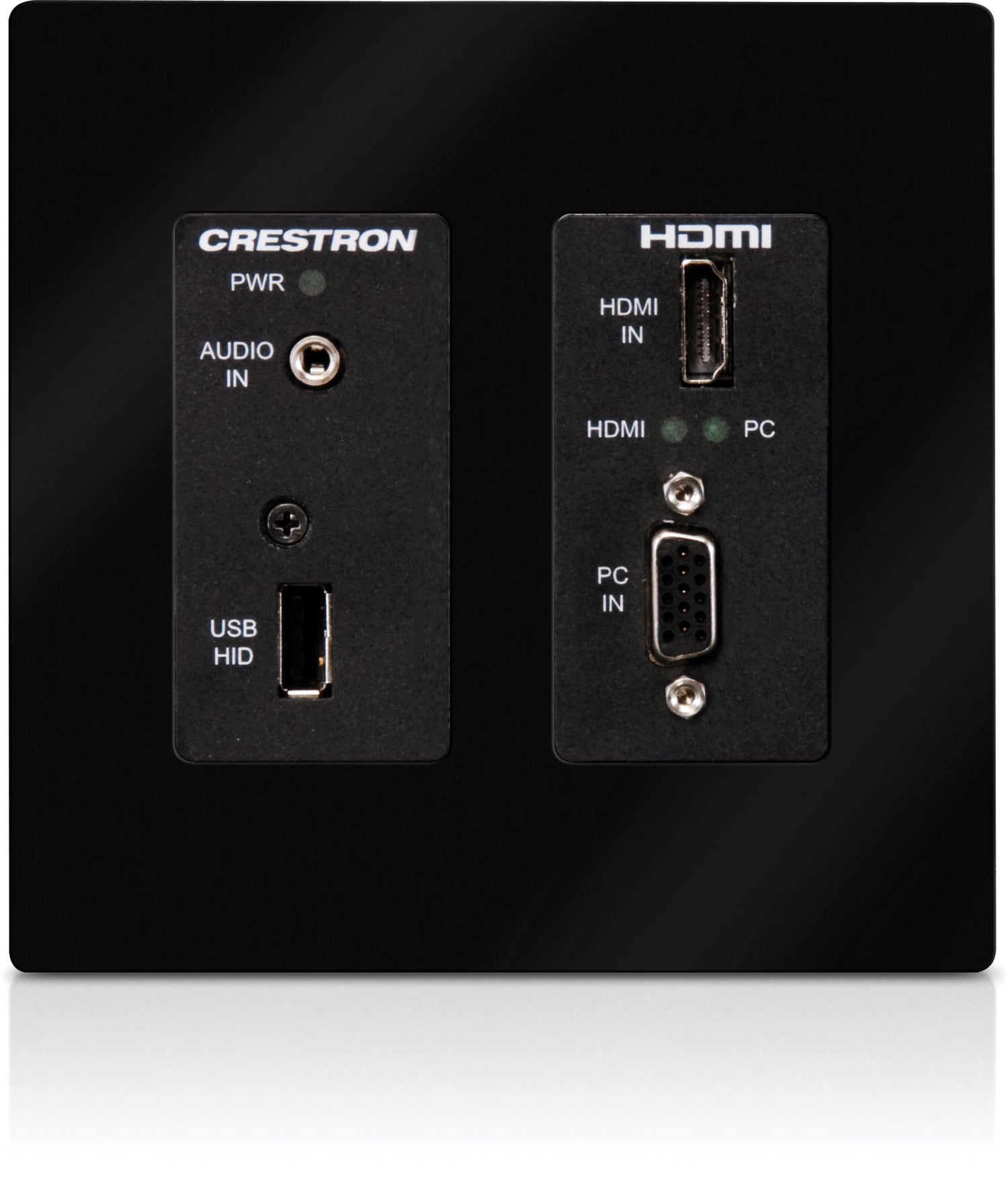

The Crestron DM‑TX‑200‑C‑2G‑B‑T is a wall‑mounted DigitalMedia8G+ transmitter providing a stereo AV interface for HDMI and VGA sources. It installs in a standard double‑gang box and supports distances up to 330ft over CAT5e or DM8G cable. It includes a USB HID host port for keyboard/mouse extension, automatic input switching, EDID management, CEC control, and compatibility with HDBaseT systems.

The DM-TX-200-C-2G provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. It is ideal for wall, lectern, and floor box applications in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with a USB HID host port. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It connects to the head end or display location using a single CAT type twisted pair cable. Standard gang-box mounting (2-3/4 in. deep) allows for installation adjacent to an Ethernet jack (Crestron MP-WP183 or equivalent) for a total connectivity solution.
