Drake Digital DQT1000 Digital to QAM HD Transcoder

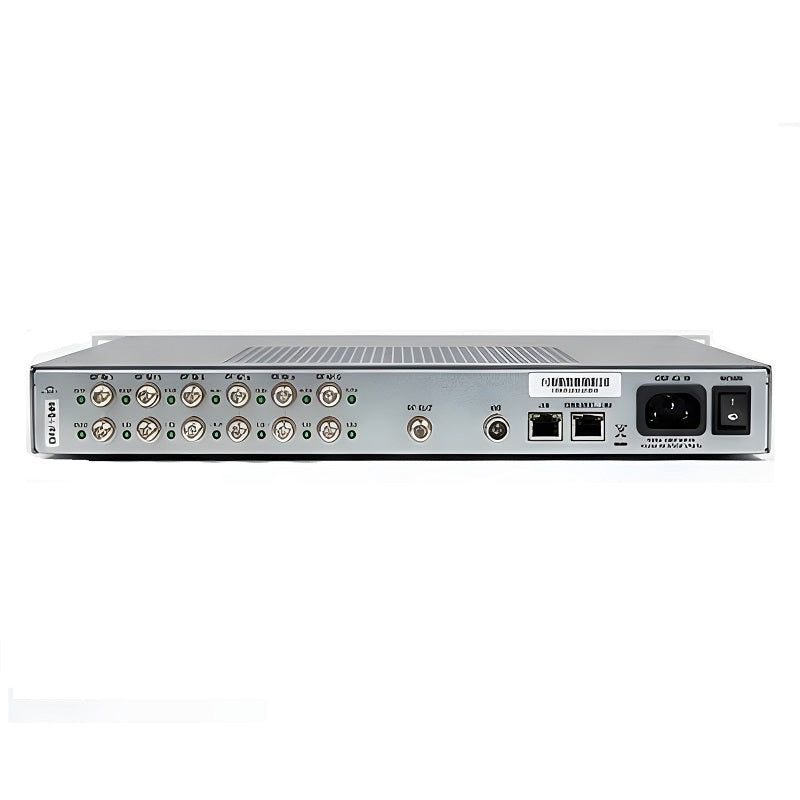

The Drake Digital DQT1000 Digital to QAM HD Transcoder is a professional broadcast hardware device engineered to receive digital video streams and convert them for distribution over traditional cable television (CATV) infrastructure. It functions as a critical bridge between modern IP-based video transport and legacy quadrature amplitude modulation (QAM) delivery systems. The unit is designed to accept high-definition program streams via IP inputs, such as those delivered over an Ethernet network from satellite receivers, video servers, or IPTV headends, and then perform real-time transcoding and modulation. Its core task is to output a pristine RF signal on a specific channel frequency that can be seamlessly injected into a coaxial cable network, allowing the content to be viewed on standard cable-ready televisions or set-top boxes without requiring an IP connection at the endpoint.

Internally, the transcoder employs sophisticated processing to ensure signal integrity and broadcast compliance. It decodes the incoming compressed digital stream (often in a format like MPEG-2 or H.264) and can transcode it to a different bitrate or resolution if necessary for bandwidth management or quality targets within the QAM spectrum. Following this, it performs forward error correction (FEC) and modulates the digital data onto a specific radio frequency carrier using 64-QAM or 256-QAM standards. This process demands precise tuning and stable output to prevent interference with adjacent channels on the cable line. The device typically features robust input buffering and signal monitoring circuits to maintain a continuous output, providing the reliability required for 24/7 broadcast operations in environments like hotels, MDUs (multi-dwelling units), hospitals, and small to mid-sized cable headends.

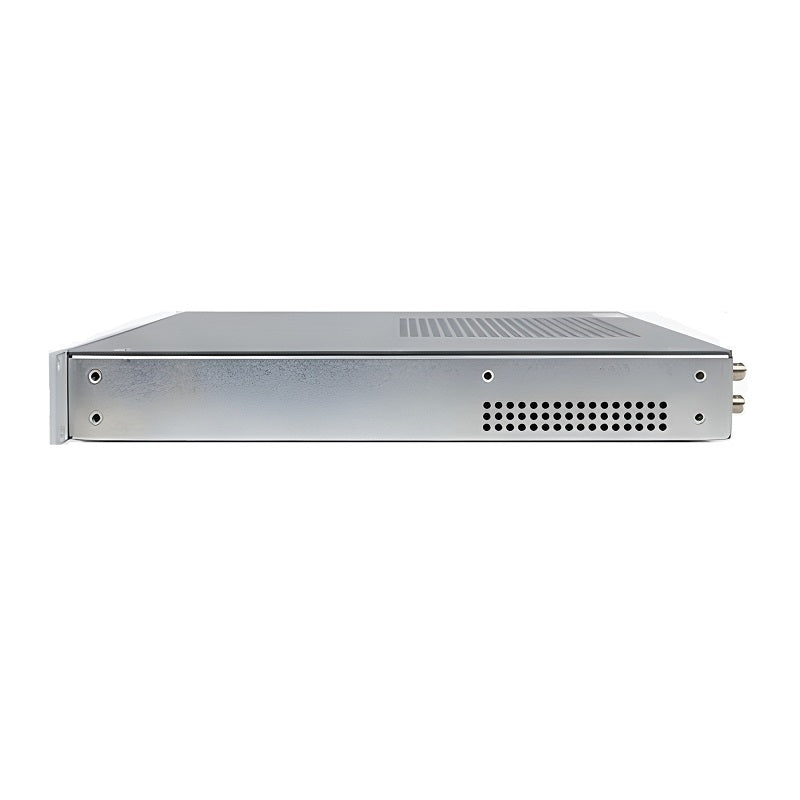

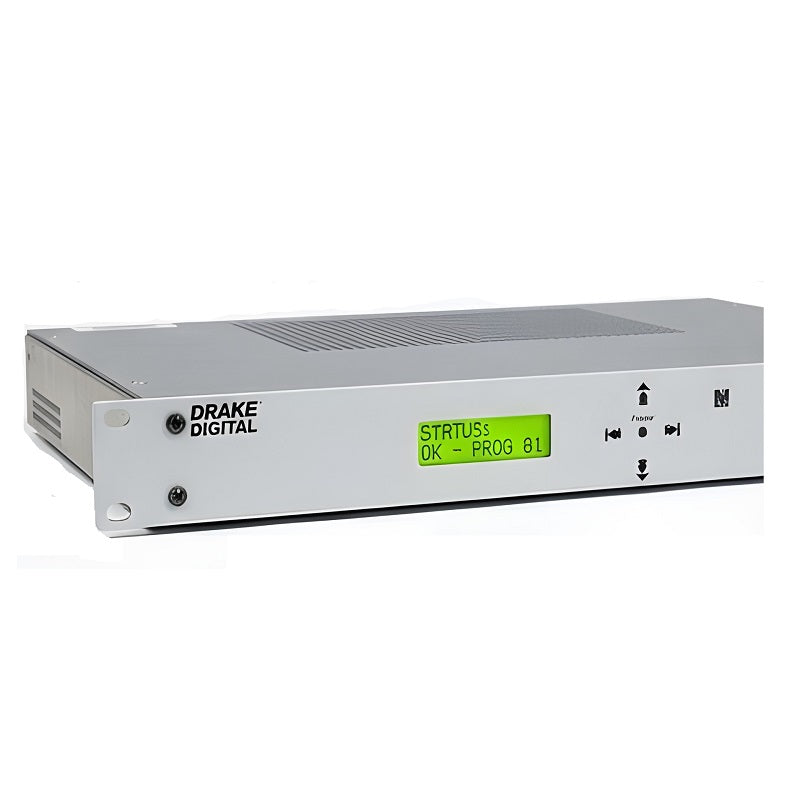

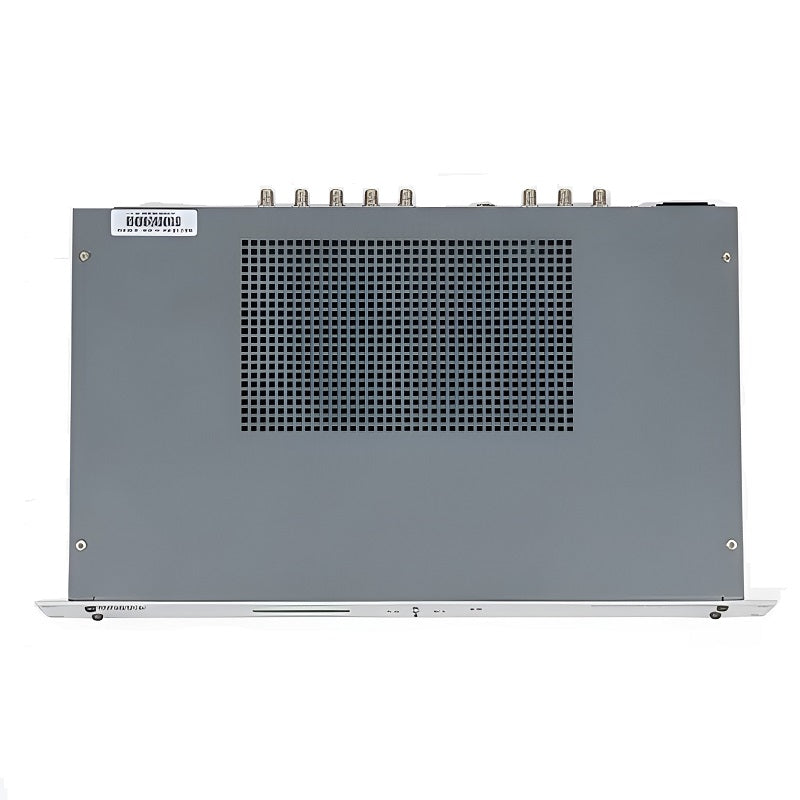

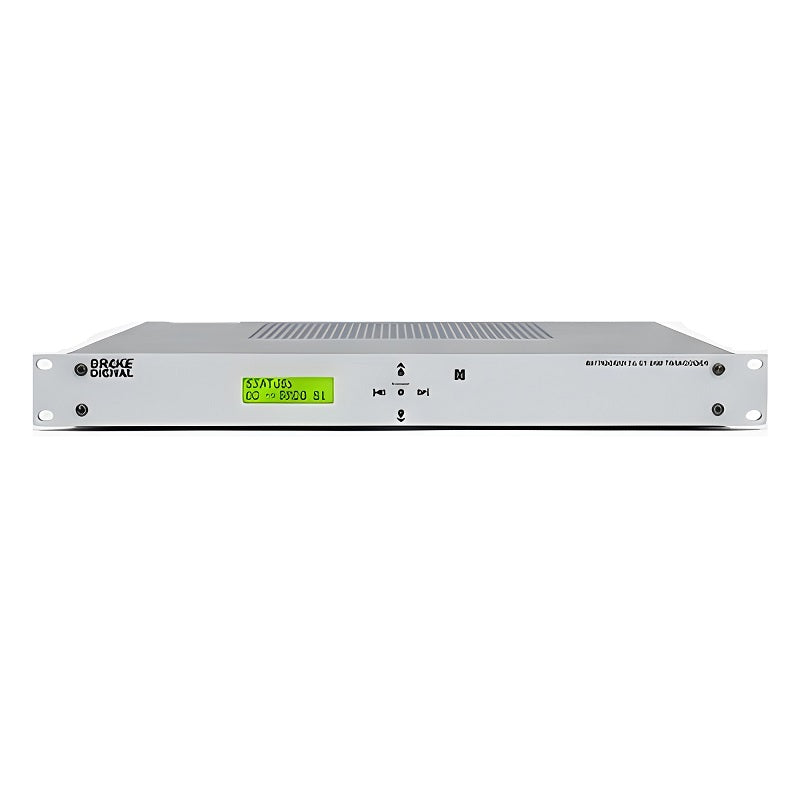

Control and monitoring of the DQT1000 are facilitated through an intuitive front-panel interface and, more comprehensively, via a network-based management system accessible through a web browser. This allows operators to remotely configure input sources, set output channel frequencies and modulation schemes, and monitor vital parameters such as input stream health, output RF level, and error rates. Built with a solid, rack-mountable metal chassis, the device is intended for continuous duty in technical closets and headend racks. By enabling the efficient distribution of HD channels over existing coaxial cabling, the Drake DQT1000 extends the utility and lifespan of legacy RF distribution networks while accommodating modern digital content sources.
