Evertz

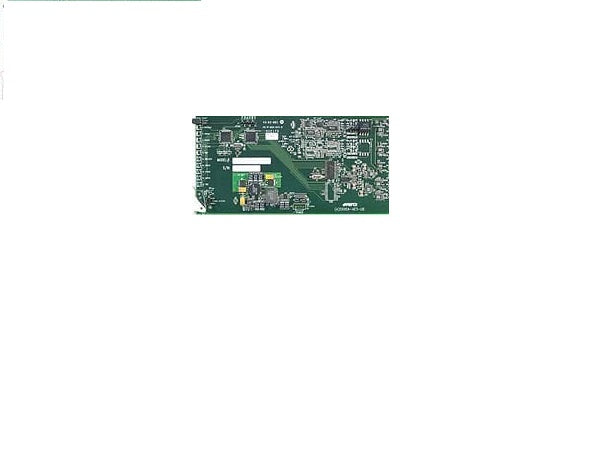

Evertz 500DA-AESU Unbalanced AES Audio Distribution Amplifier Card

$0.00

The Evertz 500DA-AESU is an unbalanced AES audio distribution amplifier card designed for distributing AES digital audio signals. It provides nine reclocked and auto-equalized outputs for 75Ω unbalanced AES signals. The card automatically equalizes up to 1500m of Belden 1694A coax, ensuring signal integrity over longer cable runs.

View Product Features

  • Reclocking and Equalization: The 500DA-AESU re-clocks the AES signal to reduce jitter and automatically equalizes for cable length up to 1500m of Belden 1694A.
  • Sampling Rates: It supports various sampling frequencies including 32kHz, 44.1kHz, 48kHz, and 96kHz.
  • Output: Provides nine unbalanced 75Ω AES outputs.
  • Input: 75Ω unbalanced AES input, transformer coupled.
  • Monitoring: Card edge LED indicators provide quick assessment of signal status and errors.
  • Remote Monitoring: Can be monitored remotely via SNMP when installed in a 500FR frame with a 500FC Frame Controller.
  • Compatibility: Complies with SMPTE ST 276 standard for AES audio on 75Ω coax.
  • Termination: The input can be terminated or not terminated via a jumper setting.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Evertz 500DA-AESU Unbalanced AES Audio Distribution Amplifier Card

Key Features

  • Reclocking and Equalization: The 500DA-AESU re-clocks the AES signal to reduce jitter and automatically equalizes for cable length up to 1500m of Belden 1694A.
  • Sampling Rates: It supports various sampling frequencies including 32kHz, 44.1kHz, 48kHz, and 96kHz.
  • Output: Provides nine unbalanced 75Ω AES outputs.
  • Input: 75Ω unbalanced AES input, transformer coupled.
  • Monitoring: Card edge LED indicators provide quick assessment of signal status and errors.
  • Remote Monitoring: Can be monitored remotely via SNMP when installed in a 500FR frame with a 500FC Frame Controller.
  • Compatibility: Complies with SMPTE ST 276 standard for AES audio on 75Ω coax.
  • Termination: The input can be terminated or not terminated via a jumper setting.

Evertz 500DA-AESU Unbalanced AES Audio Distribution Amplifier Card Specs

Key Features

  • Reclocking and Equalization: The 500DA-AESU re-clocks the AES signal to reduce jitter and automatically equalizes for cable length up to 1500m of Belden 1694A.
  • Sampling Rates: It supports various sampling frequencies including 32kHz, 44.1kHz, 48kHz, and 96kHz.
  • Output: Provides nine unbalanced 75Ω AES outputs.
  • Input: 75Ω unbalanced AES input, transformer coupled.
  • Monitoring: Card edge LED indicators provide quick assessment of signal status and errors.
  • Remote Monitoring: Can be monitored remotely via SNMP when installed in a 500FR frame with a 500FC Frame Controller.
  • Compatibility: Complies with SMPTE ST 276 standard for AES audio on 75Ω coax.
  • Termination: The input can be terminated or not terminated via a jumper setting.
