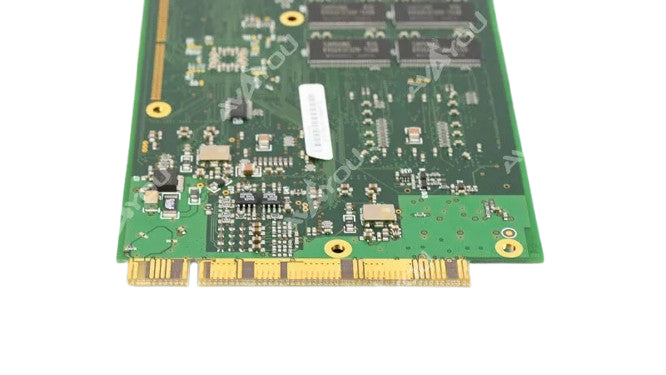

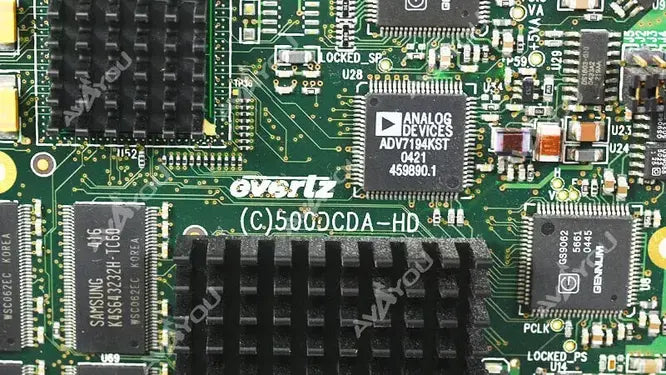

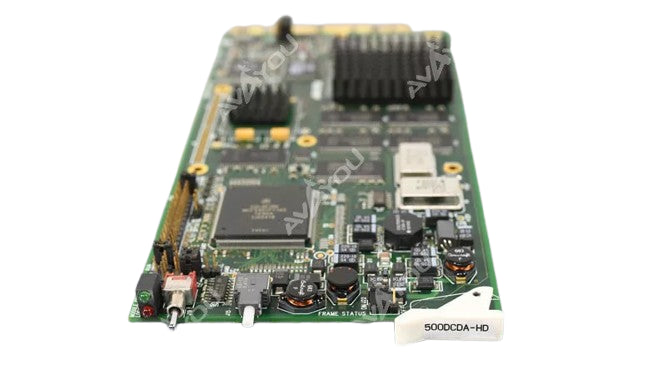

Evertz 500DCDA-HD HD Downconverter & 1x5 DA Distribution Amp
The 500DCDA-HD is a reclocking 1.5Gb/s digital video distribution amplifier and a high quality downconverter for HDTV signals. The 500DCDA-HD provides 5 reclocked DA outputs and 4 downconverted SDI or composite analog NTSC/PAL outputs (software selectable). Composite outputs are color frame locked to supplied reference. The 500DCDA-HD accepts all the popular international SMPTE 292M video formats.
The 500DCDA-HD has color space conversion from ITU rec. 709 to ITU rec. 601, and will provide various downconverted formats such as 16:9 letterbox, 14:9 letterbox, 13:9 letterbox, 4:3 center crop, and 4:3 anamorphic squeeze. The 500DCDA-HD supports Widescreen Signaling (WSS) on the output. The module has 10 bit processing and allows for selectable horizontal and vertical filters to control picture sharpness. It also de-embeds two groups of audio and re-embeds the audio on the SDI output in time with the video.
The 500DCDA-HD has a closed caption monitoring capability that decodes CEA-608 or CEA-708 captions that have been encoded into the VANC data space of an HD video input, or CEA-608 captions from a SD video input.
View Product Features
View Product Features
Once stock replenishes, inventory will display below.
In-Stock Inventory
No products currently in stock
