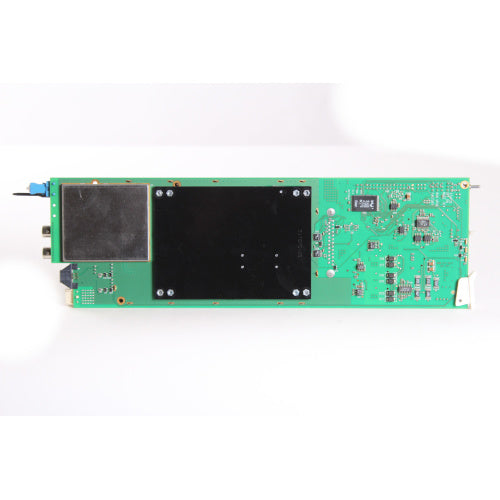

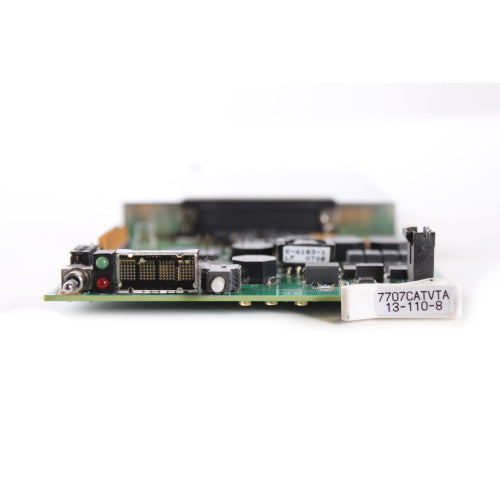

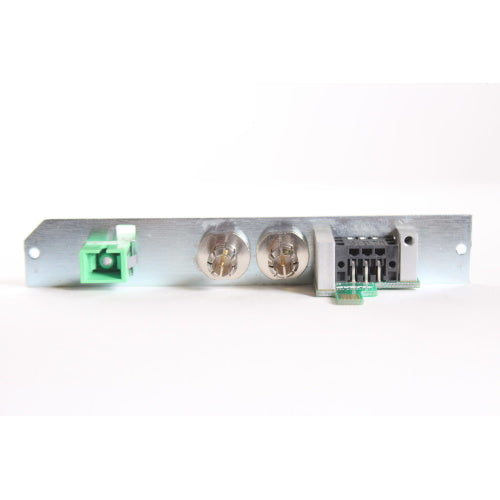

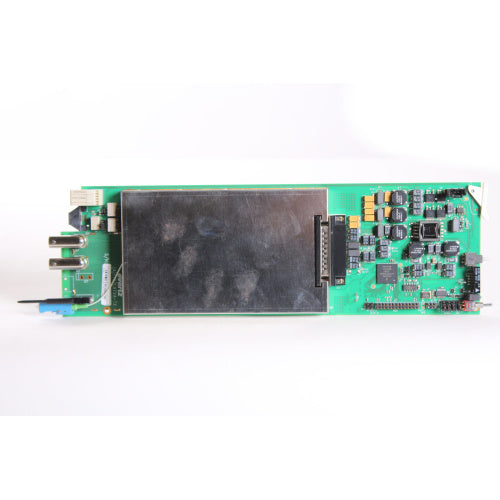

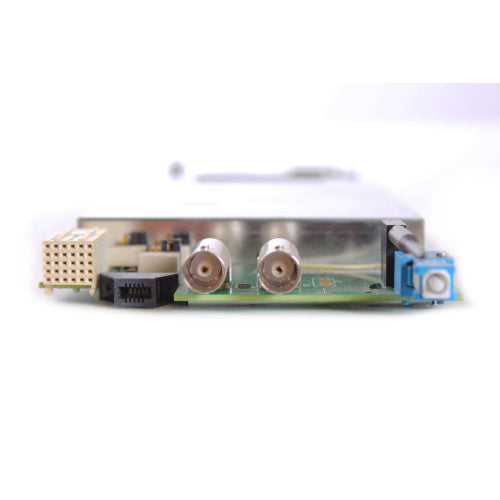

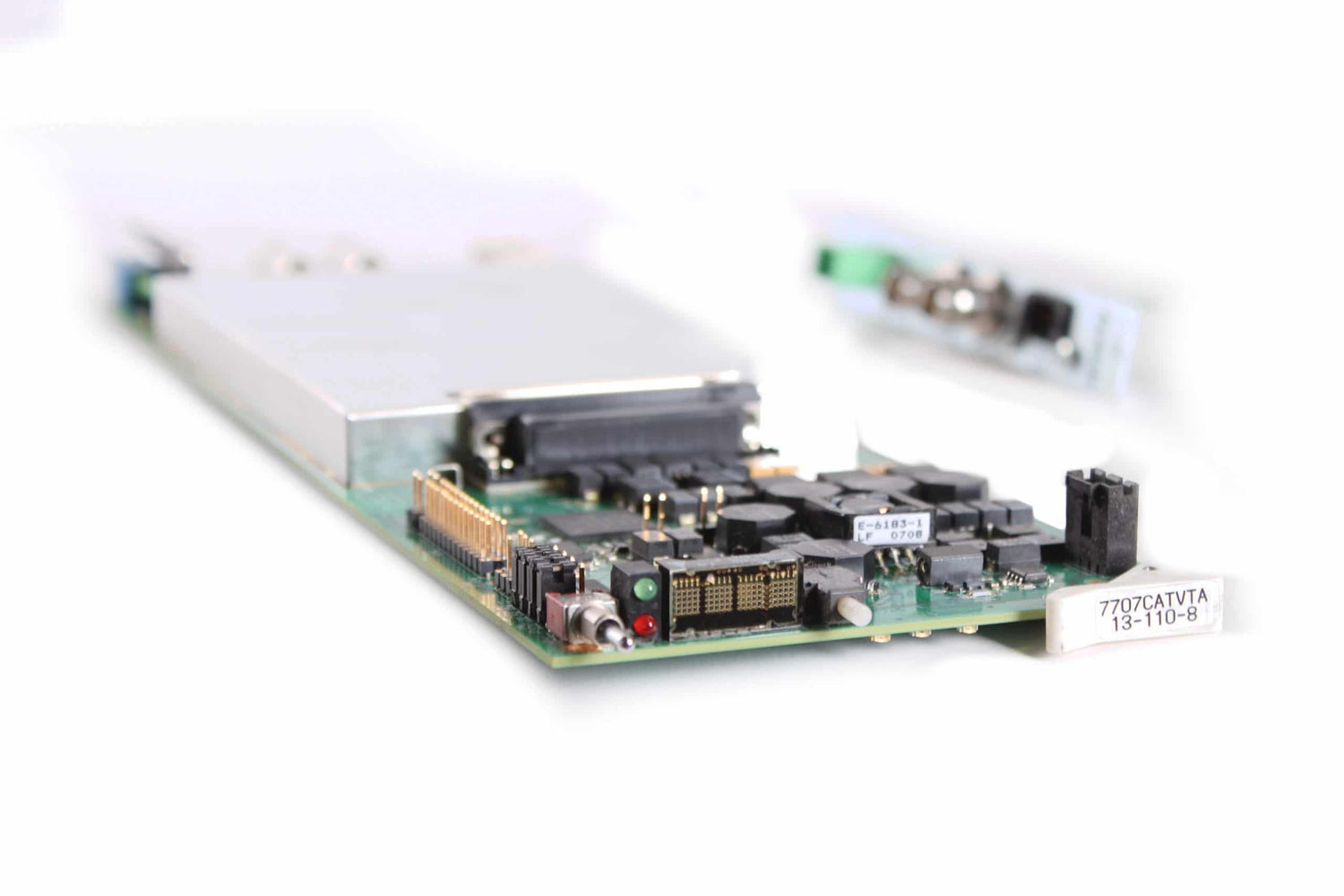

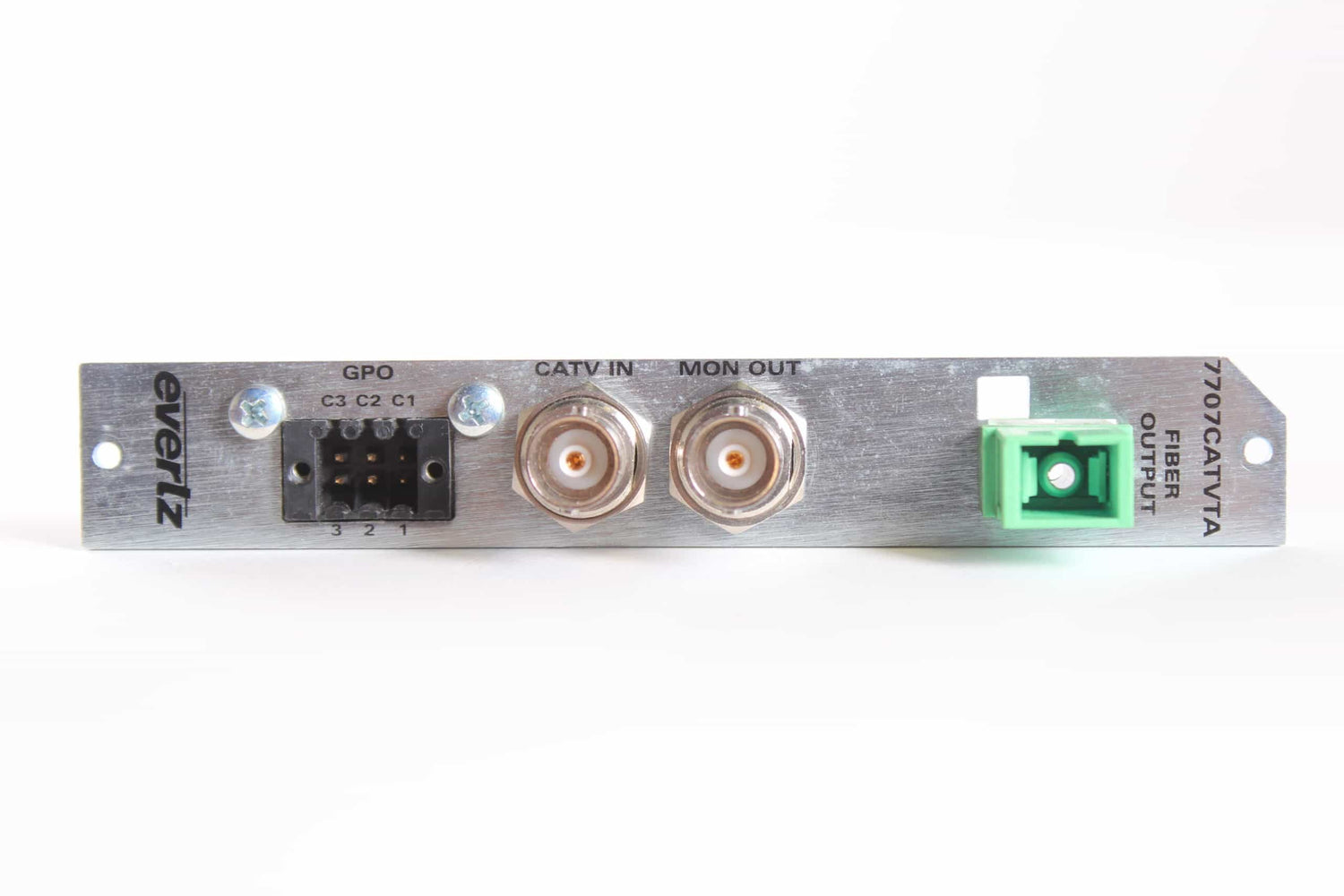

The Evertz 7707CATVTA13-110-8 is a professional CATV (Community Antenna Television) fiber optic transmitter module designed for the Evertz 7700 series modular platform. Its primary function is to convert a wide spectrum of RF signals—carrying multiple television channels from a cable headend or similar source—into an optical signal for transmission over single-mode fiber optic cable. This process, known as an E/O (Electrical-to-Optical) conversion, enables the distribution of multi-channel CATV content over long distances (many kilometers) with minimal signal loss and complete immunity to electrical interference, which is a significant advantage over traditional coaxial RF distribution. The "8dBm" in the model name indicates a relatively high optical output power, suitable for driving longer fiber spans or splitting the signal to serve multiple nodes.

Engineered for integration into broadcast and cable distribution infrastructure, this module accepts a standard RF input (typically on an F-connector) covering a broad frequency range (e.g., 50-870 MHz) that carries numerous QAM-modulated digital TV channels. It internally modulates this RF spectrum onto a specific optical wavelength (e.g., 1310nm or 1550nm) using a high-performance laser. The module is designed for the high-density, reliable environment of the 7700 chassis, benefiting from its robust power, cooling, and system management. This allows cable operators to centralize their optical transmission equipment in a scalable, manageable frame, simplifying headend design and maintenance.

As a key component in modern HFC (Hybrid Fiber-Coax) networks, this transmitter enables the efficient "fiber deep" portion of the signal path. It is used by cable multiple-system operators (MSOs) to distribute content from a central headend to numerous optical nodes located in neighbourhoods, from which the signal is converted back to RF for the final coaxial drop to subscribers. By providing a high-quality, reliable optical transmission solution within a modular platform, it supports the delivery of clear, stable television, internet, and voice services.
