Evertz

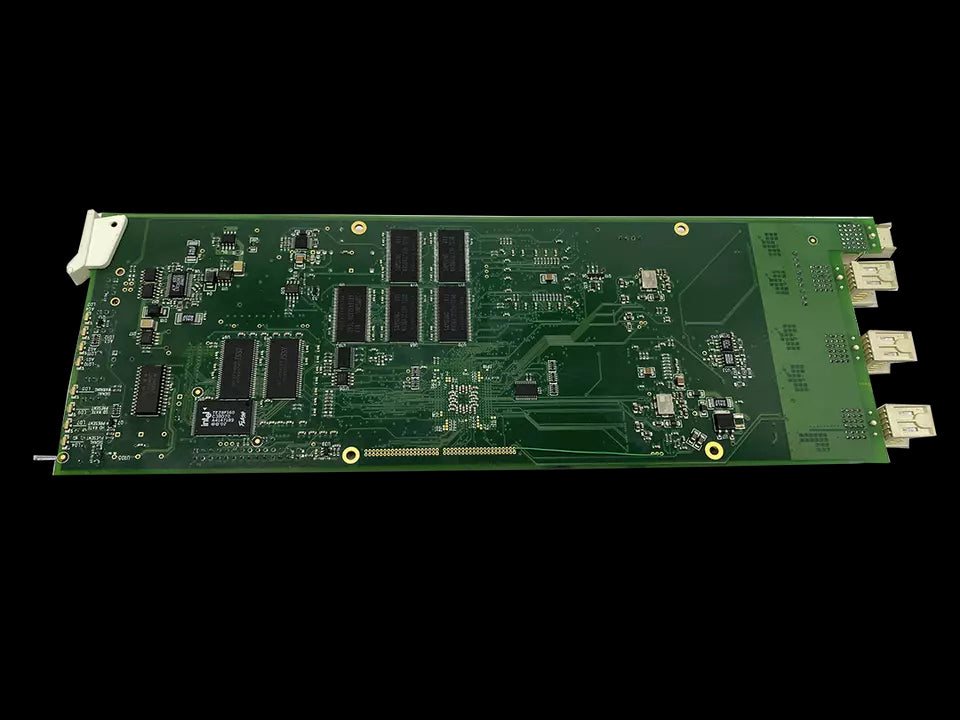

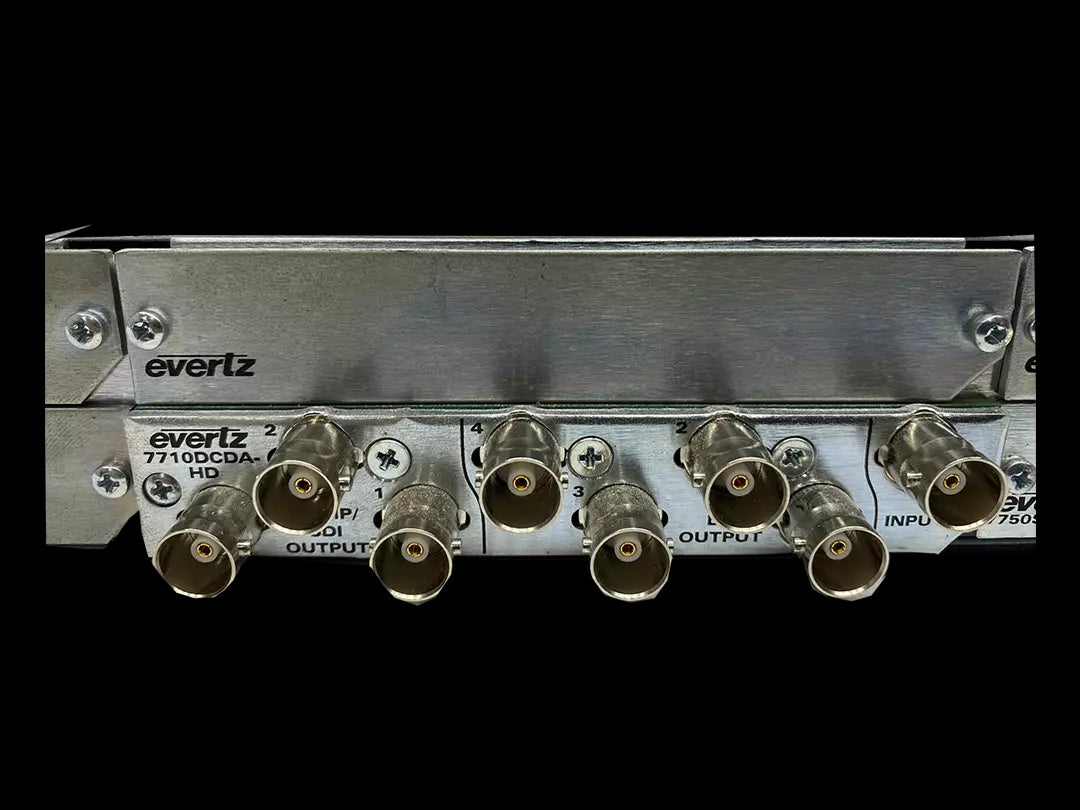

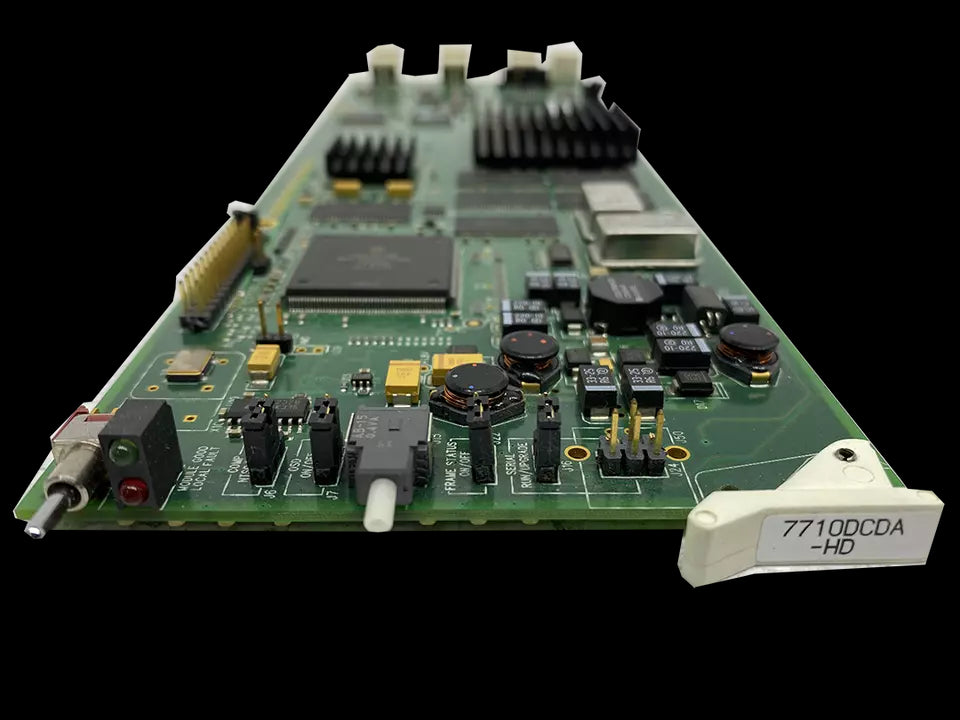

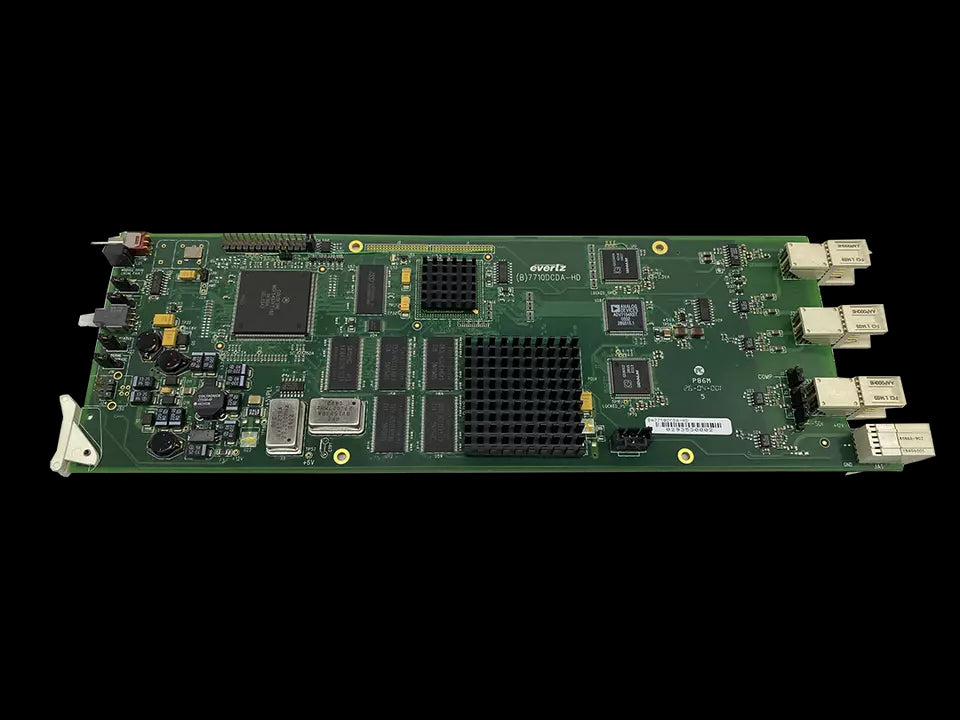

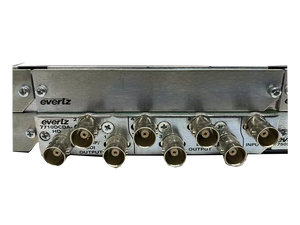

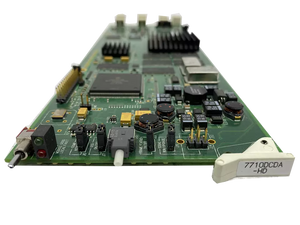

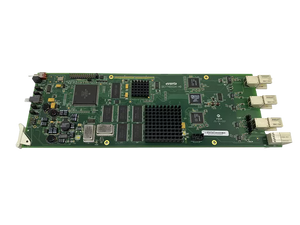

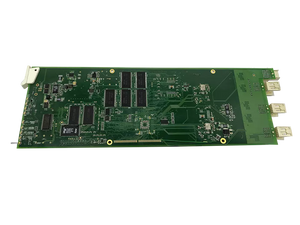

Evertz 7710DCDA Option Card

$0.00

The 7710DCDA-HD is a reclocking high definition serial digital video distribution amplifier and a high-quality downconverter for 1.5Gb/s HDTV signals. It can also function as a monitoring distribution amplifier for standard definition 270Mb/s signals. It provides 4 reclocked DA outputs and 3 downconverted SDI or composite analog NTSC/PAL outputs (selectable). It accepts all the popular international SMPTE 292M video formats. When the 7710DCDA-HD downconverts 1080p/23.98sF input video to 525i/59.94 with a 3:2 pulldown, the 3:2 pulldown cadence can be free-running or locked to embedded SMPTE 12M-2 time code.

The Evertz 7710DCDA-HD has color space conversion from ITU rec. 709 to ITU rec. 601, and will provide various downconverted formats such as 16:9 letterbox, 14:9 letterbox, 13:9 letterbox, 4:3 center crop, and 4:3 anamorphic squeeze. It supports Wide Screen Signaling (WSS) on the output to handle various aspect ratios of program material.

Full 10-bit processing is provided throughout the signal path to achieve excellent downconversion quality. The module allows for selectable horizontal and vertical filters to control picture sharpness. It also de-embeds two groups of audio, and re-embeds the audio on the SDI output in time with the video. All parameters may be controlled by use of the on-screen display menu.

View Product Features

Serial digital 1.5Gb/s HD input per SMPTE 292M
Supports most international standards including 1080i/60, 1080i/59.94, 1080i/50, 1080p/24, 1080p/23.98, 1080p/24sF, 1080p/23.98sF, 720p/60, 720p/59.94, 480p/60, and 480p/59.94
Will also accept 270Mb/s SD input per SMPTE 259M in a pass-through mode - auto senses HD or SD inputs
4 Reclocked DA outputs (HD if HD inputs applied, SD if SD inputs applied)
3 Selectable SDI or Composite Outputs (downconverted from HD if HD input applied, from reclocked SD if SD input applied)
High quality HD SD downconversion
Supports 16:9 letterbox, 14:9 letterbox, 13:9 letterbox, 4:3 center crop, and 4:3 anamorphic squeeze aspect ratio conversions
1080p/23.98sF conversion to 525i/59.94 with 3:2 pulldown sequence
HD to SD color space conversion (ITU rec. 709 to ITU rec. 601)
On-screen display used to configure the operating modes
De-embeds Audio from HD video and embeds into standard definition SDI video (2 groups)

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Evertz 7710DCDA Option Card

Key Features

Serial digital 1.5Gb/s HD input per SMPTE 292M
Supports most international standards including 1080i/60, 1080i/59.94, 1080i/50, 1080p/24, 1080p/23.98, 1080p/24sF, 1080p/23.98sF, 720p/60, 720p/59.94, 480p/60, and 480p/59.94
Will also accept 270Mb/s SD input per SMPTE 259M in a pass-through mode - auto senses HD or SD inputs
4 Reclocked DA outputs (HD if HD inputs applied, SD if SD inputs applied)
3 Selectable SDI or Composite Outputs (downconverted from HD if HD input applied, from reclocked SD if SD input applied)
High quality HD SD downconversion
Supports 16:9 letterbox, 14:9 letterbox, 13:9 letterbox, 4:3 center crop, and 4:3 anamorphic squeeze aspect ratio conversions
1080p/23.98sF conversion to 525i/59.94 with 3:2 pulldown sequence
HD to SD color space conversion (ITU rec. 709 to ITU rec. 601)
On-screen display used to configure the operating modes
De-embeds Audio from HD video and embeds into standard definition SDI video (2 groups)
