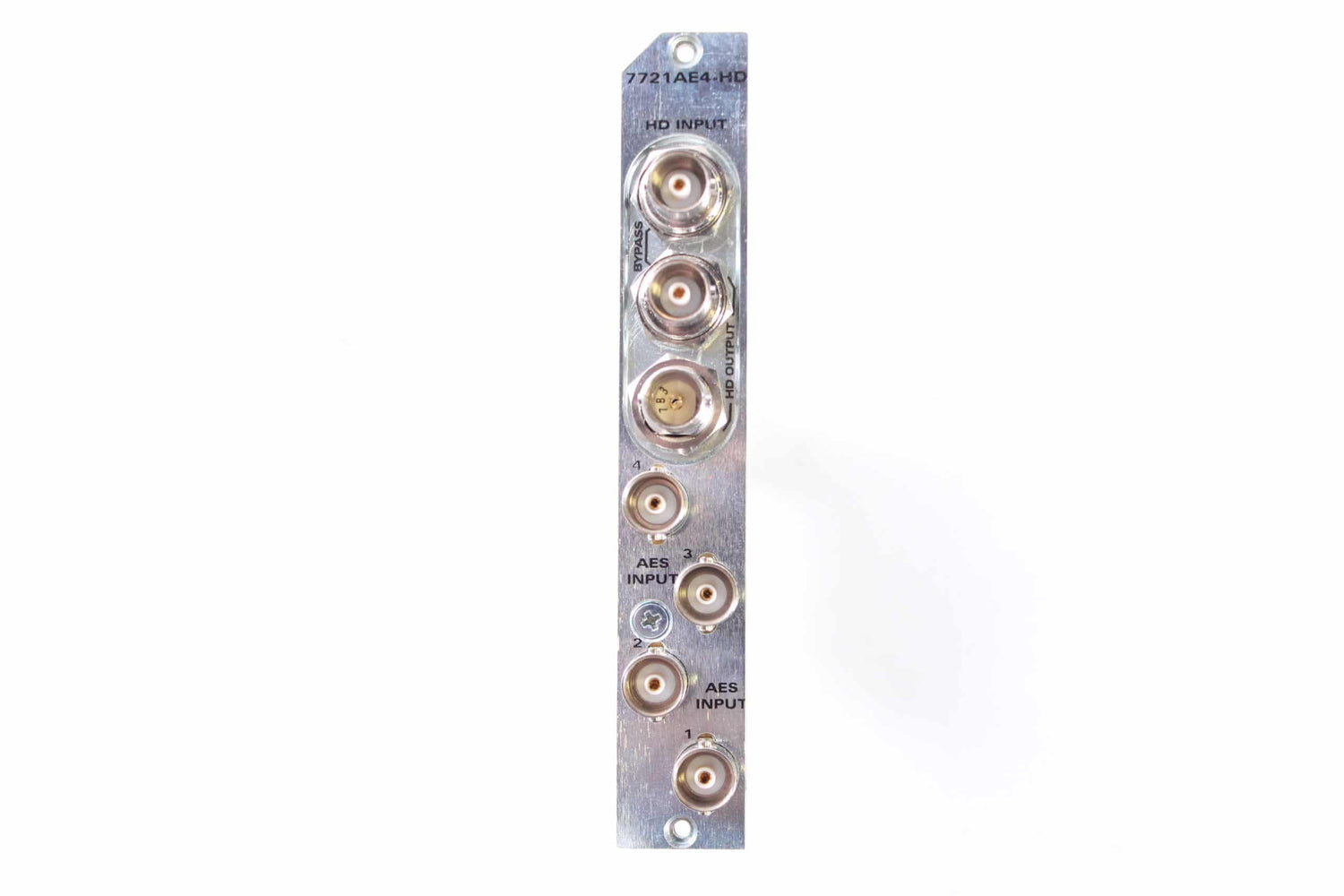

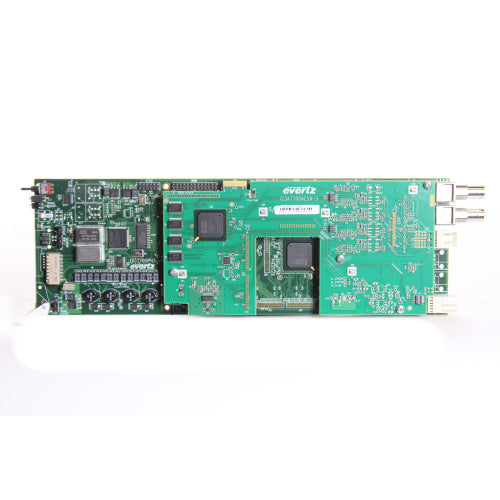

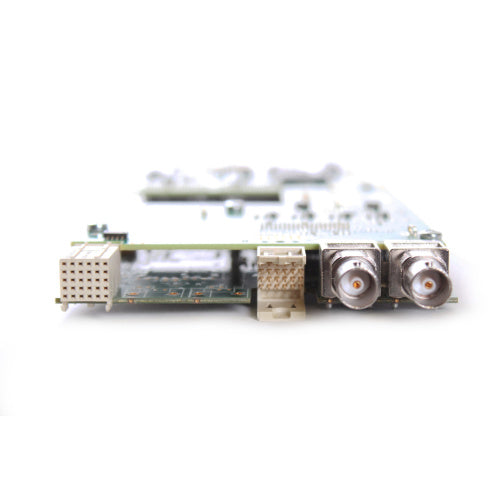

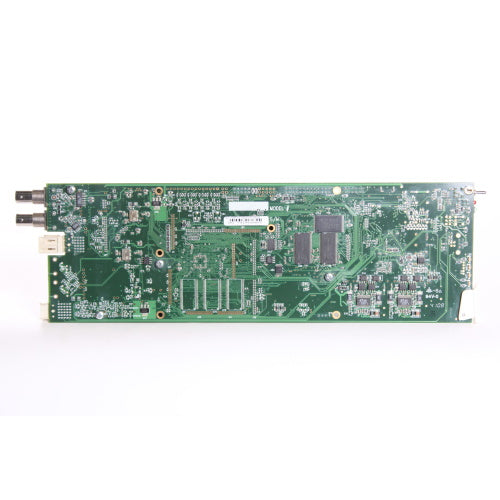

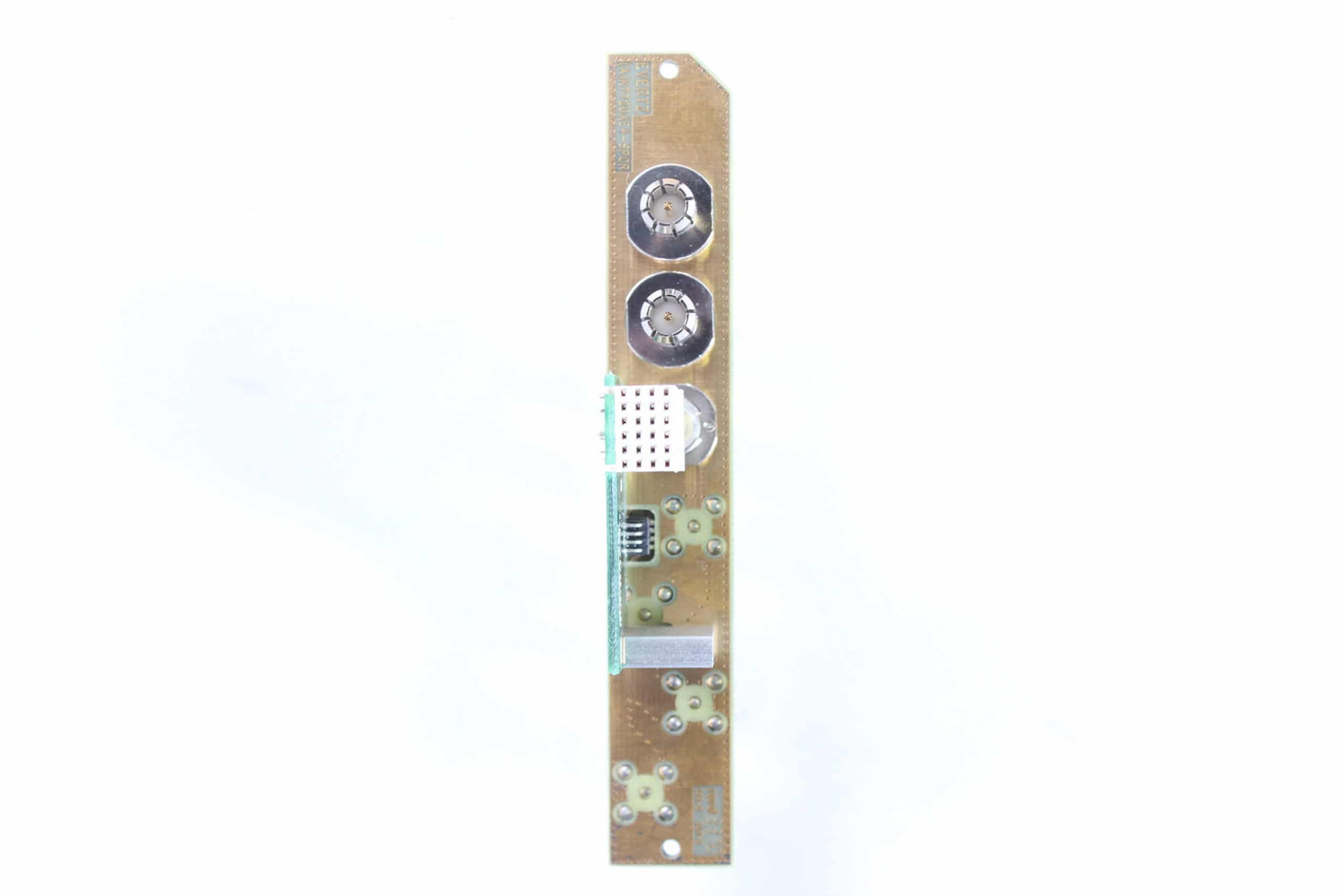

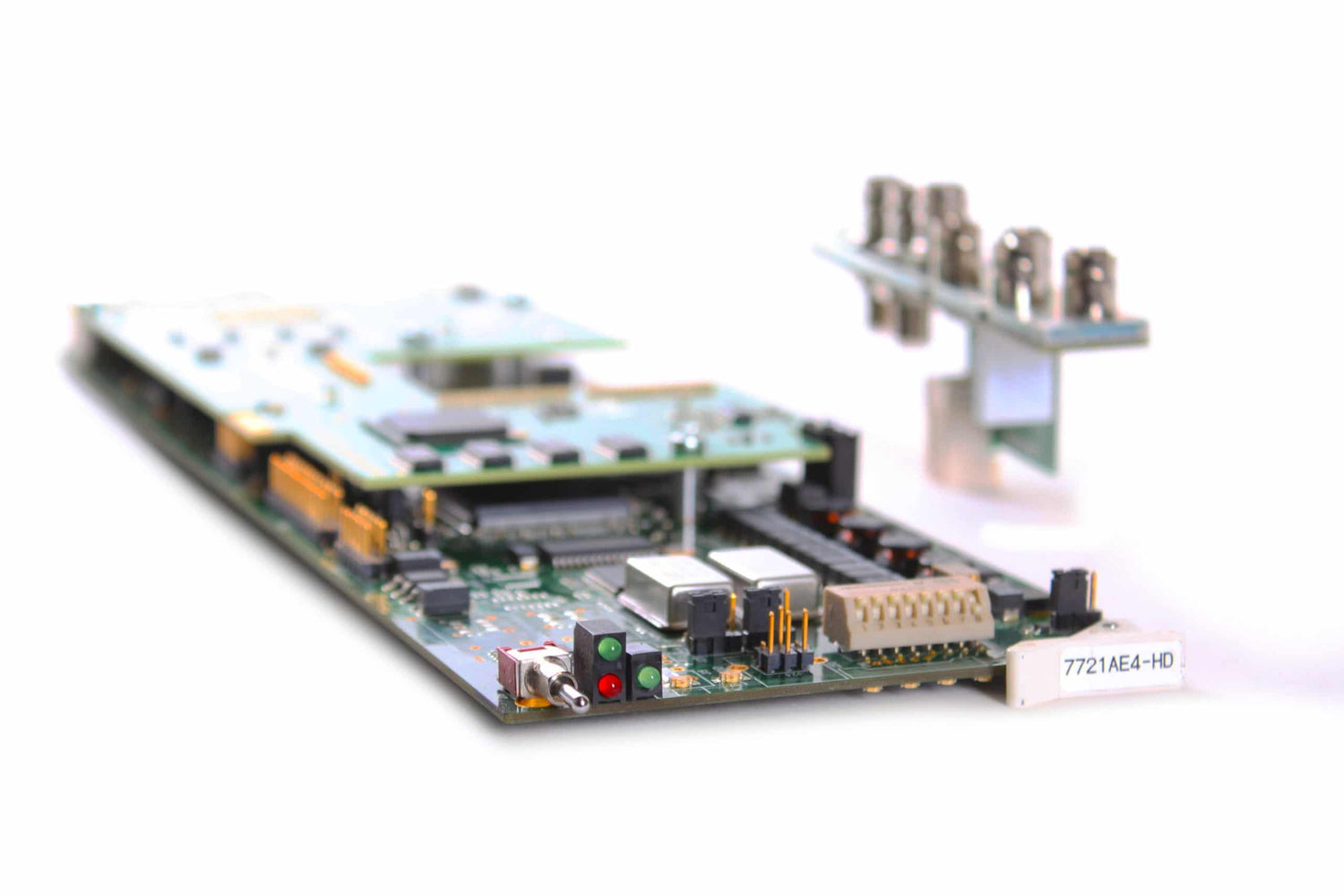

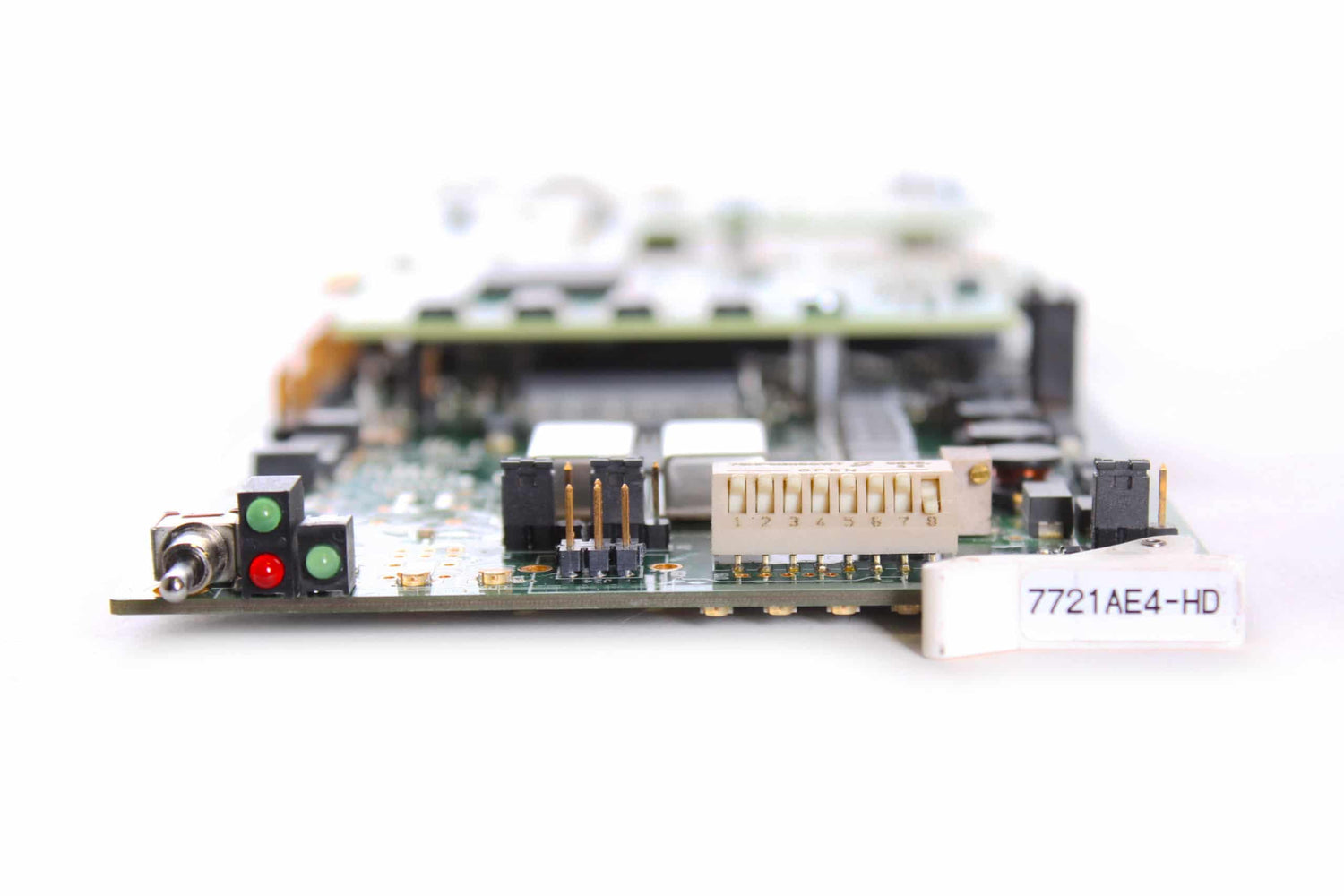

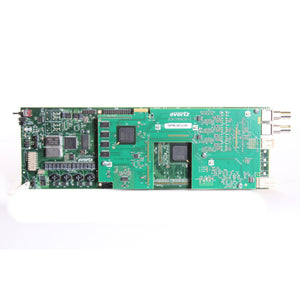

The Evertz 7721AE4-HD is a professional audio embedder module designed for the Evertz 7700 series modular platform. Its primary function is to take four channels of external, unbalanced AES/EBU digital audio and seamlessly insert (embed) them into a high-definition serial digital video (HD-SDI) stream. This process is fundamental in broadcast and production workflows where audio from external sources—such as audio mixers, digital audio workstations, or satellite receivers—must be combined with a video signal for routing, recording, or transmission as a single, unified SDI stream. The module ensures perfect synchronization (lip-sync) between the embedded audio and the video, maintaining broadcast-quality integrity throughout the signal chain.

Engineered for precision and reliability in a modular environment, the 7721AE4-HD accepts an incoming HD-SDI signal, extracts its existing timing reference, and uses this to synchronize the four incoming AES audio channels. It then multiplexes the audio data into the video stream's ancillary data space, following the SMPTE 299M standard for embedding 16 channels of audio into HD-SDI. The "unbalanced" designation refers to the AES input format, which is typically on a single BNC connector per channel (often referred to as AES3id), a common interface in broadcast facilities for medium-distance digital audio runs. The module integrates into the 7700 chassis, benefiting from its robust power, cooling, and centralized control via Evertz's management software.

As a critical component in modern broadcast infrastructure, this embedder enables flexible and efficient audio-video integration. It is commonly used in master control rooms, production studios, and playout centers to add commentary, alternative language tracks, or mixed audio to video feeds. By providing high-quality audio embedding within a scalable modular frame, it helps streamline complex signal paths and ensures compliance with broadcast standards for embedded audio.
