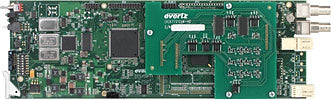

The Evertz 7721DE4-HD+SCTE104 is a high-density, multi-functional data embedding module engineered for the insertion of ancillary data into high-definition serial digital video streams within a professional broadcast infrastructure. Its primary function is to embed four independent channels of ancillary data—which can include asynchronous serial data such as timecode, GPS coordinates, or automation triggers—directly into the Vertical Ancillary Data (VANC) space of an HD-SDI signal. This capability is essential for consolidating signal paths and synchronizing metadata with video content for applications like broadcast automation, ad insertion, and content identification. The module's integration of SCTE 104 protocol support is a critical feature, specifically enabling the insertion of digital program insertion (DPI) and advertising automation cues directly into the transport stream, which is the industry standard for triggering ad breaks and other dynamic content changes in a broadcast chain.

The module operates with precision, ensuring that the embedded data packets are correctly formatted and positioned within the SDI data structure without affecting the integrity of the active video and audio. It provides granular control over the embedding process, allowing operators to select the specific VANC line and data space for each channel. The inclusion of SCTE 104 support means the module can be commanded via IP to insert specific cue messages, such as a "Splice Insert" command to trigger a switch to a commercial break, making it a vital interface between an automation server and the SDI-based plant equipment. This bridges the gap between IT-based control systems and traditional baseband video routing.

Designed as a card for a modular frame system, the 7721DE4-HD+SCTE104 centralizes and scales data embedding functions in a broadcast facility. It exemplifies the convergence of data and video, enabling streamlined workflows where control information travels in lockstep with the content itself. By embedding crucial timing and automation data directly into the video feed, the module eliminates the need for separate data networks or vulnerable external trigger connections, enhancing system reliability and timing accuracy. It is a specialized but fundamental component for modern, automated playout and master control environments that rely on precise, in-band signaling for operational commands.
