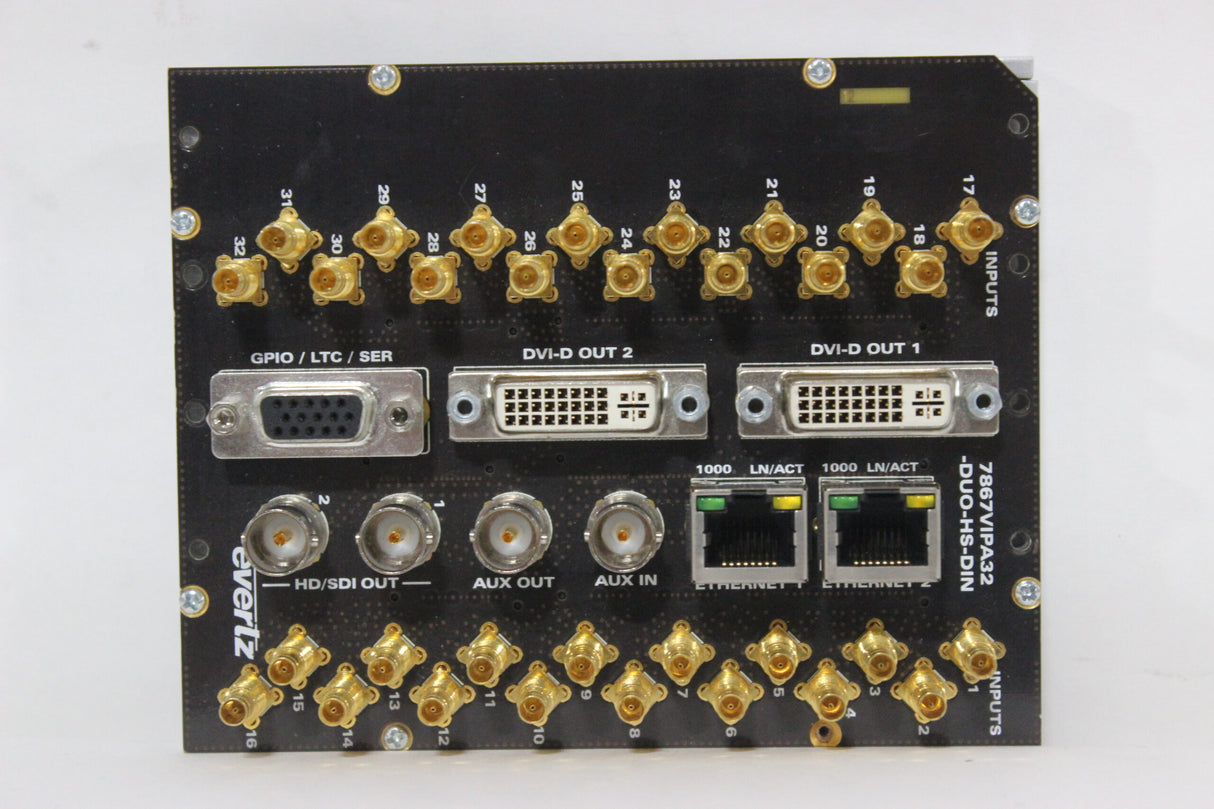

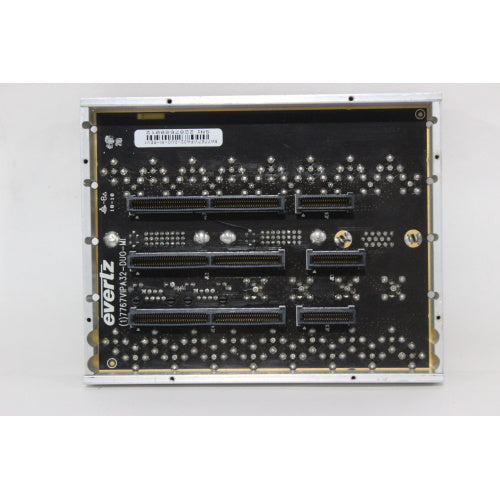

The Evertz 7867VIPA32-DUO-MI-REV1 Backplane is a specialized, high-capacity internal interconnection system that serves as the foundational data and power highway for a corresponding modular multiviewer chassis. It is a critical passive component, not a standalone processor, designed to facilitate the integration of numerous plug-in input, output, and processing cards that collectively form a comprehensive display wall system. This backplane provides the high-bandwidth pathways necessary for routing dozens of uncompressed video streams, audio data, control signals, and synchronization references between all installed modules within the frame. Its architecture is engineered to support the chassis's primary function: aggregating up to 32 independent video inputs and composing them into multiple, complex multi-picture layouts for output to large-scale display walls or dedicated monitoring screens.

This specific backplane revision is designed for a "DUO" configuration, indicating support for dual, independent multiviewer outputs, allowing the system to drive two separate display screens or video walls with different layouts simultaneously. The "MI" designation typically refers to a high-density media interface, underscoring its capacity for handling massive amounts of real-time media data with minimal latency. By centralizing all inter-card communication on this internal, passive fabric, the backplane eliminates the need for a vast and complex web of external coaxial or fiber cables to connect individual processors, drastically simplifying system design, improving signal integrity, reducing points of failure, and enhancing overall reliability in 24/7 broadcast operations.

The backplane's design ensures precise synchronization across all inputs and outputs, which is paramount for creating stable, artifact-free multiviewer displays. It distributes a common genlock reference and system clock to every card slot, guaranteeing that all video feeds are processed in perfect temporal alignment. Furthermore, it manages power distribution from the chassis's central supplies to each module. As the silent core of the multiviewer system, the 7867VIPA32-DUO-MI-REV1 Backplane enables the creation of a scalable, high-performance monitoring command center, where the complexity of signal routing is managed internally, allowing operators to focus solely on configuring and viewing their critical source mosaics through an intuitive software interface.
