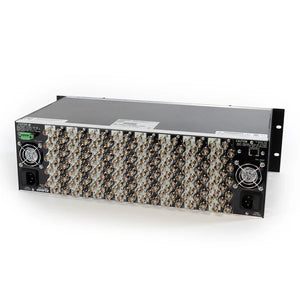

The Evertz S501FR is a compact, high-density, stand-alone frame system engineered to house and power a versatile array of modular signal processing and distribution cards for professional broadcast and video facilities. This frame serves as a centralized, scalable platform for deploying critical functions such as signal distribution, format conversion, synchronization, and monitoring in a streamlined 3 rack unit footprint. It is designed for applications where space is at a premium but functionality cannot be compromised, such as in mobile production trucks, satellite uplink vehicles, regional headends, or as a secondary distribution node within a larger broadcast center. The frame provides a robust and reliable infrastructure with integrated power and cooling to support continuous 24/7 operation.

The S501FR's architecture is based on a passive backplane that accepts a variety of single-slot, hot-swappable option cards, allowing system designers to build a custom-tailored processing hub. Available card types cover a broad spectrum of needs, including re-clocking distribution amplifiers (RDAs), fiber optic transceivers, audio embedders/de-embedders, frame synchronizers, and video test signal generators. This modularity enables the frame to evolve alongside a facility's requirements, with the ability to mix and match different card technologies to address specific signal routing and conditioning challenges. The frame typically includes a system controller card for monitoring card health, managing configurations, and providing Ethernet control connectivity.

Built with durability and serviceability in mind, the S501FR features dual, hot-swappable and redundant power supplies to ensure maximum uptime, along with a robust cooling system to maintain optimal operating temperatures for the installed cards. Its stand-alone nature means it operates independently without needing a larger master chassis, making it a self-contained solution. Front-accessible card slots and clear status indicators facilitate easy installation and troubleshooting. By offering high-density modular functionality in a compact, reliable, and easily managed package, the Evertz S501FR provides broadcast engineers with a powerful and flexible tool for building efficient and resilient signal distribution infrastructures.
