It is wonderful that you are seeking detailed information about the Grass Valley KMX-3901-IN-16-D input card. This component is a critical piece of hardware within professional broadcast environments, specifically designed for high-density, flexible, and scalable multiviewer systems. Understanding its role involves appreciating the intricacies of modern television production workflows, where monitoring numerous video sources simultaneously and reliably is paramount.

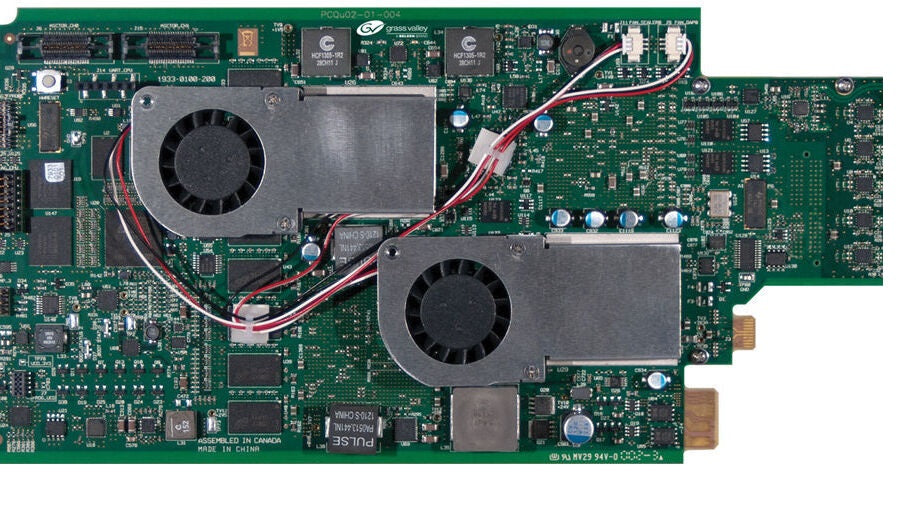

The KMX-3901-IN-16-D is a specialized 16-input HD/SD-SDI and 3 Gb/s input module. It is part of the broader Kaleido-Modular-X product line from Grass Valley, a system that revolutionized how broadcast engineers manage multiformat signals within a space-efficient chassis. This card's primary function is to ingest up to sixteen separate digital video sources (SDI signals) and prepare them for display on a multiviewer layout. Its modular design allows it to reside in the main Densité 3 frame chassis, a 3 RU rack-mount unit that provides redundant power and cooling, making the entire setup incredibly robust and suitable for 24/7 "on-air" operations, including those in space-constrained outside broadcast (OB) trucks.

One of the most innovative aspects of the Kaleido-Modular-X system that this card supports is the "FlexBridge" technology. This unique feature utilizes standard coaxial cables to bridge the input and output modules, which can be installed in different locations within a facility. For example, the input stage (where this card resides) can be placed right next to a video router to minimize initial cable runs, while the output modules can be situated closer to the actual displays in the control room. This eliminates the need for expensive HDMI or fiber extenders and simplifies installation, offering significant cost and cabling advantages in complex broadcast infrastructures. Furthermore, the card is "4K-ready" and can natively handle quad-link 4K sources as a prescaler, seamlessly stitching them back together into a single, pixel-perfect image for monitoring purposes, which ensures that facilities using this technology are future-proofed for evolving Ultra High Definition (UHD) standards.

Ultimately, the KMX-3901-IN-16-D is designed for reliability and comprehensive monitoring. It features hot-swappable capability with an auto-recovery feature to ensure fast automated recovery should a module need replacement, reducing downtime. The card also provides on-screen alarming for various critical signals, such as closed captioning, Active Format Description (AFD), and licensed Dolby E metadata, which helps ensure compliance with broadcast regulations. The combination of high input density, flexible architecture, and advanced monitoring capabilities makes this card an essential workhorse in professional video production and playout environments.
