Theatrixx Technologies

Theatrixx Technologies 2-Channel 3G-SDI Repeater Reverse Module

$565.00

Enjoy unparalleled flexibility with the theatrix SDI Repeater Dual Channel Reversible Module, a seamless addition to the 8-Bay Reversible Rackmount Converter system (sold separately). Designed for convenience, the module can be inserted into the 8-Bay Frame in either direction, providing you the freedom to position inputs/outputs at the front or back of the unit based on your needs. The rugged modules alleviate worries about static shock, dust, and general wear and tear since the PCBs are enclosed. The SDI Repeater Module offers a tidy, hassle-free setup with gold-plated redundant spring pins featuring magnetic retention for DC power delivery to the modules, no more messy cabling, and external power bricks or wall warts. Elegantly extend your SDI signal reach with the XVVRM-SDI2SDI dual-channel reversible repeater module.

View Product Features
  • SDI Repeater: Acts as a dual-channel SDI signal booster/repeater, cleaning and reclocking the signal.
  • Reversible Design: Fits into the Theatrixx 8-Bay Reversible Rackmount Frame (sold separately) and can be inserted front-to-back or back-to-front for flexible cabling.
  • Broad Format Support: Handles 3G (1080p), HD (720p, 1080i, 1080p), and SD (NTSC, PAL) formats.
  • Auto-Detection: Automatically detects and switches between incoming SDI signal formats.
  • Rugged & Protected: Enclosed design protects against dust, shock, and wear, with gold-plated connectors.
  • Professional Standards: Compliant with SMPTE 425M (Level A & B), 424M, 292M, and 259M standards.
  • Plug-and-Play: Simple operation with no complex menus or buttons.
  • Status LEDs: Clear indicators for quick troubleshooting.
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Theatrixx-XVVRM-SDI2SDI

    Theatrixx Technologies 2-Channel 3G-SDI Repeater Reverse Module

    $565.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies 2-Channel 3G-SDI Repeater Reverse Module

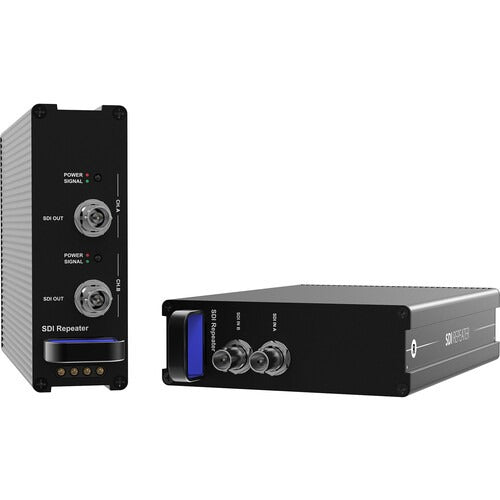

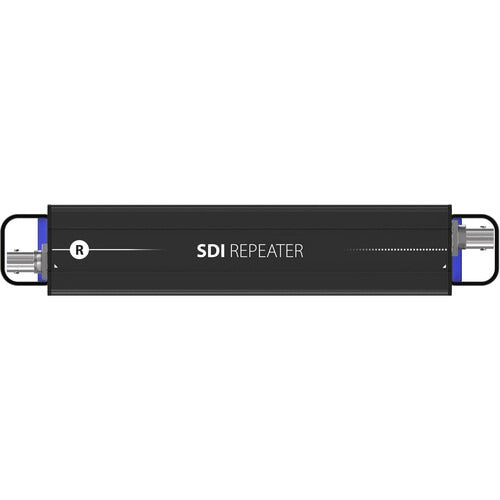

The Theatrixx XVVRM-SDI2SDI is an SDI Repeater dual channel Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

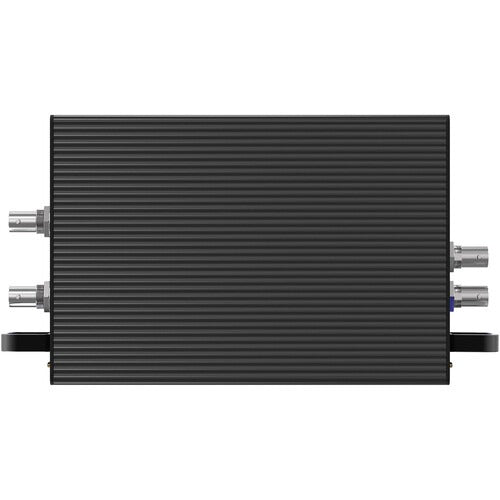

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

  • SDI Repeater: Acts as a dual-channel SDI signal booster/repeater, cleaning and reclocking the signal.
  • Reversible Design: Fits into the Theatrixx 8-Bay Reversible Rackmount Frame (sold separately) and can be inserted front-to-back or back-to-front for flexible cabling.
  • Broad Format Support: Handles 3G (1080p), HD (720p, 1080i, 1080p), and SD (NTSC, PAL) formats.
  • Auto-Detection: Automatically detects and switches between incoming SDI signal formats.
  • Rugged & Protected: Enclosed design protects against dust, shock, and wear, with gold-plated connectors.
  • Professional Standards: Compliant with SMPTE 425M (Level A & B), 424M, 292M, and 259M standards.
  • Plug-and-Play: Simple operation with no complex menus or buttons.
  • Status LEDs: Clear indicators for quick troubleshooting.

Theatrixx Technologies 2-Channel 3G-SDI Repeater Reverse Module Specs

Connections

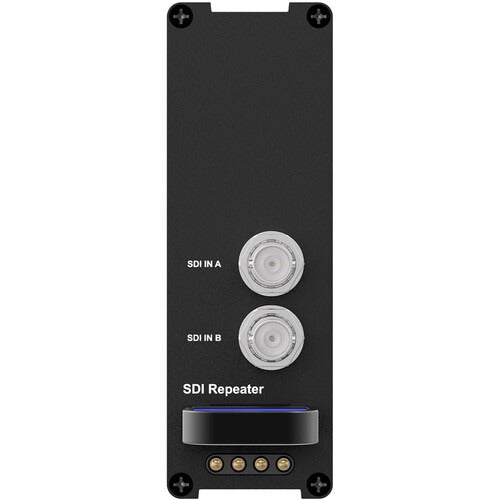

Video Input
2x 3G/HD/SD SDI BNC

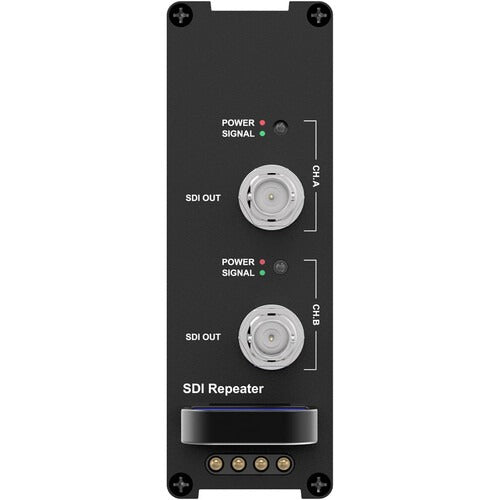

Video Output
2x 3G/HD/SD SDI BNC
Supported Signals
3G Format Support
1080p50, 1080p59.94, 1080p60
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range
12VDC

Key Features

  • SDI Repeater: Acts as a dual-channel SDI signal booster/repeater, cleaning and reclocking the signal.
  • Reversible Design: Fits into the Theatrixx 8-Bay Reversible Rackmount Frame (sold separately) and can be inserted front-to-back or back-to-front for flexible cabling.
  • Broad Format Support: Handles 3G (1080p), HD (720p, 1080i, 1080p), and SD (NTSC, PAL) formats.
  • Auto-Detection: Automatically detects and switches between incoming SDI signal formats.
  • Rugged & Protected: Enclosed design protects against dust, shock, and wear, with gold-plated connectors.
  • Professional Standards: Compliant with SMPTE 425M (Level A & B), 424M, 292M, and 259M standards.
  • Plug-and-Play: Simple operation with no complex menus or buttons.
  • Status LEDs: Clear indicators for quick troubleshooting.
