Theatrixx Technologies

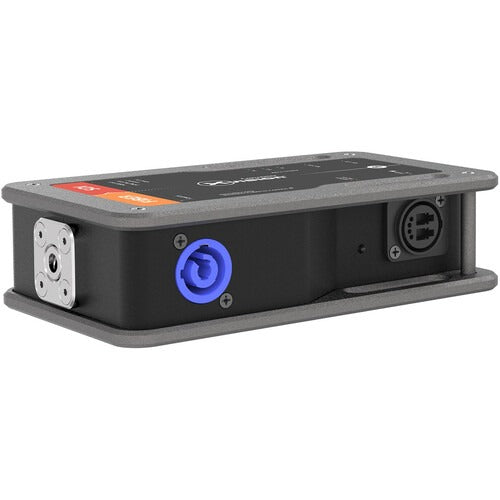

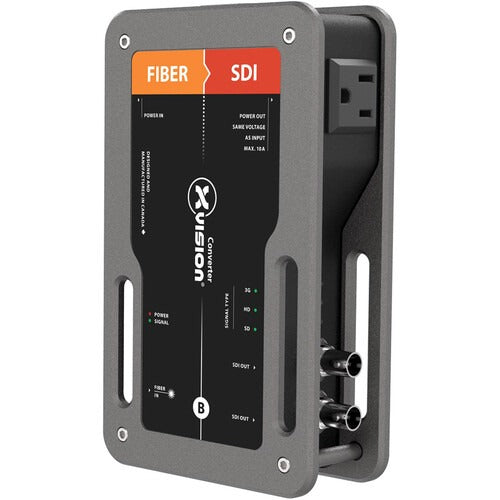

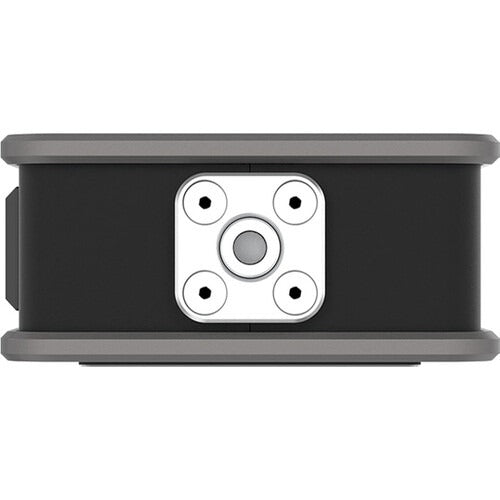

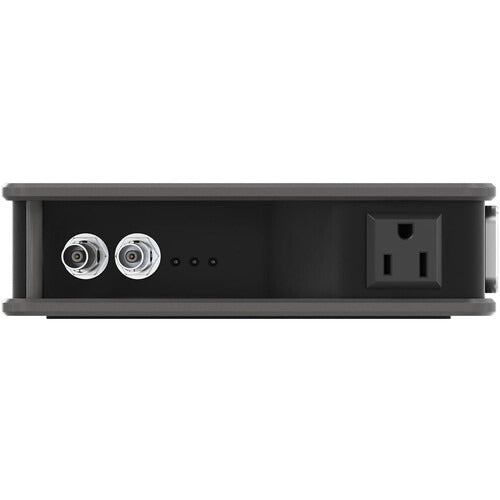

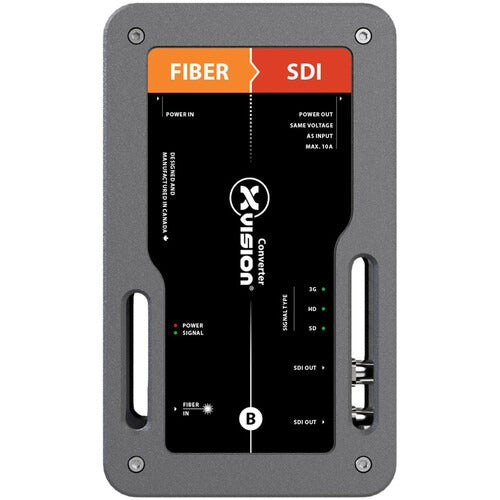

Theatrixx Technologies Fiber to 3G-SDI xVision Converter (Multi-Mode, ST)

$699.00

The Fiber to 3G-SDI xVision Converter from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a multi-mode ST SFP fiber input module to a 3G-SDI video conversion output for long-distance video transmission.

The unit features an integrated power supply with a locking powerCON True1 connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON True1 output to daisy-chain your modules or power a local TV, computer, or projector.

View Product Features

  • Plug-and-Play Operation
  • SFP Fiber to 3G-SDI Video Transmission
  • Multi-Mode ST Fiber Input
  • Multiple Mounting Options
  • Magnetic Stacking System
  • PowerCON True1 Power Input/Loop Output
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Fiber to 3G-SDI xVision Converter (Multi-Mode, ST)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Plug-and-Play Operation
  • SFP Fiber to 3G-SDI Video Transmission
  • Multi-Mode ST Fiber Input
  • Multiple Mounting Options
  • Magnetic Stacking System
  • PowerCON True1 Power Input/Loop Output

Theatrixx Technologies Fiber to 3G-SDI xVision Converter (Multi-Mode, ST) Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Video Output
2 x 3G/HD/SD SDI BNC
Supported Signals
Video Format Support
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
50 mm (1.97 in)
Depth
180 mm (7.08 in)
Width
107 mm (4.21 in)
Weight
1 kg (2.2 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON True1 input PowerCON True1 output (loop-thru)
Power Consumption
15W
Voltage Range
100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/ Edison Nema 5-15)
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • SFP Fiber to 3G-SDI Video Transmission
  • Multi-Mode ST Fiber Input
  • Multiple Mounting Options
  • Magnetic Stacking System
  • PowerCON True1 Power Input/Loop Output
