Theatrixx Technologies

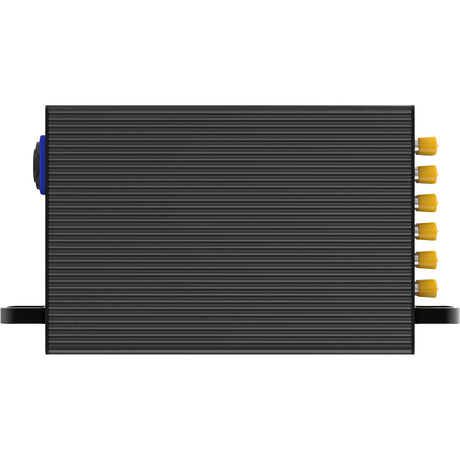

Theatrixx Technologies Optical Break Out 1:12 Module (Single Mode)

$799.00

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. It is a fully passive module requiring no external power, and allows combining 4 optical signals into a single cable, allowing trunking applications. Video, network, audio and more can all be combined in a single cable!

View Product Features

Channels: 12-channel breakout.
Fiber Type: Multimode.
Connectors: 1 x OpticalCON MTP (Multi-core) to 12 x ST connectors.
Form Factor: Reversible module designed for the Theatrixx 8-Bay Frame.
Design: Enclosed, protected against static shock, dust, and wear.
Power: Fully passive (no external power required).
Flexibility: Can be inserted in either direction in the frame, allowing I/O to be front or rear-facing.

In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

New
Theatrixx-XVVRM-OBO12M

Theatrixx Technologies Optical Break Out 1:12 Module (Single Mode)

$799.00

View Product
New
Theatrixx-XVVRM-OBO12S

Theatrixx Technologies Optical Break Out 1:12 Module (Multi Mode)

$799.00

View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies Optical Break Out 1:12 Module (Single Mode)

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. It is a fully passive module requiring no external power, and allows combining 4 optical signals into a single cable, allowing trunking applications. Video, network, audio and more can all be combined in a single cable!

Key Features

Channels: 12-channel breakout.
Fiber Type: Multimode.
Connectors: 1 x OpticalCON MTP (Multi-core) to 12 x ST connectors.
Form Factor: Reversible module designed for the Theatrixx 8-Bay Frame.
Design: Enclosed, protected against static shock, dust, and wear.
Power: Fully passive (no external power required).
Flexibility: Can be inserted in either direction in the frame, allowing I/O to be front or rear-facing.

Theatrixx Technologies Optical Break Out 1:12 Module (Single Mode) Specs

Supported Signals

Multi-Core Connector

1 x OpticalCON MTP

Single Connectors

12 x ST

Environmental Specifications

Relative Humidity

0% to 90% non-condensing

Operating Temperature

0-40 °C

Power requirements

Power Consumption

None (Passive)

Voltage Range

None (Passive)

Key Features

Channels: 12-channel breakout.
Fiber Type: Multimode.
Connectors: 1 x OpticalCON MTP (Multi-core) to 12 x ST connectors.
Form Factor: Reversible module designed for the Theatrixx 8-Bay Frame.
Design: Enclosed, protected against static shock, dust, and wear.
Power: Fully passive (no external power required).
Flexibility: Can be inserted in either direction in the frame, allowing I/O to be front or rear-facing.
